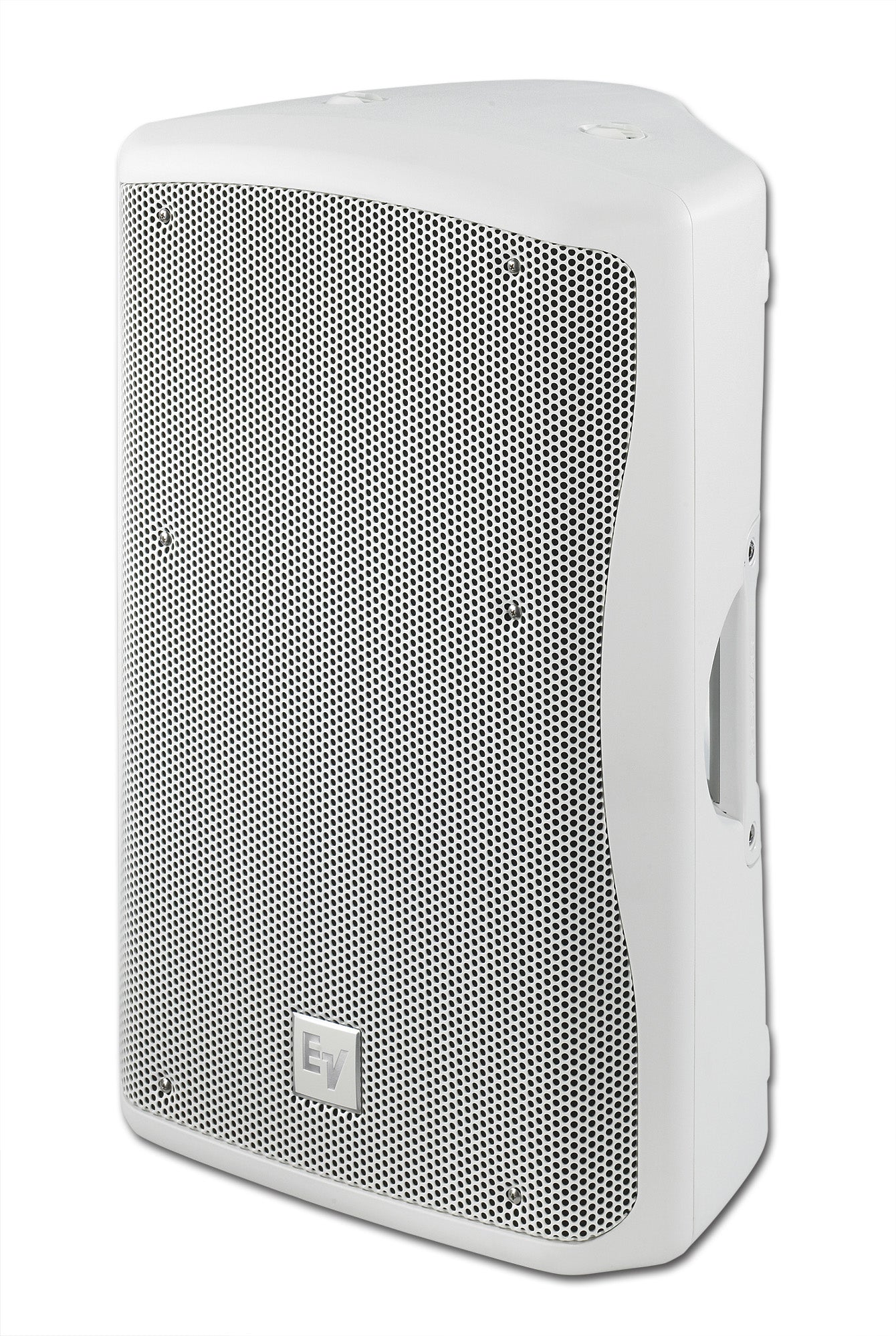

Electro-Voice ZX5-60W 15" Two-Way Full Range Loudspeaker, White


  • Our Price
  • Regular price $1,403.00




CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19



Get Superior Sound In A Flexible Package

Designed for top-notch quality with amazing versatility, the ZX/ZXA series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX/ZXA line is at home in any installed or portable application, from commercial sound to clubs, HoW, stages, arenas, and stadiums. Newly-designed high power woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere. Light weight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX/ZXA series represents the next level in advanced loudspeaker technology.


  • Versatile performance for mains, fills, or monitors
  • DVX3150A woofer with forced-air cooling
  • 2-inch ND2 titanium/neodymium HF driver
  • Switchable bi-amp or passive crossover operation
  • Choice of 90º x 50º or 60º x 60º coverage horn
  • High sensitivity, 132 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • High impact polypropylene enclosure
  • Wedge shape for monitors at 45º or 55º
  • Up to five anchor-plate attachments
  • M8 mounting inserts (10)
  • Integrated handle
  • Available in black or white


SPECIFICATIONS

  • Frequency Range (-10 dB): 39 - 20000kHz
  • Weatherized: Yes
  • Flying: Yes
  • Minimum Impedance: 6.5Ω
  • Nominal Impedance (Passive): 8Ω
  • HF Nominal Impedance: 8Ω
  • HF Transducer: 2-inch ND2
  • Speaker Type: Full-Range, Mid-High, Two-Way, Wedges
  • Woofer Size: 15inch
  • Powered or Passive: Passive
  • Frequency Response (-3 dB): 58 - 18000Hz
  • LF Nominal Impedance: 8Ω
  • Max. SPL/1m (calc): 132dB
  • Coverage (Nominal -6 dB) H: 90/60°
  • LF Transducer: 15-inch DVX3150A
  • Coverage (Nominal -6 dB) V: 50/60°
  • System Power Handling (Continuous/Program/Peak): 600//2400Watts
  • Power Rating: 2400W
  • LF Power Handling: 500Watts
  • HF Power Handling: 40Watts
  • Crossover Frequency: 1500Hz
  • Enclosure Material: High Impact Polystyrene Composite
  • Grille: Polyester Powder Coated, 18GA Galvanized Steel
  • Color: White
  • Sensitivity 1 W/1 m: 98dB
  • Height: 27.24" (692mm)
  • Recommended High-Pass Frequency: 36Hz
  • Width: 17.56" (446mm)
  • Depth: 16.18" (411mm)
  • Internal Crossover: Switchable biamp or passive crossover
  • Weight Net: 48.94lbs (22.2kg)
  • Family: ZxZxA
  • Input Connections: Parallel Neutrik® NL4
  • Chassis Size: 381 mm

Manufacturer: Electro-Voice
Model: ZX5-60W
Warranty: See manufacturer website for details
SKU: I192413-N-0-B
UPC: 800549416757
