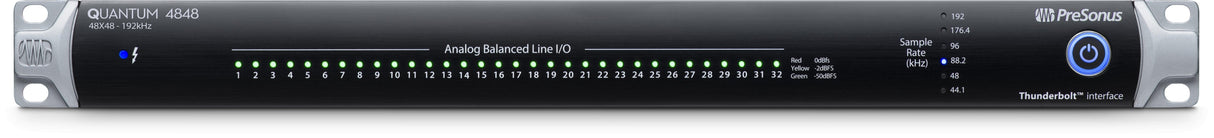

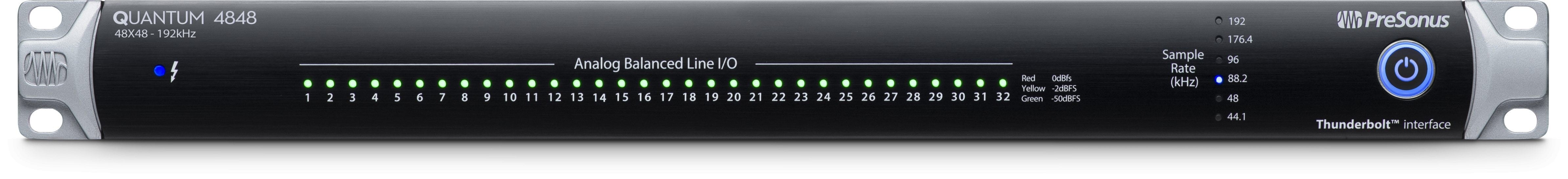

Presonus Quantum 4848 24-bit 192 kHz Thunderbolt Audio Interface


  • Our Price
  • $1,499.95
  • Regular price MSRP: $1,799.95





*IN STOCK - READY TO SHIP


Integrate Vintage Gear With Your DAW At Quantum Speed With The Presonus Quantum 4848 24-bit 192 kHz Thunderbolt Audio Interface

Complete Digital Integration For The Analog Studio

Designed for the needs of the recording professional, the Quantum 4848 is the perfect solution to take your analog gear into the digital domain. Equipped with 32 inputs and outputs of DB25 line-level connectivity and pristine digital conversion with 120 dB of dynamic range, the Quantum 4848 allows you to bring vintage and boutique analog gear into your DAW at blazingly fast speed thanks to its near-zero-latency Thunderboltâ„¢ interface. 16 additional channels of ADAT Optical I/O let you tie in digital gear, and you can expand your simultaneous I/O to 192 channels. The included Studio One Professional DAW features Pipeline XT, allowing you to use your analog gear as plug-ins inside your Studio One session.

The Perfect Companion For Your Patchbay

With the Quantum 4848, your audio interface is an integrated extension of your recording environment. Rear panel DB25 line-level I/O makes connecting your Quantum 4848 to your existing analog patchbay a breeze. With 32 channels of inputs and outputs at sample rates up to 192 kHz, you can route audio from your vintage gear and analog recording console to your DAW and back in pristine quality, capturing every nuance of your boutique equipment. Integrating digital gear is facilitated by 16 channels of ADAT I/O. For a full compliment of 48 channels of conversion, you can simply add two DigiMax DP88s via the 16 ADAT channels. A true Thunderbolt device, up to 4 Quantum 4848 interfaces can be stacked to create a 192x192 system-or combine the Quantum 4848 with Quantum and Quantum 2 interfaces to add PreSonus’ recallable XMAX Class A high-headroom preamps.

Superior Speed

Every design decision during Quantum’s engineering was made with one goal in mind: speed. Quantum sports high-speed Thunderbolt connectivity and a no-frills, direct-to-DAW architecture that was designed to transport your audio to and from your DAW with an imperceptible amount of latency. Cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range ensures the fidelity of your audio as it moves to the digital domain.

Superior Flexibility

Some DAWs limit your I/O access when you use third-party audio interfaces. The Quantum 4848 resolves this issue by providing three Channel Profile modes that allow you to adapt the input and output channel configuration when the application you’re using limits you to 32 inputs and outputs or less. Set the Quantum 4848 to use 32 analog inputs with 16 channels of ADAT, 24 analog inputs with 8 channels of ADAT, or 16 analog inputs with 16 channels of ADAT to customize the assortment of analog and digital inputs and better accommodate your needs. And if you get tired of limiting your available inputs, launch Studio One Professional to record up to 192 simultaneous inputs, mix and master your sessions all from the same software.

Superior Sound

Audiophile-grade digital converters and low-jitter clocking create a superior recording and listening experience. The Quantum audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 120 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. BNC word clock I/O and low-jitter clocking ensure the Quantum 4848 and other digital audio devices operate in tight sync for superior imaging.



GENERAL FEATURES

  • 48x48 ultra-low-latency 24-bit 192 kHz Thunderbolt 2 audio interface
  • 32 line-level inputs and outputs via rear-panel DB25 connectors
  • Dual ADAT inputs and outputs for 16 channels of digital I/O at base sample rates.
  • Stack up to four Quantum 4848 interfaces via Thunderbolt for 192x192 simultaneous inputs and outputs
  • Stack any combination of four Quantum, Quantum 2, and Quantum 4848 interfaces via Thunderbolt to create a custom system

INTEGRATED SOFTWARE

  • Tight integration with included Studio One Professional DAW software (Mac/Windows) for multitrack music production and mastering
  • Native Studio One Pipeline XT plug-in provides easy integration of analog processors in a digital recording environment
  • Select the Channel Profile modes, monitor levels, switch the front panel level meters (input/output), and more with free UC Surface touch-control software (Mac/Windows/iPad/Android*)
  • Wireless control of Studio One Professional using free Studio One Remote for iPad/Android tablet
  • Studio Magic Plug-in Suite included
  • Compatible with most recording software for Mac and Windows
  • * Note: there is no stand-alone support for iOS and Android. You can control Quantum-series interfaces from these devices, but the interface must be connected to a computer that is on the same network as the tablet.

CONNECTIVITY

  • Simultaneous I/O up to 48 inputs/48 outputs
  • 32 line-level inputs and outputs via rear-panel DB25 connectors
  • ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
  • Channel Profile modes allow you to customize I/O configurations for third-party recording software that limits simultaneous recording streams
  • Dual Thunderbolt ports for stacking multiple units and connecting Thunderbolt peripherals

DIGITAL

  • Thunderbolt 2 high-speed bus
  • 24-bit resolution and up to 192 kHz sampling rate
  • 120 dB A/D/A converters
  • BNC word clock input and output with low-jitter clocking

PHYSICAL

  • Rugged construction with all-metal chassis
  • 1U rack-mountable
  • 12 VDC, 5A external power supply (included)


Below Are The Minimum Computer-System Requirements For The Quantum 4848 Interface.

Mac

  • Mac OS X 10.11.6 64-bit or later
  • Intel Core i5 or better
  • 4 GB RAM (8 GB or more recommended)

Windows

  • Windows 10 64-bit or later
  • Intel Core i5 or better
  • 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

  • Thunderbolt 1.0, 2.0, or 3.0 port (Note: Your computer's motherboard must support Thunderbolt. Thunderbolt 3 requires an adapter, not included.)
  • Internet connection (required for Studio One Activation and Content download)
  • Internal or external 7200 RPM storage drive highly recommended
  • 30 GB hard disk space
  • Monitor with 1366x768 resolution

Manufacturer: Presonus Audio
Model: QUANTUM 4848
Warranty: See manufacturer website for details
SKU: I560477-N-1
UPC: 673454006685
