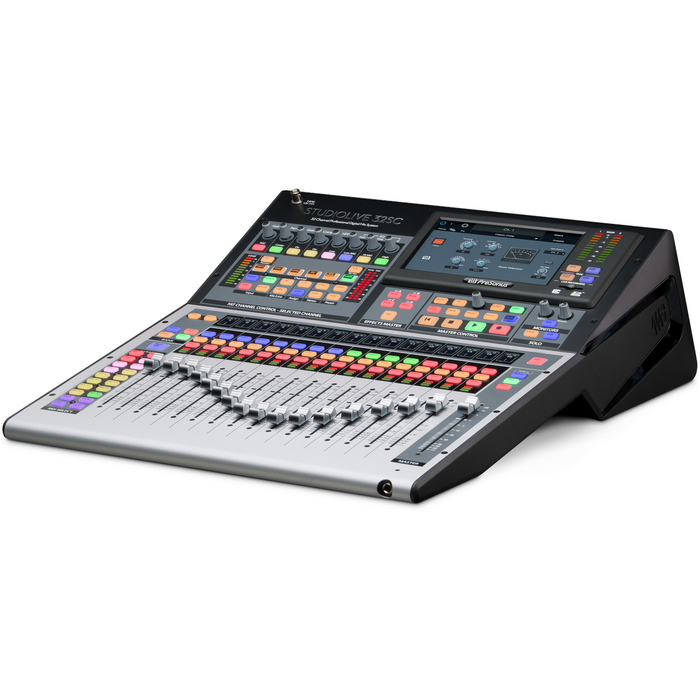

PreSonus StudioLive32SC Series III Subcompact 32 Channel Digital Mixer


  • Our Price
  • $2,199.95
  • Regular price MSRP: $2,859.95





*IN STOCK - READY TO SHIP


Get The Small Digital Mixer With Big Power - The PreSonus StudioLive32SC Series III Subcompact 32 Channel Digital Mixer

The StudioLive 32SC is a compact, rack-mountable 32-channel digital mixer that can be quickly and easily scaled for 16, 24, and 32-channel applications. Don't let the road-ready size fool you; the StudioLive 32SC sports a dual-core PreSonus FLEX DSP Engine powering 40 mixing channels, 26 mix buses, and 286 simultaneous processors-including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. With 128 (64x64) channels of USB recording and AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32SC provides all the tools you need - whether you're building your dream studio or putting together a pro touring rig.


SPECIFICATIONS

40 Input-channel Digital Mixer with 17 Touch-sensitive Motorized Faders

  • 16 local digitally controlled XMAX mic/line inputs
  • 16 digital channels (AVB, USB, or SD)
  • 2 balanced stereo aux inputs
  • 1 stereo tape input (RCA, USB, AVB or SD)
  • 4 FLEX FX returns
  • 1 Talkback

26 Mix Buses

  • 16 FlexMixes (Aux, Subgroup, Matrix)
  • 4 dedicated FLEX FX buses
  • 4 dedicated subgroups
  • Stereo Main bus

286 Simultaneous Processors

  • HPF
  • Gate / Expander
  • Compressor with Fat Channel plug-in models
  • 4-band/6-band parametric EQ with Fat Channel plug-in models
  • Limiter
  • 31-band Graphic EQ
  • 4 FLEX FX slots featuring legendary classic reverb emulations and delays

DAW Control

  • Advanced Studio One control integration
  • MCU emulation mode optimized for Logic
  • HUI emulation mode optimized for Pro Tools

Capture 3.0 Multitrack Software Included

  • Automated Virtual Soundcheck
  • Store StudioLive Mix Scenes with Your Audio

Advanced Studio One Integration (Studio One Artist Included)

  • XMAX mic preamp control from Studio One
  • Control Fat Channel parameters from Studio One mixing console

Microphone Preamplifier

  • Input Type: XLR Female, balanced
  • Frequency Response to Main Output (at unity gain): 20-20 kHz, +/- 0.5 dBu
  • Input Impedance: 1 kiloOhm
  • THD to Main Output: <0.005 percent, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
  • Gain Control Range (+/- 1 dB): 0 dB to +60 dB
  • Maximum Input Level (unity gain): +12 dBu
  • Phantom Power (+/- 2 VDC): 48 VDC, switchable per channel

Line Inputs

  • Grade: 1/4" TRS Female, balanced
  • Frequency Response to Main Output (at unity gain): 20-20 kHz,+/- 0.5 dBu
  • Input Impedance: 10 kiloOhms
  • THD to Main Output: <0.005 percent, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Maximum Input Level: +18 dBu

Tape Inputs

  • Grade: RCA Female, unbalanced (stereo pair)
  • Maximum Input Level: +12 dBu, +/- 0.5 dBu

XLR Outputs

  • Grade: XLR Male, balanced
  • Maximum Output Level: +24 dBu, +/- 0.5 dBu
  • Output Impedance: 100 ohms

Line Outputs

  • Grade: 1/4" TRS Female, balanced
  • Maximum Output Level: + 18 dBu, +/- 0.5 dBu
  • Output Impedance: 100 ohms

Tape OutputsS

  • Grade: RCA Female, unbalanced (stereo pair)
  • Maximum Output Level: + 18 dBu, +/- 0.5 dBu
  • Output Impedance: 100 ohms

Headphone Ouput

  • Grade: 1/4" TRS Female, active stereo
  • Maximum Output: 100 mW / ch. @ 60 ohm load
  • Frequency Response: 20 Hz - 20 kHz (+/- 0.5 dB)
  • THD + N: 0.01 percent, 1 kHz, max gain, 20 Hz BW, unwtd
  • S / N ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk

  • Input to Output: -90 dB (Ref = + 4 dBu, 20 Hz-20 kHz, unwtd)
  • Adjacent Channels: -87 dB (Ref = + 4 dBu, 20 Hz-20 kHz, unwtd)

Digital Audio And Control

  • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • USB Recording Port: USB 2.0, Type-B
  • AES / EBU output: XLR Male
  • Network Control Port: RJ-45
  • AVB Audio Network Port: Locking XLR Ethernet
  • Internal Processing: 32-bit, floating point
  • Sampling rate: 48 kHz, 44.1 kHz
  • A / D / A Bit Depth: 24
  • Reference Level for 0 dBFS: +18 dBu
  • Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

Clock

  • Jitter: 20 ps RMS (20 Hz - 20 kHz)
  • Jitter Attenuation: 60 dB (1 ns in, 1 ps out)

Power/Environmental

  • Connector: IEC
  • Input-Voltage Range: 90 to 230 VAC (+/- 10 percent)
  • Power Requirements (continuous): 85W
  • Recommended Ambient Operating Temperature: 0 degree to 40 degree Celsius / 32 degree to 104 degree Fahrenheit

Dimensions

  • Height: 6.51" (165.36 mm)
  • Width: 17.59" (446.66 mm)
  • Depth: 22.97" (583.48 mm)
  • Weight: 23.15 lbs. (10.5 kg)

Manufacturer: Presonus Audio
Model: STUDIOLIVE32SC SIII
Warranty: See manufacturer website for details
SKU: I607647-N-2
UPC: 673454008153
