RCF NX 45-A Active Two Way Multipurpose Speaker


  • Our Price
  • $1,799.00
  • Regular price MSRP: $2,499.00





*IN STOCK - READY TO SHIP


Get An Active Speaker For A Professional With The RCF NX 45-A Active Two Way Multipurpose Speaker

The NX 45-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It“óËé¼Ëäós one of the most flexible speaker for deploying high-power and pristine sound as a stand-alone Front Of House system or as a satellite (with subwoofer) but either as a stage monitor or a front, down or side fill speaker.



  • 1400 W 2-way class-D amplifier
  • 133 dB SPL Max
  • 45 “óËé¼ËÇ£ 20000 Hz Frequency Range
  • 90“é’ x 50“é’ constant directivity coverage

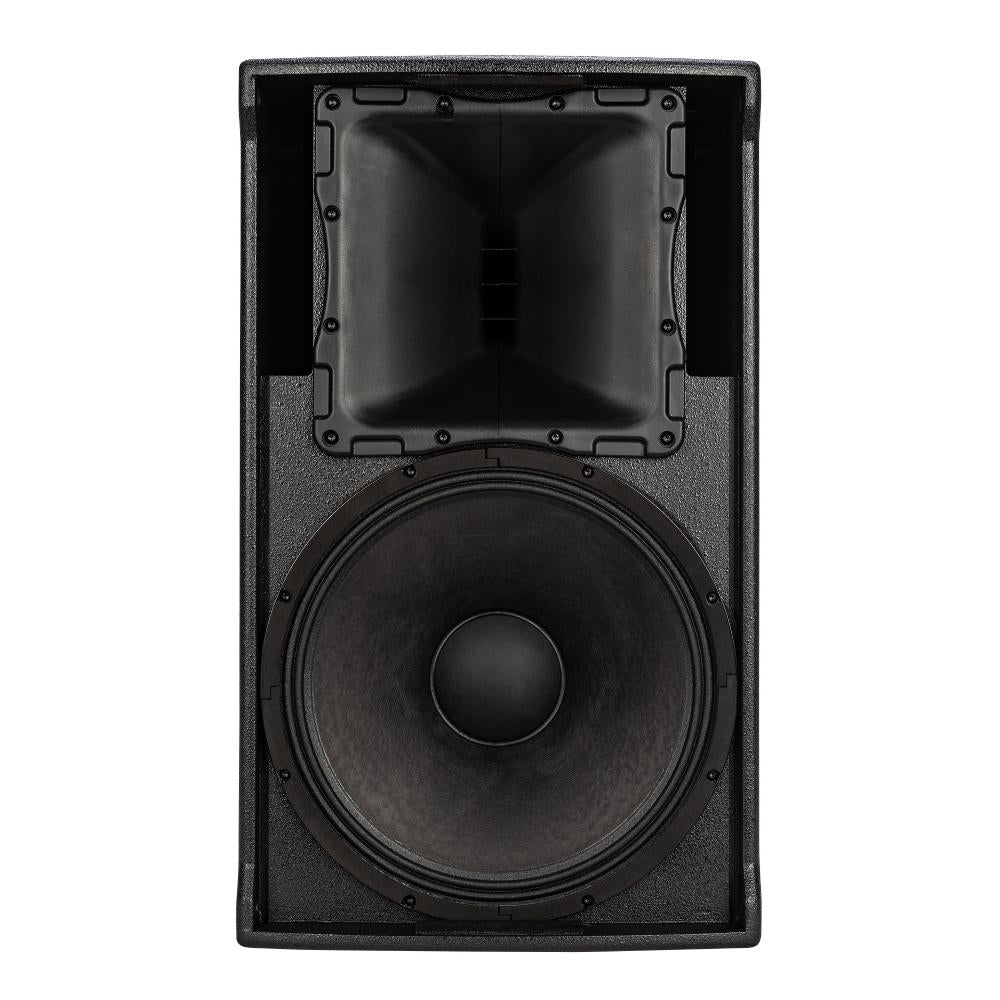

  • 15" neodymium woofer, 3.5" voice coil
  • Horn loaded 4.0''neodymium c. driver
  • Multiple rigging points


ACOUSTICAL SPECIFICATIONS:
  • Frequency Response: 45 Hz “â’‡ 20000 Hz
  • Max SPL @ 1M: 133 dB
  • Horizontal Coverage Angle: 90“é’
  • Vertical Coverage Angle: 50“é’

TRANSDUCERS:

  • Compression Driver: 1.4'' neo, 4.0'' v.c
  • Woofer: 15'' neo, 3.5'' v.c

INPUT/OUTPUT SECTION:

  • Input Signal: bal/unbal
  • Input Connectors: XRL, Jack
  • Output Connectors: XLR
  • Input Sensitivity: -2 dBu/+4 dBu
  • Mic. Input Sensitivity: -32 dBu

PROCESSOR SECTION:

  • Crossover Frequencies: 650 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Volume, Boost, Mic/Line

POWER SECTION:

  • Total Power: 1400 W Peak, 700 W RMS
  • High Frequencies: 400 W Peak, 200 W RMS
  • Low Frequencies: 1000 W Peak, 500 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT

STANDARD COMPLIANCE:

  • CE Marking: Yes

PHYSICAL SPECIFICATIONS:

  • Cabinet/Case Material: Baltic birch plywood
  • Hardware: 5 x M10, 4 x quick lock
  • Handles: 2 Side
  • Pole Mount/Cap: Yes
  • Grille: Steel
  • Color: Black

SIZE:

  • Height: 707 mm / 27.83 inches
  • Width: 418 mm / 16.46 inches
  • Depth: 402 mm / 15.83 inches
  • Weight: 24 kg / 52.91 lbs

Manufacturer: RCF USA
Model: NX45-A
Warranty: See manufacturer website for details
SKU: I501428-4
