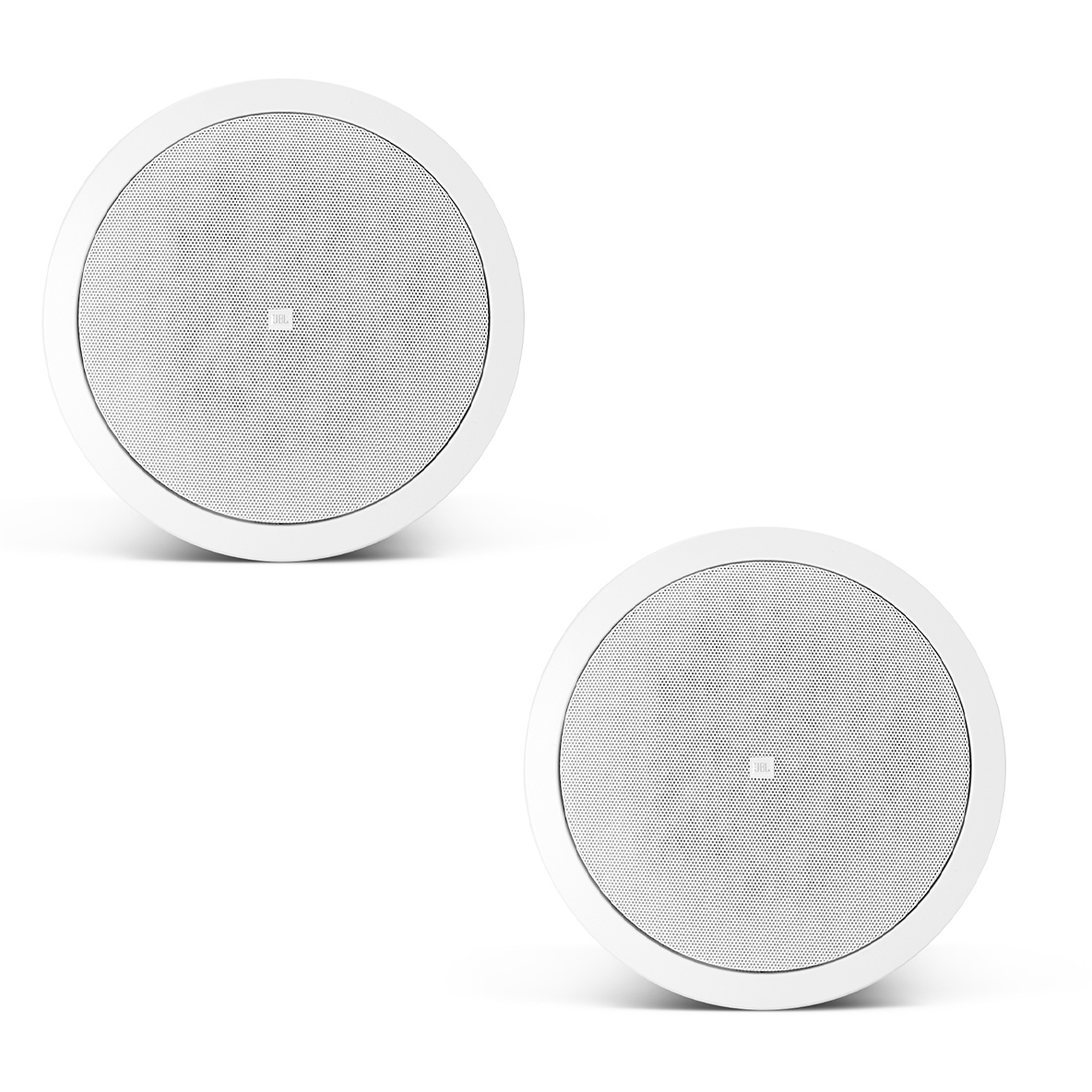

JBL Control 26CT 6.5" Ceiling Loudspeaker Transducer Assembly (Pair)

Original price $370.00
Original price $370.00 - Original price $370.00
Original price $370.00
Current price $329.30
$329.30 - $329.30
Current price $329.30
Inventory Status:

► New - ♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Condition: New

Get Maximum Coverage With The JBL Control 26CT 6.5" Ceiling Loudspeaker Transducer Assembly (Pair)

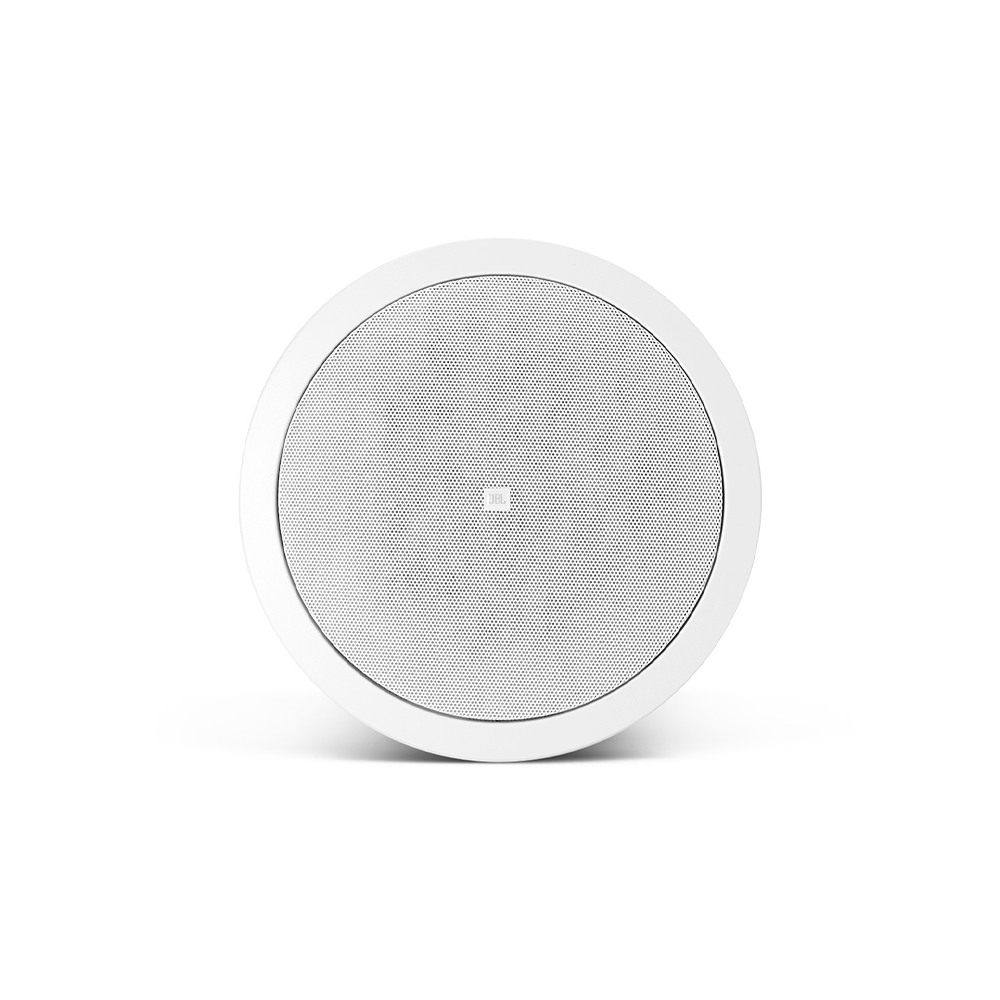

The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system.

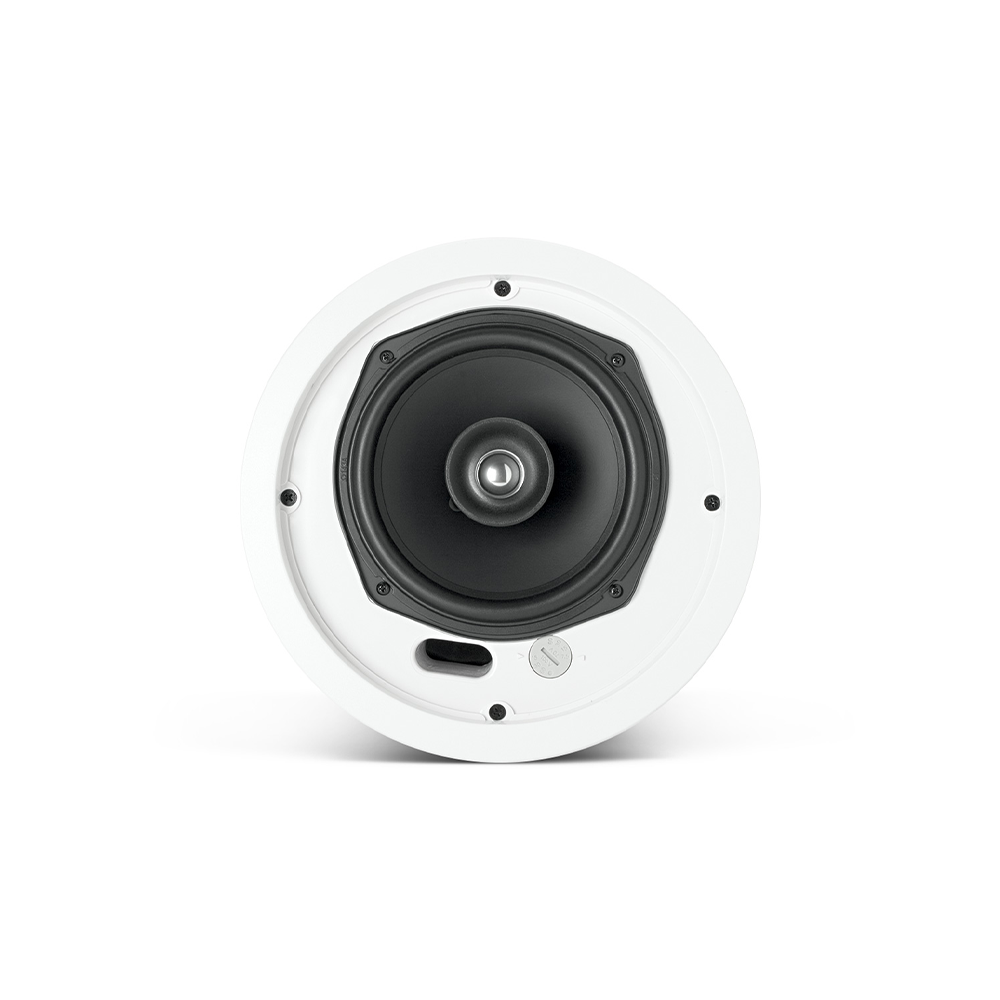

  • Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  • High power, wide frequency response and low distortion for high sound level capability.
  • Packaged with grille, back can and tile rails for fast installation and easy dealer stocking.


SPECIFICATIONS

  • Frequency Range 75 Hz - 20 kHz
  • Power Rating See transformer taps
  • Transformer Taps 60W, 30W, 15W (& 7.5W @ 70V)
  • Coverage Angle 110° conical
  • Directivity Index (DI) 4.6 dB
  • Maximum SPL (1m) 107 dB (top 70V/100V tap)

Drivers

  • LF Driver: 165 mm (6.5 in)
  • HF Driver: 19 mm (3/4 in)

More

  • Input Connectors: Removable 4-pin locking connector with screw-down terminals.
  • Dimensions: (H x Di.) 210 mm x 252 mm (8.3 in x 9.9 in)
  • Net Weight: (each) 4.2 kg (10 lbs)
  • Shipping Weight: (pair) 9.7 kg (21 lbs)
  • Color: White
  • Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  • Backcan: formed steel (included "blind-mount")
  • Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 Ceiling Cutout Size 220 mm (8.75 in) diameter (cardboard cutout template included)

Included Accessories

  • C-shaped support backing plate
  • 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
  • Cutout template
  • Paint shield
  • Removable locking wiring connector
  • Plenum Usage Yes, backcan included

Manufacturer: JBL Professional
Model: CONTROL 26CT
SKU: I053697-15-WHXE
