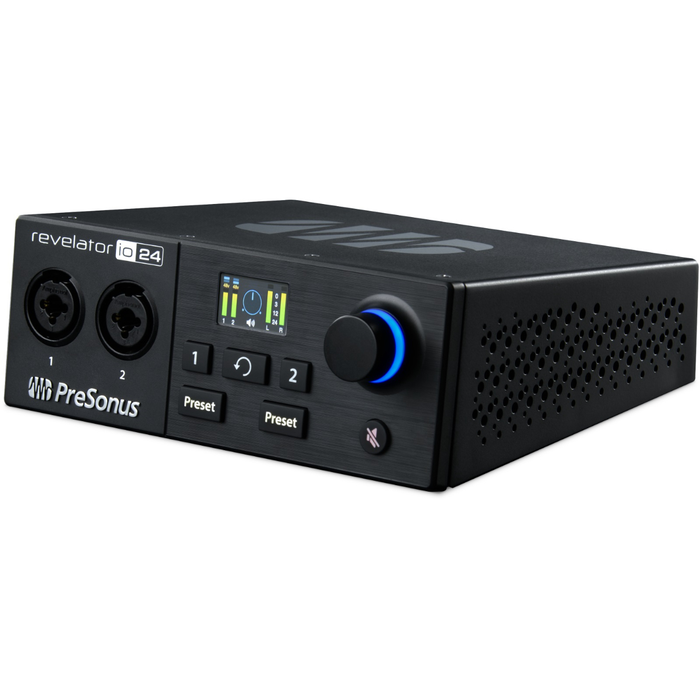

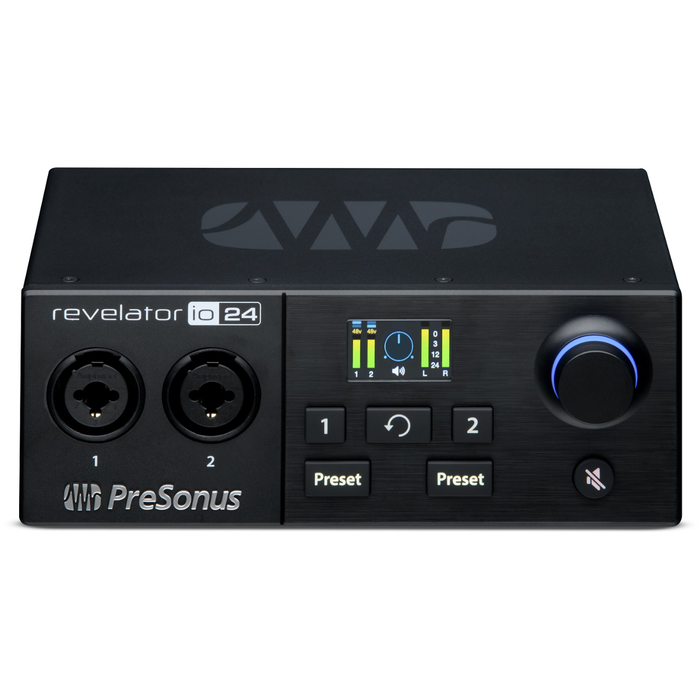

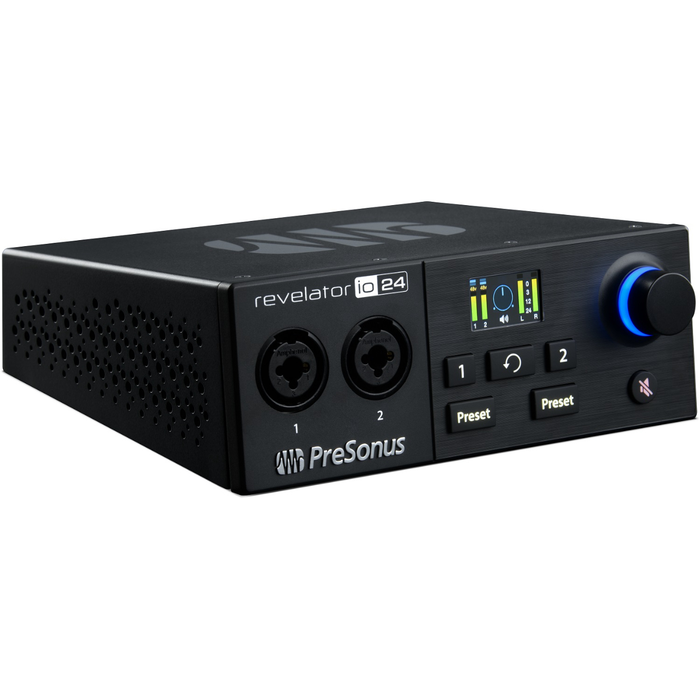

The PreSonus Revelator io24 Is A USB-C Compatible Audio Interface with Integrated Loopback Mixer and Effects for Streaming, Podcasting, and More
Built on a legacy of professional recording, the Revelator io24 delivers polished, professional-sounding results for your stream, podcast, or production with high-headroom mic preamps, onboard processing, and an integrated loopback mixer that lets you mix and record audio from two different software applications with your live audio.
Your Partner From Studio To Stream
Flexible and versatile, Revelator io24 is the only audio interface designed for both recording and streaming. Get polished, professional results thanks to PreSonus XMAX-L microphone preamps and onboard processing that will make your stream, podcast, or recording stand out. Revelator io24’s intuitive loopback mixer makes adding backing tracks, sound effects, or Skype interviews quick and easy. Produce a great mix for your stream fast with Stream Mix mode. Whether you’re producing your latest YouTube video or streaming your music live on Facebook, Revelator io24 is your partner from studio to stream.
No Fuss Loopback Audio When You Need It
Revelator io24's simple loopback mixer makes it easy to add backing tracks to your live stream performance or conference in a Zoom caller to your podcast. With two dedicated stereo channels just for loopback audio on both macOS and Windows, you’ll mix and record the audio from two different applications along with both channels of your Revelator io24–all at the same time. Stream, and record to Studio One (or your application of choice) simultaneously!
Stream Mix Mode
Only Revelator io24 is both an audio interface and a streaming mixer. Out of the box, Revelator io24 is a great sounding audio interface with powerful onboard DSP (digital signal processing). When you’re ready to stream, engage Stream Mix mode- and with the click of a button, your complete mix of your analog inputs, loopback channels, reverb, and effects is routed directly to USB, where you can easily send it to your streaming software. No complex routing or extra hardware required.
Great Sound Made Easy
Polish your sound with dedicated onboard processing featuring the same State-Space modeled sonic enhancements as PreSonus' award-winning StudioLive Series III mixers. Professionally-crafted presets make your voice or guitar stand out with a single click. Additional effects let you emulate concert halls, AM radio, or Venusian armadas to completely transform your sound.
Proven, Professional Preamps
25 years of studio-grade design experience is inside Revelator io24. Two XMAX-L mic preamps capture even the most complex musical harmonics smoothly and naturally, with no audible distortion; your microphones will sound their best. Instrument and Line inputs let you connect all your gear. And a stereo link option provides even more flexibility.
Wherever Sound Takes You
Want to take your sound with you on a gig or go mobile with an SD Recorder or DSLR? No problem. Just save your favorite presets onboard your Revelator and you can use its preamps and your customized settings just like you would on your computer. Because the processing onboard the Revelator io24 is built-in, you’ll have your presets wherever sound takes you.
Remote Control
Wireless remote control via UC Surface for iPadOS®, Windows®, and Android™ devices means you get touchscreen control over all of your Revelator io24’s features, processing, and loopback mix at your fingertips. Just connect your favorite tablet to the same network as your computer and you’re good to go!
Stress-Free Recording
When you have the right tools, any job is easier and faster to finish. That’s why the Revelator io24 includes high-resolution input and output metering, allowing you to keep an eye on your input and mix levels when you’re recording by yourself.
Hear Better
Revelator io24’s easy-to-use mixer also lets you create a custom zero-latency monitor mix fast. Independent levels for the Headphone and the Main Outputs (plus a Mute option for the latter) make it easy to switch between mixing on studio speakers and monitoring on headphones. You can even create a separate mix… just for your headphones!
Tools That Grow With You
PreSonus includes Studio One Artist production and recording software that makes it easy to polish your recordings with its lightning-fast drag-and-drop workflow and fully-featured production environment. Whether you’re recording a complete album or just adding bumpers to your podcasts, Revelator io24 and Studio One Artist give you everything you need to get professional results.
SPECIFICATIONS
Microphone Preamps
- Type: XLR female, balanced
- Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20 Hz - 20 kHz
- Input Impedance (Balanced): 1.4kΩ
- THD+N (1 kHz, -1 dBFS, min gain): 0.009%
- EIN (A-wtd, 150Ω, max gain): -126 dBu
- Gain Control Range (± 1 dB): 60 dB
- Max Input Level (±0.5 dBu, min gain): +10 dBu
- Phantom Power (10 mA total): +48 VDC
Instrument Inputs
- Type: 1/4" TS female, unbalanced
- Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20 Hz - 20 kHz
- Input Impedance: 1MΩ
- Gain Range: 50 dB
- Maximum Level (min gain): +10 dBu
Main Outputs
- Type: 1/4" TRS female
- Maximum Level (1 kHz, unity gain, z-balanced): +10 dBu
- Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd): 20 Hz - 20kHz
- THD+N (1 kHz, -1 dBFS, unity gain): 0.003%
Headphone Outputs
- Maximum Power: 40 mW/channel @56Ω
- Frequency Response (+0.1dB/-0.5 dB, unity gain, unwtd): 20 Hz - 20 kHz
- THD+N (1 kHz, 0 dBFS, loaded): 0.01%
- Impedance Working Range: 32Ω to 300Ω
Audio Interface
- Type: USB-C™ Compatible USB 2.0
- Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Bit Depth: 24 bit
- ADC Converter Range: 105 dB
- DAC Converter Range: 105 dB
Controls
- Hardware: Direct Monitor Balance, Main Output Level, Headphone Level, Mic Level, Mute, Preset Select, Return
- Software: Mic Gain, Stereo Link, Loopback Mixes, Monitor Mix, Preset Management, Stream Mix Mode
Onboard DSP Options
- PreSonus StudioLive Fat Channel Processing: High Pass Filter, Noise Gate/Expander, 3 Compressor models, 3 EQ models, and Limiter
- Digital Loopback Mixer: 8 input digital mixer, 3 stereo loopback mixes, stereo monitor mix
- Voice Effects: Doubler, Vocoder, Ring Modulator, Comb Filter, Detuner, Delay, Reverb
System and Size
- macOS®
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 or better
- Minimum 4GB RAM/Recommended 8GB or more
- Windows®
- Windows® 10 (64-bit only)
- Intel® Core™ i3/AMD A10 processor or better
- Minimum 4GB RAM/Recommended 8GB or more
- Mac and Windows Systems
- USB-C or USB-A 2.0 port
- Internet connection
- Internal or external 7200 RPM storage drive highly recommended
- 30 GB hard disk space
- Monitor with 1366x768 resolution
- Apple iPad
- iPad® Pro, iPad Air, iPad mini with Retina display, iPad (4th generation)
- iOS® 9.0.3 or higher
Manufacturer: PreSonus Audio
Model: REVELATOR IO24
SKU: I668787-N-1-WHXB
UPC: 673454009792
