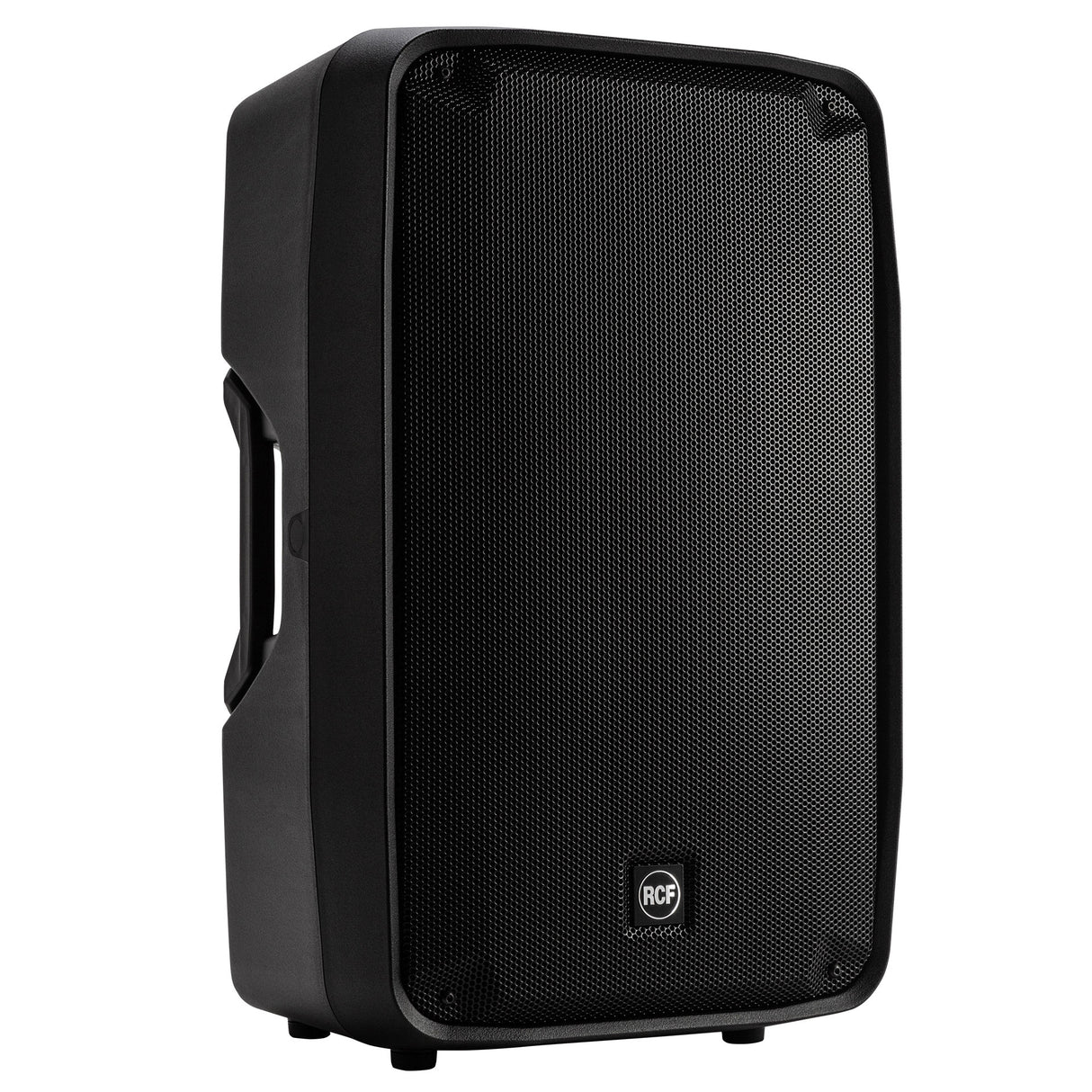

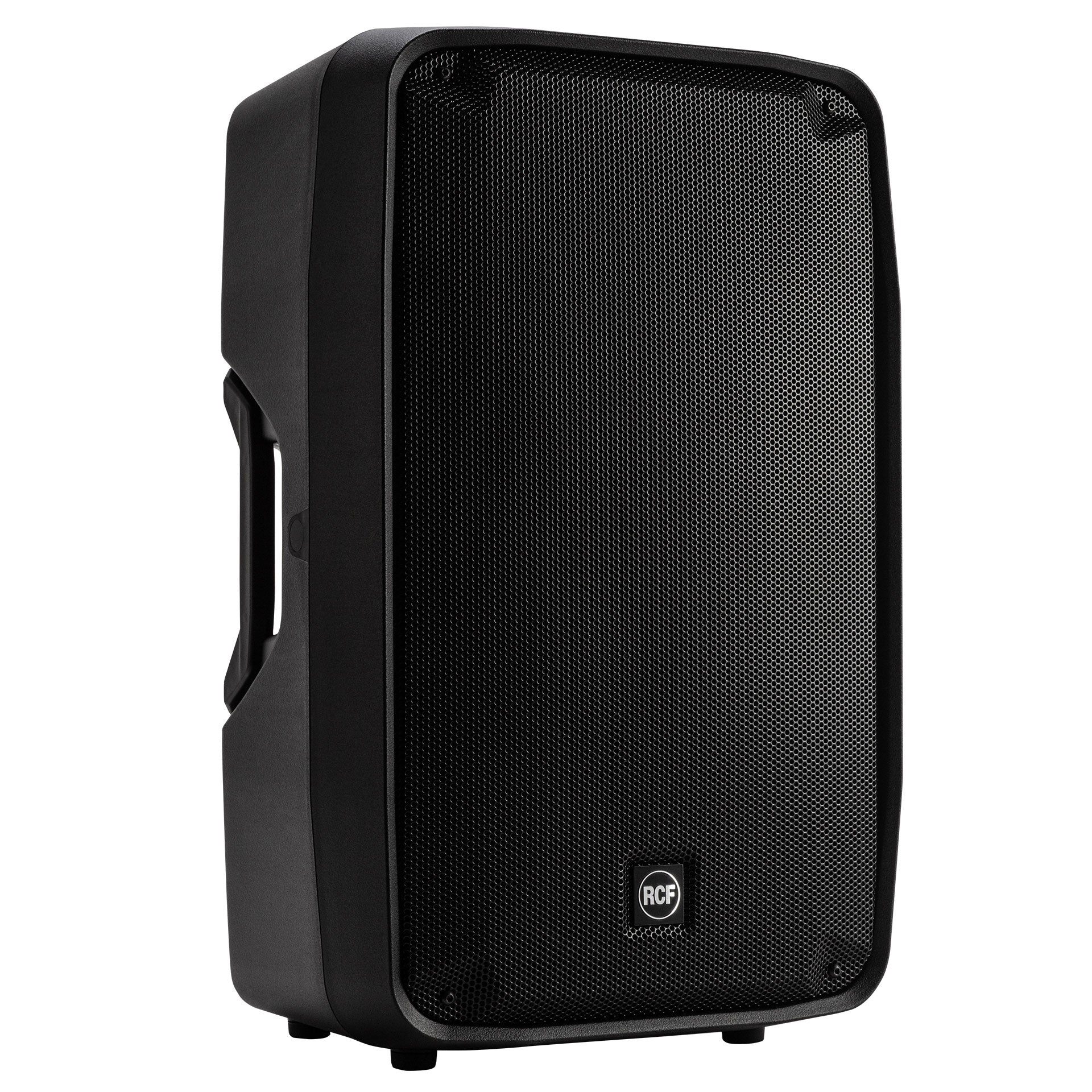

RCF HDM 45-A 2200W Active Two-Way Speaker


  • Our Price
  • $1,799.00
  • Regular price MSRP: $2,499.00




Enjoy A Quality Sound With The RCF HDM 45-A 2200W Active Two-Way Speaker

The HDM 45-A speaker boosts the performance with a top-quality two channel amplifier, RDNet networked management, RCF precision transducers, the FiRPHASE processing, and a rugged cabinet. While being one of the most powerful speakers in composite material in its category, it delivers clear, detailed and smooth sound from low to very high levels, with low distortion and fast transient response. The HDM concept is inspired by the touring industry, packing in an elegant and lightweight cabinet the maximum reliability and strength for intensive use on the road. Perfect as a main front of house speaker in PA systems, high-powered floor monitor, or unobtrusive infill system when combined with the RCF HDL System speakers.



  •  133 dB Max SPL
  •  2200 Watts two-way power
  •  Innovative DSP Processing with FiRPHASE
  • 1.5" Titanium Compression Driver, 4.0" v.c. Neodimium
  • 15" Neodimium Woofer, 3.5" v.c.
  •  650 Hz crossover point for perfect vocal reproduction
  •  90 Degrees x 60 Degrees, wide dispersion constant directivity horn
  •  RDNet compatible


Acoustical Specifications

  • Frequency Response: 45 Hz / 20000 Hz
  • Max SPL @ 1M: 133 dB
  • Horizontal Coverage Angle: 90 Degrees
  • Vertical Coverage Angle: 60 Degrees

Transducers

  • Compression Driver: 1.5'' neo, 4.0'' v.c
  •  Woofer: 15'' neo, 3.5'' v.c

Input/Output section

  • Input Signal: bal/unbal
  • Input Connectors: XLR, RDNet Ethercon
  • Output Connectors: XLR, RDNet Ethercon
  • Input Sensitivity: -2 dBu/+4 dBu
  • Mic. Input Sensitivity: -32 dBu

Processor Section

  • Crossover Frequencies: 650 Hz
  • Protections: Thermal, HF
  •  Limiter: Fast Limiter
  • Controls: proces., 8 sel. presets
  • RDNET: Yes

Power Section

  • Total Power: 2200 W Peak, 1100 W RMS
  • High Frequencies: 600 W Peak, 300 W RMS
  • Low Frequencies: 1600 W Peak, 800 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT

Standard Compliance

  • EN54-16 Certified: Yes
  • CE Marking: Yes

Physical Specifications

  • Cabinet/Case Material: PP Composite
  • Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
  • Handles: 1 Top, 2 Side
  • Pole Mount/Cap: Yes
  • Grille: Steel
  • Color: Black

Shipping Information

  • Package Height: 750 mm / 29.53 inches
  • Package Width: 440 mm / 17.32 inches
  • Package Depth: 480 mm / 18.9 inches
  • Package Weight: 24.5 kg / 54.01 lbs

Manufacturer: RCF USA
Model: HDM45-A
Warranty: See manufacturer website for details
SKU: I583619-N-5
UPC: #8024530016791
Listing ID: NA92816
