Presonus Studio 1810c USB-C Audio Interface


  • Our Price
  • Regular price $399.95





*IN STOCK - READY TO SHIP


Maximize Your Creativity Using Superior Production Tools With The Presonus Studio 1810c USB-C Audio Interface

Ideal for producers and small bands who want to record audio from a wide range of sources, the Studio 1810c 192 kHz USB-C audio interface records up to 18 simultaneous inputs, including ADAT and S/PDIF, and features PreSonus® XMAX mic preamps, DC-coupled line outputs, and MIDI I/O. A complete, all-in-one recording package, the Studio 1810c offers control-room integration with included Studio One® Artist music production software and free UC Surface control software and is backward compatible with USB 2.0 and 3.0 connections.

Seamlessly integrated with the included PreSonus UC Surface control software for macOS®, Windows®, iPad®, and Android™ tablet and Studio One Artist music production software, the Studio 1810c audio interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment-including powerful extensions for Studio One like the CTC-1 Console Shaper and Presence XT Editor.

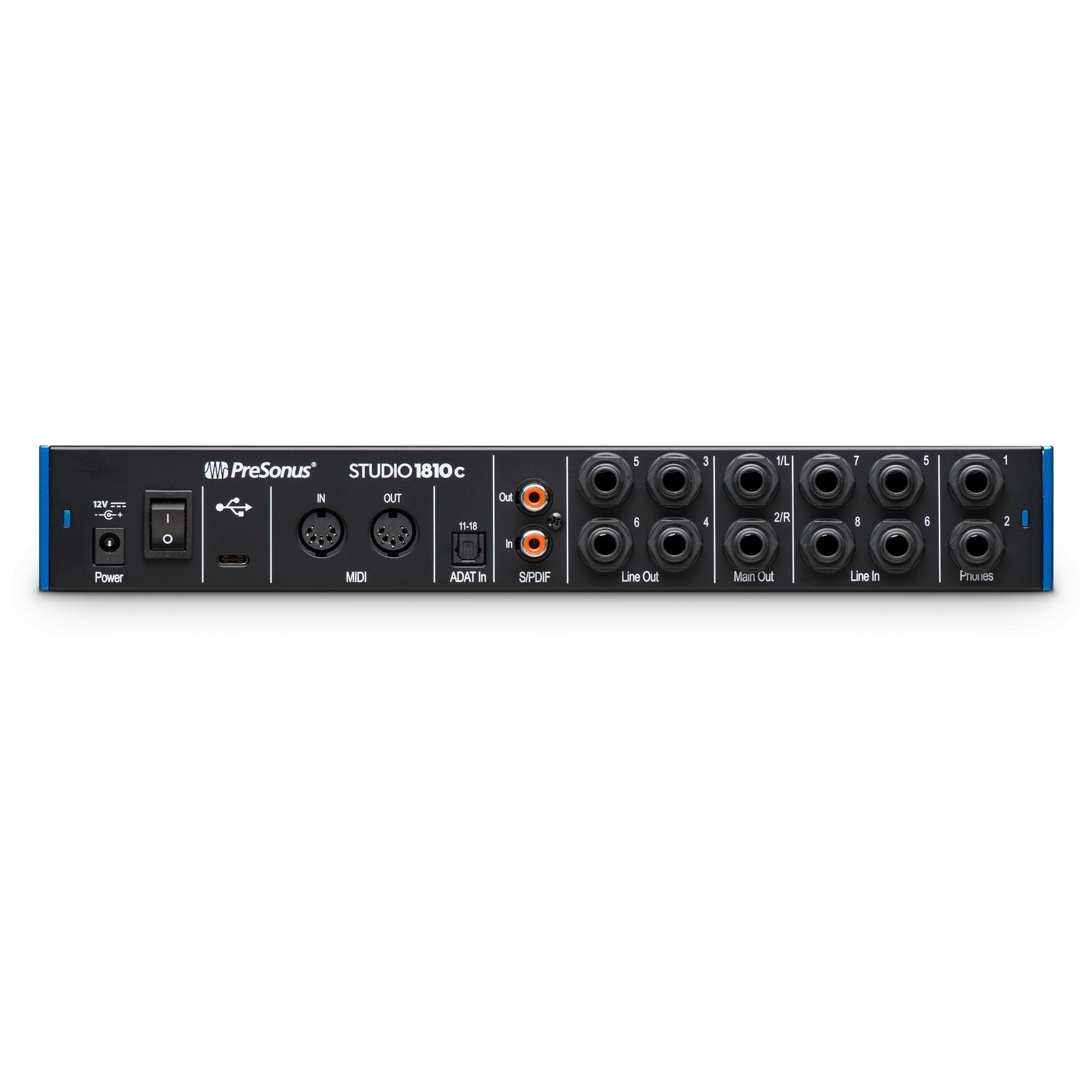

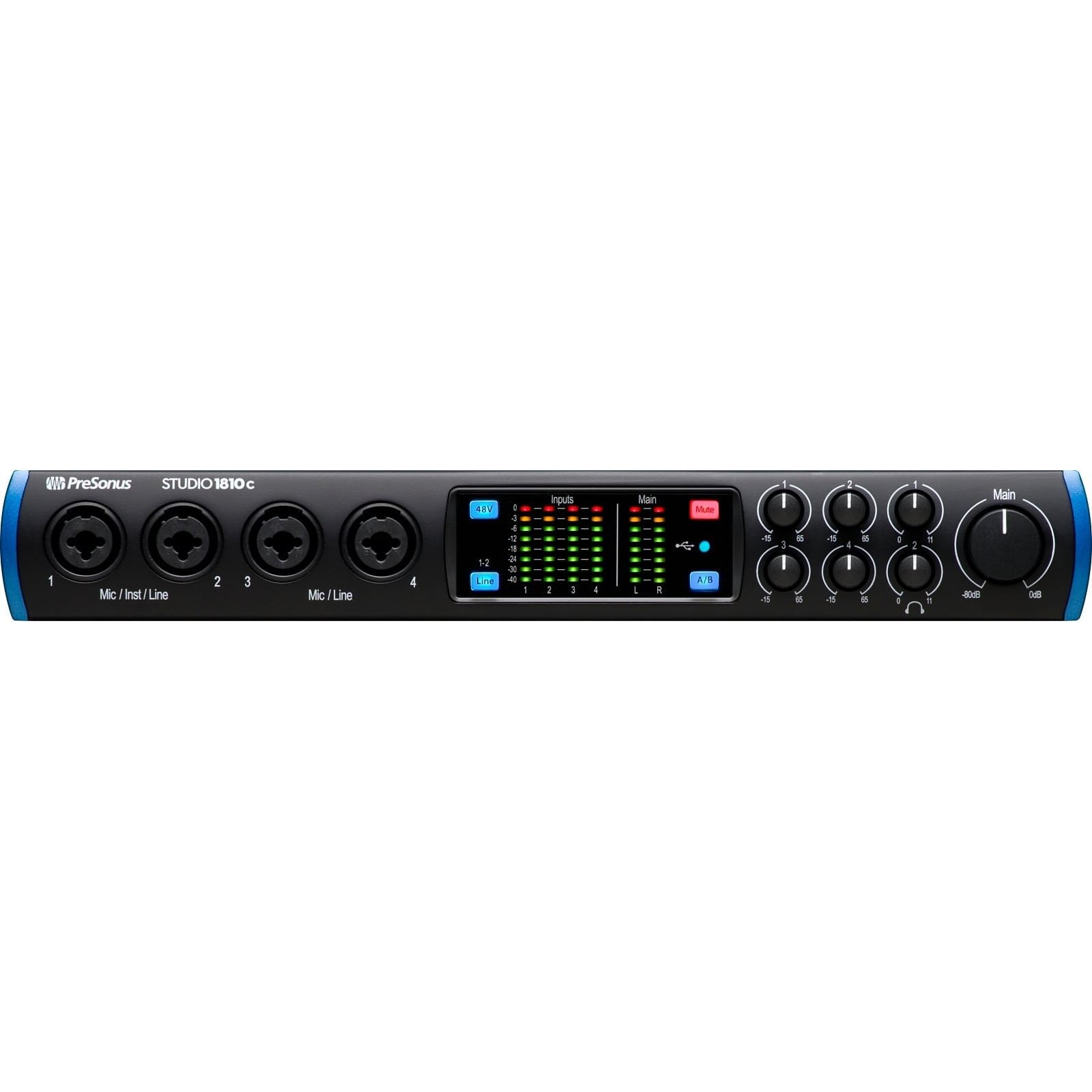

The 18-in, 8-out Studio 1810c audio interface features USB-C computer connectivity and records up to 18 simultaneous inputs, including 4 microphone inputs with XMAX mic preamps, 4 dedicated line inputs, 8 channels of ADAT Optical input (4 channels at 96 kHz), and S/PDIF inputs. In addition to the main L/R outputs, you get four DC-coupled line-level outputs that can send control voltages. You also get two headphone outputs with A/B switching for monitoring different mix streams. A built-in MIDI interface enables connection to a keyboard, sound module, or control surface.

The Studio 1810c audio interface operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus’ professional-grade XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound.

With cue mix headphone monitoring, onboard monitor mixing, pristine mic preamps, abundant line inputs, and up to 192 kHz sample rate, the Studio 1810c will give you the ultra-high-def sound and versatile connectivity you need to make state-of-the-art recordings and perform live. An excellent companion for any recording software, the Studio 1810c’s integration with Studio One Artist and remote control with UC Surface provide a complete and thoroughly professional recording studio.



INPUT/OUTPUT

  • Simultaneous I/O up to 18 inputs/8 outputs (8x6 at 192 kHz)
  • 2 mic/instrument/line inputs with XMAX Class A mic preamps
  • 2 mic/line inputs with XMAX Class A mic preamps
  • 4 balanced 1/4" TRS direct-to-ADC line inputs
  • 8 channels of ADAT Optical input (4 channels at 96 kHz)
  • 2 balanced 1/4" TRS main outputs
  • DC coupled for sending control voltages
  • 4 balanced 1/4" TRS line outputs for monitor mixing
  • DC coupled for sending control voltages
  • 2 stereo headphone outputs with the same mix or independent mixes
  • MIDI In/Out
  • Stereo S/PDIF digital I/O
  • 1 USB-C 2.0 port

INTEGRATED SOFTWARE

  • Studio One Artist for Mac and Windows
  • UC Surface control software for Mac, Windows, iPad, and Android
  • Studio Magic Plug-in Suite

METERS, CONTROLS, AND FEATURES

  • 18x6 onboard DSP monitor mixer
  • Front-panel mute and level controls for main outputs
  • True +48V phantom power for condenser microphones (global)
  • 6 ladder-style 8-LED level meters (4 input, 2 main output)

DIGITAL

  • USB-C port (USB 2.0)
  • 24-bit resolution
  • 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

PHYSICAL

  • Road-rugged construction with all-metal chassis and metal knobs


COMPUTER SYSTEM REQUIREMENTS

Mac

  • Mac OS X 10.8.5 64-bit or later
  • Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)

Windows

  • Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
  • Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

  • USB-C or USB-A 2.0 port
  • 32 GB hard disk space
  • PreSonus Universal Control 2.0 or higher
  • Monitor with 1366x768 resolution (high-dpi monitor recommended)
  • Multitouch-enabled monitor required for touch operation

iOS

  • iOS 9.3 or later
  • iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2

Android

  • Android 5.0 (Lollipop) or later
  • Android tablet (8-inch) with 1024x768 resolution (UC Surface)

TECHNICAL SPECIFICATIONS

General

  • Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Converter Resolution: 24-bit
  • Converter Dynamic Range: 114 dB
  • Converter Dynamic Range: 114 dB

Microphone Inputs

  • Maximum Level: +16 dBu, min gain
  • Gain Range: 80 dB
  • Frequency Response: 20 Hz - 20 kHz (unity gain)
  • Dynamic Range: 110 dB (A-wtd, min gain)
  • THD + N: 0.005% (1 kHz, 0dBu, unity gain)
  • EIN-128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain)
  • Input Impedance: 1400Ω
  • Phantom Power: 48V (>10 mA per channel)

Line Inputs

  • Maximum Level: +21 dBu (balanced, min gain)
  • Gain Range: 40 dB
  • Frequency Response: 20 Hz-20 kHz (unity gain)
  • Dynamic Range: 112 dB (A-wtd, min gain)
  • THD + N: 0.005% (1 kHz, +18 dBu, min gain)
  • Input Impedance: 10 kΩ

Instrument Inputs

  • Maximum Level: +15 dBu (unbalanced, min gain)
  • Gain Range: 80 dB
  • Frequency Response: 20 Hz - 20 kHz (min gain)
  • Dynamic Range: 112 dB (A-wtd, min gain)
  • THD + N: 0.020% (1 kHz, +10 dBu, min gain)
  • Input Impedance: 1M Ω

Main Outputs

  • Type: 1/4" TRS female, DC Coupled
  • Maximum Level: +18 dBu, balanced
  • Frequency Response: 20Hz - 20kHz (unity gain)
  • Dynamic Range: 108 dB (A-wtd, unity gain)
  • THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)

Line Outputs

  • Type: 1/4" TRS female, DC coupled
  • Maximum Level: +18 dBu, balanced
  • Frequency Response: 20 Hz - 20 kHz
  • Dynamic Range: 108 dB (A-wtd, -60 dBFS)
  • THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)

Headphone Outputs

  • Maximum Power: 150 mW/channel (60Ω load)
  • Frequency Response: 20 Hz - 20 kHz (unity gain)
  • Dynamic Range: 103 dB (A-weighted, 1 kHz, unity gain)
  • THD + N: 0.250% (1 kHz, 150 mW, unity gain)
  • Impedance Working Range: 32Ω to 600Ω

Physical

  • Height: 1.75" (44 mm)
  • Width: 12.5" (317 mm)
  • Depth: 5.5" (140 mm)
  • Weight: 3.2 lbs (1.45 kg)

Manufacturer: Presonus Audio
Model: STUDIO 1810C
Warranty: See manufacturer website for details
SKU: I579220-N-11
UPC: #673454008023
Listing ID: NA92065
