Description
Description

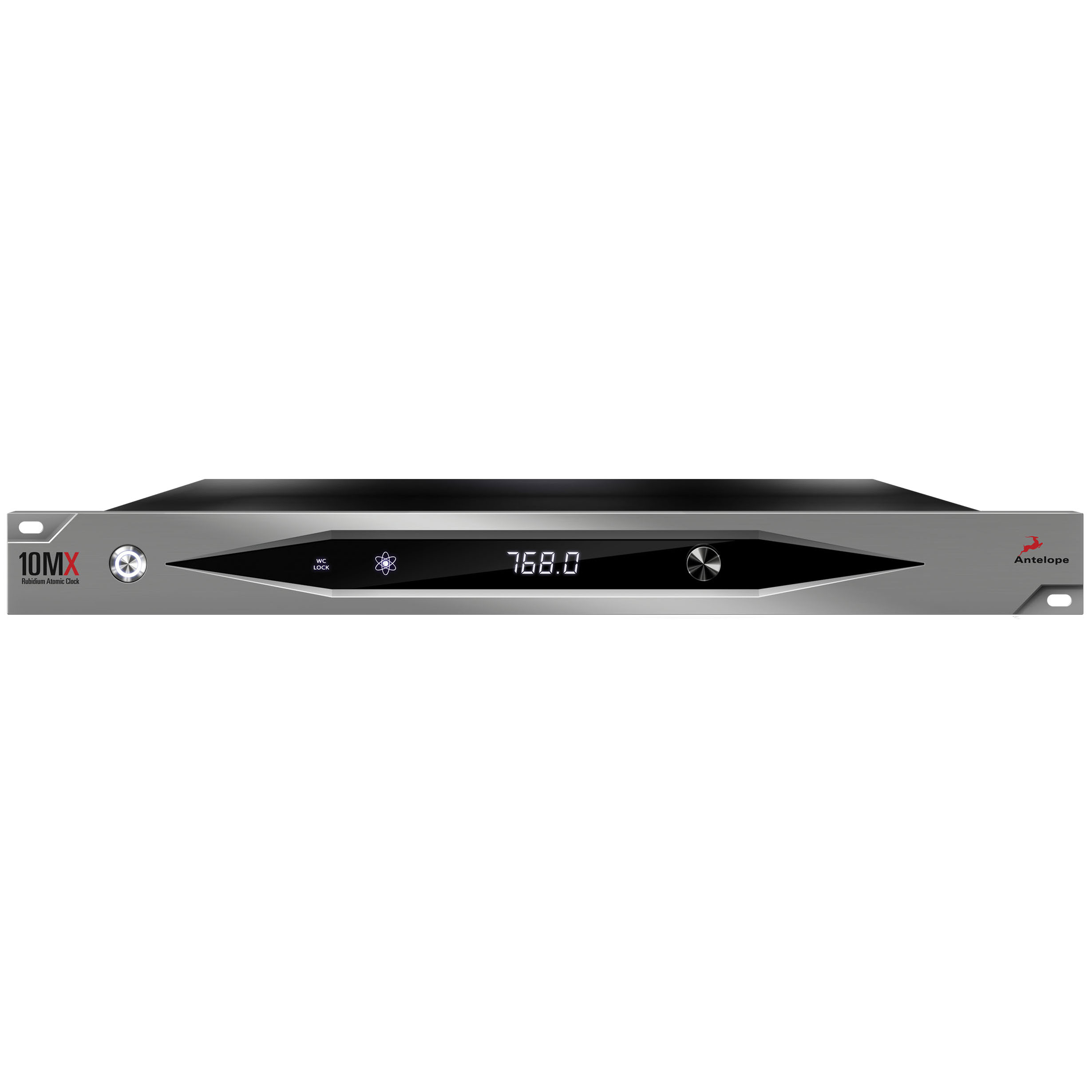

Intuitive and Powerful - The Antelope Audio 10MX Rubidium Atomic Clock
10MX is the newest and the premier member of the Isochrone family. It features technologies from two of Antelope’s legendary products. The atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity are combined in a futuristic, 1U rack space enclosure, providing the world’s most stable and musical clocking. 10MX is a fusion of proven technologies and contemporary industrial design, where no compromises are allowed and both build-quality, and performance excellence are top priority. The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensionality distinctive of the analog sound.
- 4 Word Clocks allowing up to 768 kHz
- Flawless clocking powered by Antelope Audio’s world-renowned jitter management algorithm
- The 10MX’s multiple atomic outputs allow up to 10 devices to be simultaneously clocked
- 2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz
- Intuitive software control panel
- PC/Mac connection via USB, allowing remote control and firmware upgrades
SPECIFICATIONS
- Phase Noise (SSB)
- 1 Hz ≤-70 dBc/Hz
- 10 Hz ≤-87 dBc/Hz
- 100 Hz ≤-114 dBc/Hz
- 1 kHz ≤-130 dBc/Hz
- 10 kHz ≤-140 dBc/Hz
- Short-Term Stability
- t=1s ≤3E-11
- t=10s ≤1.6E-11
- t=100s ≤8E-12
- Time drift in a 24-hr period
- Warm-Up Time: 8 – 10 minutes (depends on ambient temperature)
- Word Clock Input: 1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384 kHz

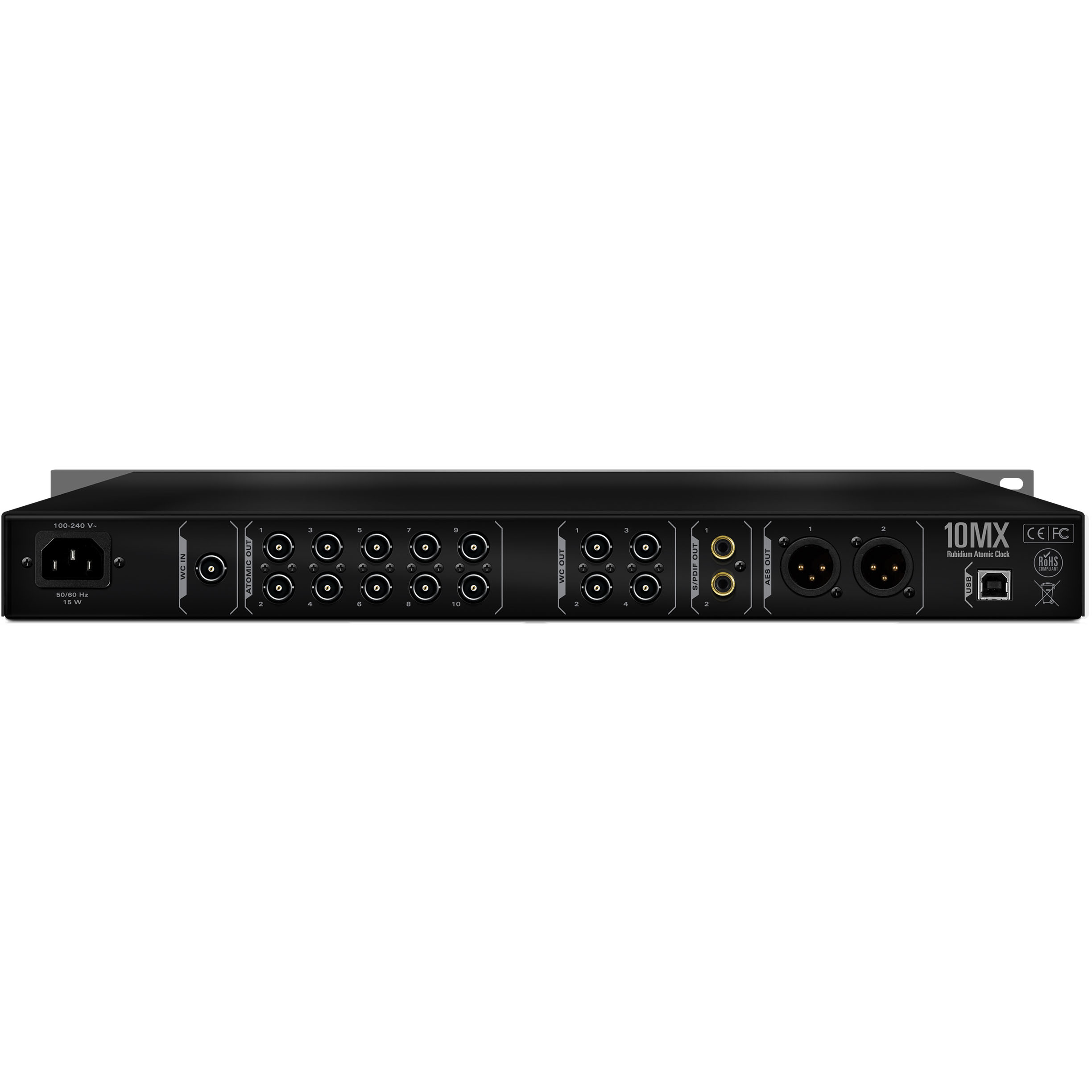

- Outputs
- Word Clock: 4 x BNC
- AES/EBU: 2 x XLR
- S/PDIF: 2 x RCA
- Word Clock Outputs: 4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 – 768 kHz square wave signal
- USB I/O: USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B
- Clocking System
- 4th Generation Acoustically Focused Clocking
- 64-bit DDS
- Oven Controlled Crystal Oscillator
- Clock Stability: <+/-0.0 2 PPM, oven controlled at 64.5 °C
- Atomic Reference Type: Rubidium Ultra-Stable Resonance-Controlled Master Oscillator
- Frequency: 10 MHz
- Frequency Accuracy: Better than ±5E-11 @25C (±0.05 PPB)
- Aging
- Daily* ±2.5E-11
- Monthly* ±1E-10
- Yearly ±1E-9
- Atomic Clock Outputs: 10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)
- Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768
- Word Clock Specs: TTL Level, 75 Ohm Output Impedance
- USB: USB 2.0 Full-Speed, Type B, only for control
- Operating Temperature: 0-50°C, 32-122°F
- Weight: 2.8 kg, 6.17 lbs
- Dimensions: 482.6 (W) х 228 (D) х 44 (H) mm, 19 (W) x 9 (D) x 1.73 (H) inches
- Power Supply: AC
- Power Consumption: 15 W
- Humidity: 30 – 80% RH non-condensing
- Power Supply Input: 100 – 240 V~
Manufacturer: Antelope Audio
Model: 10MX
SKU: I557545-N-0-WHXX
UPC: 853744004311
