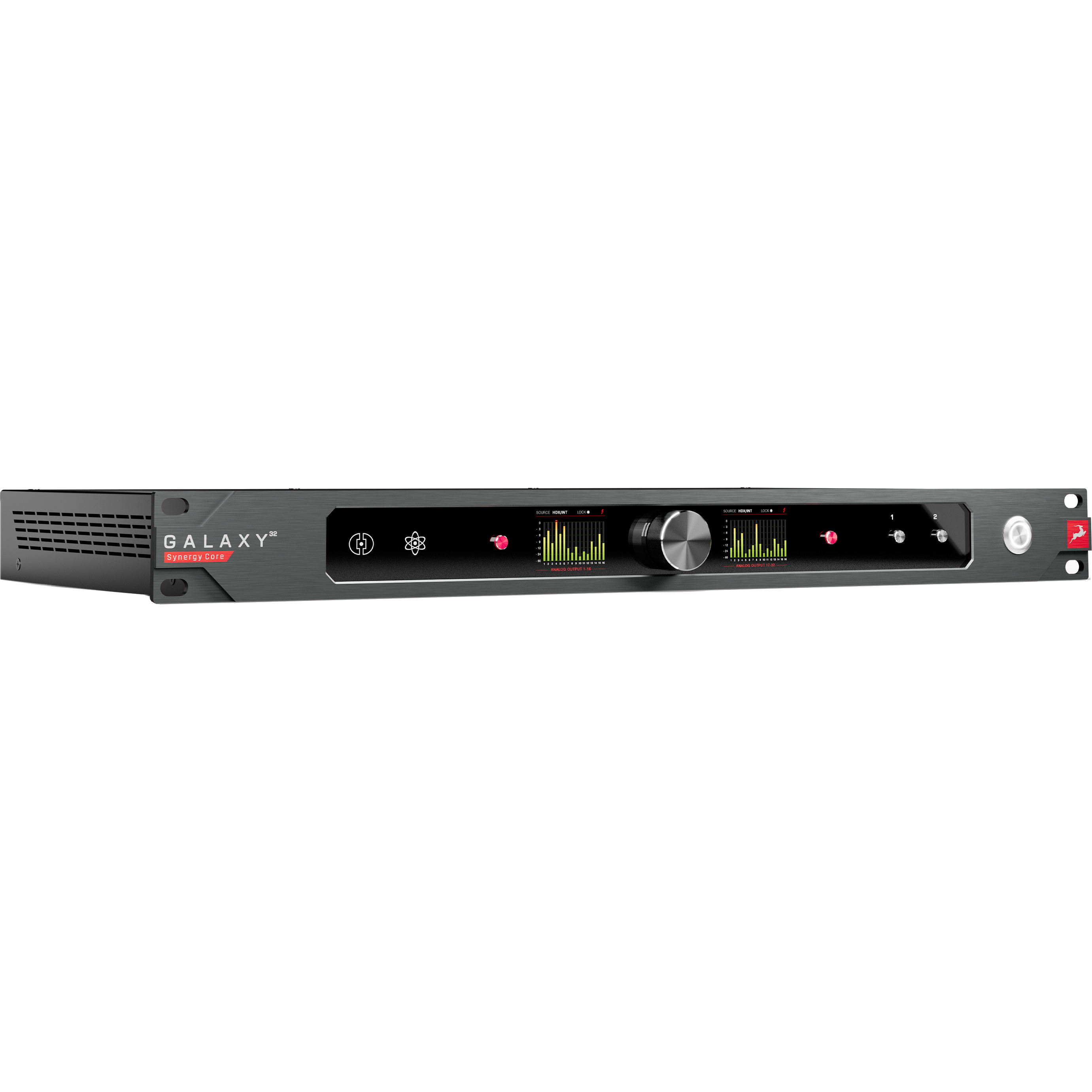

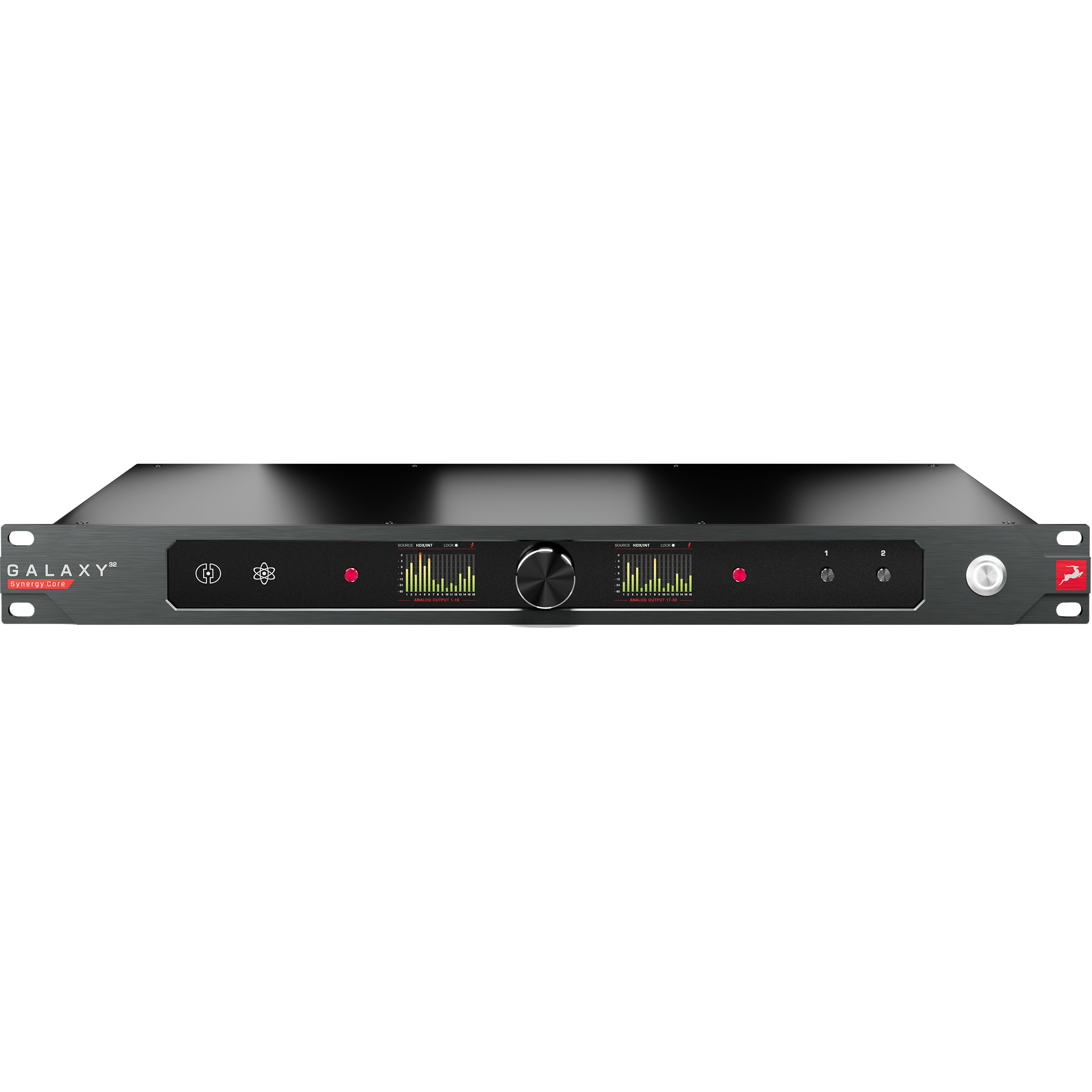

Antelope Audio Galaxy 32 Synergy Core AD/DA Audio Interface

Out of Stock
Original price $0.00 - Original price $0.00
Original price $0.00
$5,995.00
$5,995.00 - $5,995.00
Current price $5,995.00
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Expand Your Rig with the Antelope Audio Galaxy 32 Synergy Core AD/DA Audio Interface

Galaxy 32 Synergy Core is а multi-channel audio interface and high-end AD/DA converter for professional recording studios and high-profile production facilities. The interface builds upon Antelope Audio’s award-winning Orion 32 line, bringing 32 channels of analog I/O, industry-standard HDX, Thunderbolt and Dante digital connectivity, and Synergy Core processing to a 1U rack-mountable chassis. Along with the comprehensive I/O, the Galaxy 32 Synergy Core features high-resolution conversion and 64-bit AFC clocking so your recording system can sound better than ever.


  • Comprehensive surround and immersive monitoring control and speaker calibration, up to 16 channels
  • High-fidelity conversion for detailed sound when recording and streaming audio, and 64-bit AFC clocking technology

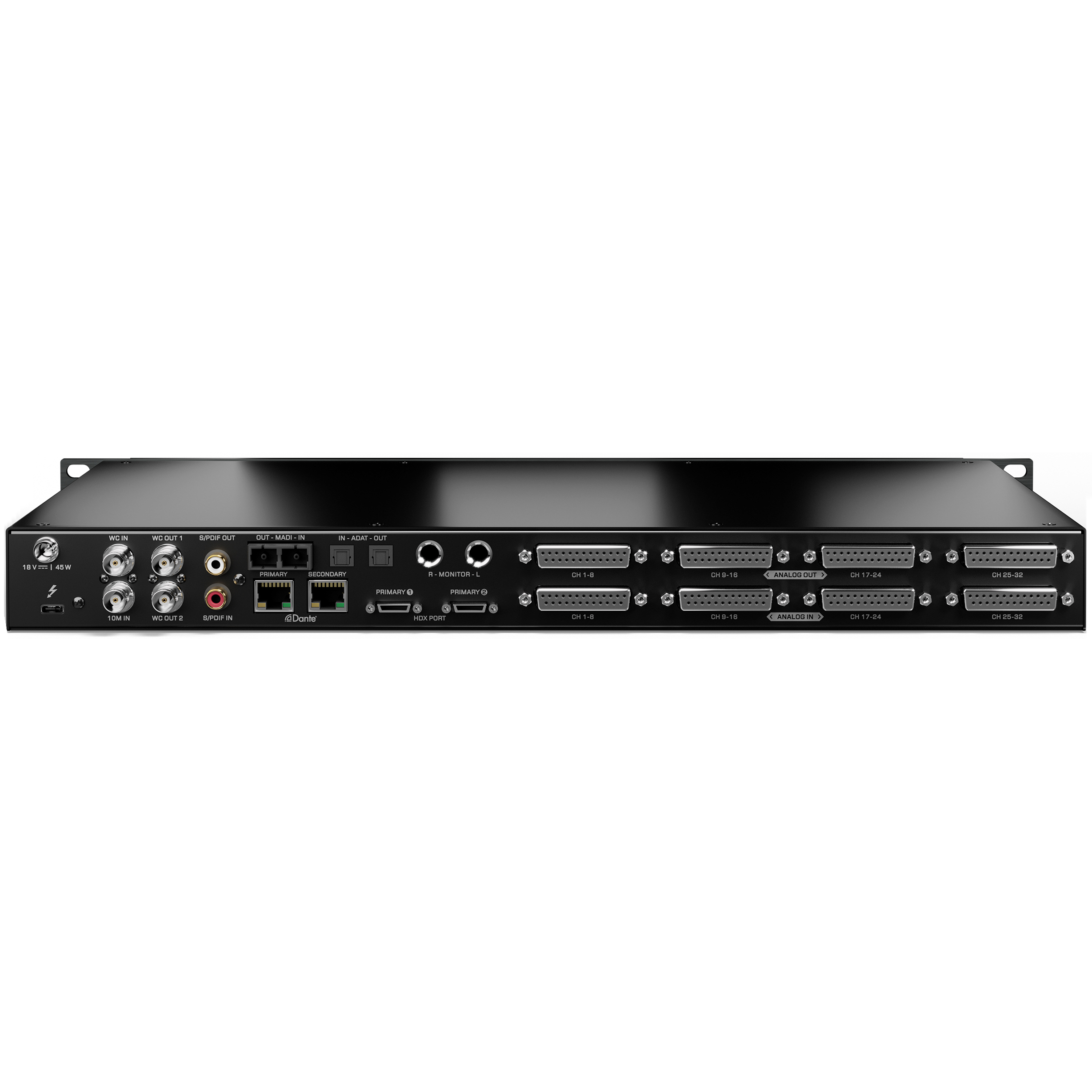

  • 32 I/O channels over 8 DC-coupled D-Sub 25 connectors, 64 I/O channels of optical MADI, and 8 I/O channels of ADAT
  • 64 I/O channels in any popular DAW over Thunderbolt 3 port, 64 I/O channels in Pro Tools over two HDX ports, and up to 64 I/O channels over Dante
  • Simultaneous use of all digital ports for easy integration with multiple systems and different setups
  • 37 Synergy Core analog-modeled effects included and over 30 available as optional expansions
  • Virtual patch-bay allows execution of complicated input/output signal routing with a simple drag and drop


SPECIFICATIONS

  • AD Line Input
    • Input Connection: 4 x D-sub 25-pin (Tascam Standard)
    • I/O Channel Count: 32 Channels
    • Input Level Trim: 12 dBu to 22 dBu in steps of 1 dB
    • Dynamic Range: 122 dB
    • Supported Sample Rates: 44.1 kHz - 192 kHz, 24-bit
    • THD+N (A): -116 dB
    • Impedance Load: 11.2 kOhms
  • DA Line Output
    • Output Connection: 4 x DC-coupled D-sub-25-pin (Tascam Standard)
    • I/O Channel Count: 32 Channels
    • Output Level: -inf to 22 dBu, 1 dB step
    • Dynamic Range: 128 dB
    • Supported Sample Rates: 44.1 kHz - 192 kHz, 24-bit
    • THD+N (A): -115 dB
    • Impedance Load: 56 Ohms
  • DA Monitor Output
    • Output Connection: 2 x 1/4-inch 6.35 mm Jack (3 pin)
    • Chanel Count: 2 Channels
    • Output Level: -inf to 22 dBu, 1 dB step
    • Dynamic Range: 130 dB
    • Supported Sample Rates: 44.1 kHz - 192 kHz, 24-bit
    • THD+N (A): -115 dB
    • Impedance Load: 56 Ohms
  • Digital Interface Thunderbolt
    • Interface Connection: 1 x Thunderbolt 3 Port, I/O
    • I/O Channel Count: 64 Channels
    • Supported Sample Rates: 44.1 kHz - 192 kHz, 24-bit
  • Digital Interface - Dante
    • Interface Connection: 2 x RJ-45 Ports, I/O
    • I/O Channel Count: 64 Channels (@ 44.1/48.0 kHz)
    • Connectivity: Primary and Redundant
    • Supported Sample Rates: 44.1 kHz - 192 kHz, 24-bit
  • Digital Interface - HDX
    • Interface Connection: 2 x HDX Ports, I/O
    • I/O Channel Count: 64 Channels (32 Per Port)
    • Primary/Secondary Ports: 2 Primary
    • Supported Sample Rates: 44.1 kHz - 192 kHz, 24-bit PCM
    • Delay Compensation: Supported
    • Manual Delay Compensation: Supported (up to 128 samples)
    • Session I/O Support: Yes (16 x 16)
  • Digital Interface - ADAT
    • Interface Connection: 2 x Optical
    • SMUX MODE: Supported
    • I/O Channel Count: 8 Channels In, 8 Channels Out
    • Supported Sample Rates: 44.1 kHz - 192 kHz, 24-bit
  • Clocking System
    • Clocking Technology: 4th Generation Acoustically Focused
    • Clocking: 64-Bit Jitter Management DDS
    • Word Clock/Loop-Sync Input: 1 x Input @ 75 Ohms 3 Vpp on BNC
    • Word Clock/Loop-Sync Output: 2 x Output @ 75 Ohms 3 Vpp on
  • Display Screens
    • Display Count: 2
    • Display Type: IPS
    • Resolution: 320 x 240
    • Dimensions: 1.8 inches
  • Others
    • Operational Temperature: 0-50 °C, 32 -122 °F
    • Electrical Specs: 40 watts
    • Weight: 3.4 kg/ 7.49 lbs
    • Dimensions: 482.6 x 279 x 44

Manufacturer: Antelope Audio
Model: GALAXY 32SYNERGYCORE
SKU: I681208-N-0-WHX
UPC: 853744004915
