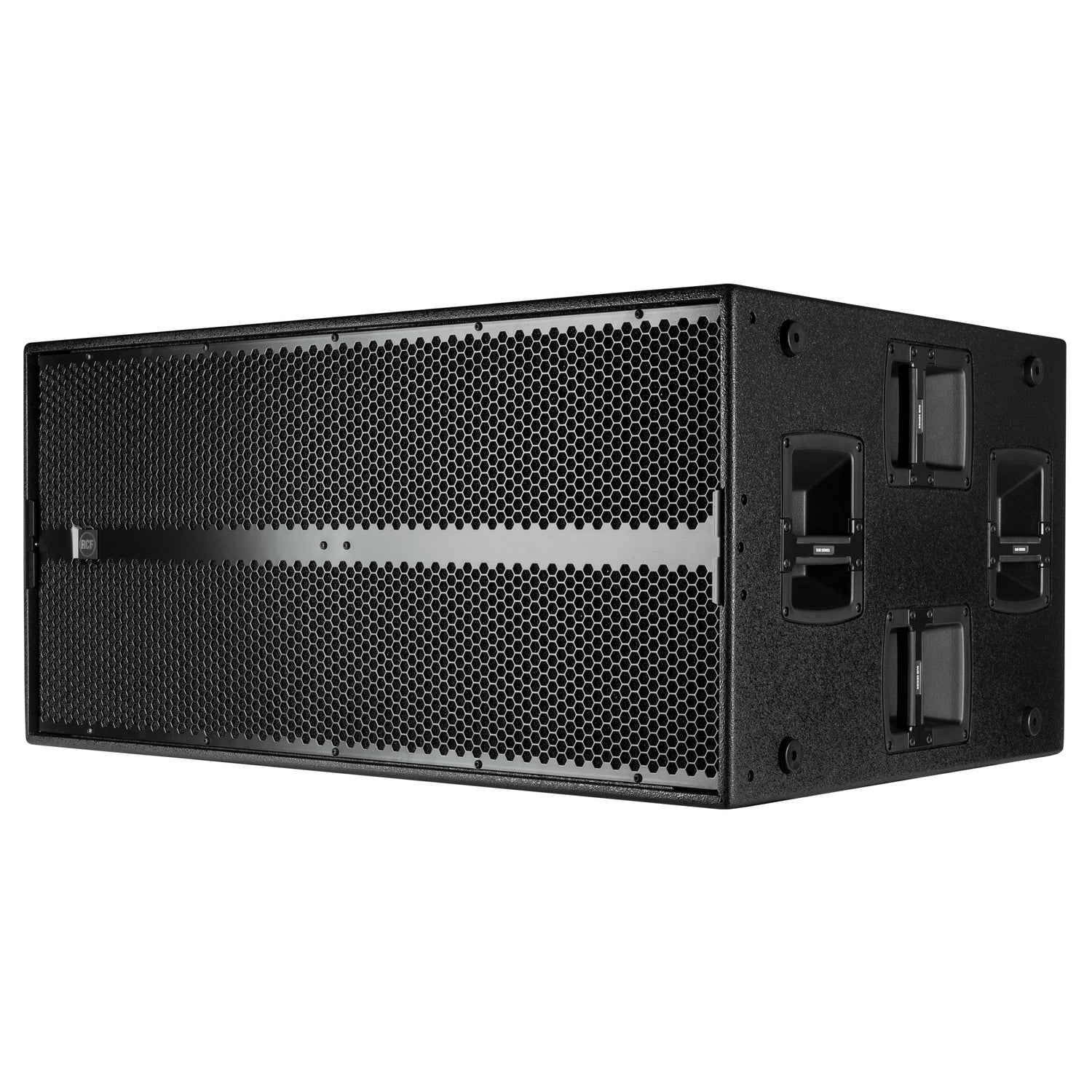

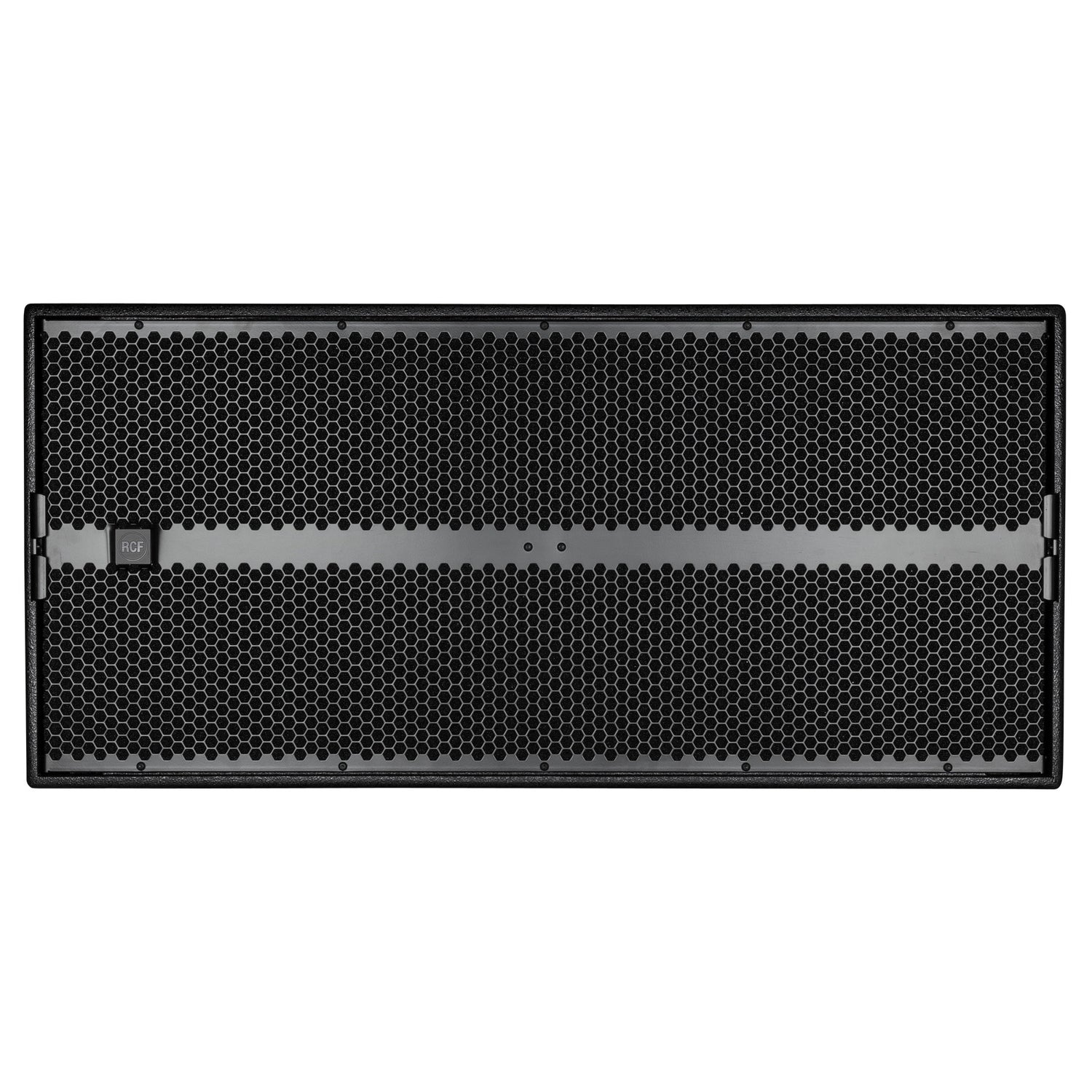

RCF SUB 9006-AS Active High Power Subwoofer

Get Powerful Low End With the RCF SUB 9006-AS Active High Power Subwoofer

The SUB 9006-AS is one of the most powerful 2 x 18 inch subwoofers in the field of live sound. Featuring two high-power hyper-vented 18 inch neodymium woofers with 4.0 inch inside-outside voice coils, this cabinet delivers a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9006-AS can perform in the most demanding situations. The housing of the SUB 9006-AS matches the RCF D-Line HDL50-A and HDL10-A array systems, enabling to build stacked systems in a perfect combination.

• 7200 Watt Peak power - 3600 Watt RMS
• 142 dB max SPL
• 30 Hz - 400 Hz frequency response
• 2 x 18 inches Woofer
• DSP controlled Input section with selectable presets
• RDNet remote control
• Delay control
• Baltic birch cabinet

SPECIFICATIONS

Acoustical

• Frequency Response: 30 Hz - 400 Hz
• Max SPL at 1M: 142 dB

Transducers

• Woofer: 2 x 18" neo, 4.0" v.c

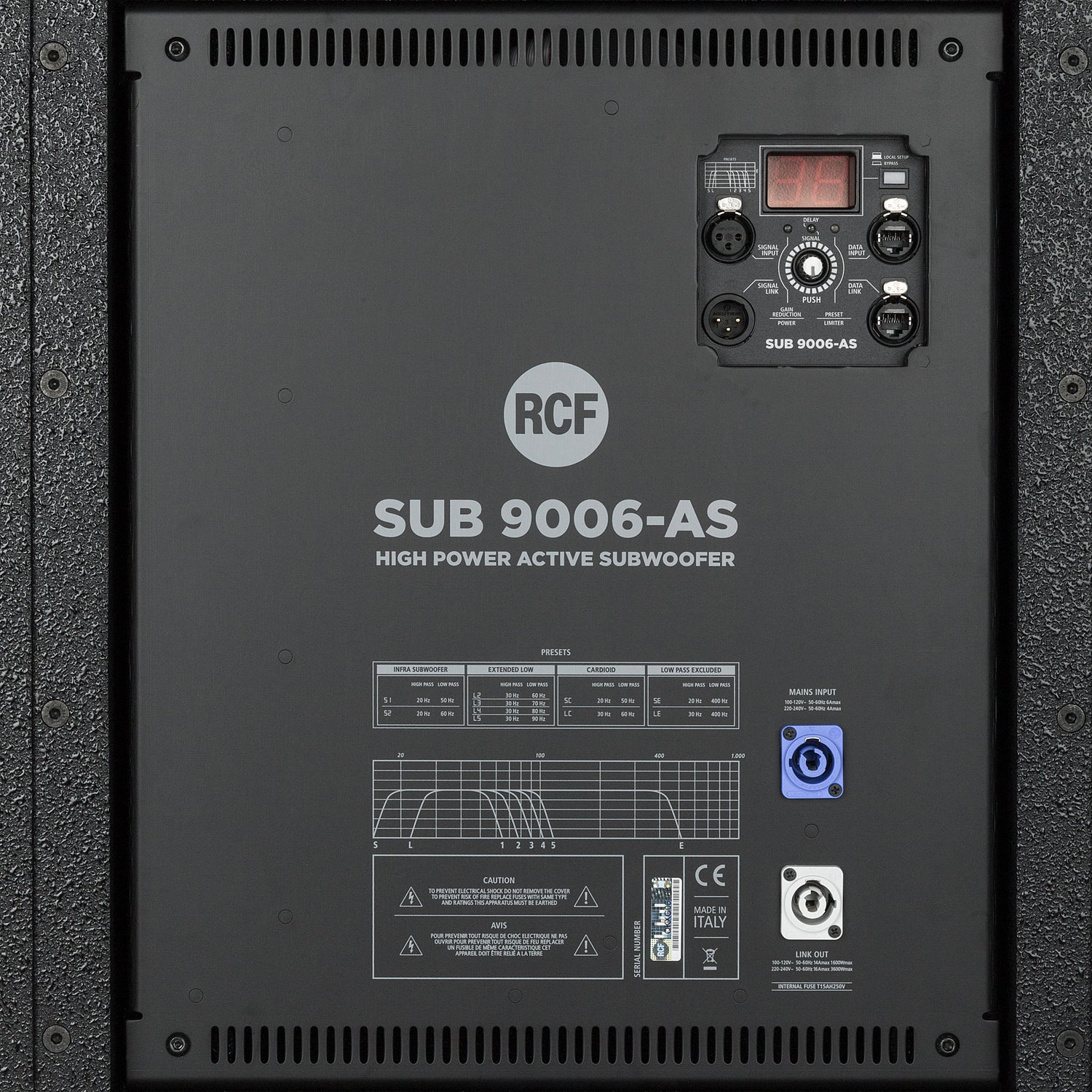

Input/Output

• Input Signal: bal/unbal
• Input Connectors: XLR, RDnet, Ethercon
• Output Connectors: XLR, RDnet, Ethercon
• Input Sensitivity: +4 dBu

Processor

• Hi-Pass Frequencies: 30Hz, 40Hz
• Low-Pass Frequencies: Variable from 50Hz to 400Hz
• Protections: Thermal, RMS
• Limiter: Fast Limiter
• Controls: Gain, EQ, Preset, Phase switch, Output Delay Settings
• RDnet: Yes

Power

• Total Power: 7200 W Peak, 3600 W RMS
• Low Frequencies: 7200 W Peak, 3600 W RMS
• Cooling: Convection/Forced
• Connections: Powercon IN/OUT

Standard Compliance

• CE Marking: Yes

Physical

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 2 x M20
• Grille: Steel

Size

• Height: 21.97 inch / 558 mm
• Width: 46.77 inch / 1188 mm
• Depth: 30.91 inch / 785 mm
• Weight: 189.6 lb / 86 kg
