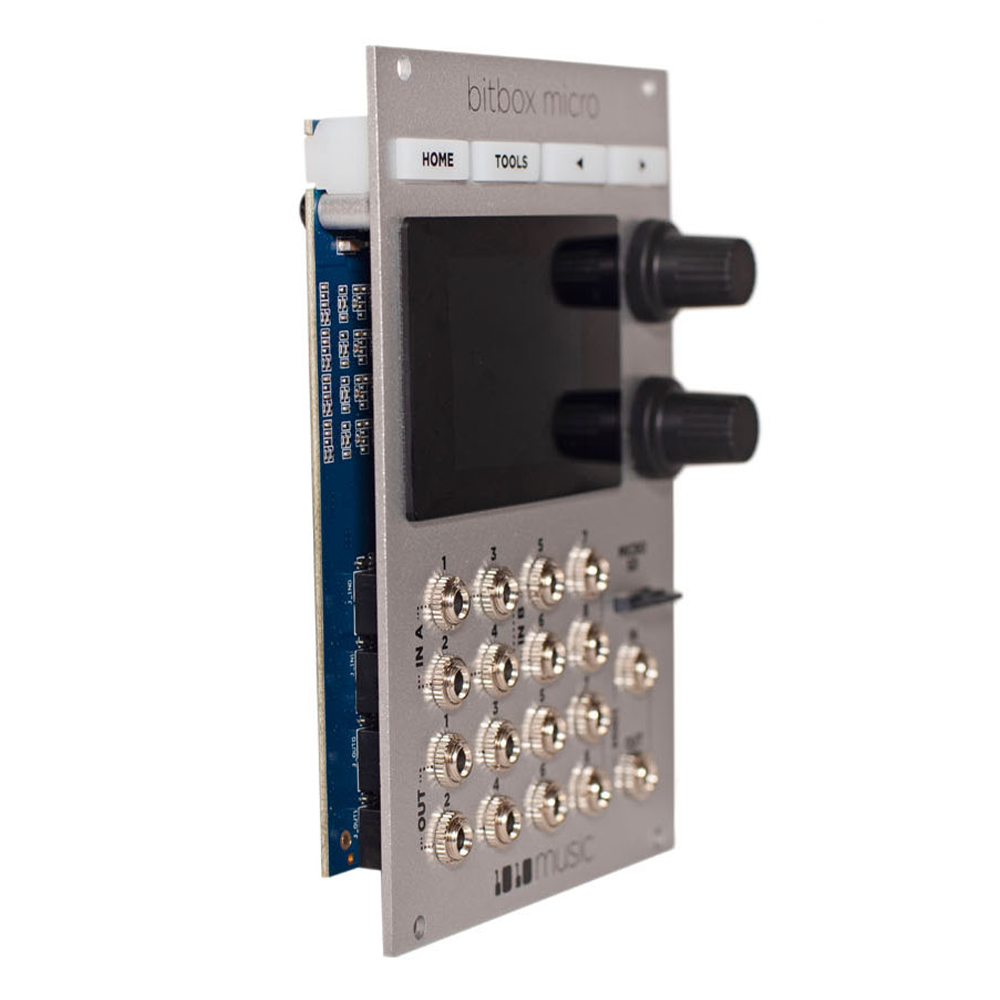

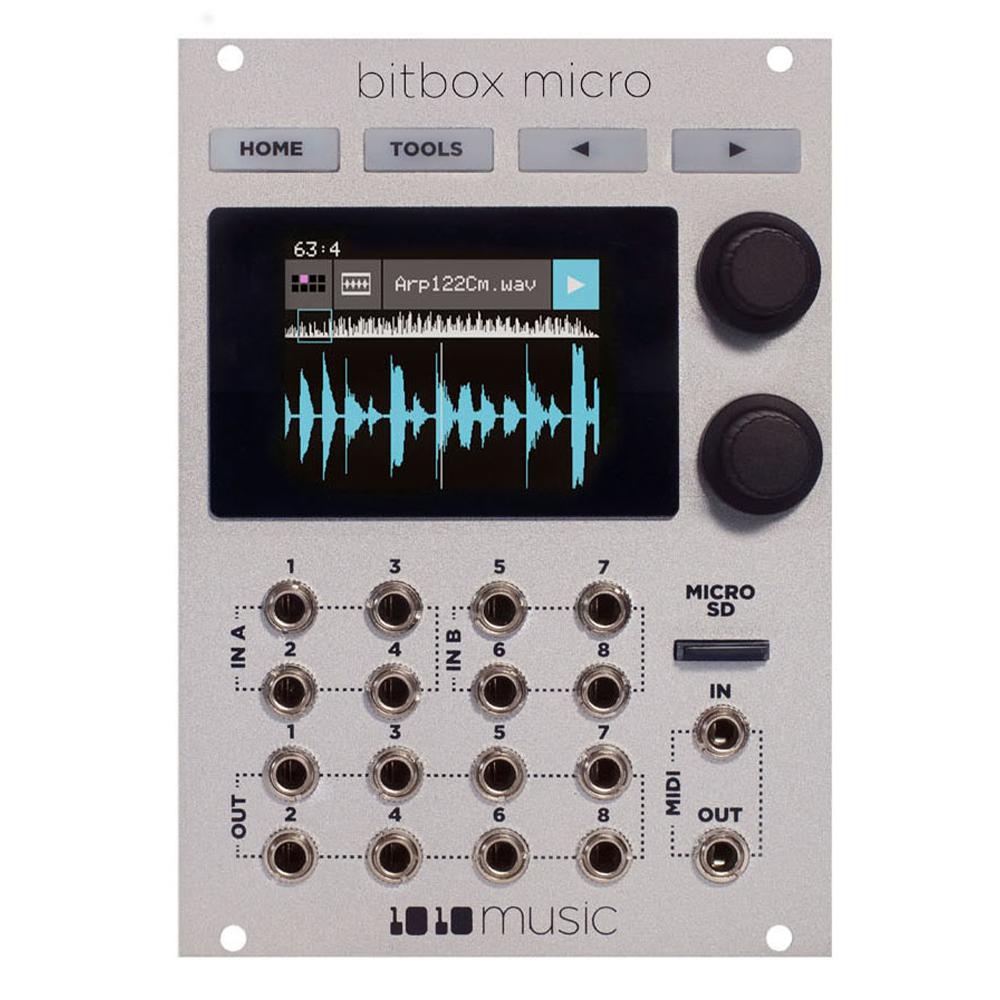

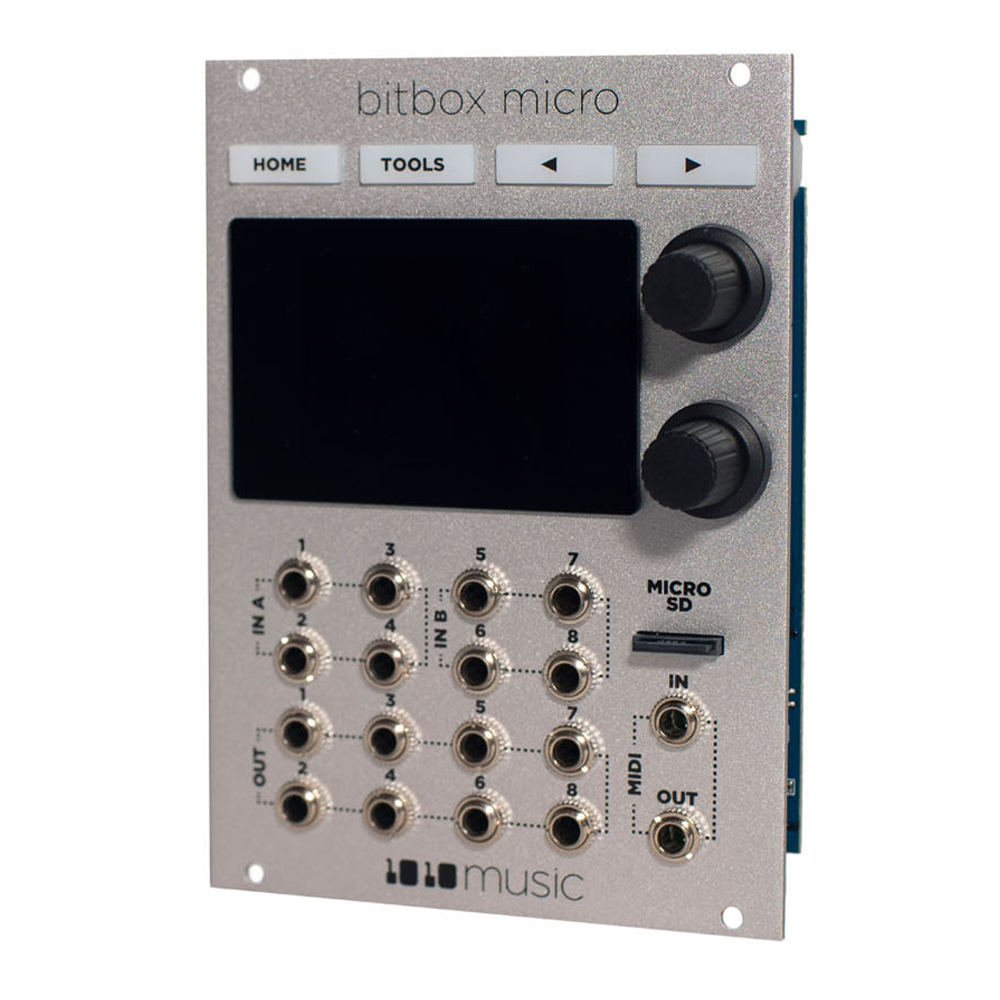

1010Music Bitbox Micro Compact Sampling Module

Out of Stock
Original price $439.00 - Original price $439.00
Original price $439.00
$439.00
$439.00 - $439.00
Current price $439.00
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Powerful Sampling Capabilities in a Smaller Form Factor

Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

With the sampling features of bitbox micro you can add interesting new ways of generating sound and music to your Eurorack. Trigger one shots, play time synched loops or record live looping. Bitbox micro is equally at home in your studio or as a component of your live performance.

Sample Playback

  • Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
  • Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
  • Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
  • Trigger samples with the touch screen, CV gate inputs, or MIDI input
  • Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
  • Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

  • Record samples from a stereo audio input pair
  • Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
  • Trigger recording via audio level threshold
  • Create perfectly sized loops by setting the recording length
  • Enable immediate playback after recording for live looping capabilities
  • Make recordings up to 4 hours in length
  • Resample the master output without patching
  • Automate recording of a multi-sample bank via MIDI and CV
  • Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes

Find creative ways of using your samples with our 5 sample playback modes:

  • Trigger one shots or launch loops using sample mode
  • Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
  • Play time-synchronized loops with constant pitch time shifting in clip mode
  • Skip between slices of a WAV using slicer mode
  • Create rich textures and other worldly sounds with granular mode

Inputs and Outputs

  • Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input
  • Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
  • Listen to all of the pad outputs combined on the master stereo output
  • Inputs and outputs are DC coupled so you can record and play out CV signals

External Control and Synchronization

  • Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
  • Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
  • Play a single or multi-sample pad pitch shifted using MIDI notes or CV
  • Trigger different sample slices using MIDI notes or CV
  • Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
  • Quickly set up MIDI modulation using Learn mode -- no need to look up CC numbers

Module

  • Use the 2" diagonal touch screen to intuitively explore the features of the module
  • Get more creative with double the processing power of the original bitbox
  • Refine your sound with reverb and delay
  • Import or export WAV files with your Mac or PC using a microSD card
  • Save and recall multiple presets
  • Increase your capacity with larger microSD cards


SPECIFICATIONS

Technical

  • Supports 1 and 2 channel WAV files with 16, 24 or 32-bit resolution at any sample rate (48kHz preferred)
  • 18 HP
  • 3.5" x 5" x 1.75"
  • +12V: 400mA
  • -12V: 0mA
  • 5V: 0mA
  • 24-bit ADC and DAC

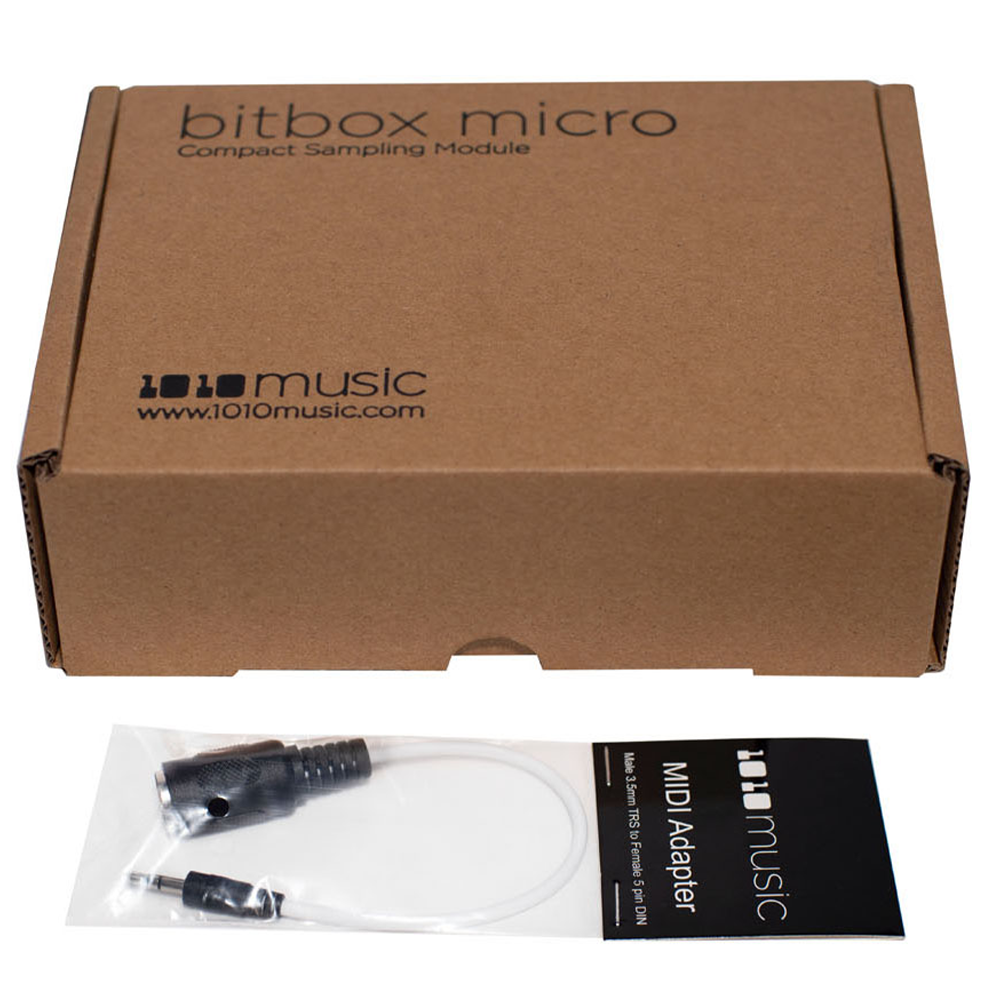

In The Box

  • a bitbox micro Eurorack module
  • a microSD card with a bank of demo presets and samples loaded on it
  • a Eurorack power cable
  • a bitbox micro Quick Start guide
  • a MIDI Adapter

Manufacturer: 1010 MUSIC
Model: BITBOXMICRO
SKU: I657081-N-0-WHXX
UPC: 857665007147
