1010Music Bitbox MK2 Intuitive Sampling Module

Original price $649.00 - Original price $649.00
Original price $649.00
$649.00
$649.00 - $649.00
Current price $649.00
Inventory Status:

► New - ❓ Out of stock
► Open Box - ❓ Out of stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Condition: New

The Next Generation of Sampling Modules for Eurorack

Bitbox mk2 delivers powerful sampling and mangling for Eurorack. With this module you can add recording, sample playback, clip launching, slicing, granular sounds and musically intelligent looping capabilities to your Eurorack rig. With a 3.5 inch touchscreen, bitbox mk2 makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Tweak your configurations to get them just right, then save them to multiple presets for future reuse. With the new bitbox mk2 hardware, you can now do more with the new more powerful processor.

You can also download fxbox and synthbox firmware from our forum and install it on your bitbox mk2 to get three modules in one. Swap to the fxbox firmware to get effects processing, or the synthbox firmware to play with wavetable synthesis.

Sample Playback

  • Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
  • Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
  • Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
  • Trigger samples with the touch screen, CV gate inputs, or MIDI input
  • Use MIDI for polyphonic playback of samples or slices
  • Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
  • Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:

  • Record samples from a stereo audio input pair
  • Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
  • Trigger recording via audio level threshold
  • Create perfectly sized loops by setting the recording length
  • Enable immediate playback after recording for live looping capabilities
  • Make recordings up to 4 hours in length
  • Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes

Find creative ways of using your samples with our 5 sample playback modes:

  • Trigger one shots or launch loops using sample mode
  • Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
  • Play time-synchronized loops with constant pitch time shifting in clip mode
  • Skip between slices of a WAV using slicer mode
  • Create rich textures and other worldly sounds with granular mode

Inputs and Outputs

  • Connect up to 8 CV modulators to control numerous sample parameters
  • Trigger each of the 16 pads with a dedicated gate input
  • Record through the dedicated stereo audio input pair
  • Use CV to keep time through the dedicated clock input
  • Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
  • Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
  • Inputs and outputs are DC coupled so you can record and play out CV signals

External Control and Synchronization

  • Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
  • Trigger each pad independently through a dedicated gate input
  • Use MIDI to trigger pads via a note per pad
  • Play a single or multi-sample pad pitch shifted using MIDI notes or CV
  • Trigger different sample slices using MIDI notes or CV
  • Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
  • Quickly set up MIDI modulation using Learn mode - no need to look up CC numbers

Module

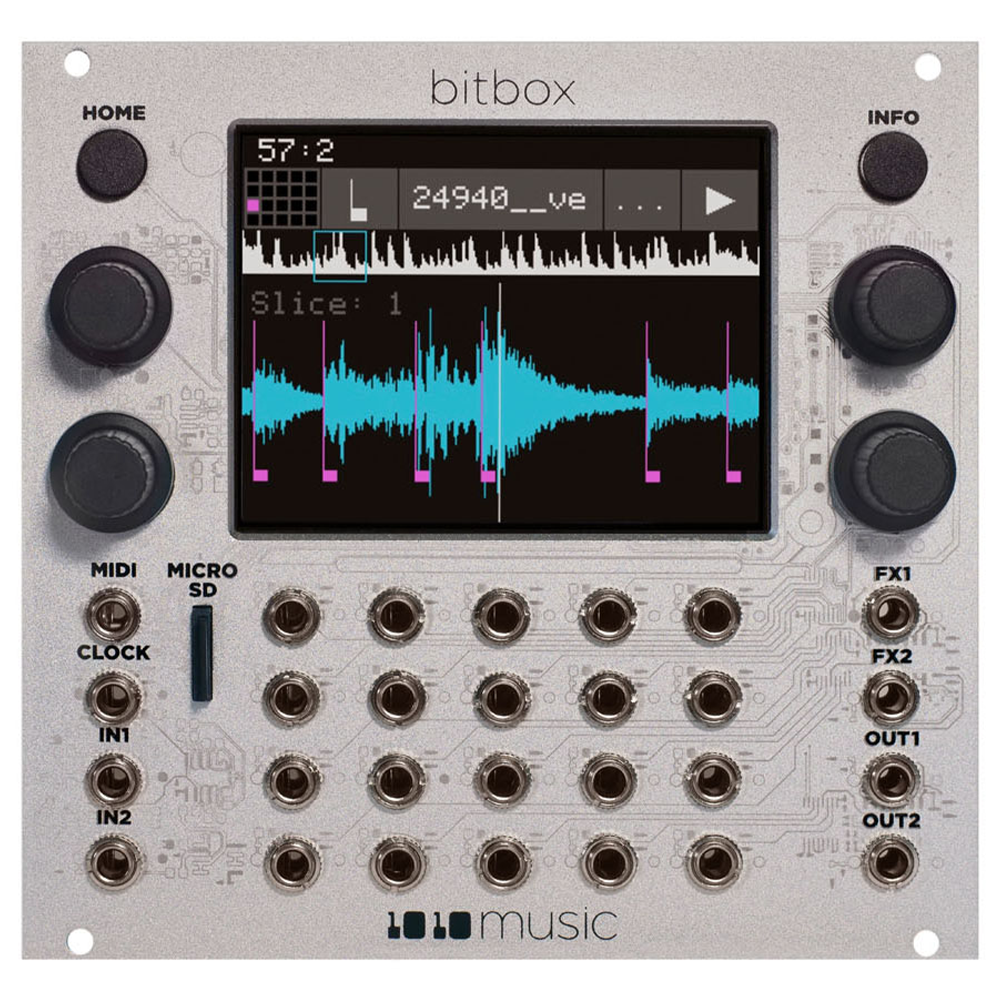

  • Use the 3.5" diagonal touch screen to intuitively explore the features of the module
  • Get more creative with double the processing power of the original bitbox
  • Fill out your sound with reverb and delay
  • Import or export WAV files with your Mac or PC using a microSD card
  • Save and recall multiple presets
  • Increase your capacity with larger microSD cards
  • Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would


SPECIFICATIONS

Technical Specs

  • Supports 1 and 2 channel WAV files with 16, 24 or 32-bit resolution at any sample rate (48kHz preferred)
  • 26 HP
  • 5.25" x 5" x 1.75"
  • +12V: 400mA
  • -12V: 0mA
  • 5V: 0mA
  • 24-bit ADC and DAC

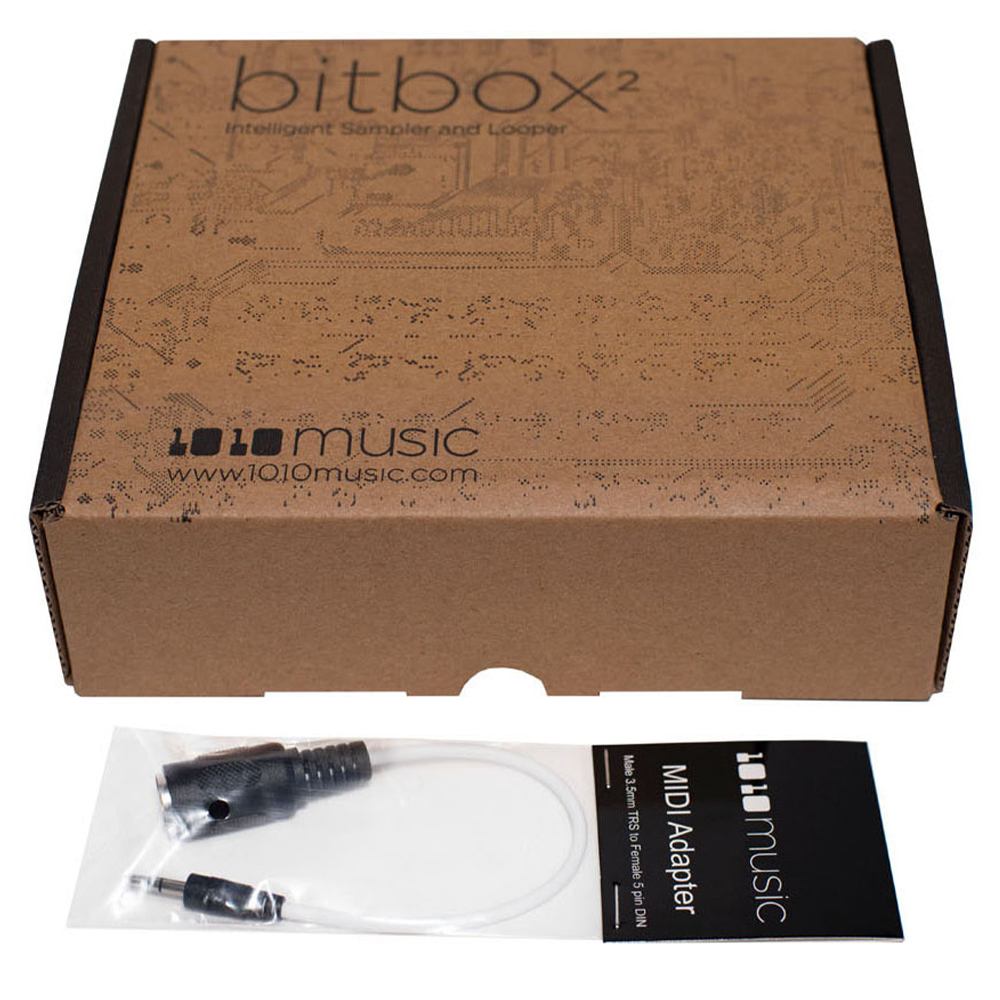

What is Included

When you purchase bitbox, you will receive:

  • a bitbox mk2 Eurorack module
  • a microSD card with with a bank of demo presets and samples loaded on it
  • a Eurorack power cable
  • a bitbox Quick Start guide
  • a MIDI Adapter

Manufacturer: 1010 MUSIC
Model: BITBOXMK2
SKU: I657080-0-WHXA
