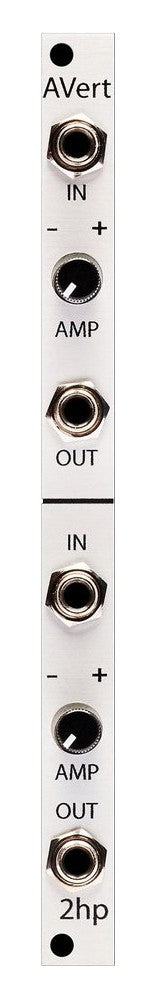

2hp AVert Dual Attenuation & Inversion Module

Flip And Attenuate Your Signal With The 2hp AVert Dual Attenuation & Inversion Module

AVert is a dual attenuverter. Each channel offers the ability to attenuate and invert any input signal. The signal present at channel 1 is normalled to channel 2, allowing for two unique output signals from a single input. Get Inverted.

• Dual attenuverter
• Attenuates and/or inverts any input signal
• Normalling behavior offers two unique outputs for a single input
• Center detented pots provide tactile feedback for 0V
• Skiff friendly

SPECIFICATIONS

• Size: 2 HP
• Depth: 42mm

Current Consumption:

• +12V: 9mA
• -12V: 5mA
