4ms Ensemble Oscillator Module

by 4ms
Out of Stock
Original price $299.00 - Original price $299.00
Original price $299.00
$299.00
$299.00 - $299.00
Current price $299.00
Condition: New
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.

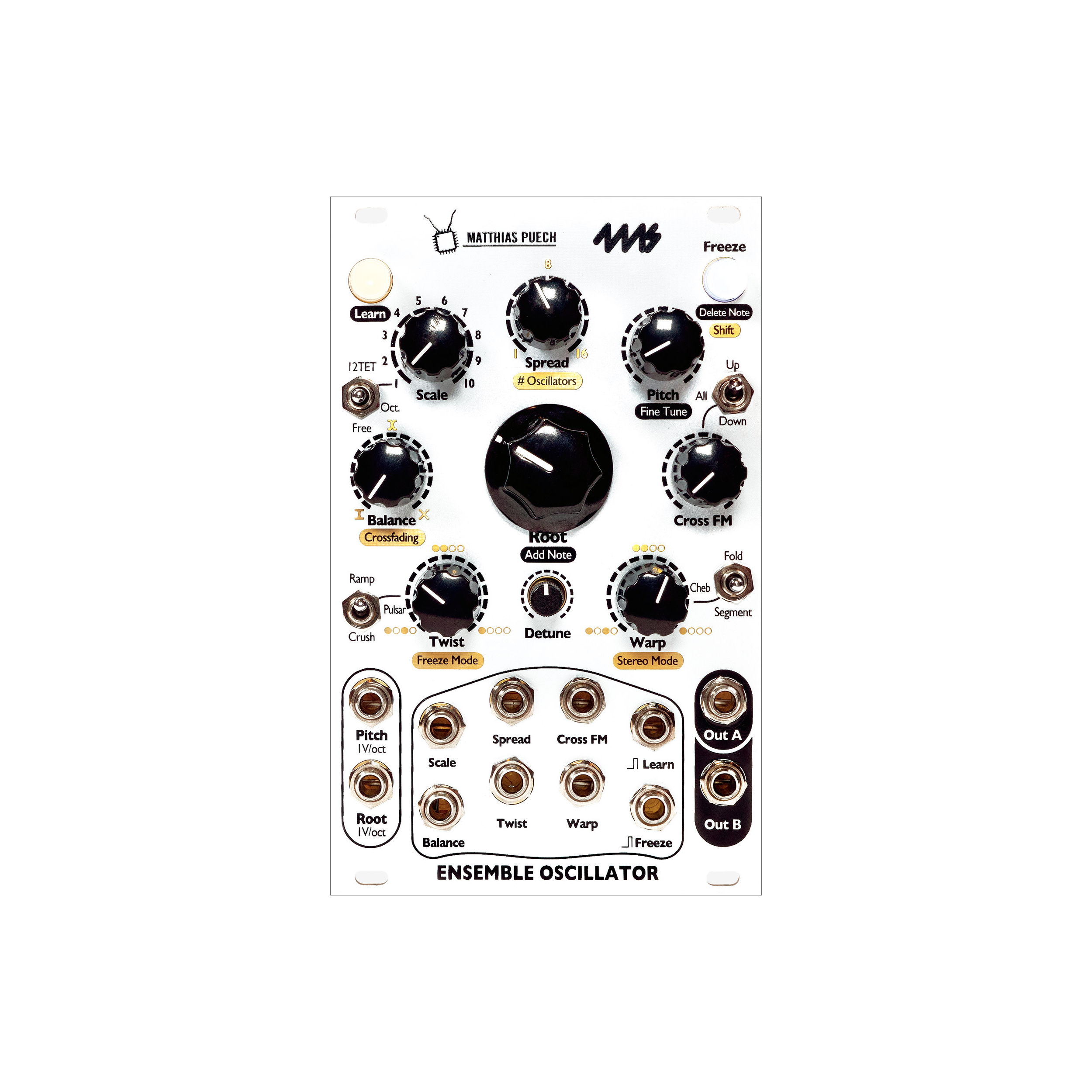

Push New Sonic Boundaries With The Unorthodox 4ms Ensemble Oscillator Module


The Ensemble Oscillator is a unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be learned and saved using a CV keyboard or by manually entering notes with the controls.

The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.

Features

  • 16 sine-based oscillators bound to intervals of a selected Scale
  • 30 factory-programmed, user-writeable scales organized in three groups:
    • 12TET: all notes quantized to equal temperament, repeating over octaves
    • Octave: unquantized notes, repeating over octaves
    • Free: unquantized notes, repeating over the interval between the lowest and highest note
  • A simple method to program (Learn) your own scales manually or with a CV/Gate keyboard
  • Three Twist phase distortion effects
  • Three Warp wave distortion effects
  • Three algorithms of Cross FM for modulating the oscillators with each other
  • Mono or stereo output with selectable panning algorithm
  • Freeze button and jack to freeze the frequency of some of the oscillators, with selectable algorithm
  • Two 1V/oct inputs: Pitch (non-quantized), and Root (quantized)
  • High-accuracy, temperature-stable, eight octave range (-2V to +6V), can be calibrated to any keyboard
  • Six bi-polar CV inputs (-5V to +5V)
  • Two gate inputs for automated Learning and Freezing

Specifications

  • 16HP Eurorack format module
  • 0.98in (25mm) maximum depth (including power cable)
  • 10-pin to 16-pin Eurorack power header
  • Power consumption:
    • +12V: 114mA maximum
    • -12V: 45mA maximum
    • +5V: 0mA (not used)
  • Audio outputs:
    • Frequency range: 0Hz (DC) - 20kHz
    • Typical amplitude: 10Vpp
    • Maximum amplitude: 18.5Vpp
  • 1V/oct inputs (Root and Pitch):
    • Voltage range: -2V to +6V (8 octave range)
    • Factory calibrated to 1.00V/oct
    • Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
  • CV inputs (other than 1V/oct):
    • Voltage range: -5V to +5V
  • Gate inputs
    • Trigger threshold: 2.5V
  • User memory (non-volatile)
    • Scale slots: 30
    • Shift feature settings
    • 1V/oct calibration settings

Manufacturer: 4ms
Model: ENOSCW
SKU: I624726-0-WHXA
