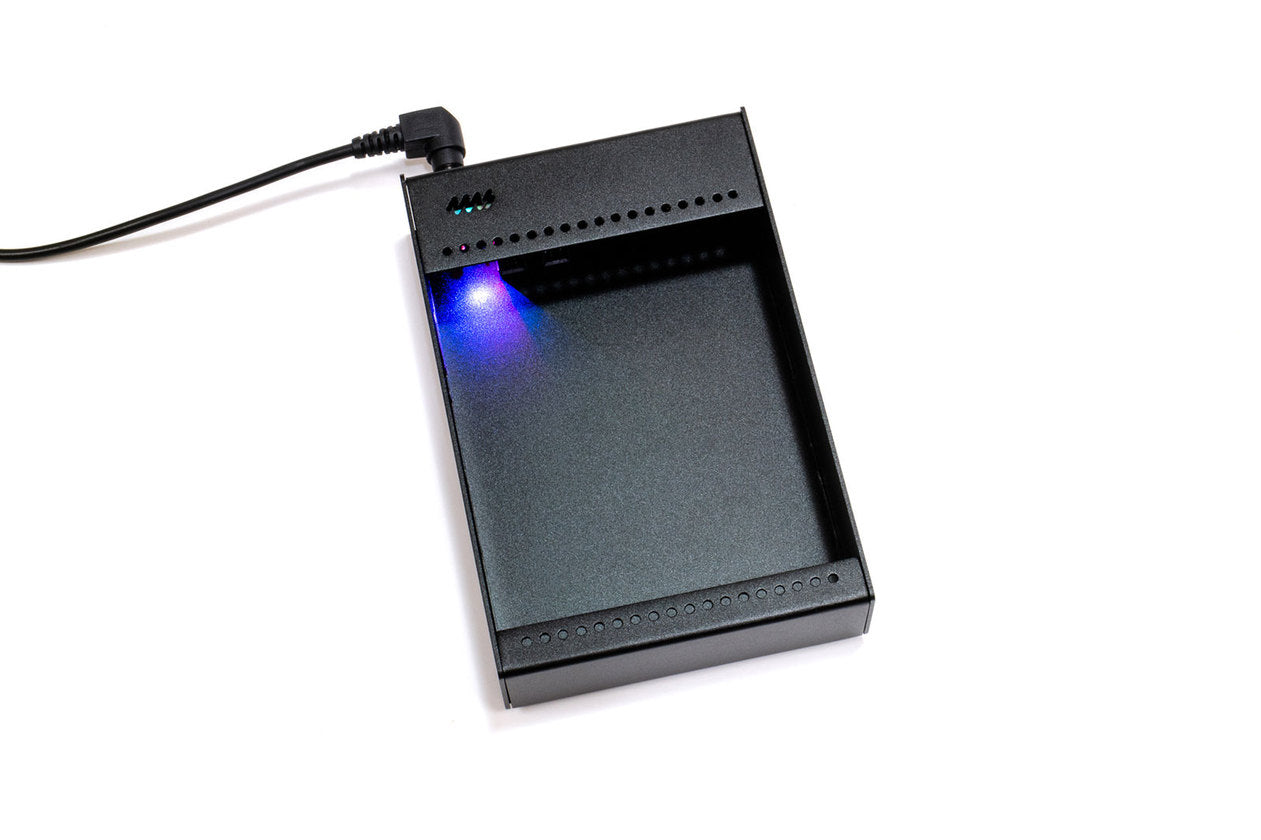

4MS Pod20 Powered 20HP Eurorack Case

Get A Portable, Flexible, And Versatile Powered Case For Your Eurorack Modules With The 4MS Pod20 Powered 20HP Eurorack Case

The Pod20 is a low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod20 is 20HP with 1.34" (34mm) of available module depth. The built-in power supply has two power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick. If you already have a powered Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The Pod20 includes ten (10) M3x8mm stainless steel screws and is compatible with M3 Knurlies.

• 4ms Pods are low-cost, portable, compact enclosures that turn Eurorack modules into table-top instruments. Pods come with an integrated, daisy-chainable power supply that allows you to link multiple units in different configurations using only a single power brick.
• Each Pod typically will house one or two modules, but three or more can be accommodated using a multi-power cable accessory. Standard M3 threaded holes allow for any configuration of modules.
• Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!
• Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go. The power supply can handle up to 700mA of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered!)
• Pods are a perfect way to get started in Eurorack module, or to add a couple more modules to your monster system. They can even daisy-chain with the 4ms Row Power system, making them a convenient outboard mini-skiff.

INCLUDES:

• 20HP Pod, black anodized aluminum
• Built-in power supply with two Eurorack power headers
• M3 x 8mm pan-head screws, stainless steel (10)
• Adhesive rubber feet (4)
• Does not include barrel cable or power brick

POWER SUPPLY:

• Two 16-pin Eurorack power shrouded headers
• +12V max 0.7A
• -12V max 0.28A
• +5V max 0.2A
• Power input: Two barrel jacks for daisy-chaining
• 15V-20VDC, 2.1mm positive tip

EXTERIOR DIMENSIONS:

• Width: 106.1mm (4.18")
• Height: 159.5mm (6.28")
• Depth: 36mm (1.42")

INTERIOR DIMENSIONS:

• Module depth: 34.2mm (1.34")
• Module width: 20HP

WEIGHT:

• 0.17 kg = 6 oz
