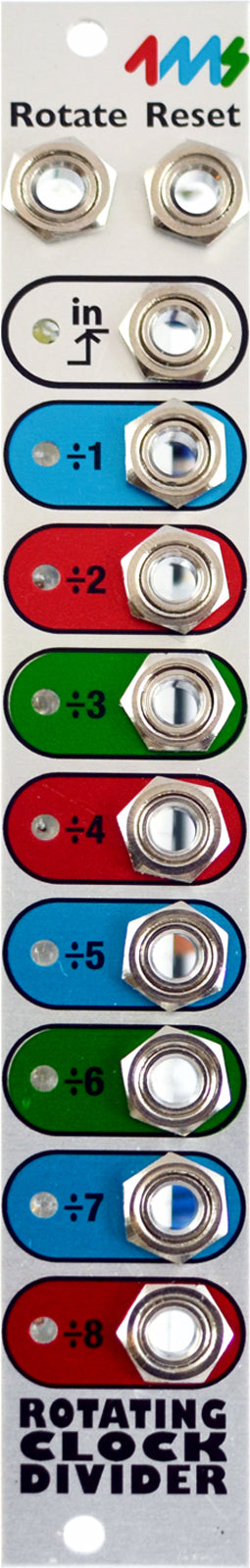

4ms Rotating Clock Divider Module


  • Our Price
  • Regular price $179.00

OUT OF STOCK - CALL FOR AVAILABILITY
• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19





Explore The Divisions Of Time With The 4ms Rotating Clock Divider Module

The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.



BASIC FEATURES:

  • Divide-by-1 to Divide-by-64, on 8 output jacks
  • CV Rotate jack to shift divide-by amount on each jack
  • CV Reset jack to reset/re-sync all jacks
  • Optional break-out panels to expand functionality (Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)

JACKS:

  • Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
  • CV Rotate (0V to +5V input)
  • CV Reset (5V to 15V trigger)

Divided Clock Outputs (8 jacks):

  • Divide-by-(1+R)
  • Divide-by-(2+R)
  • Divide-by-(3+R)
  • Divide-by-(4+R)
  • Divide-by-(5+R)
  • Divide-by-(6+R)
  • Divide-by-(7+R)
  • Divide-by-(8+R)
  • ...where R is the CV Rotation.

Selectable Gate/Trigger mode:

Selectable Divide range up to Divide-by-64:

  • Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.

Selectable Auto-reset:

  • Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.


MODULE SIZE:

  • 4 HP Eurorack format module
  • 1.39" (35mm) deep

POWER CONSUMPTION:

5VSEL Jumper set to INT:

  • 33mA maximum power draw from +12V rail
  • 0mA max on the +5V rail
  • 4mA maximum power draw on the -12V rail

5VSEL Jumper set to EXT:

  • 19mA maximum power draw on the +12V rail
  • 14mA max on the +5V rail
  • 4mA maximum power draw on the -12V rail

INCLUDED WITH THE RCD:

  • 16-to-16 pin power cable
  • 2 M3 Knurlie screws

Manufacturer: 4MS
Model: RCD
Warranty: See manufacturer website for details
SKU: I574995-N-0-B
