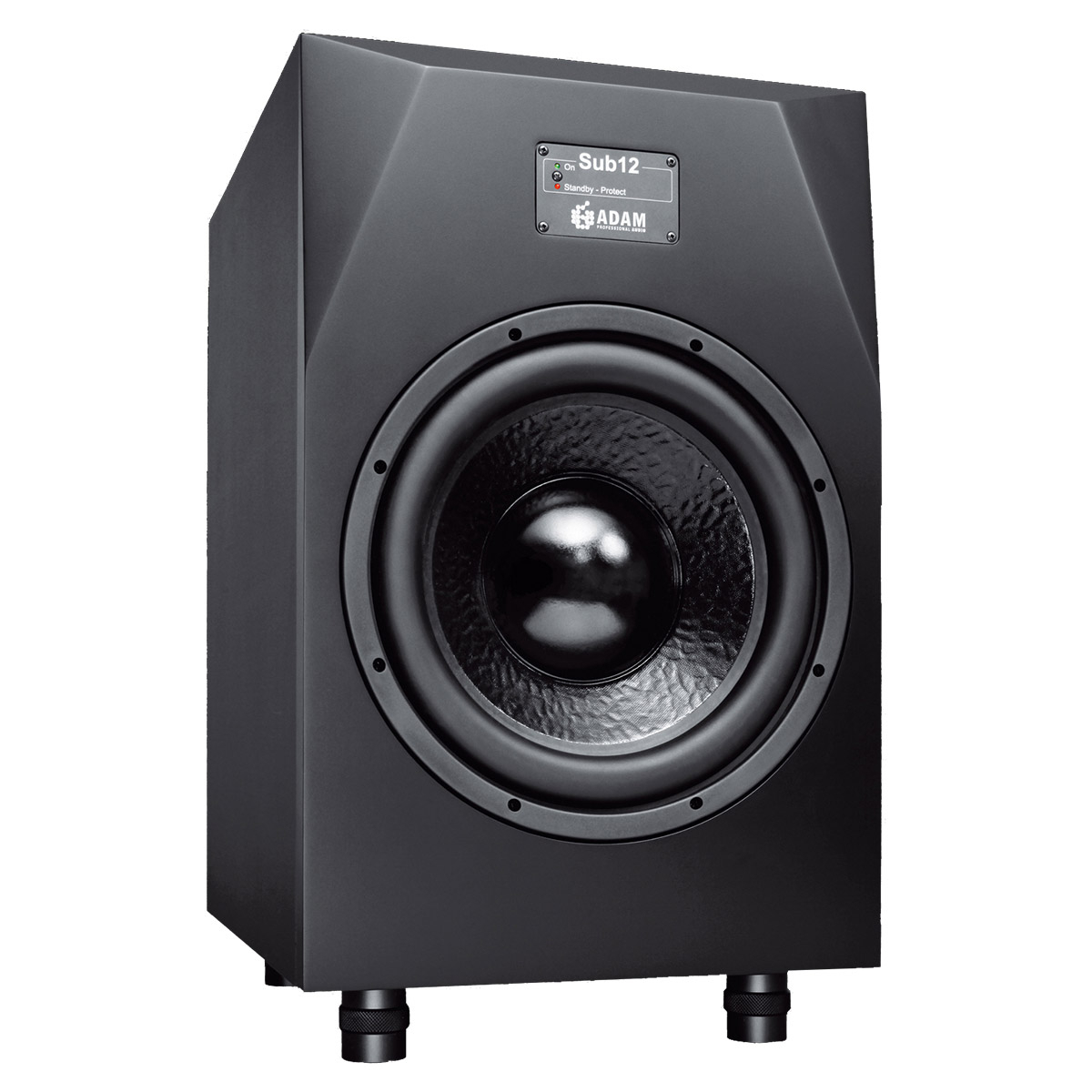

Introduce Clear, Accurate Low-End To Your Monitor System The Adam Audio Sub12 Powered Subwoofer

The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22 Hz.

A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).



  • Bass reproduction down to 22 Hz
  • Maximum Peak sound pressure in 1 m ≥ 115 dB
  • High efficiency PWM amplifier
  • Special 12" woofer with paper diaphragm
  • Easy manual or automatic (de-)activation
  • Additional sub output
  • According to downward working bass reflex tube with generous dimensions and corresponding rounding
  • Crossover frequency is selectable between 50 - 150 Hz
  • Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz


SUBWOOFER

  • Number 1
  • Basket Ø 12" (310 mm)
  • Voice coil Ø 2" (50 mm)
  • Cone material Paper

BUILT-IN AMPLIFIERS

  • Subwoofer 1
  • Amp. power RMS / music 200 W / 300 W

INPUT CONNECTORS

  • Analog XLR / RCA

GENERAL DATA

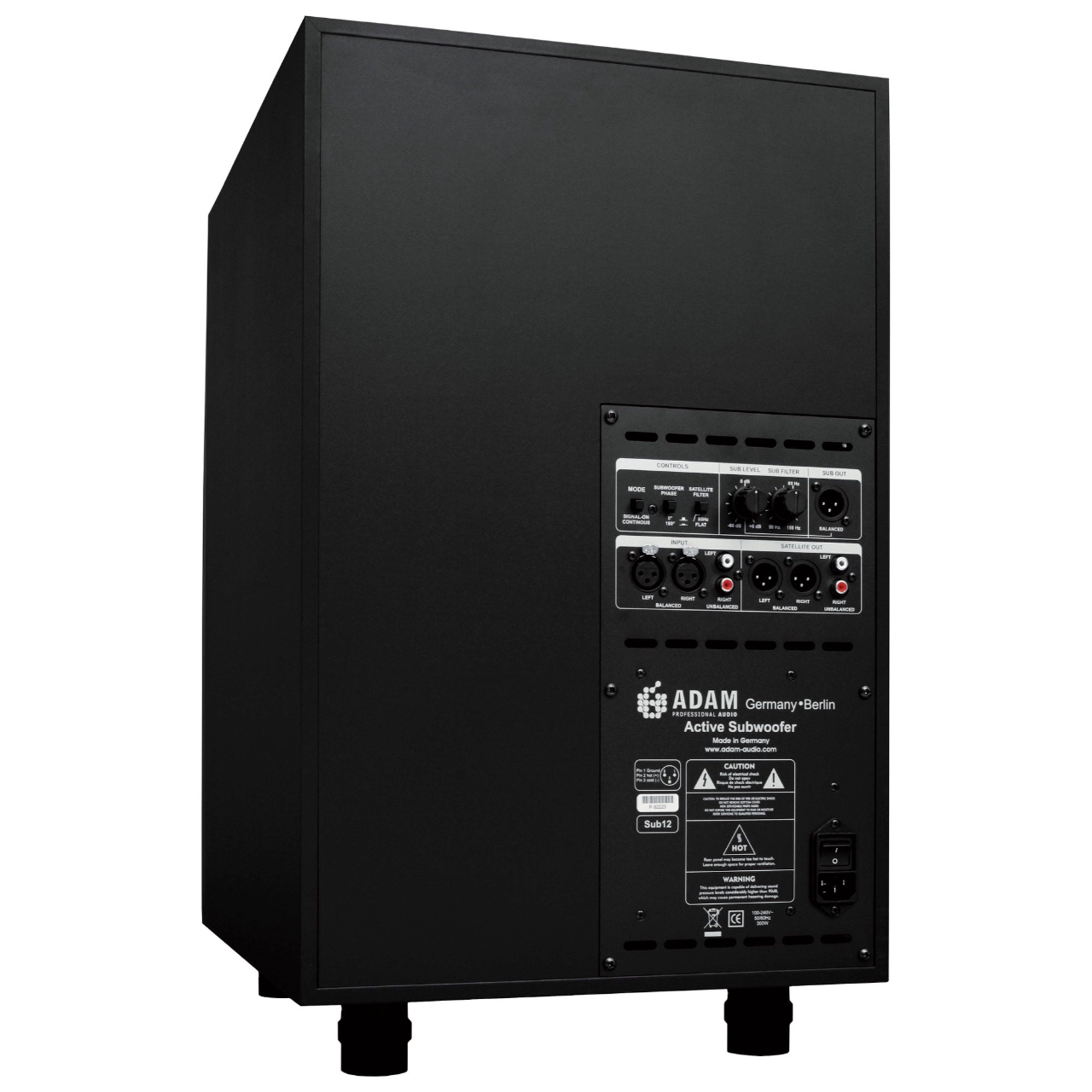

  • Panel Rear
  • Frequency response 22 Hz - 150 Hz
  • THD > 60 Hz ≤1 %
  • Peak SPL max at 1m ≥115 dB
  • Crossover frequencies 50 - 150 Hz
  • Input impedance 10 KOhm

DELIVERY CONTENTS

  • Power cord, Manual

Manufacturer: Adam Audio
Model: SUB 12
