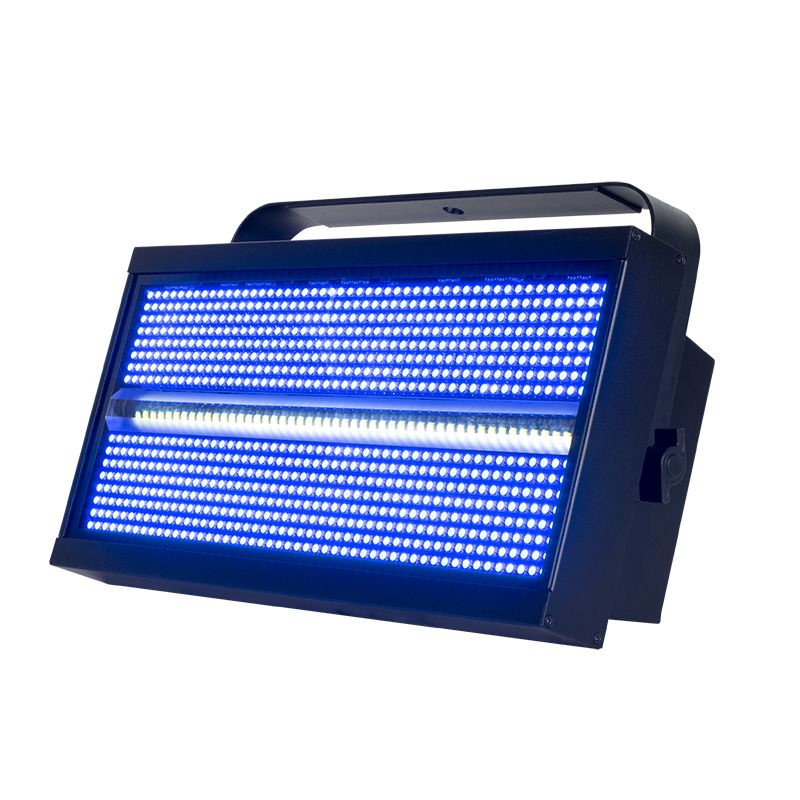

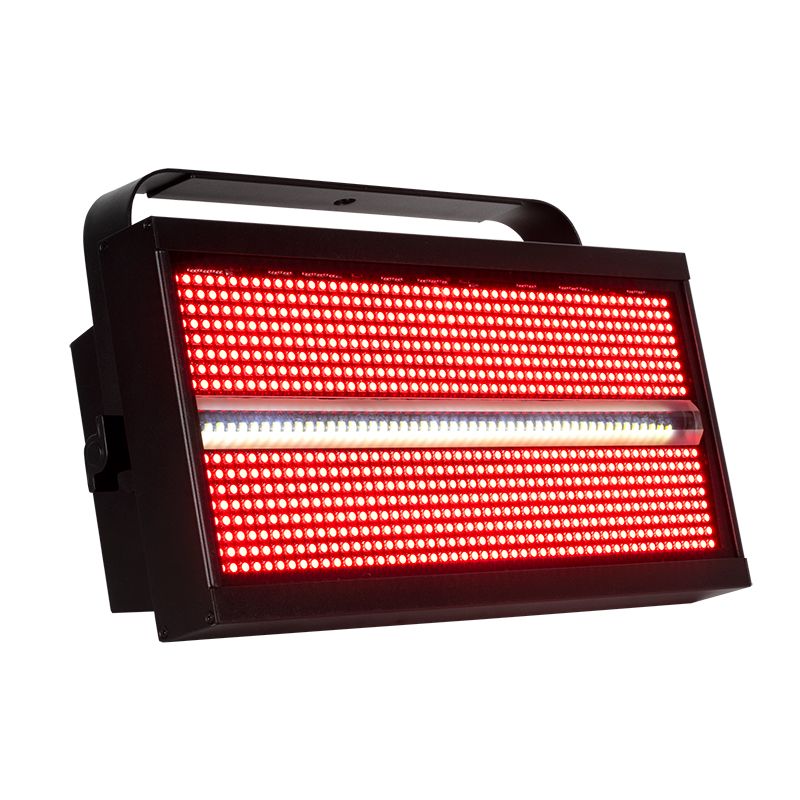

ADJ Jolt Panel FX 300-Watt RGB+W SMD LED Fixture Light

Sold out
Original price $999.95
Original price $999.95 - Original price $999.95
Original price $999.95
Current price $719.99
$719.99 - $719.99
Current price $719.99
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Acquire an Innovative Multi-Use Strobing Eye Candy with ADJ Jolt Panel FX 300W RGB+W SMD LED Fixture

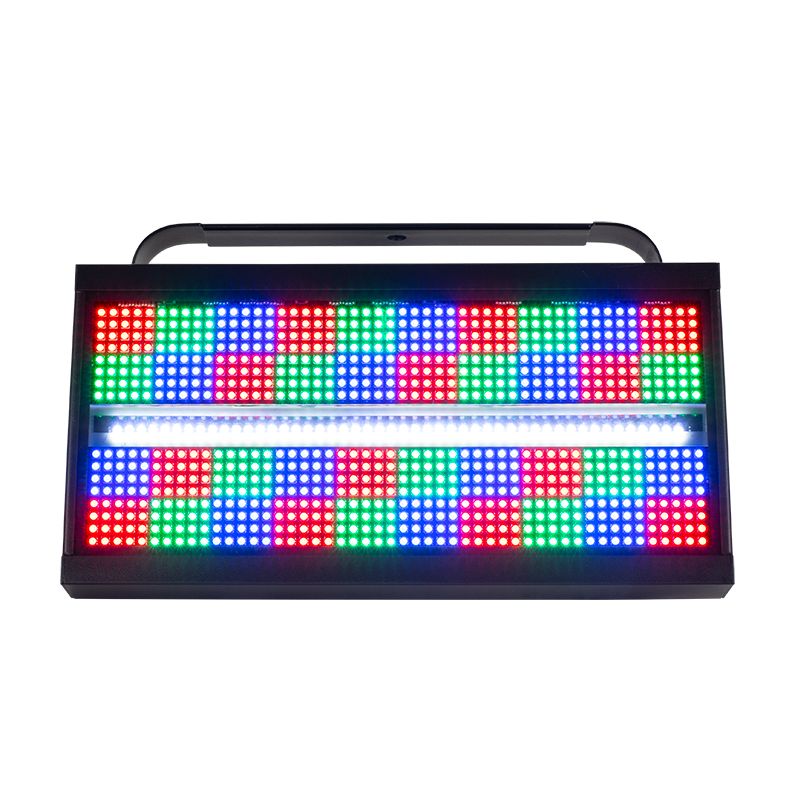

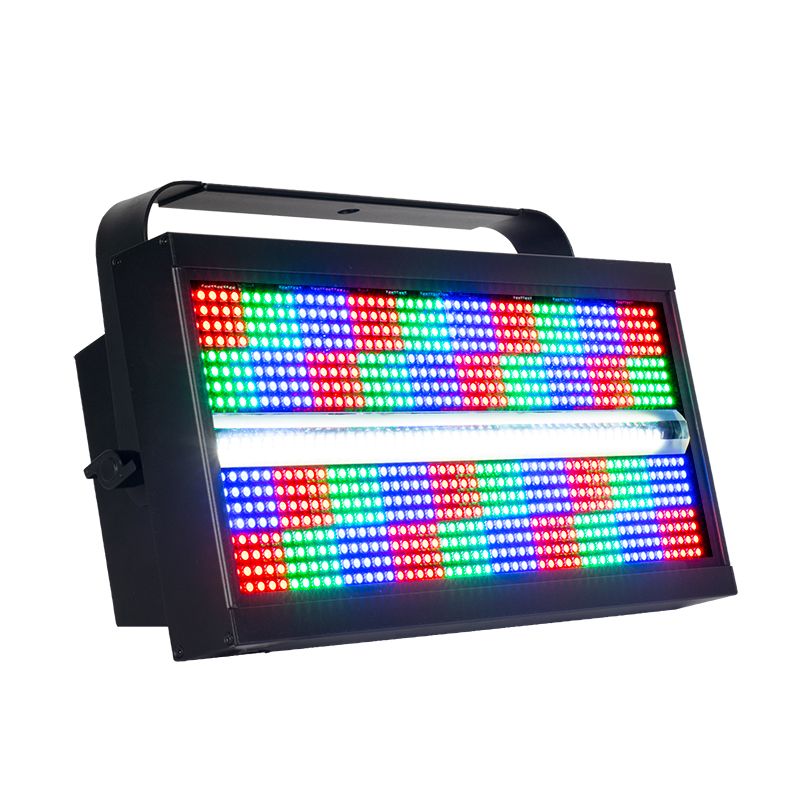

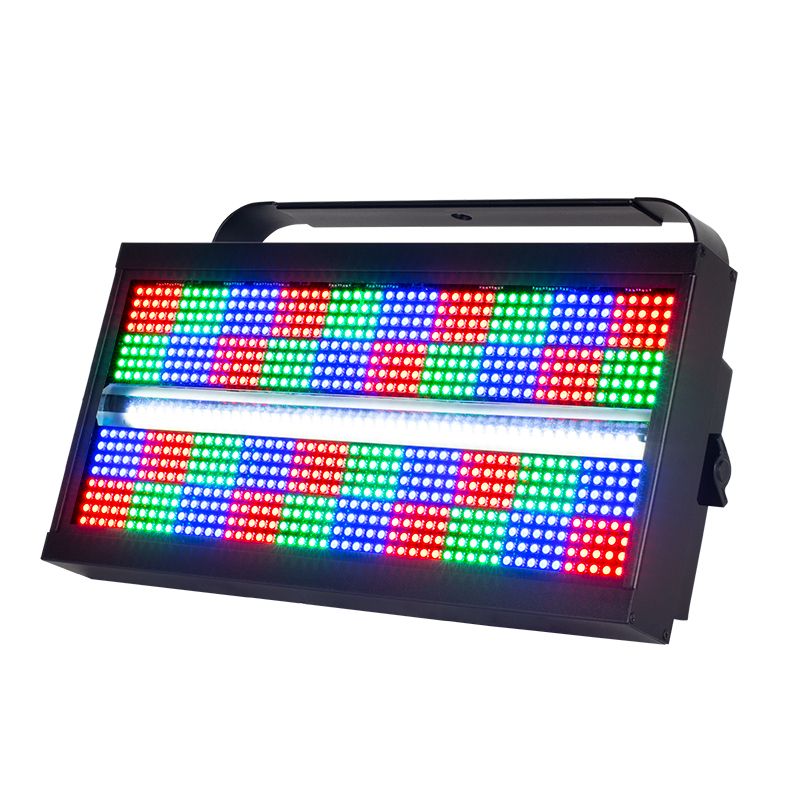

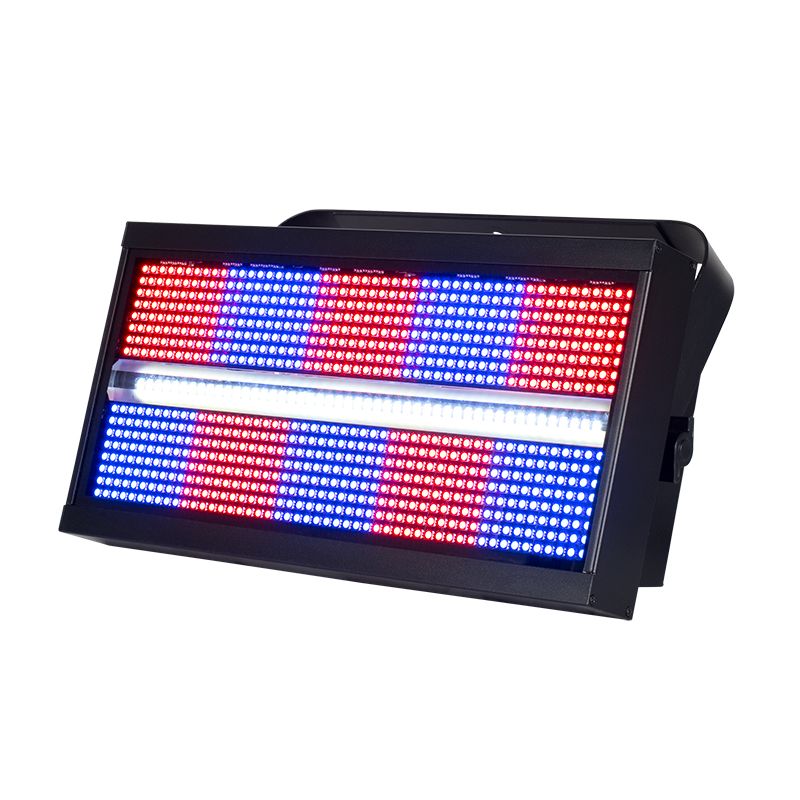

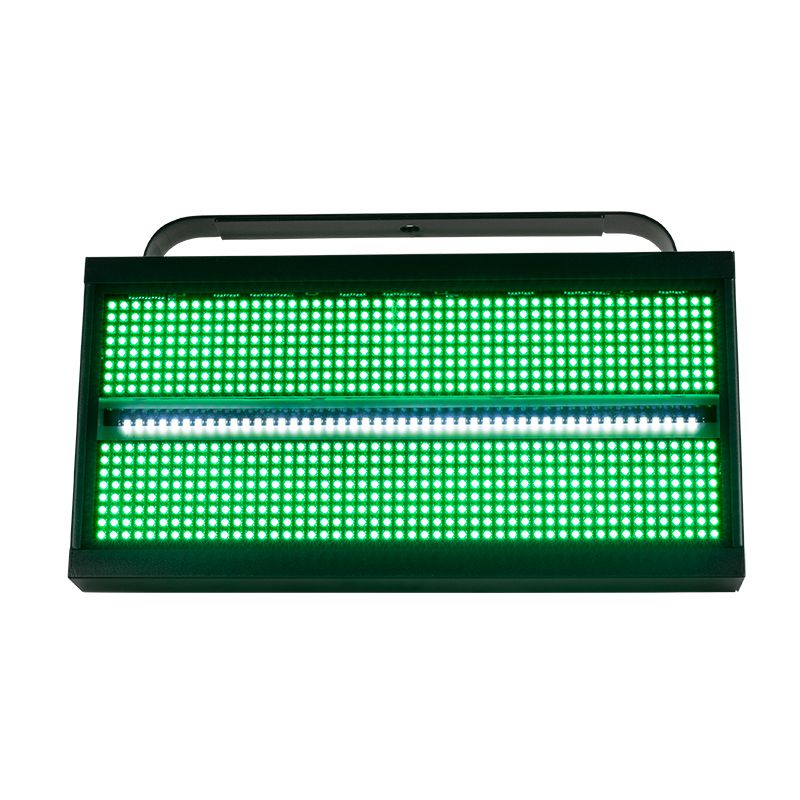

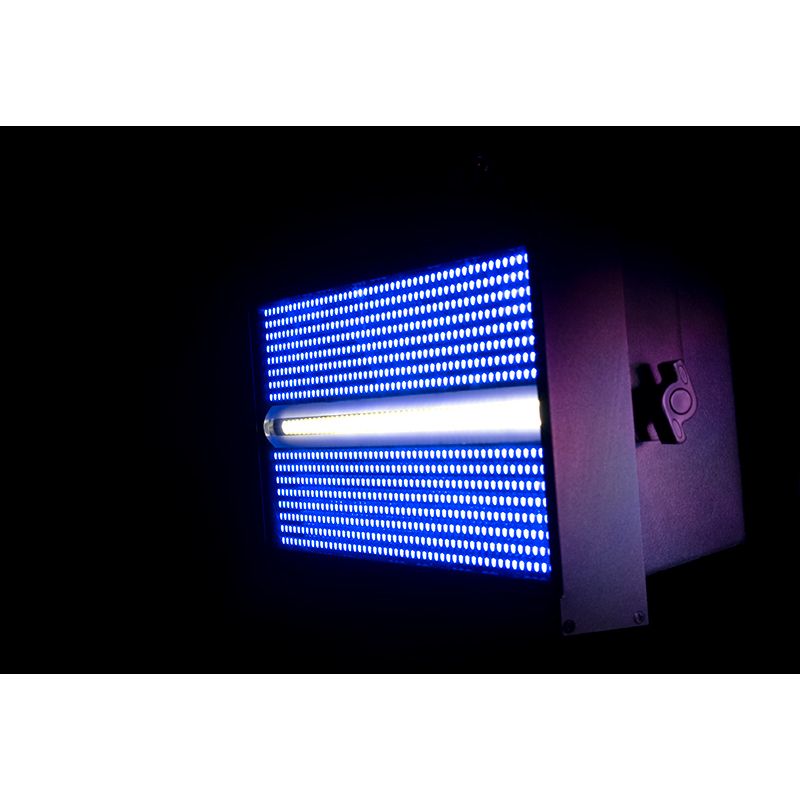

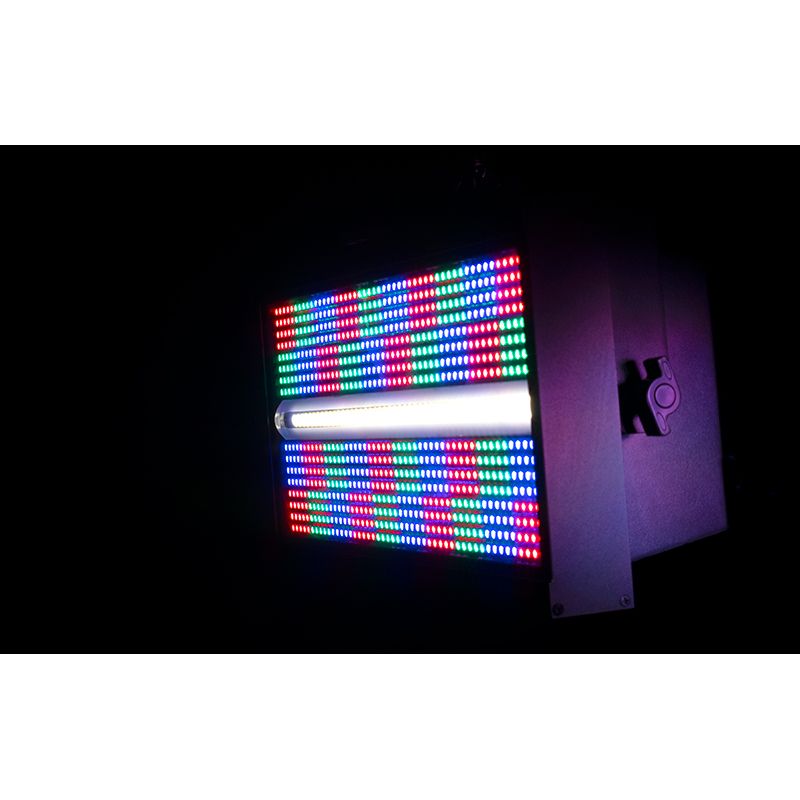

The ADJ Jolt Panel FX is an innovative multi-use strobe / eye candy fixture. It is equipped with 800 0.3W RGB SMD LED for color strobing and eye candy effects, and 48 5W white SMD LED located in the center of fixture to create the traditional look of a strobe. Zone chasing control provides an eye candy effect when used together with the white LEDs. The Jolt Panel FX’s massive light output is specifically designed for large stages, nightclubs, live events and touring.


  • 40 x RGB LED zones
  • 6 x Cool White LED zones
  • 25 built-in RGB LED Program Macros
  • 9 built-in Cool White LED Program Macros

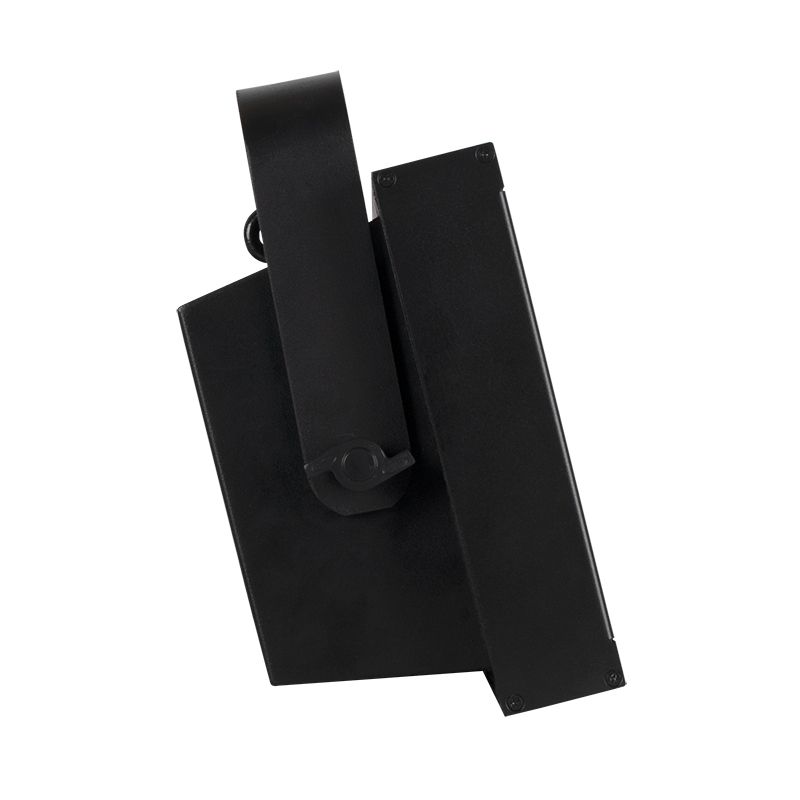

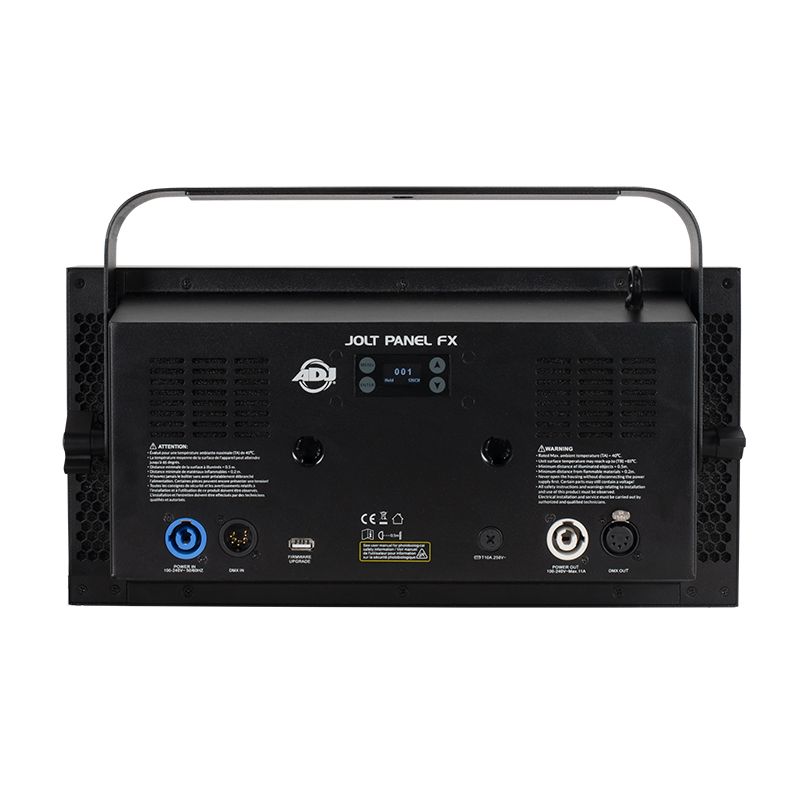

The rear panel has conveniently located connections 5-pin DMX in/out connections along with locking power in/out to daisy chain power. There is also a USB input that allows uses a fast and convenient way to update firmware. There are also hole to connect an omega bracket to the Jolt Panel FX.The Jolt Panel FX offers users an easy way to navigate the built-in features from a LCD display with a 4-button menu system. The display allows users to change dimming modes, dimming speed, programs, color macros, LED refresh rate, gamma settings and DMX channel modes.A scissor yoke, and an omega bracket come with the fixture so the it can be attached to a clamp and hung on truss.


SPECIFICATIONS

Light Source

  • 800 x 0.3W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
  • RGB LEDs: 121 Degree Beam Angle
  • Cool White LEDs: 89 Degree Beam Angle
  • Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6500-7000K
  • 50,000 Hour Average LED Life

Control

  • Control Protocol: DMX]
  • 10 DMX Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channels
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre and Stage 2)
  • 0-100% Smooth Dimming
  • Strobe, shutter and pulse control
  • Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
  • With Wired Digital Communication Network
  • Display: LCD display with 4-button touch menu

Connections

  • Data: 5-pin DMX In/Out
  • 180 degree mounting bracket system
  • Ready for Omega Bracket (Sold Separately)
  • Power locking power in/ou

Electrical

  • 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 330W (2.7A@120V~60Hz, 1.4A@230V~50Hz)

Dimensions / Weight

  • Length: 6.3in (159.5mm)
  • Width: 15.95in (405mm)
  • Height: 9.85in (250.5mm)
  • Weight: 14.1 lbs. (6.4kg)

What’s Included

  • 1x Power locking power cable
  • 1x Omega Bracket
  • 1x Single Yoke

Manufacturer: ADJ Supply
Model: JOLT PANEL FX
SKU: I709182-N-0-WHXB
UPC: 810087370237
