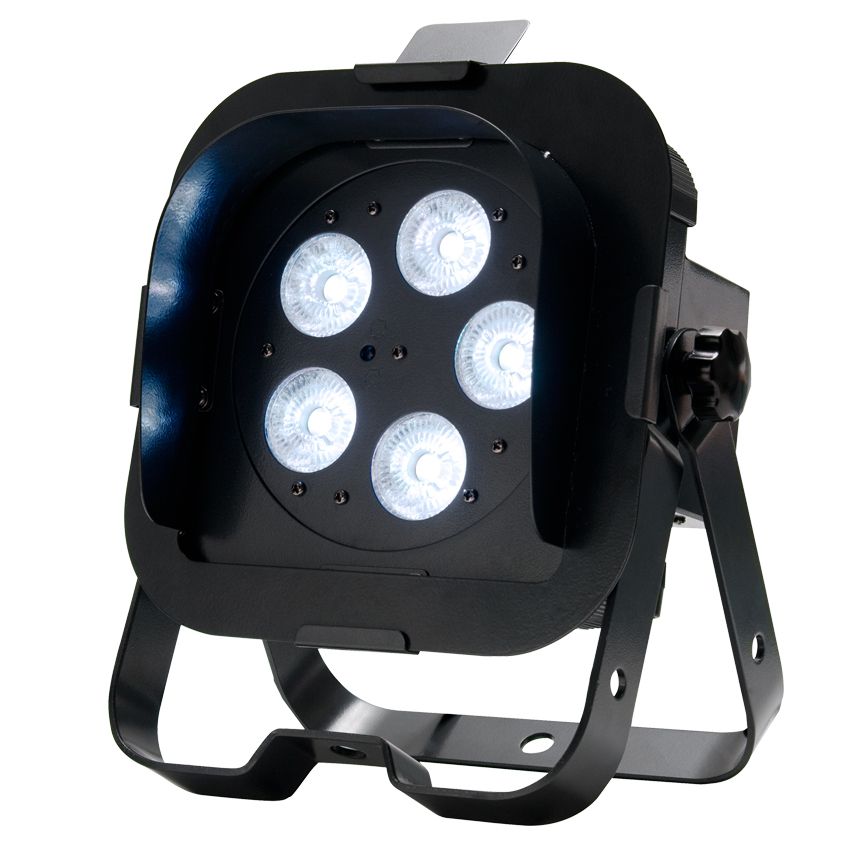

ADJ Supply FLAT PAR QWH5XS Par Cans

Take your color mixing to the next level with the ADJ Flat Par QWH5XS professional “low profile” LED fixture.

It features five 5-Watt QUAD LEDs (4-in-1 RGBW) with smooth RGB color mixing as well as a true amber LED to get the hard to achieve orange and amber hues. The units “low profile,” sideways power & DMX Ins/Outs and dual hanging brackets make it ideal for mobile entertainers, permanent installations and for inserting into truss or for uplighting.

The Flat Par QWH5XS has 8 different DMX channel modes, and may also run in Sound Active or Master/Slave modes. Users can also go “wireless” with the ADJ LED RC2 wireless remote (sold separately). This LED fixture also features: 15 Color Macros, Electronic Dimming (0-100%), IEC AC IN and OUT on rear to daisy chain power and a 25-degree beam angle. The Flat Par QWH5X LEDs are rated at 50,000 hours, and only draws 34-Watts of power per fixture.

SPECIFICATIONS

• Ultra bright slim fixture with 5x 5-watt QUAD LED's (4 in 1 RGBW - Red, Green, Blue, & White)
• Snoot frame included helps limit unwanted light exposure
• Unique "Sit Flat" design - Power & DMX ins/outs are intelligently designed so the unit can be set flat on the ground or set inside truss
• Great for performance stages where traditional par cans emit a lot of heat onto performers
• Low profile case design
• Wireless infrared remote control up to 15ft./4.5M (Model: ADJ LED RC2 - Sold Separately)
• 8 DMX channel Modes: 1, 2, 3, 4 ,5, 6, 7, or 8 channel modes
• 6 Operational Modes: Manual Color Mode; color change mode; color fade mode; auto (Program run) mode; Sound active mode and DMX-512 mode
• Smooth RGBW color mixing (Fast or slow color change operation)
• QUAD LED (4-in-1) project no RGB shadows
• 15 built in color macros
• LED pulse & strobe effect
• Flicker free
• Electronic dimming: 0-100%
• Beam angle: 25 degrees
• Linkable via 3-pin XLR cable (In/out)

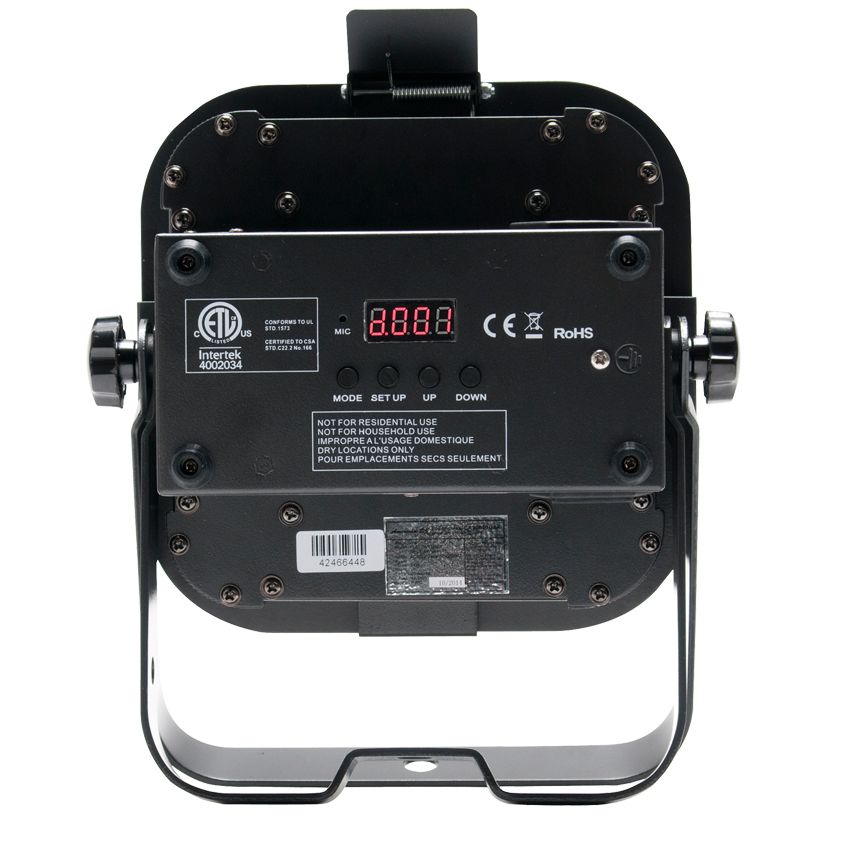

• 4-button LED DMX display on rear panel
• Dual brackets yoke allow fixture to be hung or set on ground
• IEC AC IN/OUT outlets on rear to daisy chain power (up to 18 units)
• Includes gel frame for optional diffusion filters
• Run all night - No duty cycle
• Light output: 2730 LUX @ 2M: 611 LUX @4M (25 degree beam)
• Long life LED's (50,000 hrs.)
• Power Draw: 34W max
• Power Cable Length: 1.8m (IEC)
• Multi Voltage Operation: AC 100-240V, 50/60hz (IEC power in/out)
• Dimensions (LxWxH): 10.75"x9"X4.5" / 272x230x115mm
• Weight: 6lbs. / 2.5 kg.
