PRODUCT DETAILS

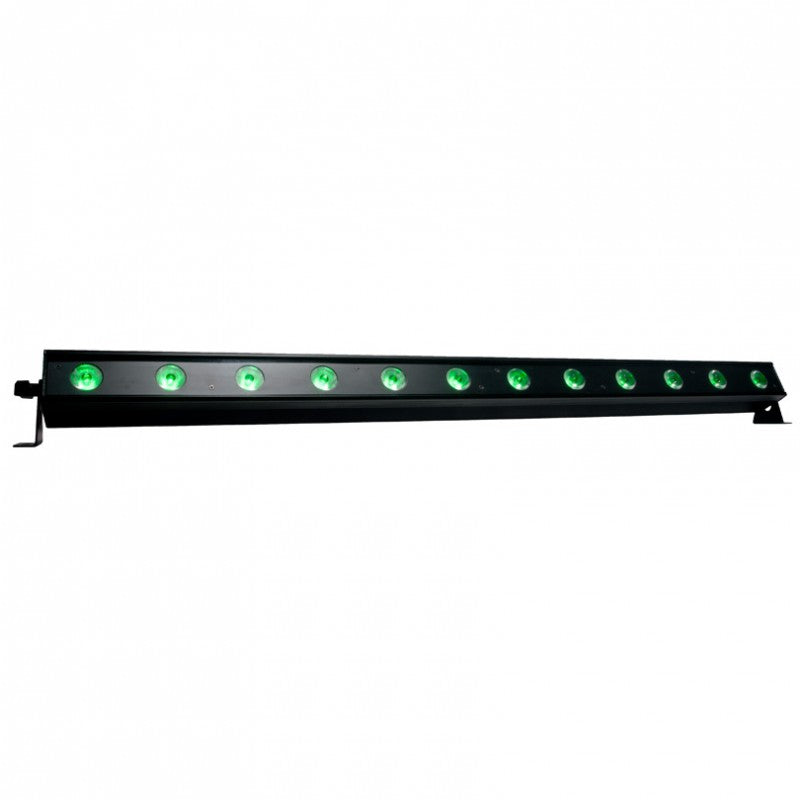

ADJ Ultra HEX BAR 12 LED Linear Fixture
Light up the Show with The ADJ Ultra Hex Bar 12 Led Linear Fixture
The ADJ Ultra HEX Bar 12 is a versatile LED Linear fixture with 12 x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it's great for uplighting a venue.
Ultra HEX Bar 12 professional features include: 5 DMX modes (6, 7, 8, 12, &' 36 channel), 6 operational modes, 5 dimming curves, flicker free operation a 4-Button DMX menu with digital display, plus ADJ's patent pending magnetic Quick Alig end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 7 units together via the fixtures built-in IEC In/Out power connectors.
The Ultra HEX Bar 12 is compatible with the ADJ RFC, easy-to-use, wireless remote. Alternatively the fixture may be operated via a DMX controller or the units built-in programs.
- Ultra bright, 40-inch indoor Linear Bar with 12 x 10W Ultra bright HEX (RGBWA + UV: 6-IN-1) LEDs
- Smooth RGBAW + UV color mixing
- Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
- Patent Pending Quick Align (Magnetic)
- Flicker Free operation (No flickering on camera)
- LED pulse and strobe effect
- Includes mounting brackets to mount on a wall or set on the ground
- Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)
SPECIFICATIONS
- 5 DMX Channel Modes: 6/7/8/12/36 Channels
- 6 Operational Modes: Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color And DMX-512 Mode
- Beam Angle: 40 Degrees
- Refresh Rate: 2.88Khz
- 63 Built-In Color Macros
- 5 Selectable Dim Curves (Standard, Stage, Tv, Architectural And Theatre)
- 2x8 Character LCD Display
- Electronic Dimming: 0-100%
- Long Life Leds (Rated At Approximately 50,000 Hrs.)
- Light Output: 1680 Lux @ 2M; 478 Lux @4 Meters (40-Degree Beam)
- Power Draw: 90W
- Linkable: Dmx Via 3-Pin XLR Cable; Power Via IEC Daisy-Chain Power Link (Up To 7 Ultra Hex Bar 12 Fixtures)
- Multi-Voltage Operation: AC 100V-240V 50/60Hz
- Power Cable Length: 1.8 Meter (IEC)
Manufacturer: ADJ Supply
Model: ULTRA HEX BAR 12
SKU: I344779-N-7-WHXE
UPC: 819730015266
