Description
Description

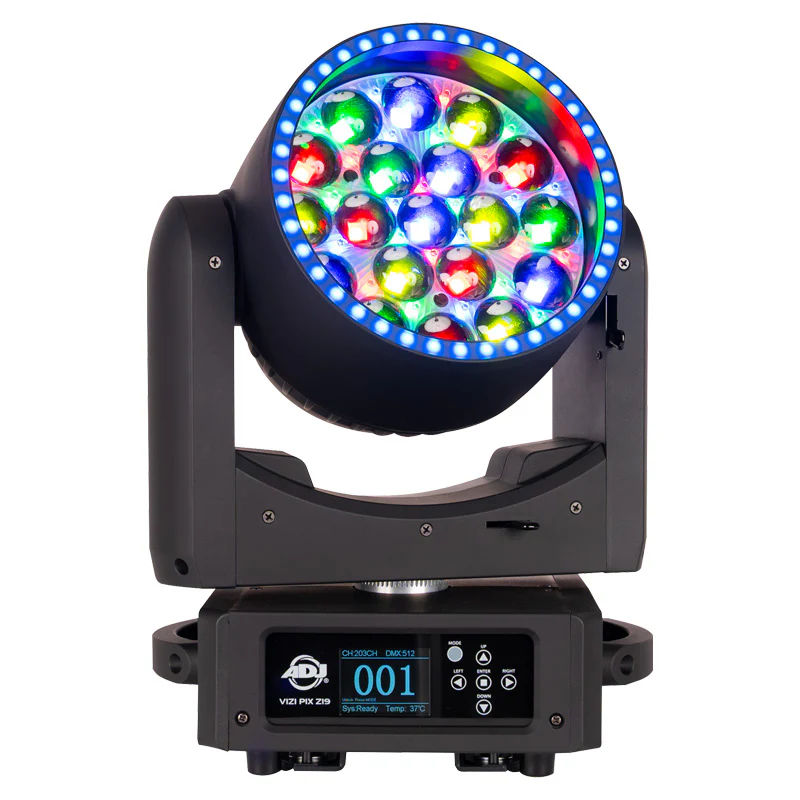

Immersive Control – The ADJ Vizi Pix Z19 Moving-Head Wash Fixture

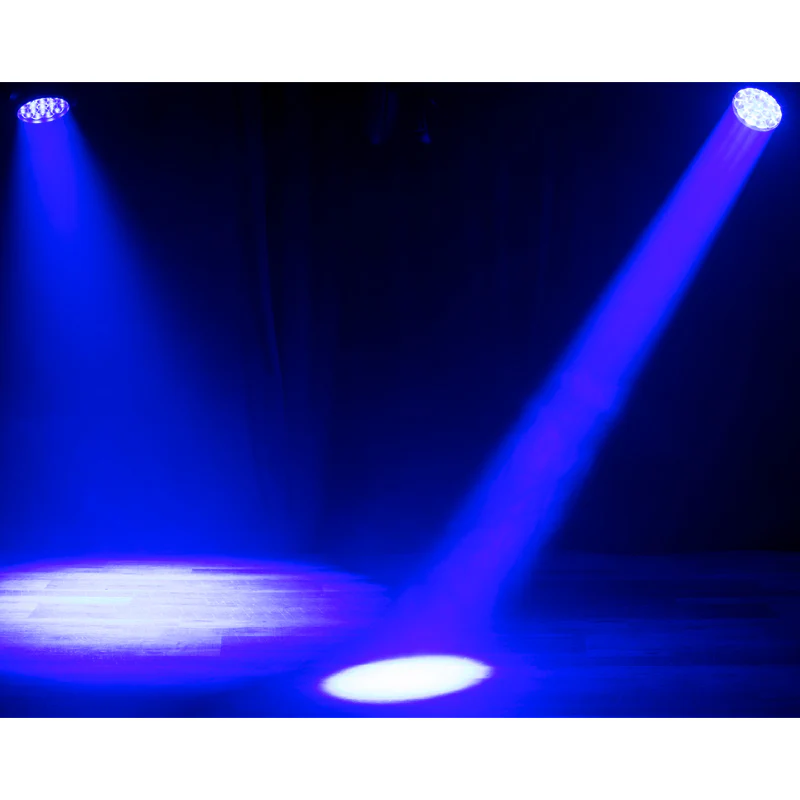

Vizi Pix Z19 is a cutting-edge tool for modern lighting designers, delivering a stunning array of dynamic effects and advanced virtual CMY color mixing for an unforgettable live experience. Featuring 19x 30-Watt RGBL LEDs, vibrant RGB background LEDs, and an innovative LED ring, it creates immersive beams, washes, and vibrant color effects that captivate audiences.
- Moving light pixel wash with effects
- Individual pixel control for foreground and background LEDs

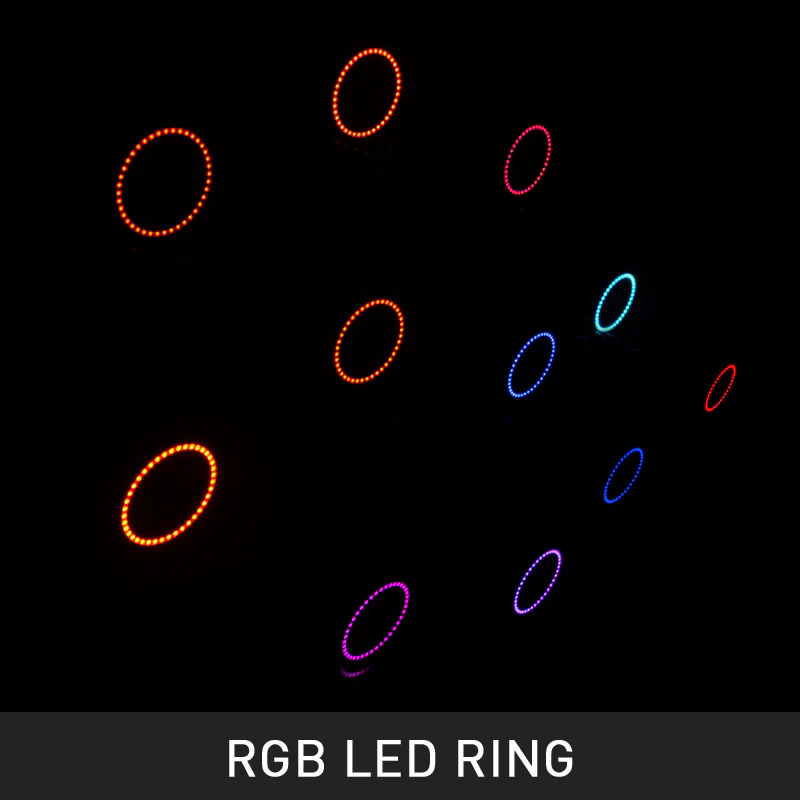

- RGB LED ring
- Built-in pixel effect programs
- Aria X2 Wireless Management System
- Electronic strobe and dimmer
- Pan/tilt: 630/540 x 270

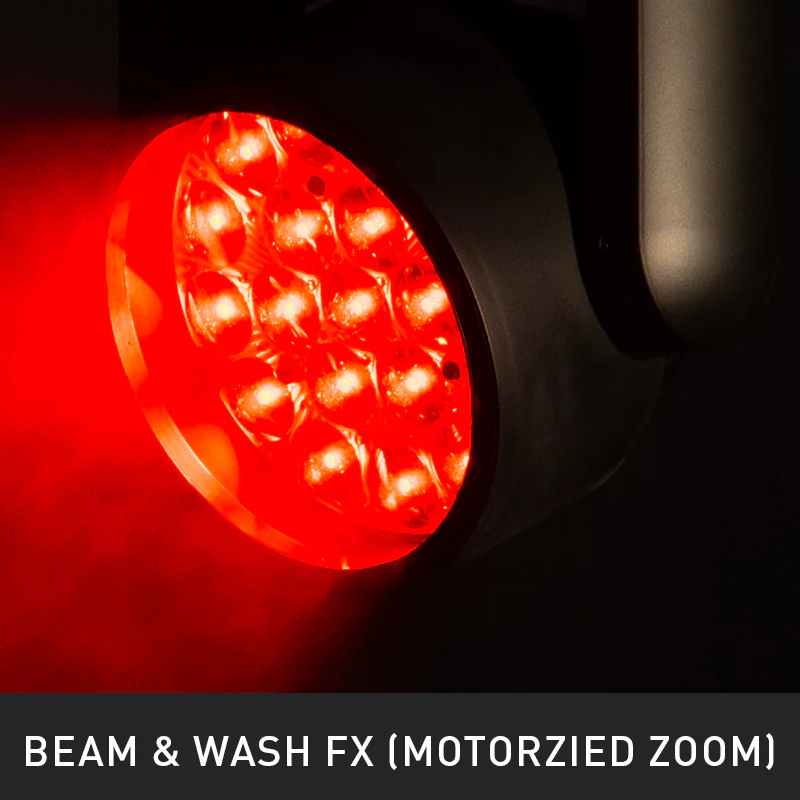

- Motorized zoom
- Color calibrated pixels for batch-to-batch consistency
- Virtual CMY DMX control modes
- Virtual foreground and background color wheel control
- Selectable LED refresh rates (900 Hz ~ 25K Hz)
- Selectable dim modes with user settable dim speed (0.1s ~ 10s)
- Four dim curves: square, linear, inv. square, and S curve
- 0–100% smooth dimming
- Fan cooled
SPECIFICATIONS
Optical (Foreground LEDs)
- 19x 30W RGBL (4-in-1) LEDs
- 30,000-hour average LED life
- CRI: 86
- 15,000 Lux (zoomed in to 7° at 5 meters)
- Beam angle: 7°–42°
- Field angle: 9°–60°

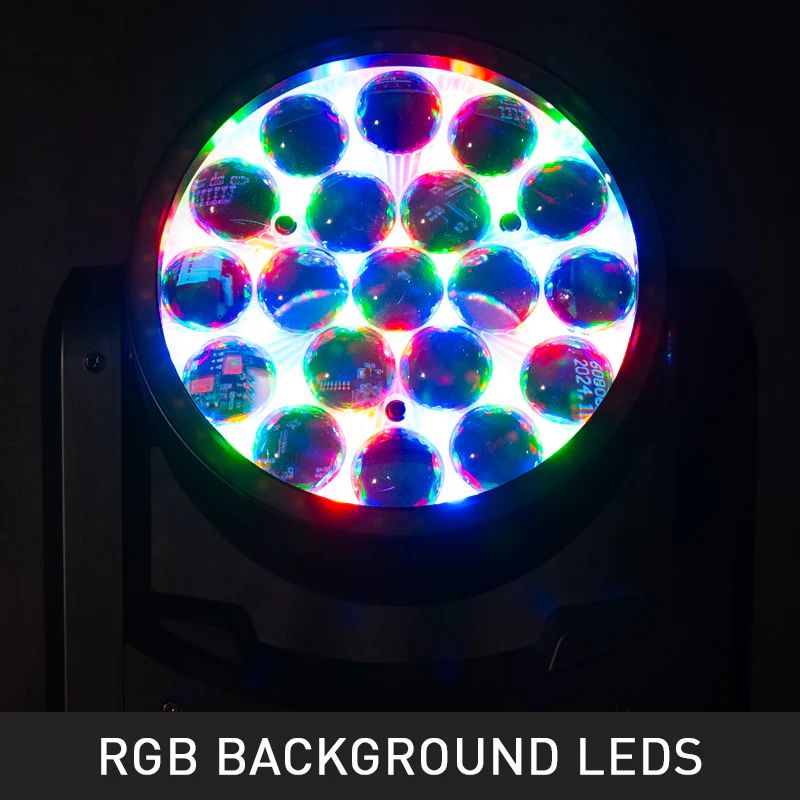

Optical (Background LEDs)
- 30x 0.5W SMD RGB LEDs
- 50,000-hour average LED life

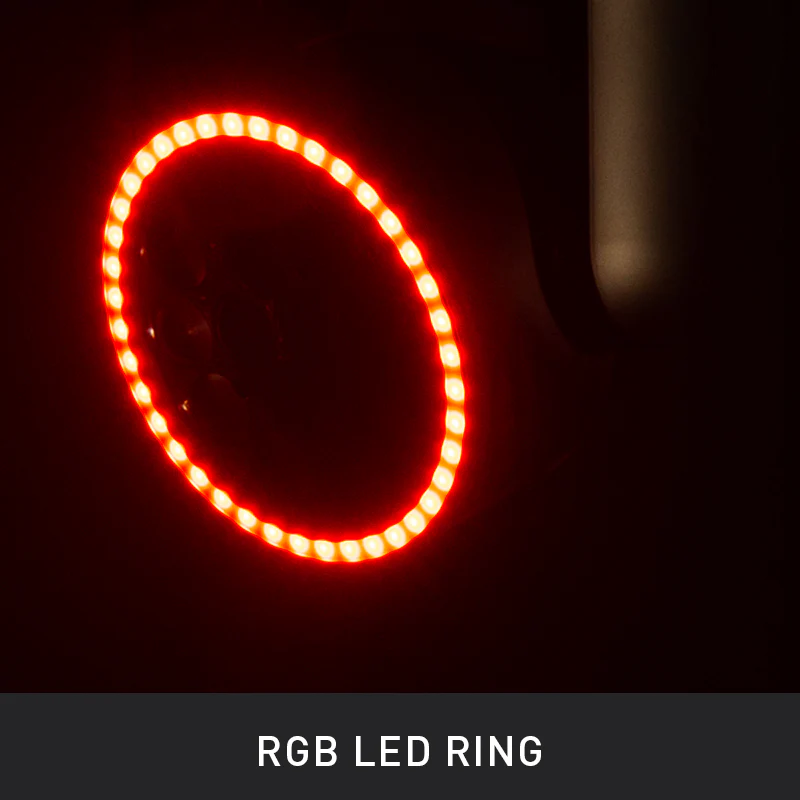

Optical (Ring LEDs)
- 40x 0.5W SMD RGB LEDs
- 50,000-hour average LED life
Colors
- 19x RGBL LEDs (Red, Green, Blue, Lime)
- 70x RGB LEDs (Red, Green, Blue)
- Virtual CMY DMX control modes
- Virtual foreground and background color wheel control
- Built-in color macros
- Linear white color temperature control: 2,700K–10,000K
- Color temperature presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000, 10,000K
Effects
- Foreground: 19x 30W RGBL LEDs, fully pixel mappable
- Background: 30x 0.5W RGB LEDs, fully pixel mappable
- Ring: 40x 0.5W RGB LEDs, three-channel control
- Variable strobe and pulse effects (0.5 Hz to 33 Hz)
- Motorized zoom (7°–42°)
Connections
- Seetronic IP65 locking power in and thru
- Seetronic IP20 5-pin DMX in and out
- 2x IP20 RJ45 network ports
Control
- Aria X2 Wireless Management System
- DMX-512, RDM, Artnet, sACN
- 7 DMX control modes: 32 / 43 / M1 58 / M2 58 / 203 / 123 / 133 channels
- Built-in effect pixel programs with speed and fade control
- Wired digital communication network
Pan/Tilt
- Pan: 630 or 540 degrees
- Tilt: 270 degrees
- 16-bit fine pan and tilt
- Pan and tilt locks
Electrical
- Multi-voltage operation: 230V, 50 Hz only
- Max power consumption: 730W (6.64A) at 120V; 690W (3.04A) at 230V
Dimensions and Weight
- Dimensions (L x W x H): 12.2 x 9.0 x 16.0 in (310 x 230 x 408 mm)
- Weight: 22.6 lbs (10.1 kg)
What’s Included
- 108 mm Omega brackets (2x)
- 1x 2 m IP65-rated locking power cable
Approvals / Rating
- cETLus (Control # 5028947)
- CE Certified
- FCC
- IP20
Manufacturer: ADJ Supply
Model: VIZI PIX Z19
SKU: I808634-N-12-WHXE
UPC: 810087374075
