ADJ WMX Wing DMX Lighting Controller Expansion
MSRP: $153900
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description

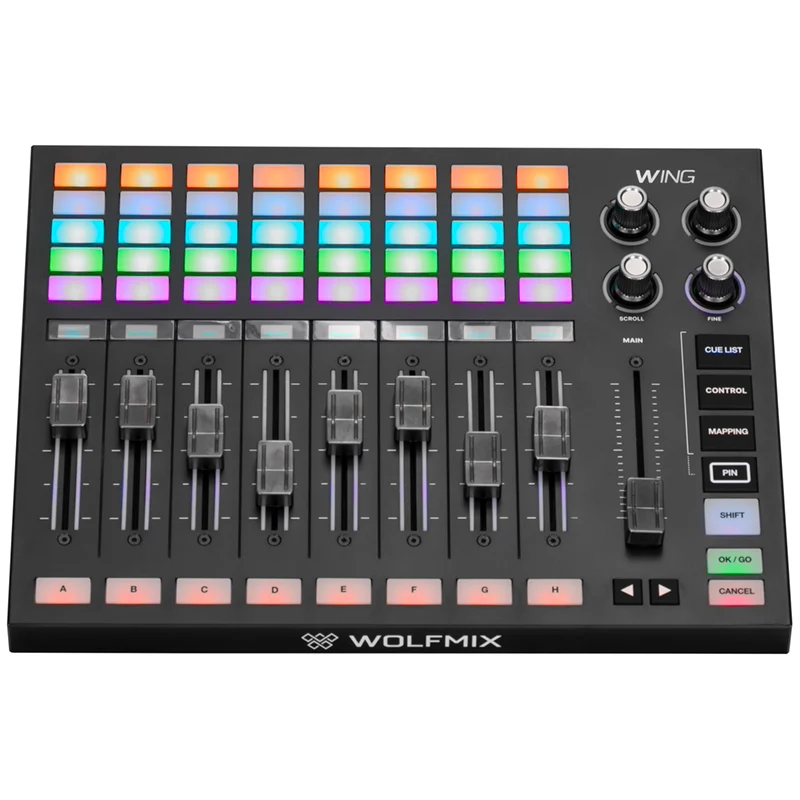

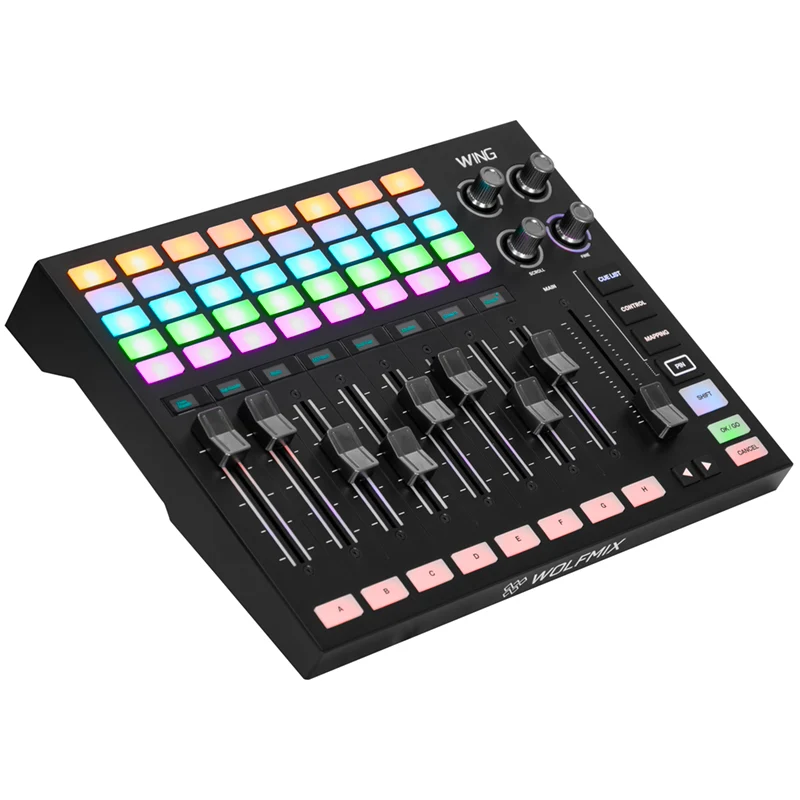

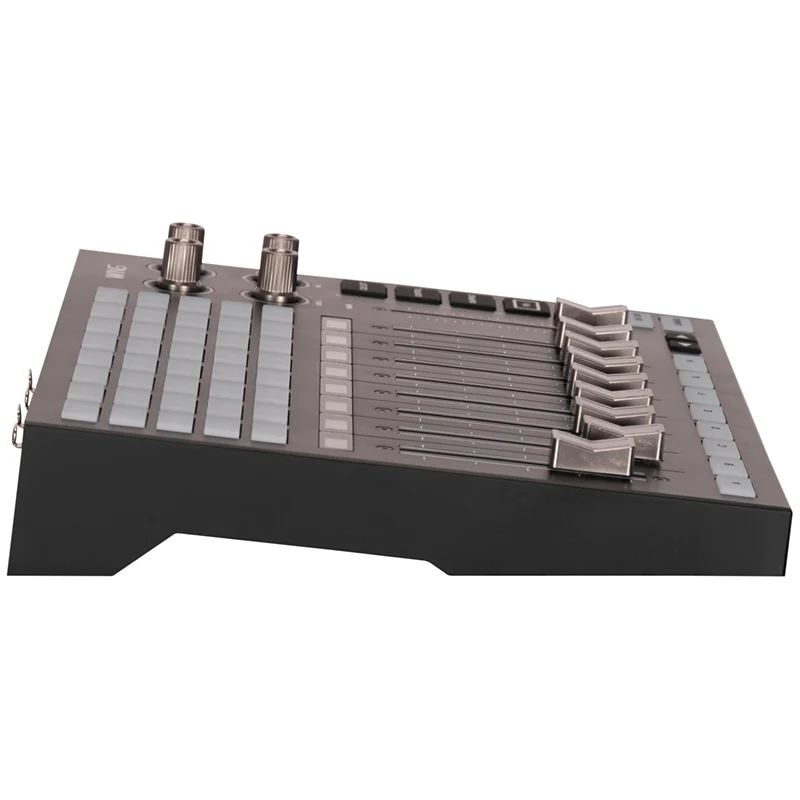

Expand Your Lighting Control with the ADJ WMX WING Control Surface
The ADJ WMX WING, powered by WOLFMIX, is a dedicated control expansion for the ADJ WMX1, WMX1 MK2, and WMX1 MK3 lighting controllers. Designed to operate as part of a single integrated system, WMX WING adds motorized touch-sensitive faders, OLED strip displays, an expanded RGB button matrix, dedicated group controls, rotary encoders, and physical GO and CANCEL controls. The result is a larger hands-on workspace that gives lighting professionals faster access to fixture groups, cue lists, mappings, effects, and performance functions while maintaining the streamlined standalone workflow of the WOLFMIX platform.
- Dedicated control expansion for ADJ WMX1, WMX1 MK2, and WMX1 MK3 controllers
- 8 motorized touch-sensitive faders with RGB lightguides
- 8 OLED strip displays provide visual feedback for parameters and controls
- 8 x 5 RGB button matrix for expanded hands-on operation
- 57 RGB-backlit silicone buttons
- Dedicated fixture group controls for faster access to all 8 groups
- 4 rotary encoders with SCROLL and FINE control functions
- Dedicated OK/GO, CANCEL, SHIFT, and PIN controls
- Projects automatically synchronize between compatible WMX controllers
- Supports up to 4 DMX universes independently and up to 8 universes in a fused WMX1 system
- Provides up to 4,096 fused DMX channels when combined with a compatible WMX1 controller
- Supports up to 680 fixtures and 1,500 beams
- Advanced Cue List, Control, and Mapping modes
- Can operate as a generic MIDI control device when no project is loaded
- USB-C power and data connectivity
- USB-A connection powers and links a compatible WMX1 controller
- Integrated 100 mm VESA mounting pattern
One Integrated Lighting Control System
When connected to a compatible WMX1 controller, the WMX WING and WMX1 operate as one integrated lighting control system. Projects automatically synchronize between the devices, while the WING expands the controls available for the active operating mode. All eight fixture groups can be placed directly in front of the operator for faster dimming, flashing, soloing, selection, and effect manipulation.
Motorized Faders and OLED Feedback
Eight motorized touch-sensitive faders provide precise hands-on control, with each fader paired with an OLED strip display for visual parameter feedback. RGB lightguides use four RGB LEDs per fader and support single- or dual-color operation, helping operators quickly identify active controls during programming and performance.
Advanced Cue List Control
Cue List mode supports up to 5,000 cues, up to 1,000 cues per Cue List, and as many as 100 Cue Lists. Up to five presets can be stacked within a cue when they control different elements, while hold and fade timing, automatic and manual cue jumping, looping, MIDI Time Code, and manual cue fading provide flexible show playback options.
Direct Fixture Control
Control mode allows selection of up to 680 fixtures directly from the matrix. Selection macros include All, None, Evens, Group, Subgroup, and Invert, while dedicated group buttons make filtering faster. Motorized faders can directly control dimmer, RGBWAUVL color parameters, pan and tilt, zoom, iris, focus, gobo rotation, prism rotation, and other functions.
Flexible Mapping Mode
Mapping mode provides four assignable pages for the 8 x 5 button matrix and four assignable pages for the eight motorized faders. Controls can be assigned to group dimmers, solo, flash, presets, Live Edit, macros, manual DMX, FX parameters, Cue Lists, or generic MIDI. Strip names and colors can be customized using WTools.
Expanded DMX Connectivity
The WMX WING includes four DMX outputs consisting of two 3-pin XLR and two 5-pin XLR connectors. Each port can be freely assigned to any available universe, providing flexible routing for professional lighting systems.
SPECIFICATIONS
Control Surface
- Motorized Faders: 8
- Fader Caps: Electroplated Capacitive Touch
- Fader Lightguides: 8
- Lightguide LEDs: 4 RGB LEDs Per Fader
- Lightguide Operation: Single or Dual Color
- Main Fader: 1
- OLED Displays: 8
- OLED Resolution: 64 x 32 Pixels Each
- RGB Backlit Silicone Buttons: 57
- Main Matrix: 8 x 5
- Group Select Buttons: 8
- Mode Buttons: Cue List, Control, Mapping
- Paging Buttons: 2
- Dedicated Controls: OK/GO, CANCEL, SHIFT, PIN
- Rotary Encoders: 4
- Detented Encoders: 1
- Non-Detented Encoders: 3
- Dedicated Encoder Functions: SCROLL, FINE
DMX
- Included Universes: 2
- Maximum Universes: 4 with Add-On
- Maximum Fused System: Up to 8 Universes with WMX1
- Maximum Fused DMX Channels: 4,096
- DMX Outputs: 4
- 3-Pin DMX Outputs: 2
- 5-Pin DMX Outputs: 2
- Output Assignment: Each Port Freely Assignable to Any Available Universe
Fixture and Project Capacity
- Fixtures: Up to 680
- Beams: Up to 1,500
- Fixture Types: Up to 50
- Fixture Features: Up to 5,000
- Fixture Groups: 8
- Subgroups: 8 Per Group
- Projects: Up to 100 or 3.5 MB of Project Data
- Fixture Library: 30,000+ Available Fixtures
- Fixture Profiles Stored Onboard: 3,000+
Cue List
- Maximum Cues: 5,000
- Maximum Cues Per Cue List: 1,000
- Maximum Cue Lists: 100
- Preset Stacking: Up to 5 Presets Per Cue When Controlling Different Parts
- Hold Time: Yes
- Fade Time: Yes
- Automatic Cue Jump: Yes
- Manual Cue Jump: Dedicated OK/GO Button
- Manual Cue Fade: Motorized Faders
- Pause / Resume Running Fade: CANCEL Button or Active Cue Fader
- Cue List Looping: Yes
- MIDI Time Code: Yes
Control Mode
- Fixture Selection: Up to 680 Fixtures
- Selection Macros: All, None, Evens, Group, Subgroup, Invert
- Group Filtering: Dedicated Group Buttons
- Direct Fader Control: Dimmer, Red, Green, Blue, White, Amber, UV, Lime
- Pan / Tilt: 16-Bit Control
- Additional Fader Control: Zoom, Iris, Focus, Gobo Rotation, Prism Rotation
- Preset Editing: Store Control Edits Directly into Presets
- Maximum Edits Per Preset: 32
- Parameter Layout: Customizable Across 2 Pages
Mapping Mode
- Matrix Mapping: 4 Assignable Pages of 8 x 5 Buttons
- Fader Mapping: 4 Assignable Pages of 8 Motorized Faders
- Assignable Encoders: 2
- Linked Page Changes: Faders and Matrix Change Pages Together
- Mapping Options: Group Dimmers, Solo, Flash, Presets, Live Edit, Macros, Manual DMX, FX Parameters, Cue Lists
- Generic MIDI: Send and Receive on Unassigned Controls
- Strip Name and Color Configuration: WTools
- Standalone MIDI Controller Mode: Supported When No Project Is Loaded
Connectivity

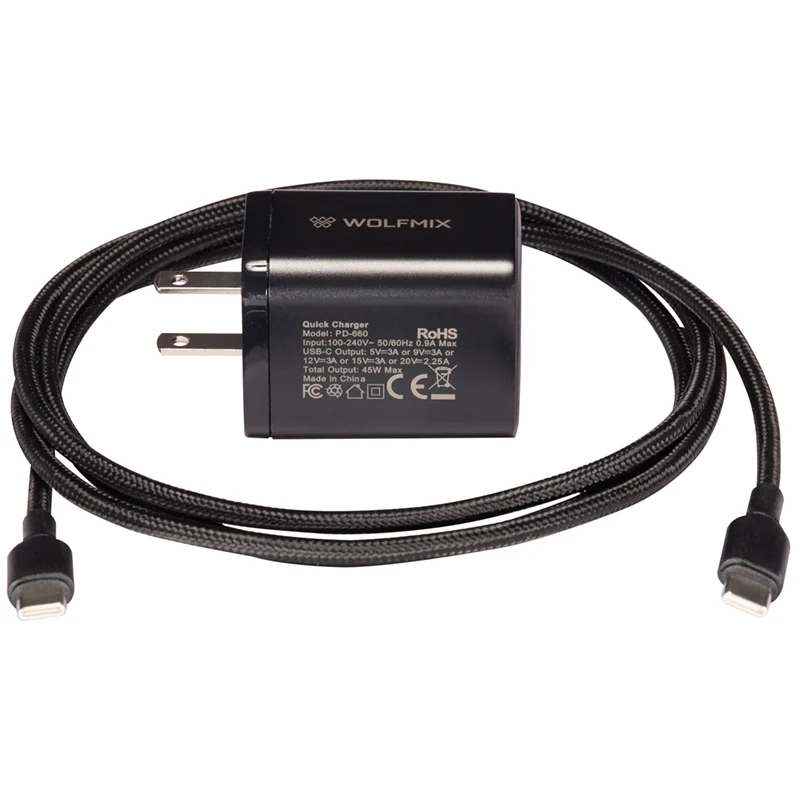

- USB-C Power: 15V / 3A
- USB-C Data: Yes
- USB-A: Connects and Powers Compatible WMX1 Controller
- DMX: 2 x 3-Pin XLR, 2 x 5-Pin XLR
Processing
- CPU: 220 MHz ARM-Core Processor
- RAM: 8 MB
- Flash Memory: 16 MB
- Motorized Fader Processing: Dedicated Secondary Processor
Construction
- Housing: ABS Plastic
- Base Plate: Powder-Coated Steel
- Mounting: 100 mm VESA
- VESA Hardware: M4, 6 mm Maximum
Dimensions and Weight
- Dimensions: 8.7 x 11.4 x 2.25 Inches / 220 x 290 x 57 mm
- Weight: 3.4 lb / 1.54 kg
- SKU: WMX318
- UPC: 810087376109
Manufacturer: ADJ Supply
Model: WMX1 WING
SKU: I948082-N-0-WHXB
UPC: 810087376109
