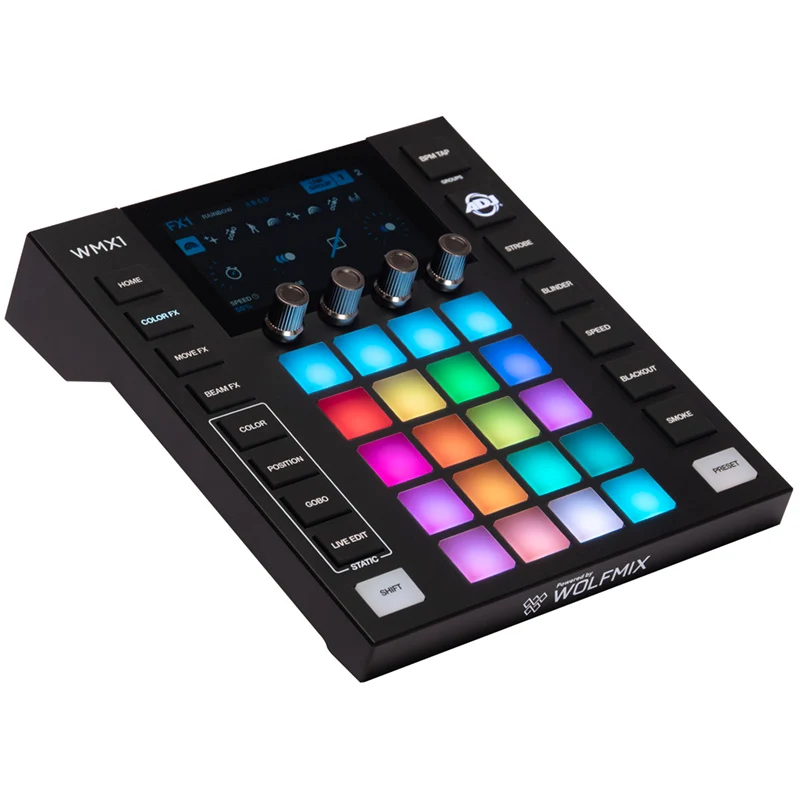

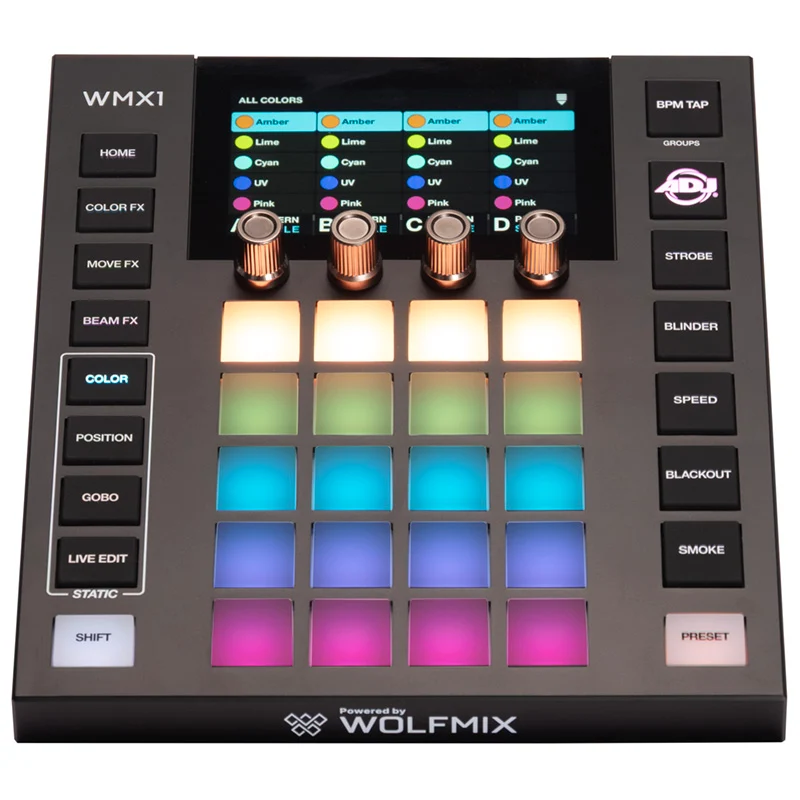

Control Complex Shows with the ADJ WMX1 MK3 DMX Lighting Controller
The ADJ WMX1 MK3, powered by WOLFMIX, is a standalone DMX lighting controller designed to provide powerful, intuitive show control without requiring a computer. Compatible with virtually any DMX fixture, it combines a responsive 4.3-inch capacitive touchscreen with dedicated Color, Move, and Beam FX engines, music synchronization, fixture grouping, advanced programming tools, and support for up to four DMX universes. Its refined enclosure, updated button mechanism, USB-C connectivity, and extensive expansion capabilities make it a versatile solution for DJs, entertainers, clubs, houses of worship, event production, and professional installations.
- Standalone professional DMX lighting controller with no computer required
- Compatible with virtually any DMX fixture
- Supports up to 4 DMX universes and 2,048 channels with optional expansion
- Controls up to 680 fixtures across as many as 50 device types
- Access to more than 15,000 fixture profiles with 3,500+ stored on the controller
- 4.3-inch capacitive color touchscreen with tinted glass surface
- Dedicated Color, Move, and Beam FX engines with 8 effect types each
- 200 preset slots with hold and fade timing control
- 8 fixture groups and 6 project memories
- Fixture Clusters support complex multi-element fixtures with individually defined sections
- Built-in microphone and 3.5 mm line input for music synchronization
- Ableton Link, OS2L, manual BPM Tap, and USB MIDI Clock synchronization
- DMX input mapping, WLINK synchronization, MIDI control, and USB storage support
- Automatic active-project restoration helps keep shows ready without manual saving
- Integrated 100 mm VESA mounting pattern
- USB-C power input and upgraded connectivity
Standalone Control Without a Computer
The WMX1 MK3 operates as a completely standalone lighting controller, eliminating the need for a computer during normal operation. Its touchscreen interface provides direct access to fixtures, groups, effects, presets, and project controls, making it suitable for both mobile and installed lighting systems.
Powerful FX Engines
Dedicated Color, Move, and Beam FX engines each provide eight effect types with extensive adjustment options. Parameters including speed, phase, sequence, size, fade, fan, and flicker allow effects to be customized for different fixtures and performance environments. Global FX speed and freeze functions provide additional hands-on control during live shows.
Advanced Fixture Clusters
Fixture Clusters allow sophisticated multi-element fixtures to be divided according to defined and named sections rather than simply splitting them into equal beams. Pixel arrays, RGB rings, strobes, and other independently controllable elements can be treated as logical sections of a fixture, making complex devices easier to control and improving their integration with the WMX1 MK3's FX engines.
Fixture Clusters are currently in beta testing, with the official software release scheduled for November 2026.
Music and BPM Synchronization
Lighting effects can be synchronized through the built-in omnidirectional microphone or 3.5 mm line input. BPM synchronization is also available through Ableton Link, OS2L, manual BPM tapping, or MIDI Clock through the USB MIDI port, providing multiple options for matching lighting effects to live or recorded music.
Flexible Fixture and Project Management
The WMX1 MK3 supports fixture addressing, sequencing, grouping, DMX universe mapping, and project management. Advanced tools include Fixture FLIP, Fixture SPLIT, DMX channel testing, time-controlled preset and flash triggering, and automatic gobo alignment across different fixture models.
Expandable Professional Workflow
Optional capabilities include WLINK synchronization between compatible Wolfmix controllers, DMX input mapping, additional DMX universes, and offline 3D visualization with Easy View. Projects and fixture data can be backed up and managed through the WTOOLS application, while automatic project recovery restores the active project without requiring manual saves.
Refined Hardware Design
The WMX1 MK3 builds on the WMX1 and WMX1 MK2 with a refined industrial design and an updated button mechanism for improved responsiveness and tactile feedback. Its precision-molded enclosure is designed to align with the upcoming WING expansion controller, creating a unified side-by-side control system.
SPECIFICATIONS
Control and Performance
- Product Type: Standalone DMX Lighting Controller
- Computer Required: No
- DMX Universes: Up to 4
- DMX Channels: Up to 2,048
- Maximum Fixtures: 680
- Maximum Device Types: 50
- Fixture Groups: 8
- Project Memories: 6
- Fixture Profiles Available: 15,000+
- Fixture Profiles Stored Onboard: 3,500+
- DMX Splitter Functionality: Yes, with Universe Mapping
- Automatic Active-Project Restoration: Yes
- Multiple Fixture Setup Import: Yes
- SKU: WMX300
Effects and Programming
- Color FX Engine: 8 Effect Types
- Move FX Engine: 8 Effect Types
- Beam FX Engine: 8 Effect Types
- Preset Slots: 200
- Preset Timing: Hold and Fade
- Live Move FX Registration Point Control: Yes
- Global FX Speed: Yes
- Global FX Freeze: Yes
- Effect Parameters: Speed, Phase, Sequence, Size, Fade, Fan, Flicker
Synchronization
- Music Synchronization: Built-In Microphone, 3.5 mm Line Input
- BPM Synchronization: Ableton Link, OS2L, Manual BPM Tap
- MIDI Clock: USB MIDI Port
Advanced Features
- DMX Input Mapping: Group Dimmer and Channel Patching
- WLINK Synchronization: Supported Between Compatible WMX1 Controllers
- MIDI Controller Support: Yes
- USB Storage Device Support: Yes
- DMX Channel Tester: Yes
- Time-Controlled Flash and Preset Triggering: Yes
- Fixture FLIP Function: Yes
- Fixture SPLIT Function: Yes
- Fixture Clusters: Multi-Element Fixture Control
- Fixture Cluster Support: Pixel Arrays, RGB Rings, Strobes, and Other Independently Controllable Elements
- Fixture Clusters Status: Beta Testing, Official Software Release Scheduled for November 2026
- Project and Fixture Backup: WTOOLS
- Project Capacity: 1-100 Projects Depending on Project Size and Available Memory
- Offline 3D Visualization: Easy View with WTOOLS via USB
Display
- Display: 4.3-Inch Color TFT Touchscreen
- Touch Technology: Capacitive
- Surface: Tinted Glass
Audio
- Microphone: Built-In Omnidirectional Electret
- Line Input: 3.5 mm Mini-Jack

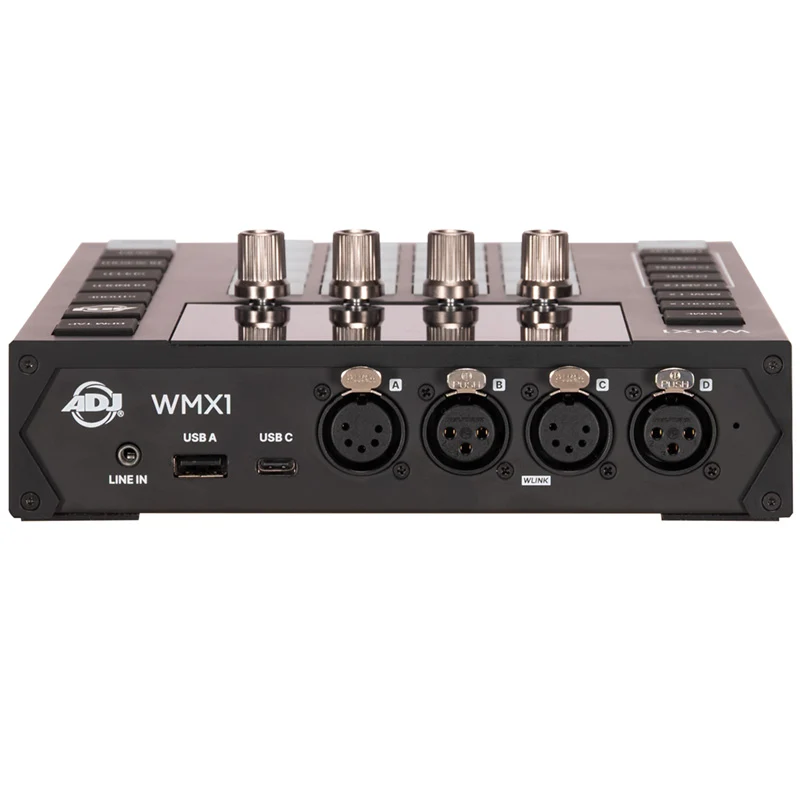

Connections
- DMX Outputs: 2 x 3-Pin XLR
- DMX Output: 1 x 5-Pin XLR
- DMX IN/OUT: 1 x 5-Pin XLR with WLINK
- USB-A: MIDI, MSD, and WLINK Support, 5V / 900mA
- USB-C: Power Input
- USB-C Power Requirement: 900mA Minimum
- Recommended USB-C Power for MIDI/WLINK Operation: 1500mA
Construction
- Housing: ABS Plastic
- Base Plate: Powder-Coated Steel
- Mounting: Integrated 100 mm VESA Pattern
Dimensions and Weight
- Dimensions (L x W x H): 7.68 x 8.66 x 2.44 Inches / 195 x 220 x 62 mm
- Weight: 2.36 lb / 1.070 kg
Optional Upgrades
- Easy View 3D Visualizer
- WLINK with DMX Input
- Up to 2 Additional DMX Universes
Manufacturer: ADJ Supply
Model: WMX1 MK3
SKU: I948081-N-0-WHXB
UPC: 810087376024
