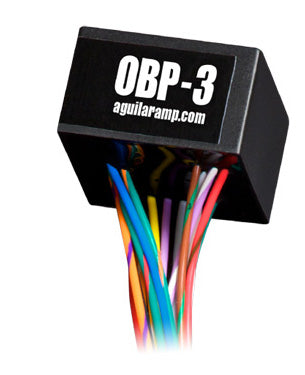

Aguilar OBP-3TK/PP 3-Band On Board Preamp


  • Our Price
  • $159.00
  • Regular price MSRP: $212.00





Get Aguilar Quality Hardwired Into Your Bass With The Aguilar OBP-3TK/PP 3-Band On Board Preamp

The OBP-3 is Aguilar's most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options, and can be wired with either a push/pull pot, mini-toggle or internal dip-switch for midrange frequency selection.



  • Includes stacked Treble/Bass pot and separate Mid pot. Mid pot is push/pull for Midrange frequency selection.


  • Bass control: plus/minus 18 dB @ 40 Hz.
  • Mid control: plus/minus 16 dB @ 400Hz or 800 Hz. User selectable frequency center.
  • Treble control: plus/minus 16 dB @ 6.5 KHz.
  • Input impedance: 1 meg ohm
  • Output impedance: 100 ohm 9 or 18 volts operation.
  • Distortion: .019 into 10k ohm load
  • Noise: -95 dBm unweighted.
  • Battery life: 324 hours
  • Wire lead length: 6.50 inches
  • Low noise discrete FET input stage, center detent 50 K linear pots,with a dual concentric pot available.
  • Dimensions: 0.98"W x 0.98"L x 0.59"D
  • Warranty: Three year limited warranty.

Manufacturer: Aguilar Amplification
Model: OBP-3TK/PP
Warranty: See manufacturer website for details
SKU: I165050-N-0
UPC: #824599000582
Listing ID: NA16488
