Condition: New

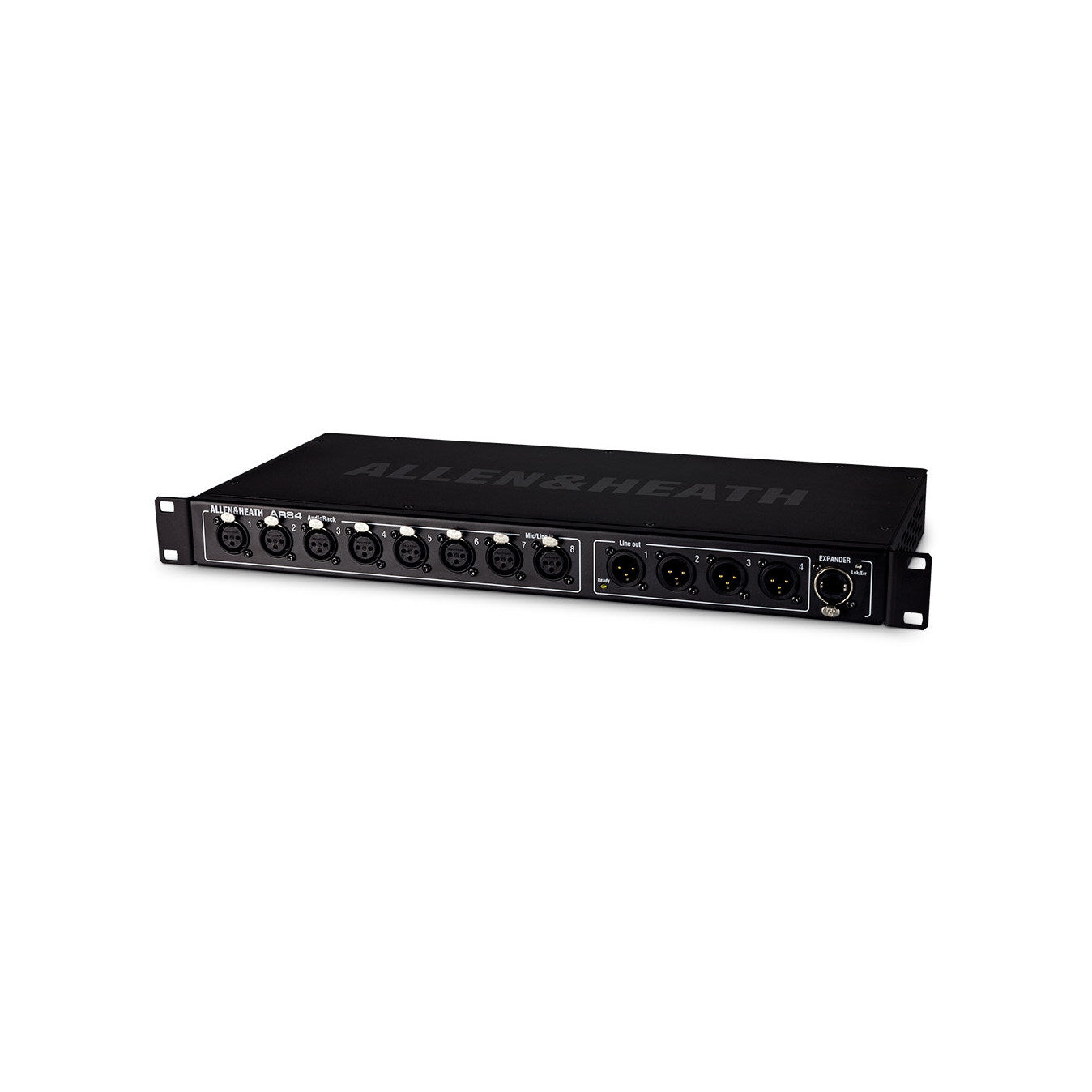

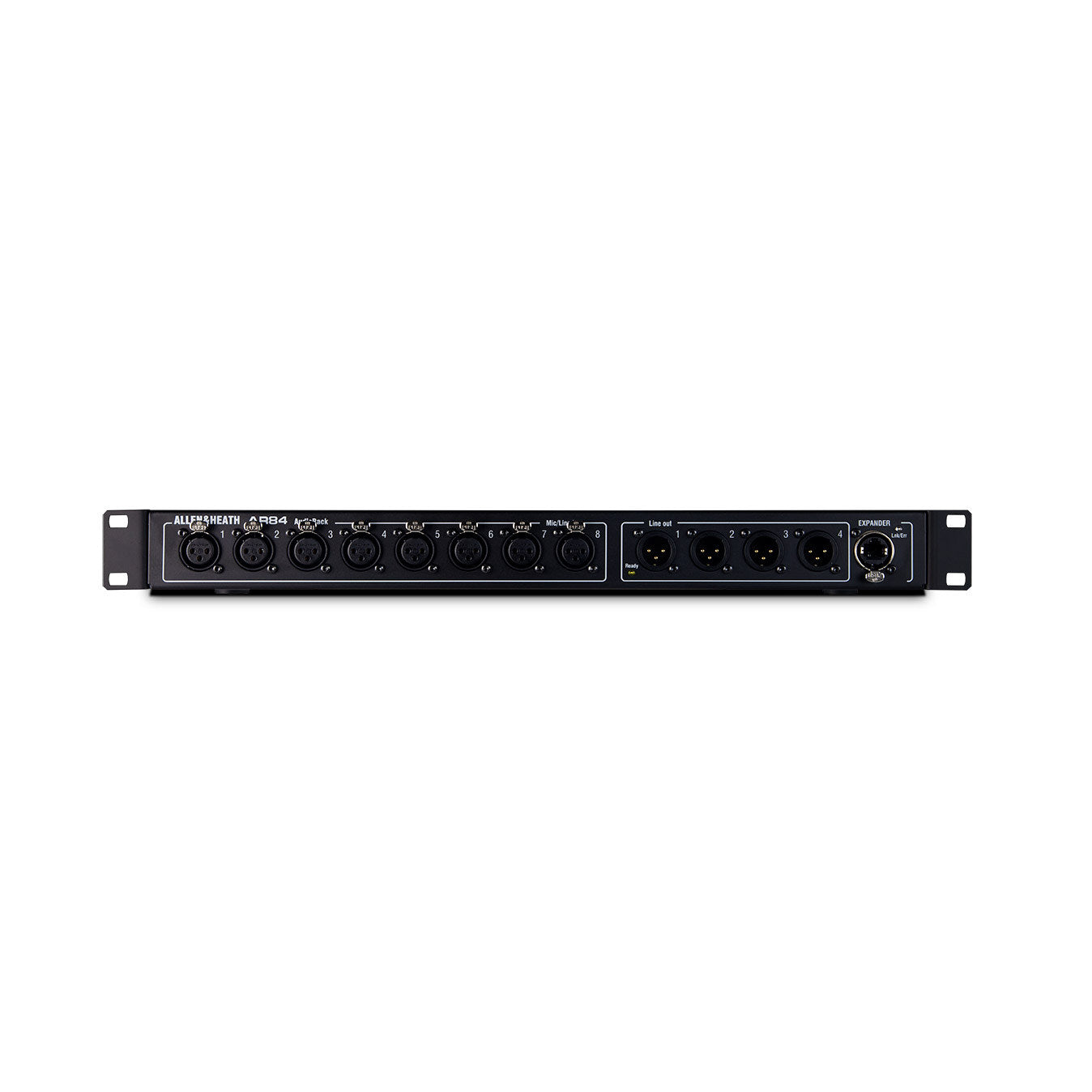

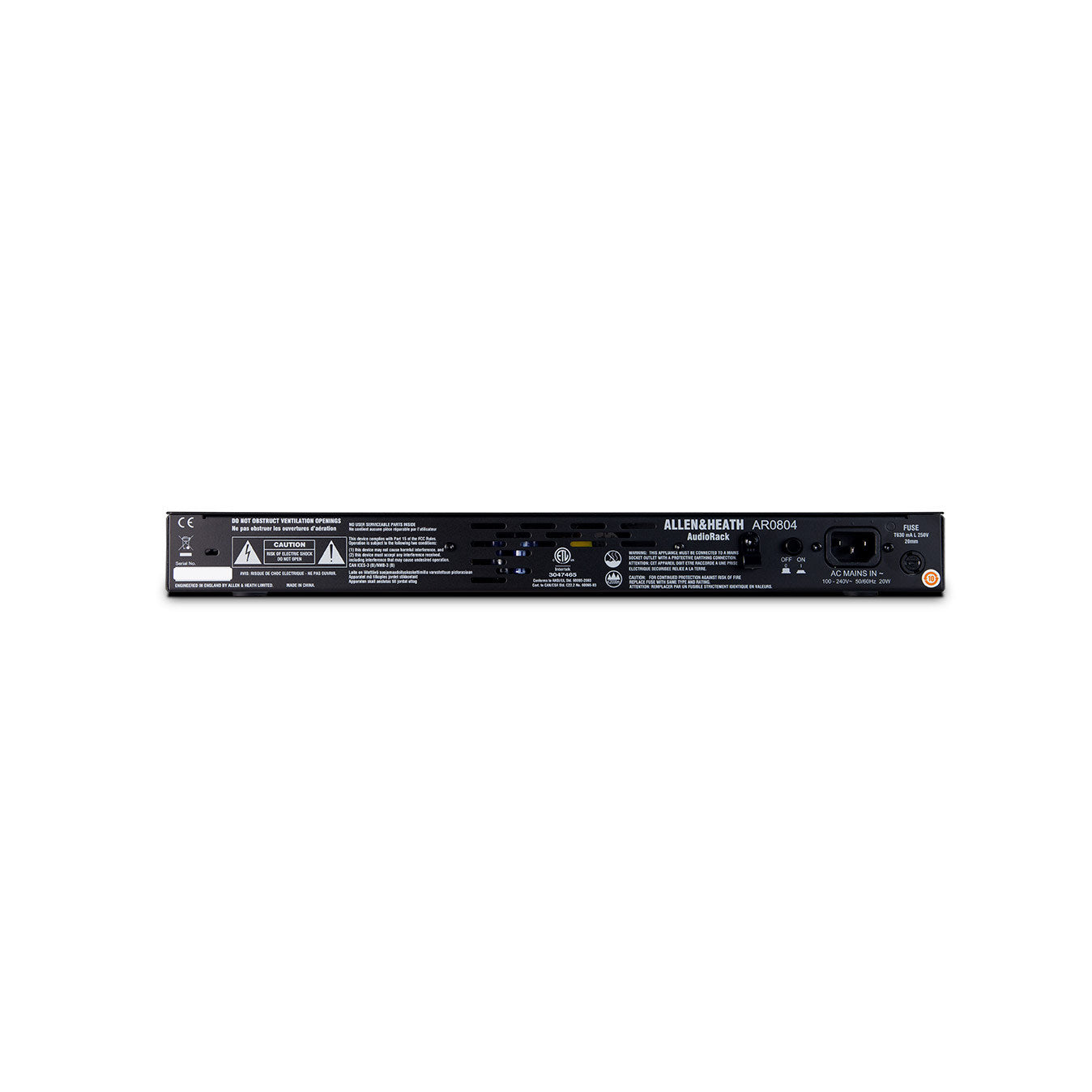

High-Quality I/O From A Trusted Brand - The Allen & Heath AR84 Expander Audiorack

AR84 is an 8 XLR input, 4 XLR output AudioRack, compatible Qu, Avantis, and SQ mixers, and with the AHM-64 audio matrix processor. Adding an AR84 to your system lets you position some of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath's dSNAKE protocol. dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.


  • 8 Mic Preamps on XLR
  • 4 XLR Line Outs
  • dSNAKE Connection with locking Ethercon port
  • Rack-mountable


SPECIFICATIONS

Inputs

  • XLR Mic/Line Inputs: Balanced
  • Mic/Line Preamp: Fully recallable
  • Input Sensitivity: -60 to +15dBu
  • Analogue Gain: +5 to +60dB, 1dB steps
  • Pad: -20dB
  • Maximum Input Level: +32dBu
  • Input Impedance:4k (Pad out) 10k (Pad in)

Outputs

  • XLR Outputs: Balanced, Relay protected
  • Output Impedance: 75
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +22dBu
  • Residual Output Noise: -91dBu (muted, 20-20kHz)
  • Operating Temperature: 0 deg C to 35 deg C (32 deg F to 95 deg F)
  • Mic EIN: -127dB with 150 source
  • Unity gain (Pad in): -90dBu
  • Low gain (5dB, Pad out): -93dBu
  • Mid gain (30dB, Pad out): -89dBu
  • Mic/Line Channel THD+N: 20-20kHz, Direct Out @ unbalanced out
  • Unity gain (Pad in): 0.005% -86dBu @ 1kHz, 0dBu output
  • Low gain (5dB, Pad out): 0.003% -89dBu @ 1kHz, 0dBu output
  • Mid gain (30dB, Pad out): 0.004% -88dBu @ 1kHz, 0dBu output

Manufacturer: Allen & Heath
Model: AR2-84-BLK
SKU: I440223-3-WHXPL
