Allen & Heath DT168 16-Input Dante Expander Stagebox

Original price $3,199.00
Original price $3,199.00 - Original price $3,199.00
Original price $3,199.00
Current price $2,599.00
$2,599.00 - $2,599.00
Current price $2,599.00
♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.

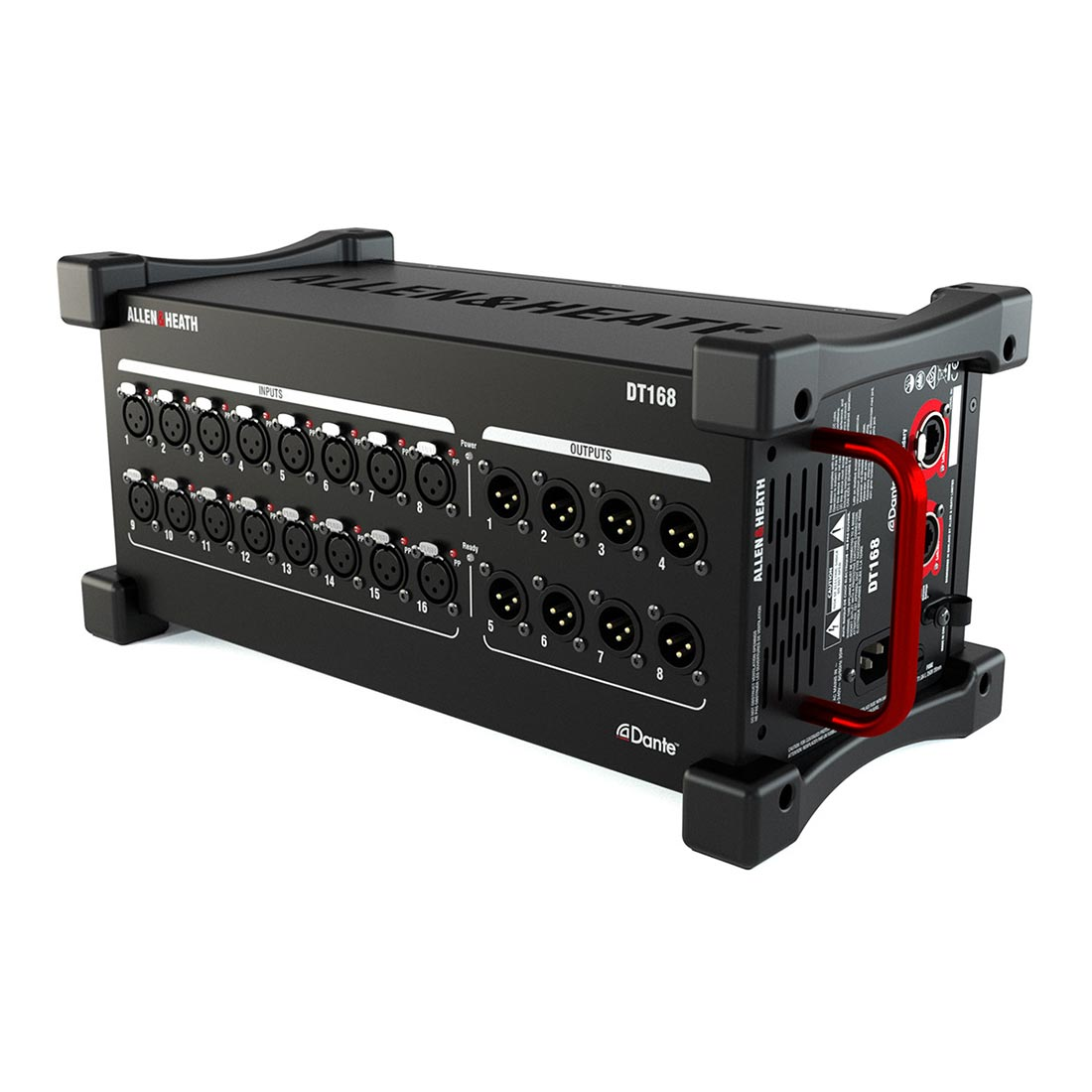

Portable and Powerful - The Allen & Heath DT168 16-Input Dante Expander Stagebox

The DT168 provides 16 microphone preamps and 8 line outputs in a convenient stagebox form factor. Ideal for portable applications thanks to its rubber bumpers and handle, it can be deployed on stage or used as a drop-in expander in any SQ, Avantis, AHM-64 or dLive Dante network.

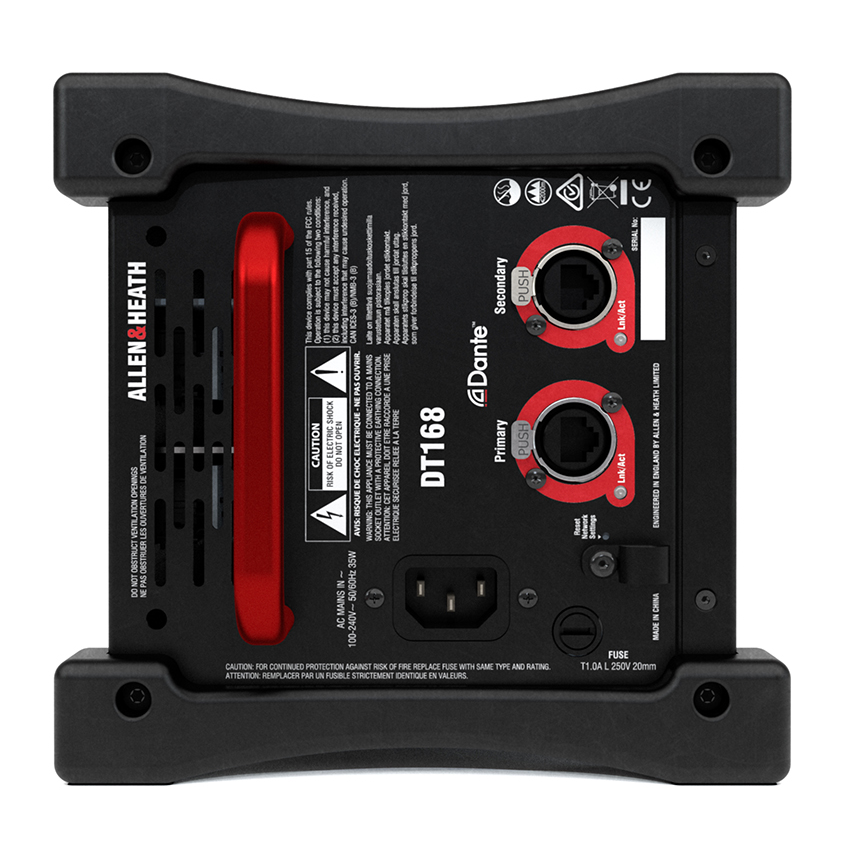

DT168 offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.

Up to 16 units can be added to an AHM-64, SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.

DT Preamp Control software allows remote control of multiple DT expanders, and enables the use of DT expanders with Dante equipped 3rd party digital mixers and sound management systems.


  • Dante audio expander, 96kHz / 48kHz

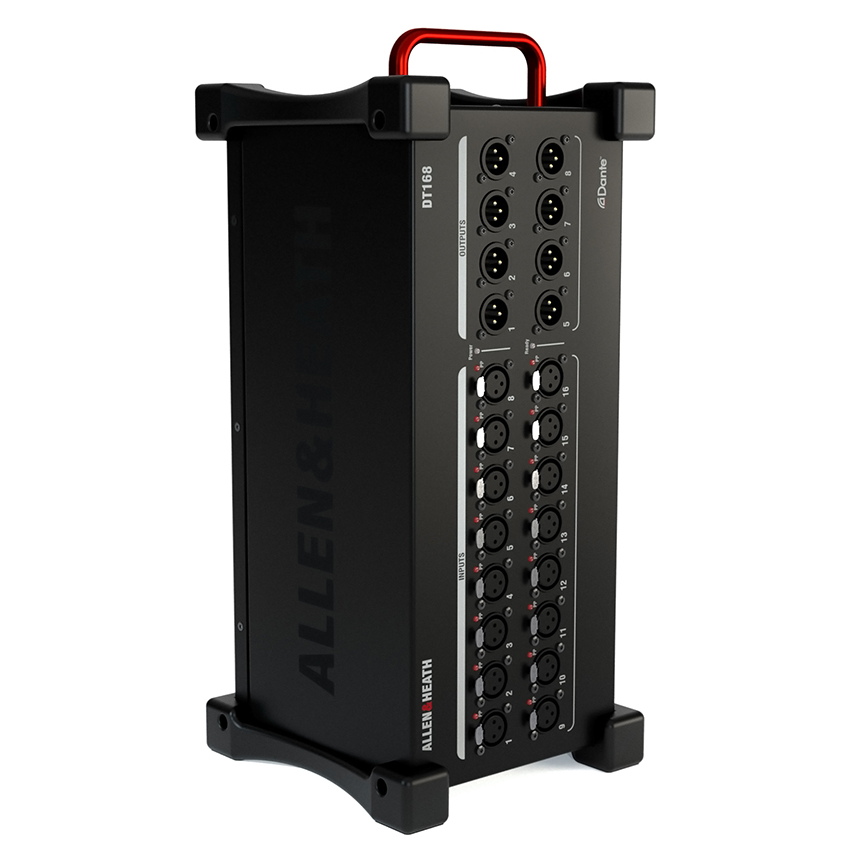

  • Portable stagebox design

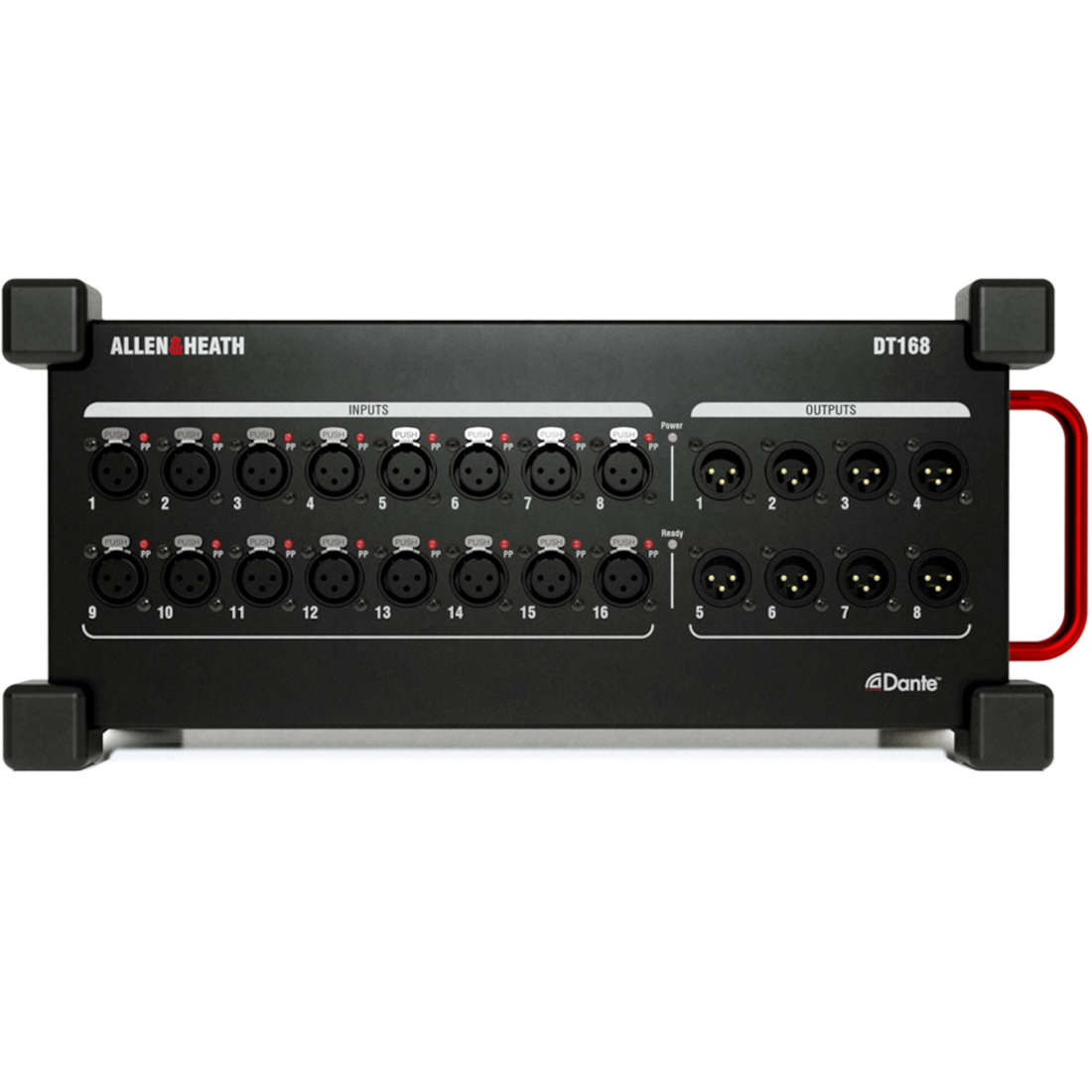

  • 16 mic preamps on XLR with Phantom Power status LEDs
  • 8 XLR Line Outs
  • Primary and Secondary Dante ports with locking EtherCon
  • Redundant or Switched mode
  • Direct preamp control from dLive, Avantis, AHM-64, and SQ
  • Remote control of preamps via DT Preamp Control software for integration with 3rd party systems
  • Optional 19-inch rack mount kit available
  • Rubber bumpers and carry handle
  • AES67 compatible
  • Dante Domain Manager ready


SPECIFICATIONS

Mic/Line XLR Inputs: Balanced, +48V Phantom Power

  • Mic/Line Preamp: Fully recallable
  • Input Sensitivity: -60 to +15dBu
  • Analogue Gain: +5 to +60dB, 1dB steps
  • Pad: -20dB Active PAD
  • Maximum Input Level: +30dBu (PAD in)
  • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)

Mic/Line Channel Noise: 22-22kHz, Direct Out at unbalanced out

  • Mic EIN: -127dB with 150Ω source
  • Unity gain (Pad in): -90dBu
  • Low gain (5dB, Pad out): -96dBu
  • Mid gain (30dB, Pad out): -90dBu
  • Mic/Line Channel THD+N: 22-22kHz, Direct Out @ unbalanced out
  • Unity gain (Pad in): 0.003% -88dBu at 1kHz, 0dBu output
  • Low gain (5dB, Pad out): 0.002% -93dBu at 1kHz, 0dBu output
  • Mid gain (30dB, Pad out): 0.003% -88dBu at 1kHz, 0dBu output

Analogue XLR Outputs: Balanced, Relay protected

  • Output Impedance: <75Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +22dBu
  • Residual Output Noise: -92dBu (muted, 20-20kHz)

DANTE

  • Sample Rate: 48kHz or 96 kHz
  • Bit Depth: 24 bit
  • Gian, Pad, 48v Control: Allen & Heath dLive, Avantis, AHM-64 or SQ system

Other

  • Operating Temperature: 0 degree C to 40 degree C (32 degree F to 104 degree F)
  • Mains Power: 100-240V, 50/60 Hz, 40W max
  • Dimensions and Weight: Width x Depth x Height x Weight; 410mm x 190mm x 185mm x 4.6kg; (16.1 x 7.5 x 7.3 inches x 10.1 lbs)

Manufacturer: Allen & Heath
Model: DT168/12X
SKU: I614214-N-2-WHXC
UPC: 6938122249110
