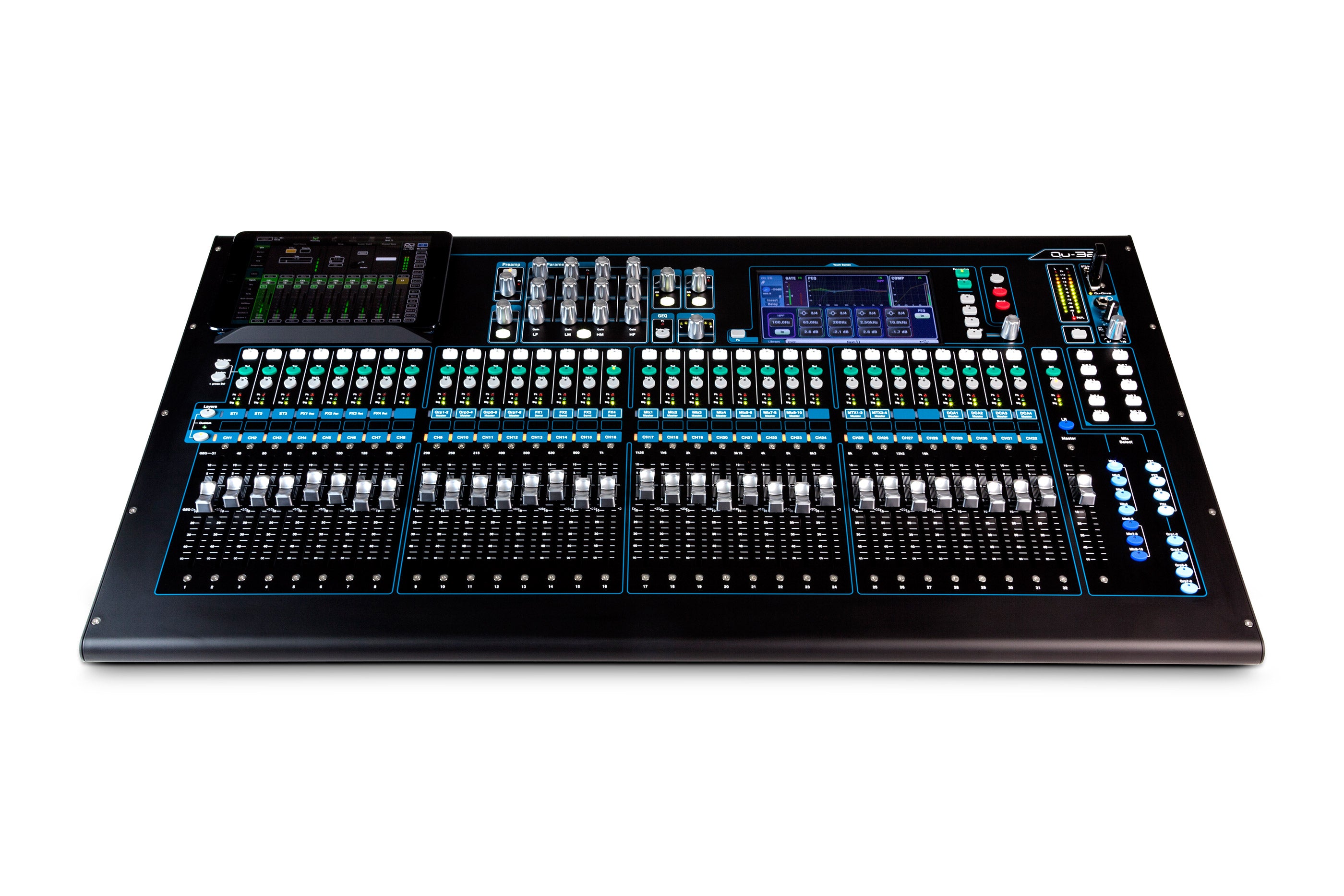

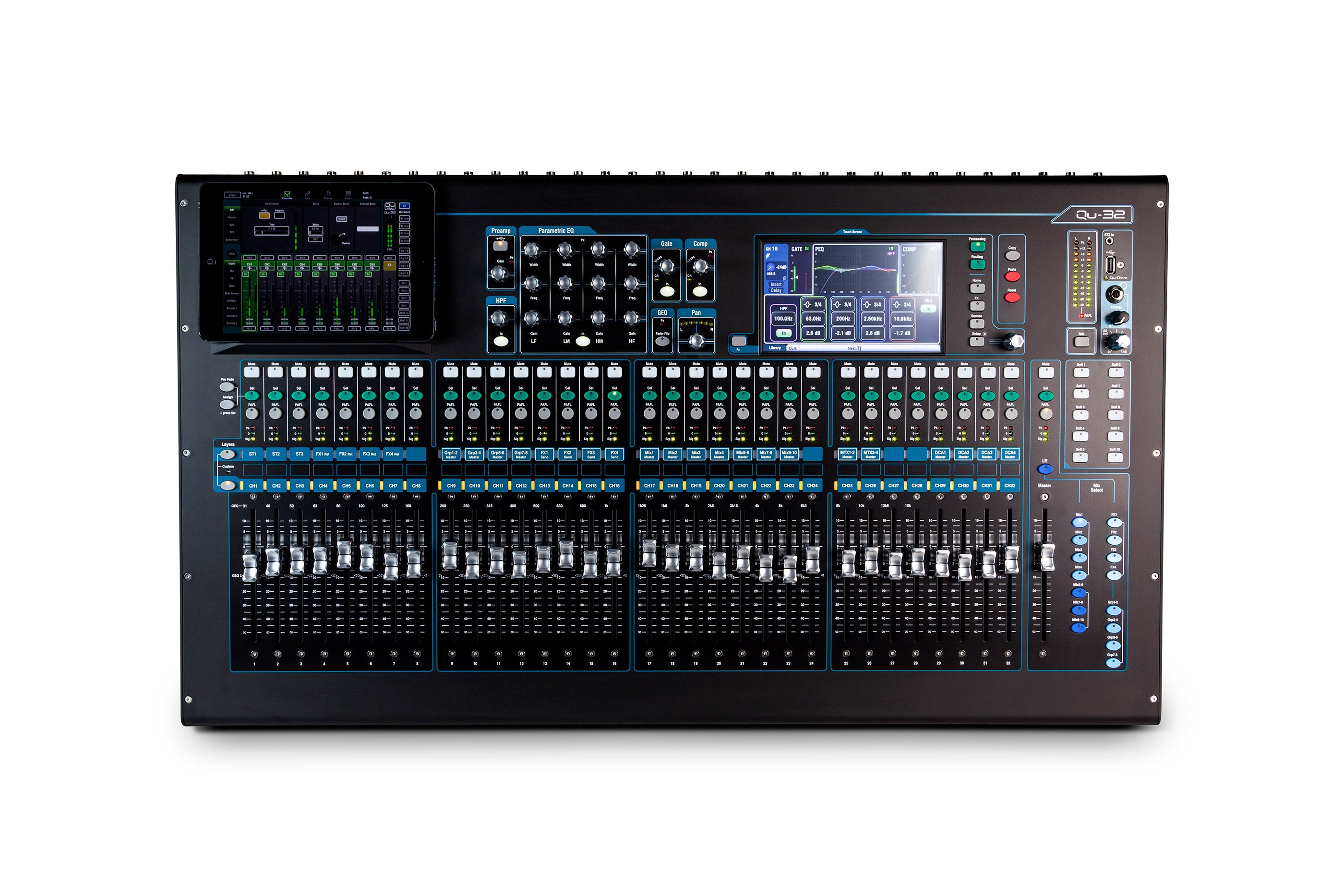

Get Digital Mixing Reshaped With The Allen & Heath QU-32C 32 Channel Digital Mixer - Chrome Edition
With its responsive touchscreen, 33 motor faders and acclaimed Analogue Q recallable preamps, Qu-32 combines exceptional ease of use with class-leading audio performance. Drawing on the technologies and workflow pioneered on our GLD and iLive touring systems, Qu makes Allen & Heath digital mixing more accessible than ever.
Qu V1.8 Firmware adds hot new features, Automatic Mic Mixing, more monitor mixes and a Spectrogram for feedback-hunting. Qu Chrome Edition models also feature upgraded, high contrast metallic finish controls.
Qu-32's thirty two Analogue total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs. The AnalogiQTM design has been refined over many months to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.
Having massive processing power and advanced functionality is great, but it counts for nothing if you can't access the controls you need in a heartbeat. Once you start using Qu-32 you'll sense the years of research into ergonomics and the hands-on mixing experience that our team has drawn upon to deliver a wonderfully natural layout and workflow. Its not about recreating an analogue interface, its about creating an experience thats fluid, comfortable and intuitive for novices, digital natives and old school road warriors alike, making all the benefits of digital mixing technology readily accessible to all. High contrast metallic finish controls complete the picture, offering excellent low light visibility and enhanced tactile control.
The 800 x 480, sixteen million color Touchscreen and its dedicated data encoder form the heart of the Qu interface, providing super-fast, easy access to all settings. The user-friendly interface has been designed with clarity in mind. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.
All your key processing tools are presented in a clean layout on the SuperStrip, with 1 function per physical control. The SuperStrip is complemented by an onscreen Touch Channel for intuitive access to full processing parameters without clutter or complex menu structures. Processing for Mono and Stereo inputs includes trim, polarity, HPF, gate, insert, 4 band PEQ, compressor and delay. The main LR and the Mono mixes have controls for Insert, 1/3 octave GEQ, compressor and delay. The Stereo mixes provide Insert, 4-band PEQ, compressor, delay and balance control.
- 32 Mic / Line Inputs (TRS + XLR)
- 33 Motor Faders
- 3 Stereo Inputs (TRS)
- 24 Mix Outputs (XLR)
- 4 Stereo Groups (switchable to Mix mode)
- Up to 11 Monitor Mixes (4 mono + 7 stereo)
- 2 Stereo Matrix Outs
- 4 DCA Groups
- 4 Mute Groups
- 4 FX Engines
- 4 FX Sends / Returns
- 10 Soft Keys
- 32 Channel USB Audio Interface
- DAW MIDI Control
- AES Digital Out
- Recallable AnaLOGIQTM Preamps
- Qu-Drive direct Multitrack Recording / Playback on USB drives
- 7“ Touchscreen
- iLive FX Library
- dSNAKETM Remote Audio Port
- Automatic Mic Mixer
- Qu-Pad iPad App
- Qu-You iPhone / Android personal monitoring app
- Compatible with ME Personal Mixing System
- Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
- Built-in Signal Generator
- RTA with Peak Band indication
- Spectrogram to aid with feedback elimination and taming room acoustics
- High contrast metallic finish controls, matching premium GLD Chrome series
Warranty: See manufacturer website for details
