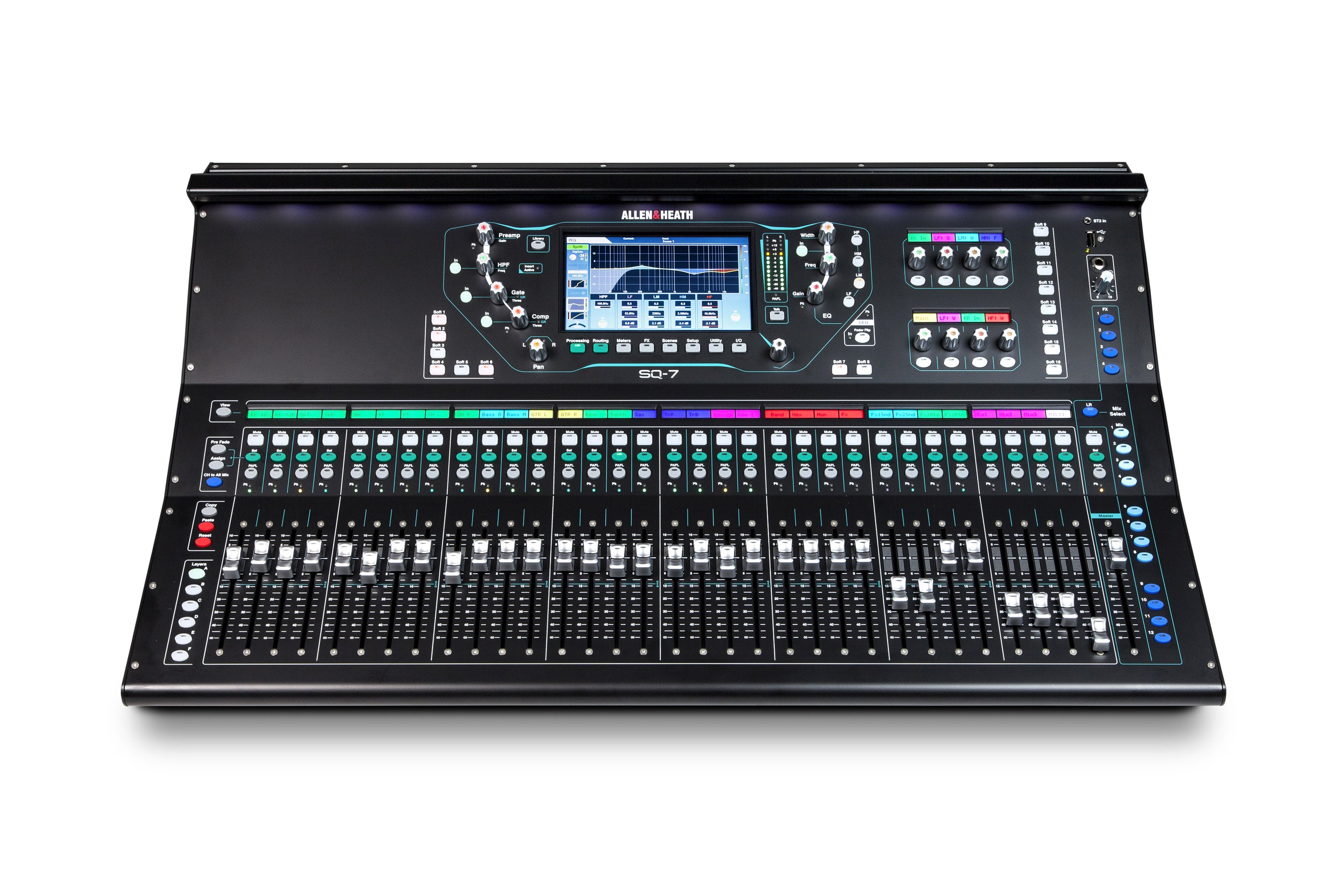

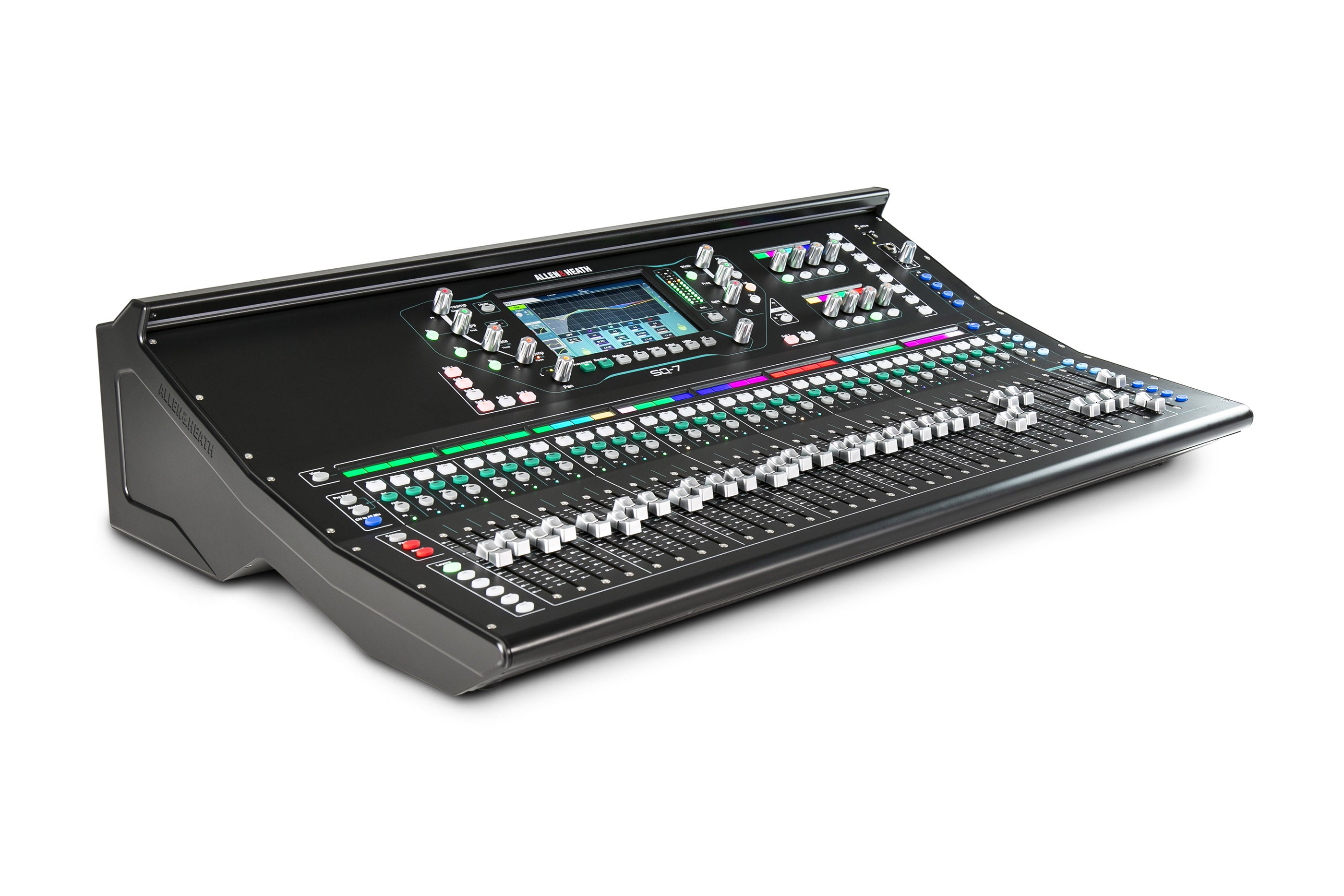

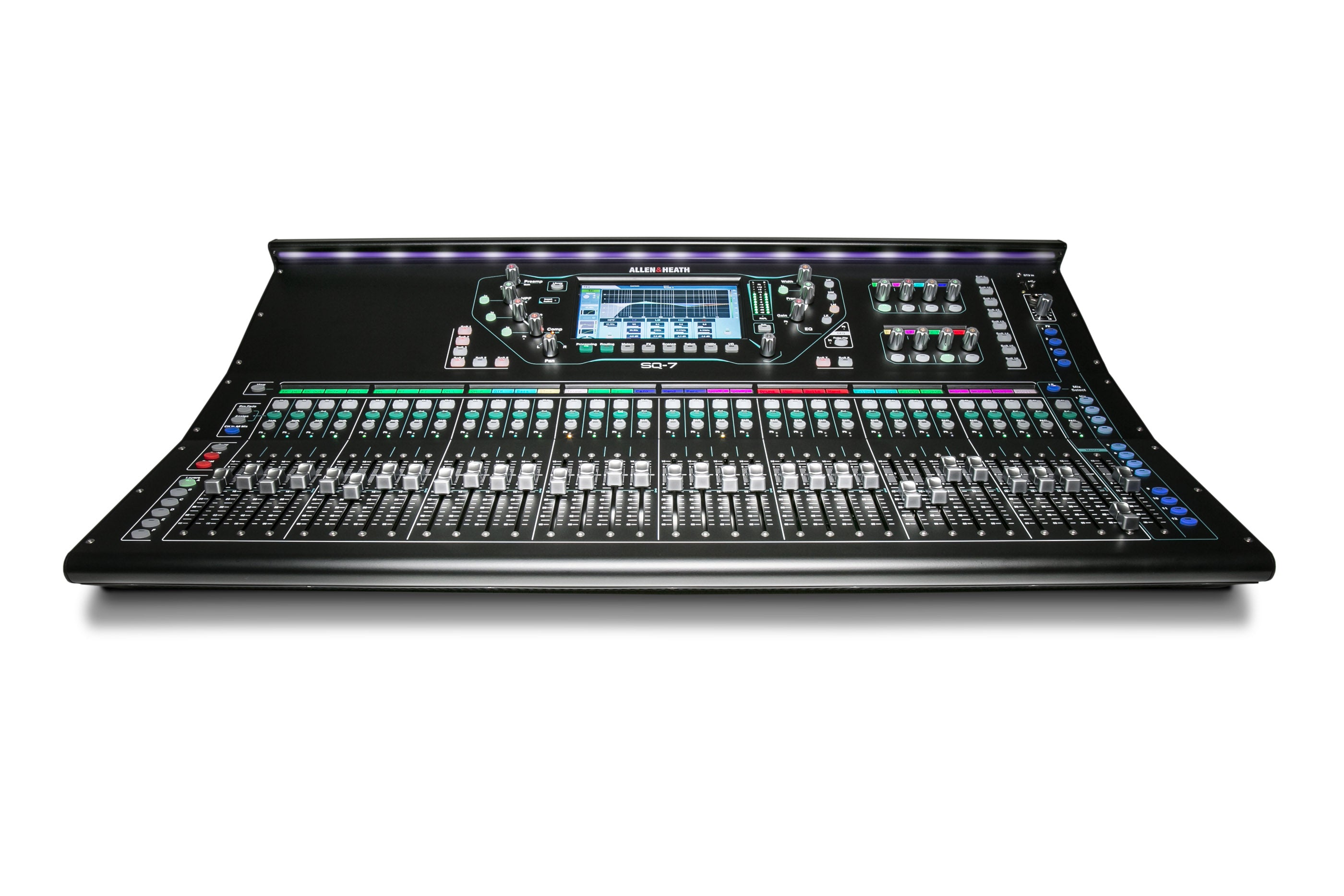

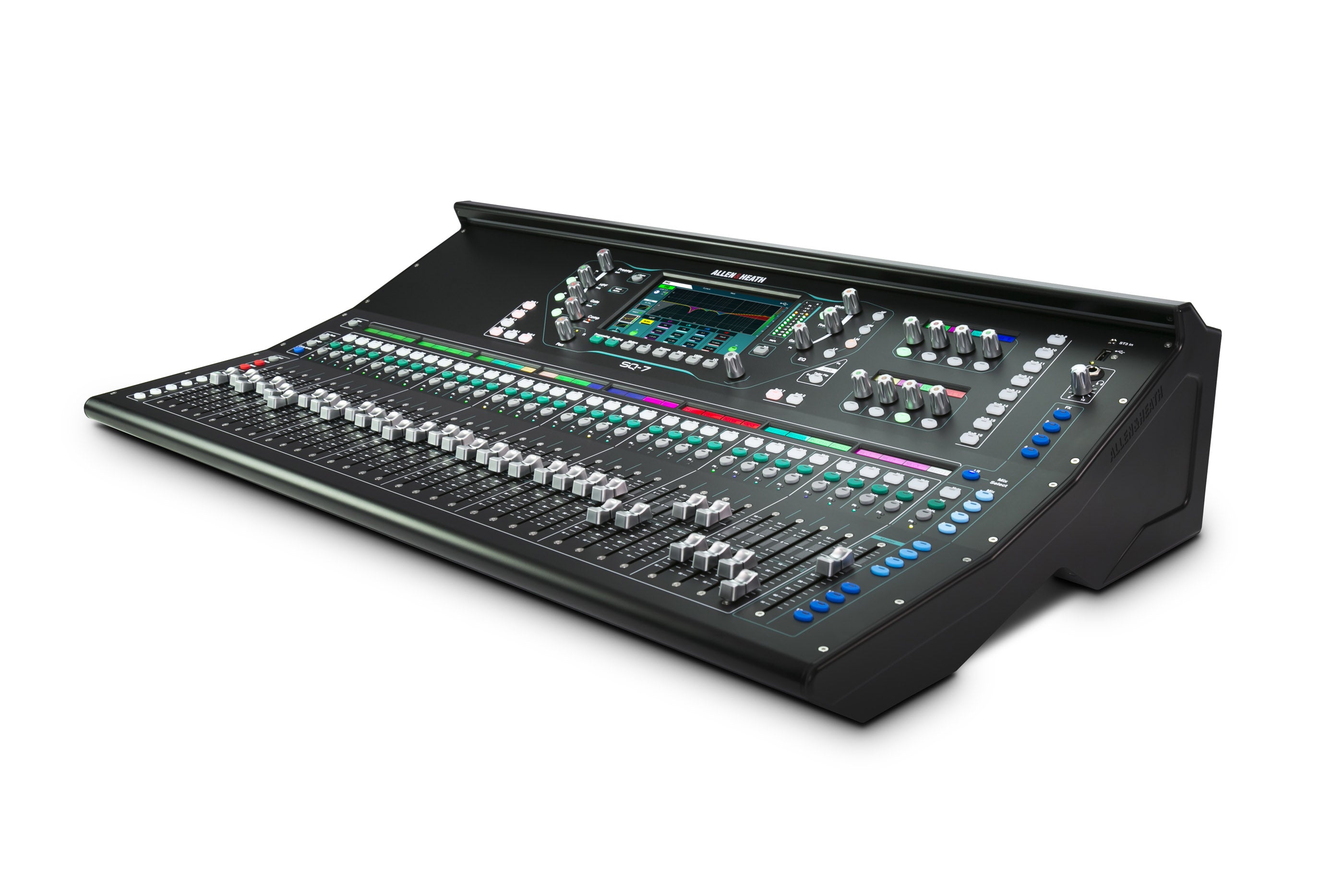

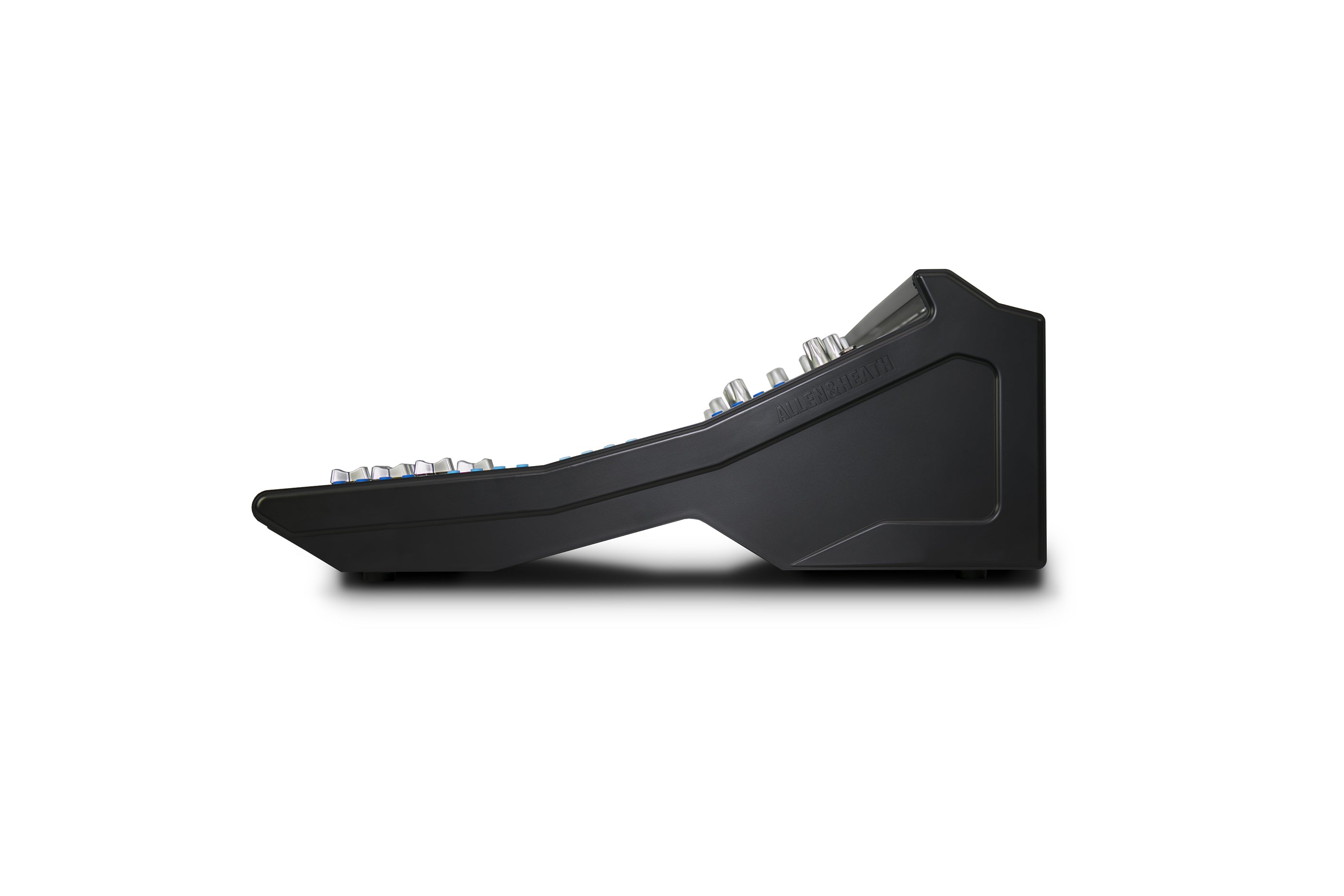

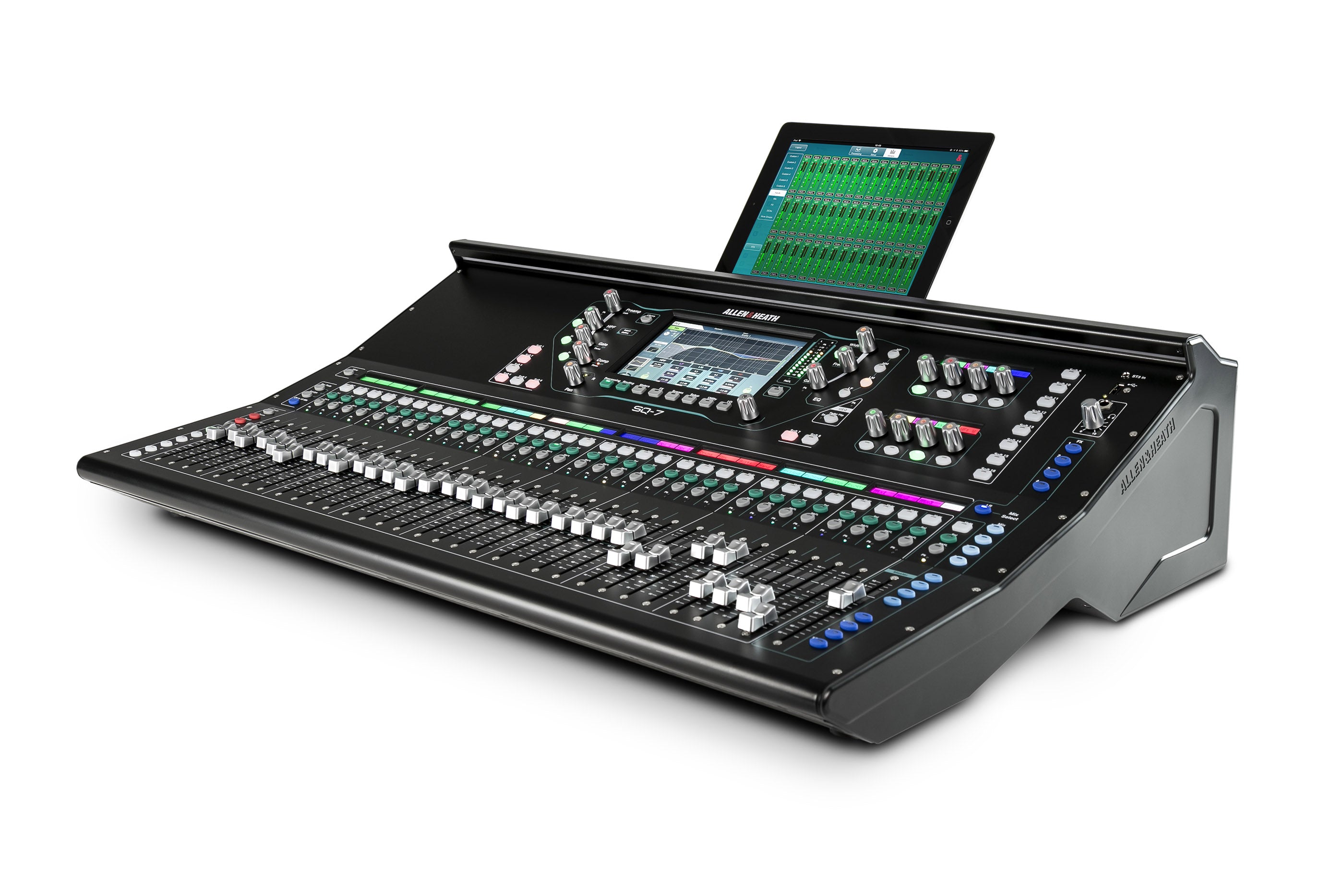

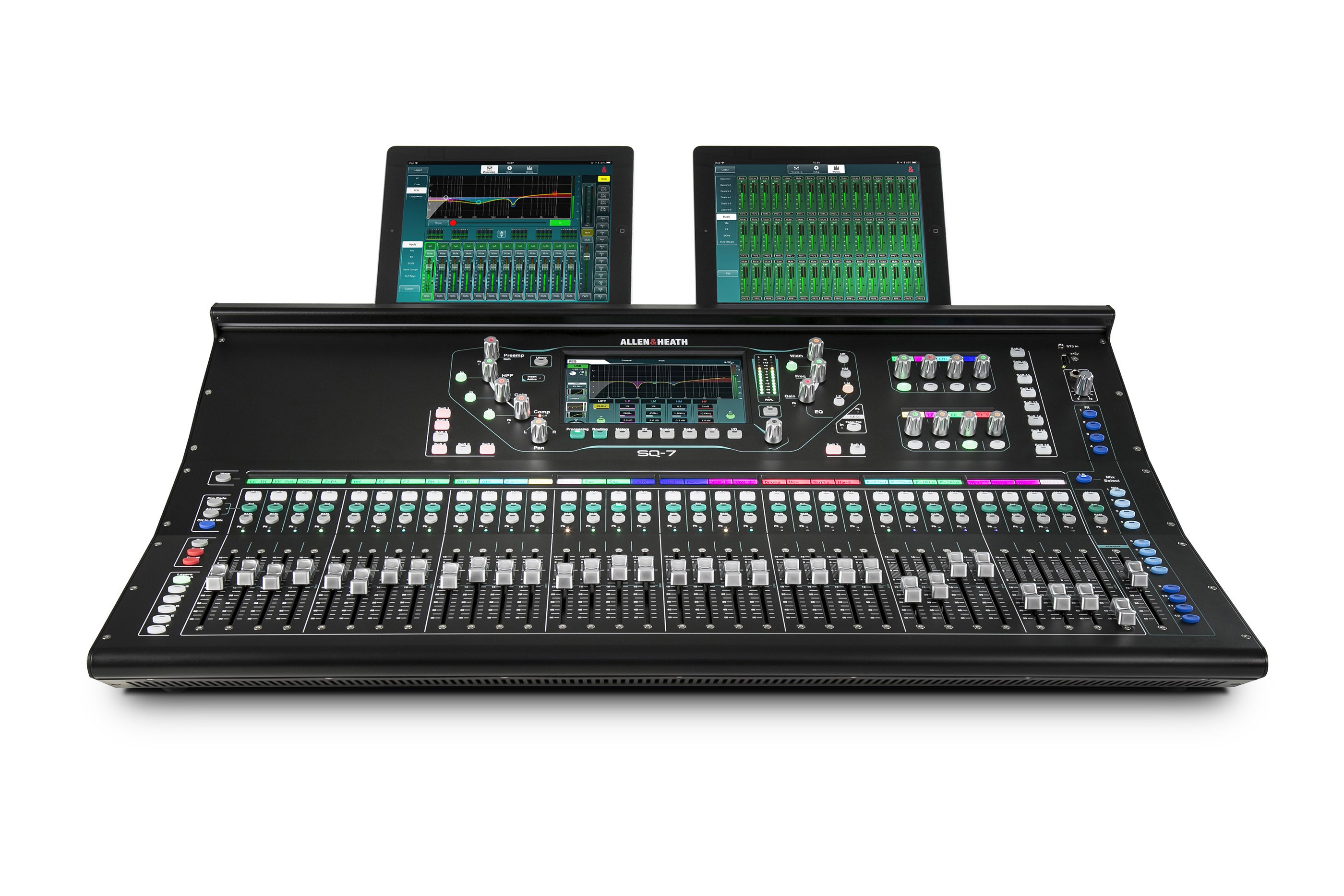

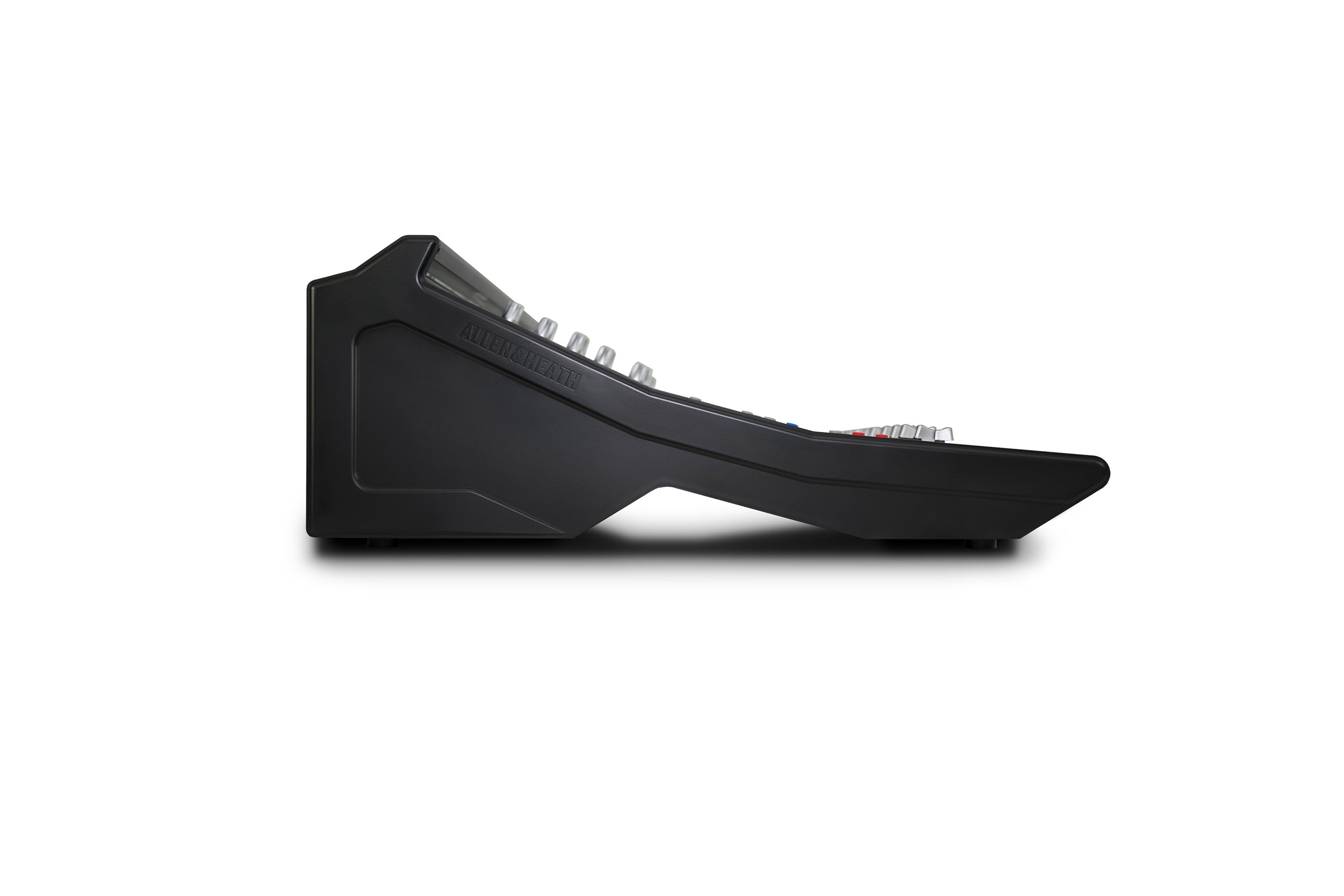

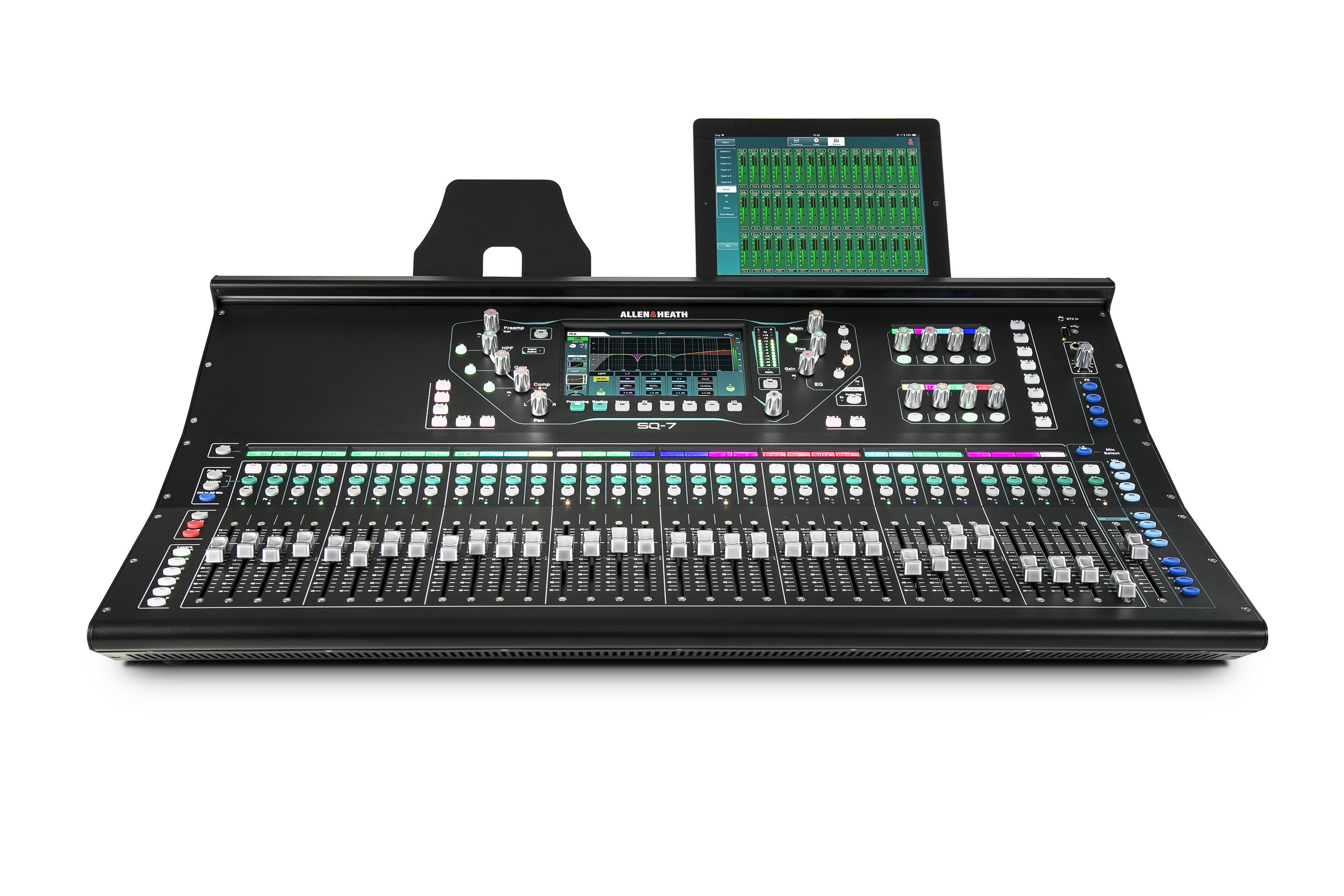

Allen & Heath SQ-7 48 Channel Digital Mixer



Get A Flagship Mixing Console For Any Event With The Allen & Heath SQ-7 48 Channel Digital Mixer

SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath’s revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.

96kHz XCVI Core- SQ is driven by Allen & Heath’s 96kHz XCVI FPGA engine, delivering exceptional high-resolution audio quality, ultra-low latency of <0.7ms and variable bit depths for optimised dynamic range. XCVI is the next-generation foundation that allows SQ to handle high channel counts at 96kHz, with massive mix headroom thanks to a 96bit accumulator, and the sheer power to embed our acclaimed DEEP plugins into all 48 input channels and all mixes.

DEEP processing ready- SQ’s DEEP processing architecture allows owners to hand-pick boutique compressor and preamp emulations to suit their style and needs. DEEP plugins can be embedded directly within the mixer’s inputs and mix channels, all without adding system latency or setup hassles.

The Ultimate IEM Mixer- With no less than 12 stereo mixes and super-low latency, and both parametric and graphic EQ on every mix, SQ-7 is the perfect companion for in-ear monitoring setups. SQ’s airline-friendly compactness and rugged build quality mean there’s no reason to gamble on house monitor consoles again.

Expandable up to 48 mics- Thanks to its SLink intelligent port, SQ-7 can be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible solution for owners of other Allen & Heath digital systems. You can even connect to another SQ, Qu or dLive system for two way audio patching.

Dante, Waves and more- SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart’s content. It’s compatible with leading audio networking standards too - add an audio networking card such as Dante or Waves to SQ’s I/O port and you’re ready to integrate with installed systems, provide a digital FoH / Monitor split and more.

Flexible multitrack recording- The integrated SQ-Drive makes it quick and easy to capture a 96kHz multitrack or stereo recording of the show direct to a USB key or drive. No software setup, no soundcard driver issues and no extra laptop to bring to the performance. SQ-Drive is also a smart way to manage walk-in music. Also provided is a built-in 32x32 96kHz audio interface for multitrack recording, backing tracks or virtual soundcheck applications. The interface is Core Audio and ASIO compliant and comes complete with MIDI and DAW control capabilities.

Advanced AMM- SQ-7’s advanced automatic mic mixers (AMM’s) make it a natural choice for mixing conferences, panel talks and TV shows. They’re fully integrated in the mixer too, with no extra latency, so you don’t need to route the audio to an internal DSP rack or an external plugin system. Two fully independent 24 channel AMM’s can be utilised for two separate zones or combined into a single 48 channel AMM for larger events. Designed for the pro We know that the live environment can be tough on gear – that’s why we devised our most punishing regime of testing and retesting yet for SQ. From its 3-tier, all metal chassi

  • 96kHz FPGA processing
  • 48 Input Channels
  • DEEP Processing ready
  • 33 Faders / 6 Layers
  • 12 Stereo mixes + LR
  • 3 Stereo Matrix
  • 8 Stereo FX Engines + dedicated stereo returns

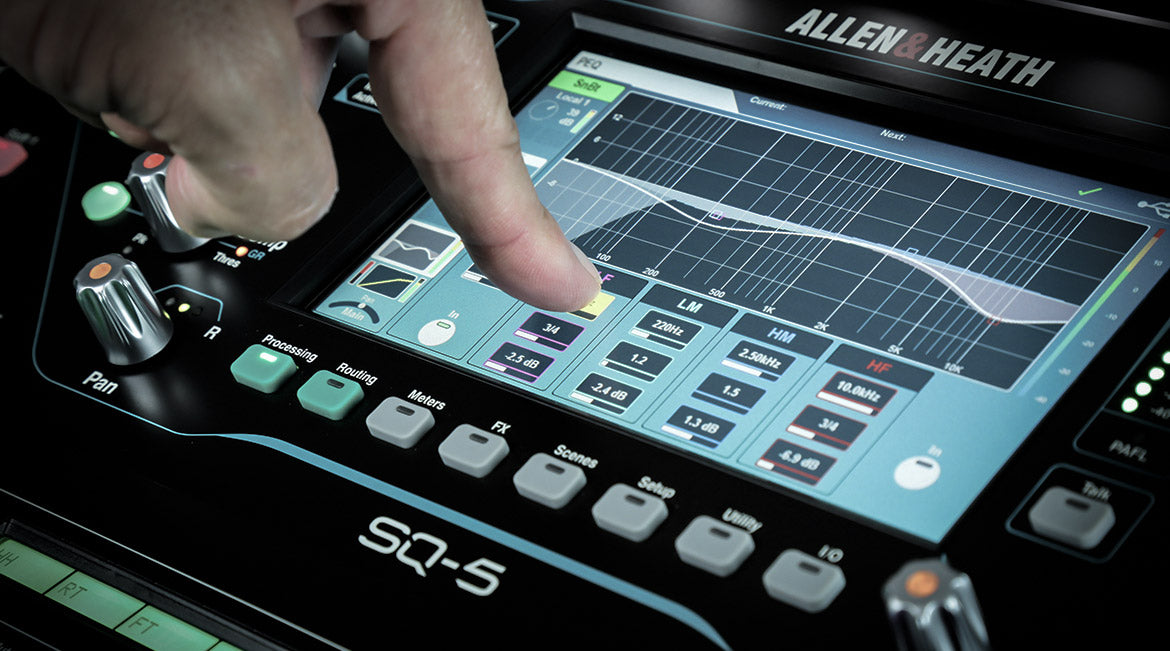

  • 7" capacitive touchscreen
  • SLink port for remote audio / expansion
  • 64ch I/O Port for audio networking
  • 32x32 USB audio interface
  • SQ-Drive direct recording to USB
  • AES output
  • Chromatic channel metering
  • Integrated LED illumination
  • Dedicated physical controls
  • 16 Assignable SoftKeys
  • 8 Assignable Soft Rotaries
  • Channel LCD displays


  • Compact Digital Mixer for Live, Studio and Installation
  • 48 Input Channels

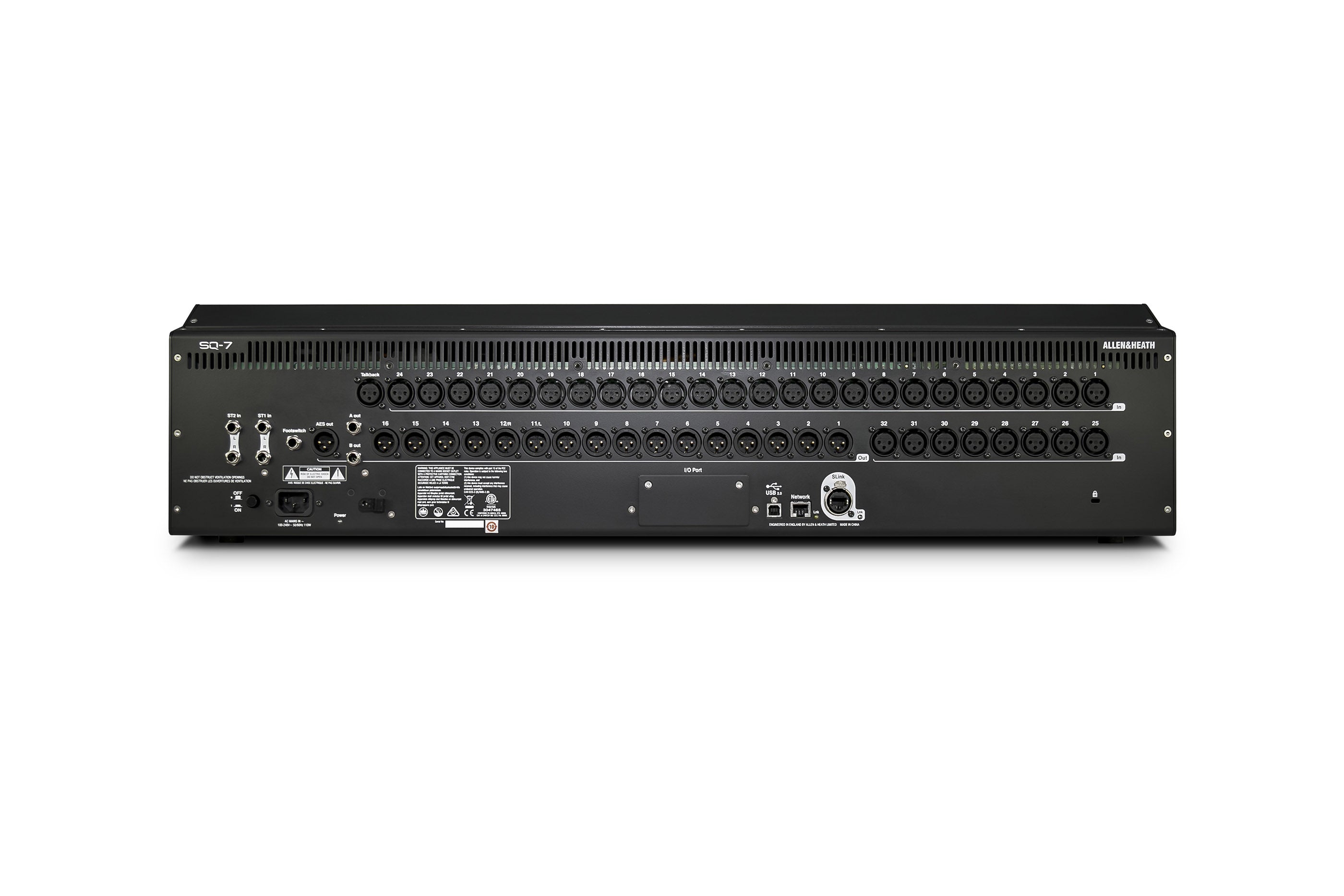

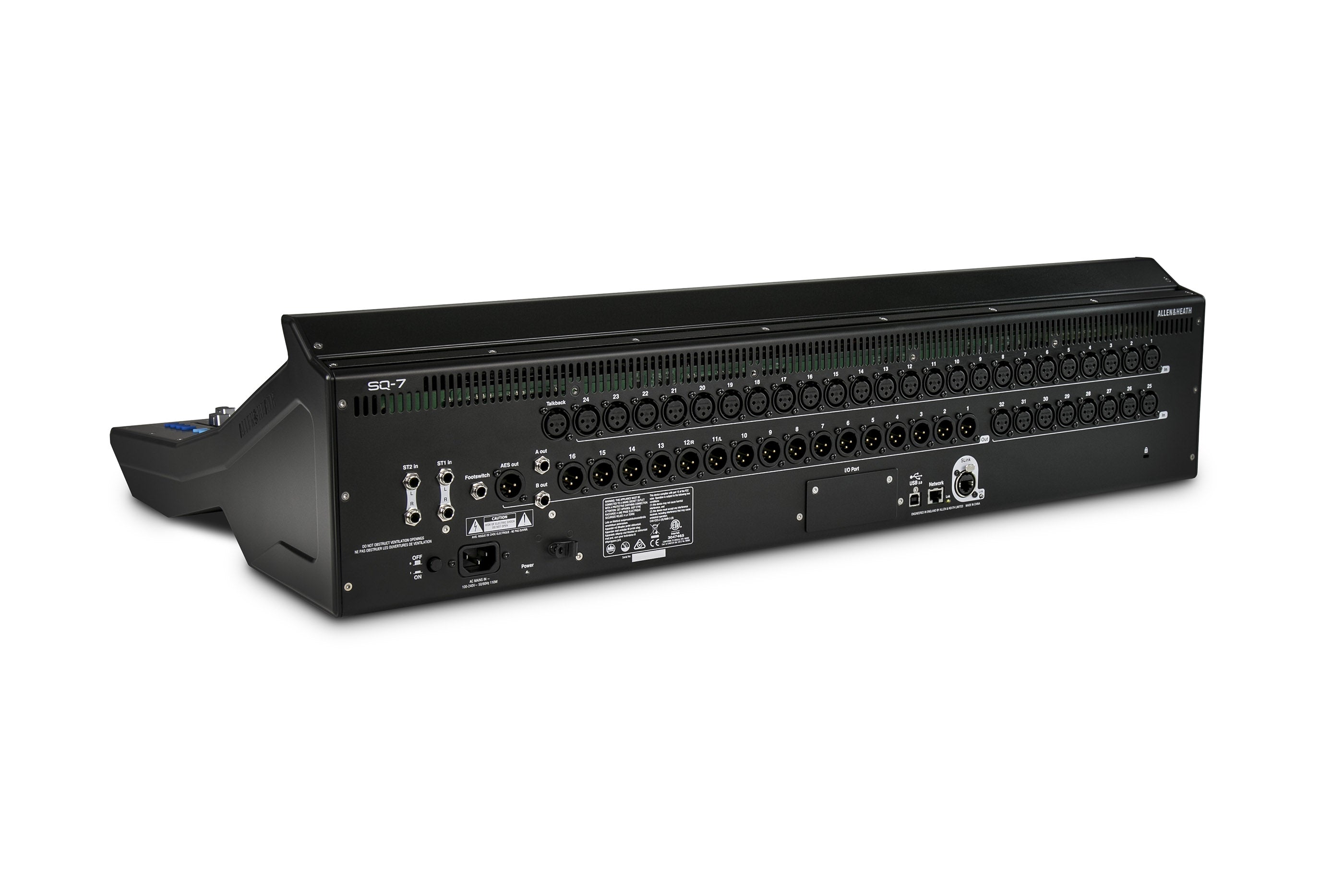

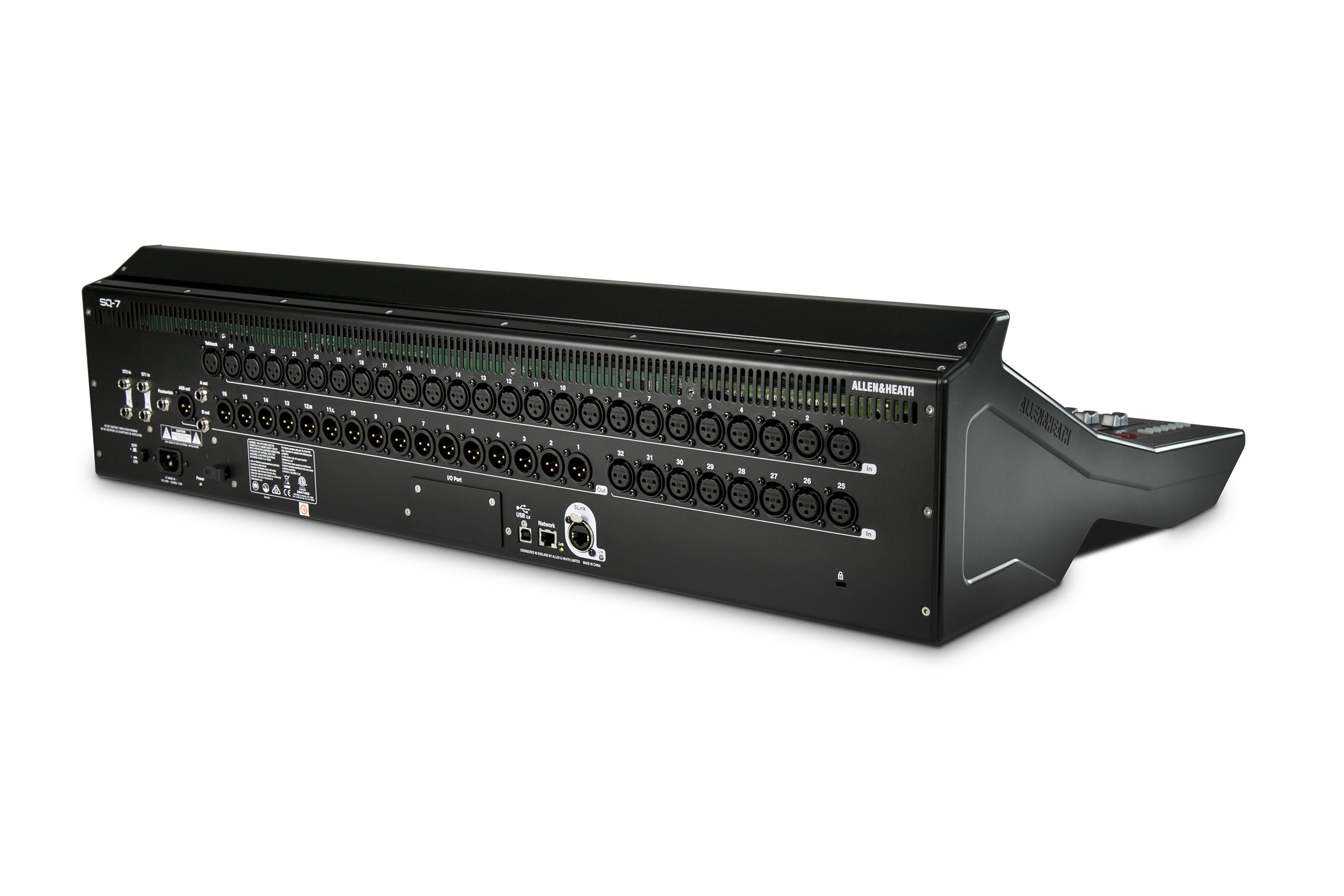

  • 32 Local Mic Inputs (XLR)
  • 2 1/4" Stereo Inputs (TRS)
  • 1 3.5mm Stereo Input
  • 36 Total Busses
  • 12 Stereo Mix (Aux or Group) + Main
  • PAFL Bus
  • 18 Assignable Local Outputs (16 XLR + 2 1/4" TRS)
  • AES Digital Output
  • Dedicated Talkback mic input (XLR)
  • 1/4" TRS Headphone out with dedicated control
  • SLink EtherCON connection for remote audio using dSnake, DX or gigaACE protocol (64x64 channels)
  • I/O Port for Option Card (including 3rd party protocols - Dante/Waves)
  • Mute Groups
  • DCA Groups
  • Stereo FX with dedicated FX Returns
  • DEEP Processing Ready
  • RackFX Effects suite
  • 7" colour touchscreen
  • 16 Assignable SoftKeys
  • 8 Assignable Soft Rotaries
  • Dedicated physical controls for channel processing
  • (Gain, HPF Frequency, Gate Threshold, Compressor
  • Threshold, Pan, EQ Gain/Frequency/Width)
  • 32+1 Faders with 6 Layers for 192 assignable Channel Strips
  • Motorised faders for sends on faders, GEQ fader flip and mix recall
  • 32 Backlit LCD Channel Strip displays
  • Chromatic Channel Metering
  • Integrated Surface Illumination
  • Single/Dual Footswitch Control
  • Input channel linking for stereo sources
  • Patchable Insert points
  • Input processing - Preamp, HPF, Gate, PEQ,
  • Compressor, Delay
  • Mix processing - PEQ, Graphic EQ, Compressor, Delay
  • Fully integrated Automatic Mic Mixing
  • 31 Band Real Time Analyser
  • Quick copy/paste/reset for parameters
  • User Permissions to restrict operator access
  • 300 Scene memories per show
  • Channel Safes, Global and per Scene Recall Filters
  • FX, processing and channel Libraries
  • SQ-Drive for stereo and multitrack recording/playback direct to USB drive
  • USB transfer of Scenes, Libraries, Shows
  • 32x32 channel USB streaming to/from Mac/PC
  • DAW Control driver for MIDI control via USB or TCP/IP
  • Wireless remote mixing apps for iPad and Android
  • Compatible with ME personal monitoring range

Manufacturer: Allen & Heath
Model: SQ-7
Warranty: See manufacturer website for details
SKU: I556856-4
Listing ID: NA90458
