American DJ MDF2-9SYS Complete LED Dance Floor Panel System


  • Our Price
  • $2,999.99
  • Regular price MSRP: $4,199.95





CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19


Strut Your Stuff With The American DJ MDF2-9SYS Complete LED Dance Floor Panel System

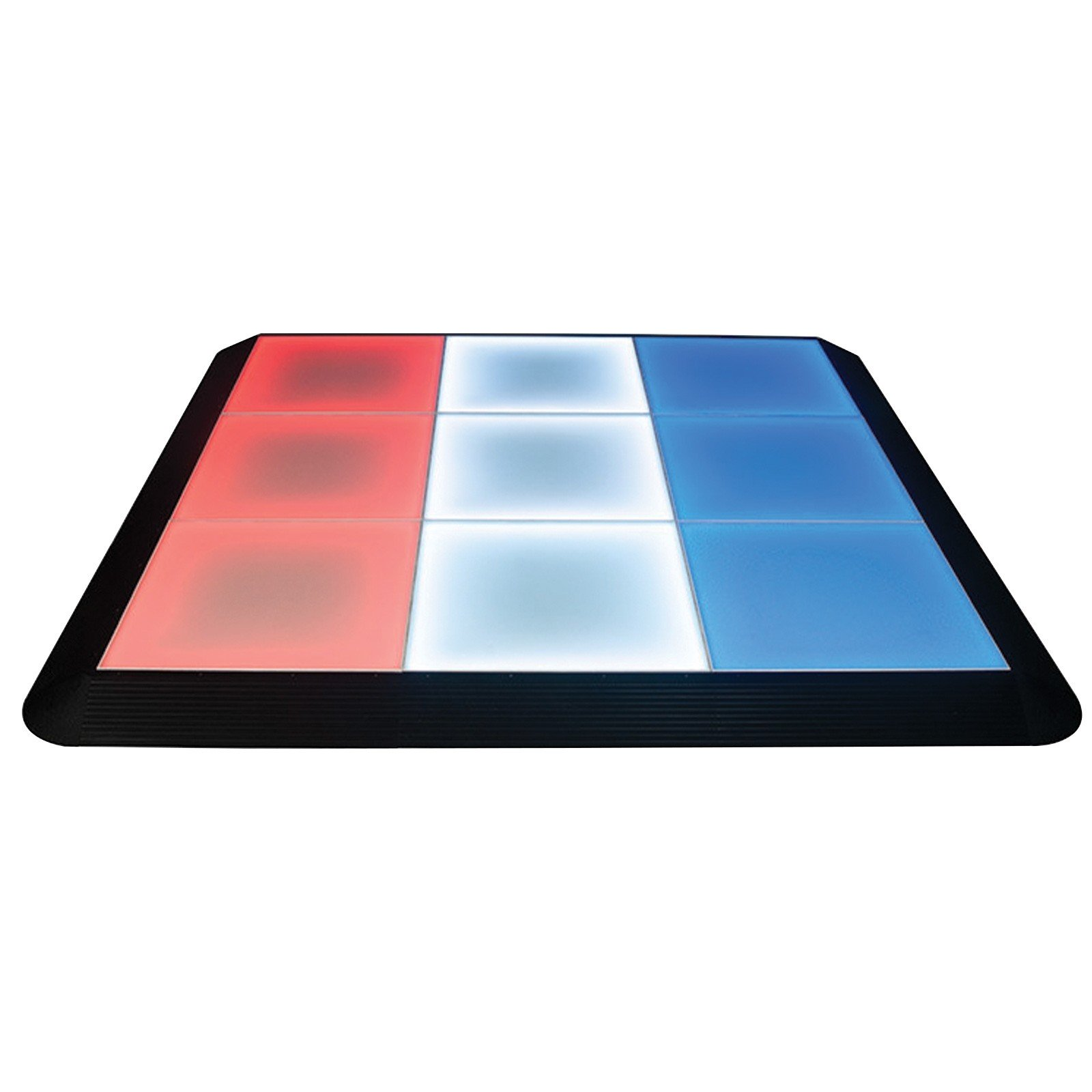

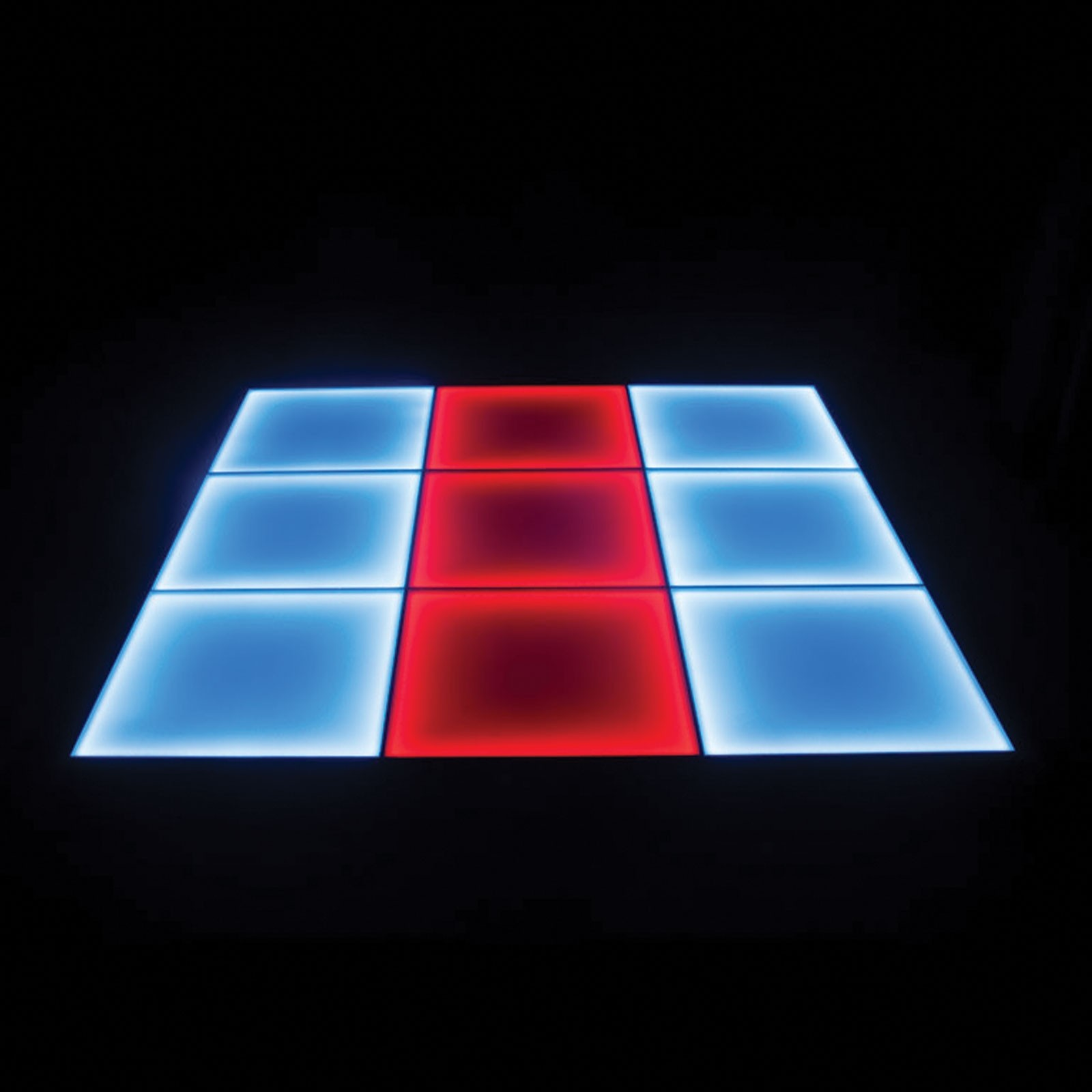

ADJ's MDF (Magnetic Dance Floor) System is a robust, lightweight and extremely easy to setup portable LED dance floor solution. Each panel (MDF2) features an array of 3-in-1 RGB LEDs that cause its opaque tempered glass surface to glow intensely in an almost limitless selection of vibrant colors. With surface dimensions of 600mm x 600mm (23.62" x 23.62") and a low height of just 70mm (2.76"), the individual panels weigh just 26.57 lbs. (12.05 kgs.) yet can support a weight of up to 300 kgs/m2 (61.5 lbs/ft2) – more than enough for a dense crowd of party goers.

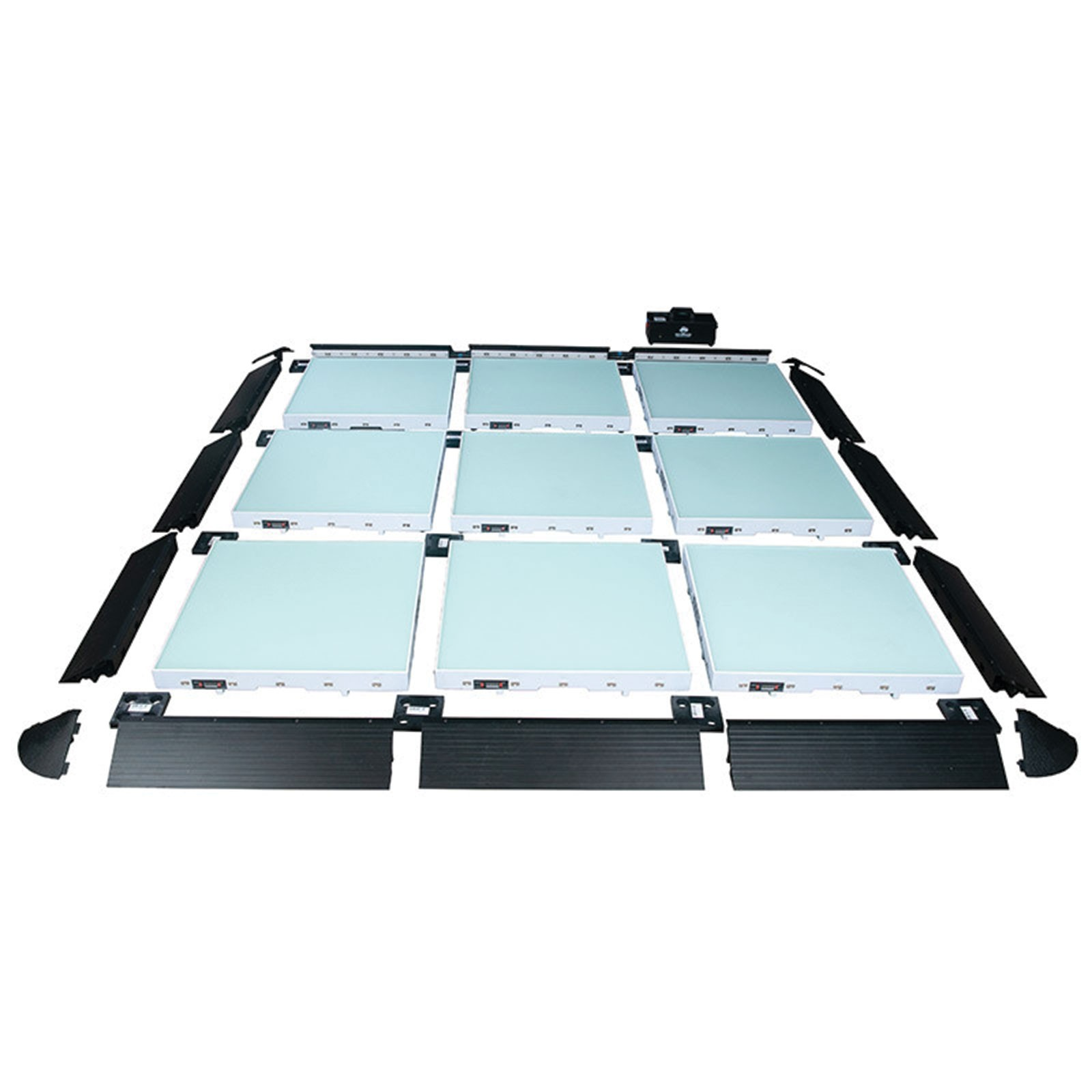

The panels fit together together quickly and easily thanks to an innovative magnetic locking system as well as a convenient cable-free power and data transmission arrangement that connects adjacent units in a row. Power and DMX control is then supplied to each row via a dedicated power ramp (MDF2PR) which features 3-pin XLR input and output sockets alongside proprietary 4-pin 24V DC power connections. Power is supplied to the system by a choice of dedicated power supply units designed to supply different quantities of panels (9, 15, 20 or 40), while a complete range of accessories is also available. These include edging ramps (for the three other sides) and corner ramps as well as a dedicated 9 panel flight case and special tool for lifting panels from the middle of a dancefloor.

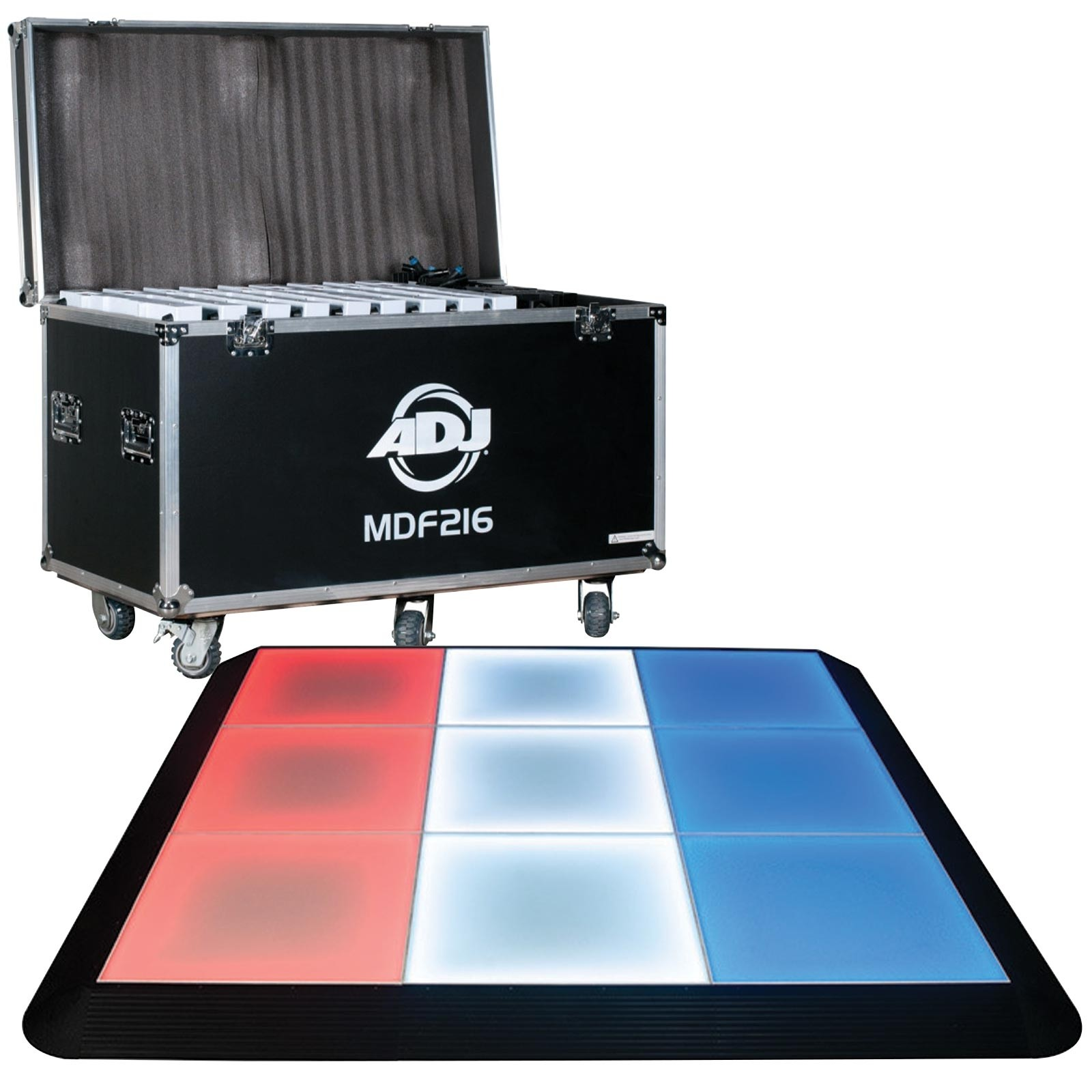

Thanks to its easy-to-setup design, the MDF Series is ideal for temporary event use by mobile entertainment and event production companies. However, it is also suitable for permanent installation in nightclubs and bars looking to create a uniquely eye-catching dancefloor. The panels and accessories are all available individually, but can also be purchased in a complete pack of 9 panels (MDF433) complete with all cables, ramps and a flight case.


  • (9) MDF2 Dance Floor Panels
  • (9) MDF2DR Dump Ramps
  • (16) MDF2FCB Floor connection brackets
  • (4) MDF2CR Corner Ramps
  • (3) MDF2PR Power Ramps
  • (1) MDF2PSUX9 200W Power Supply
  • (1) MDF2MPC16 16 foot power cable to ramp
  • (1) AC3PDMX15 15 foot 3-pin male to female DMX Cable

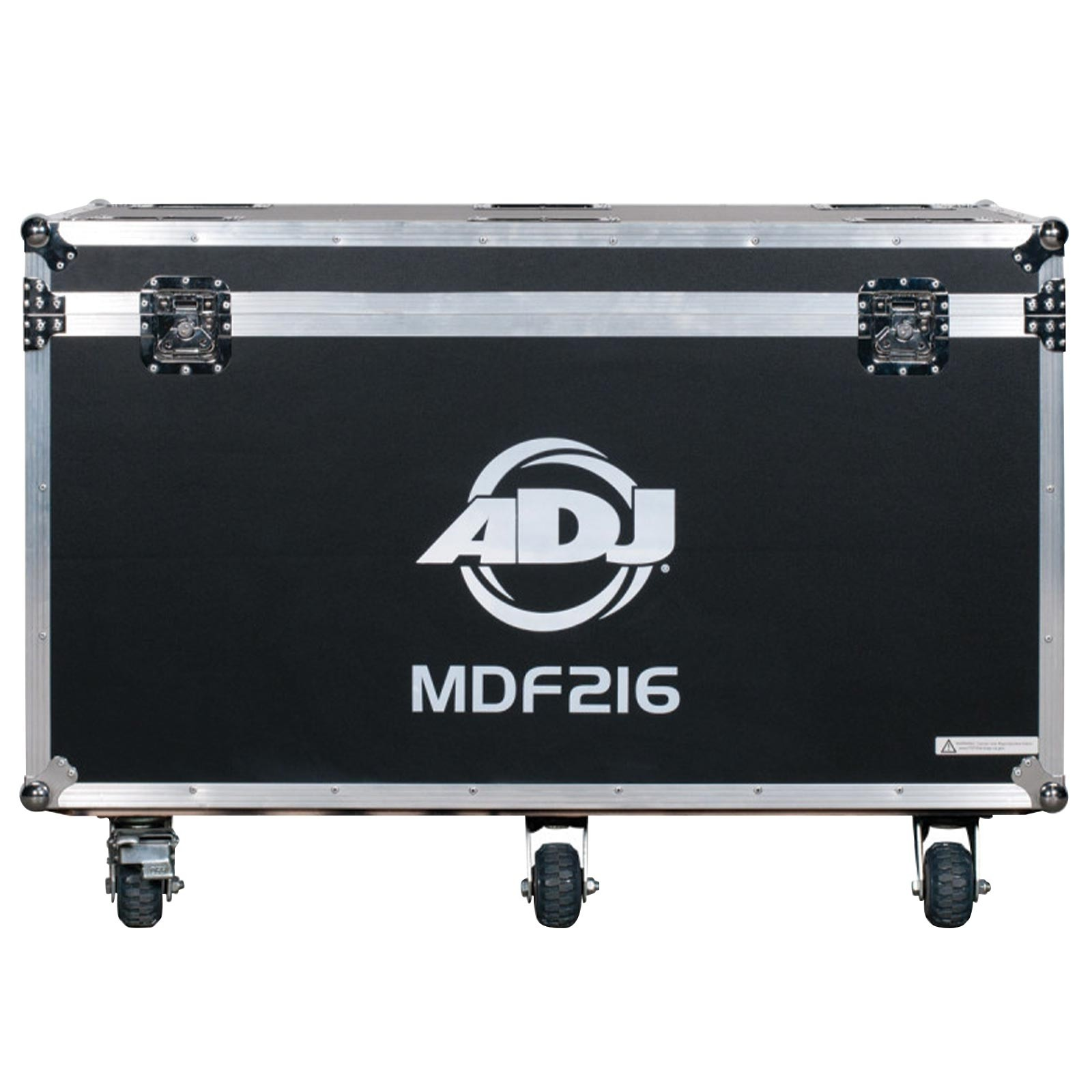

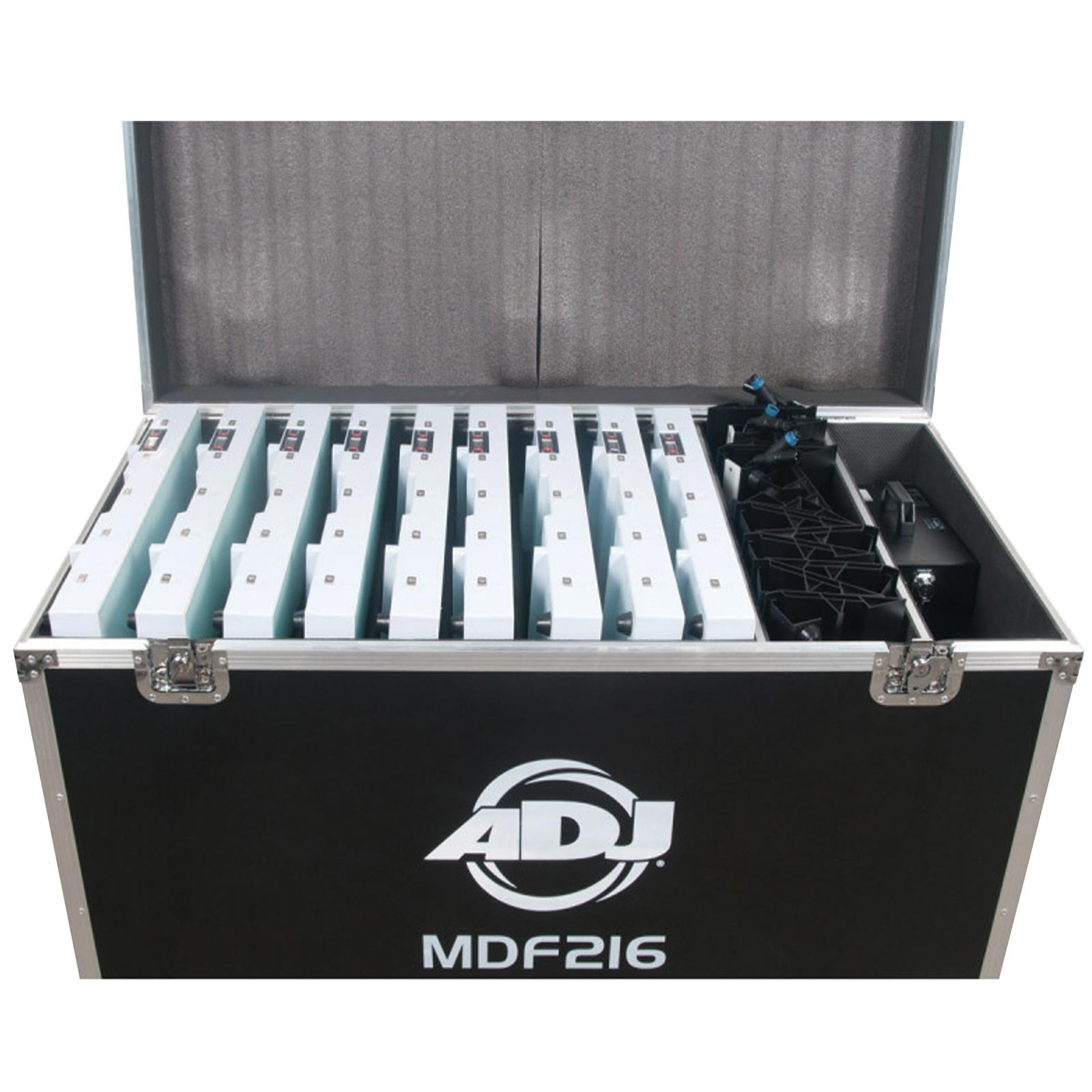

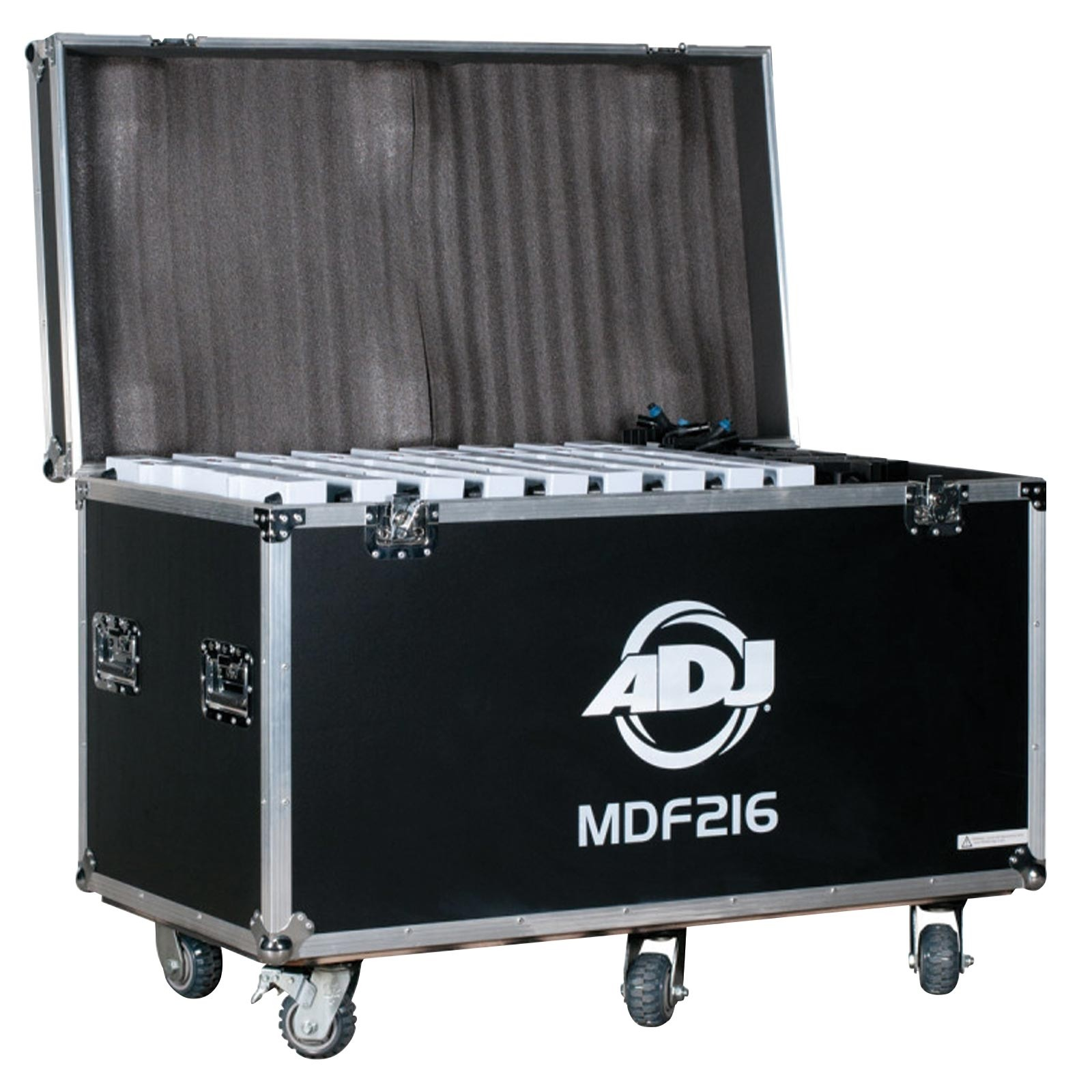

  • (1) MDF2FC9 Flight Case for 9 Panels and accessories


SPECIFICATIONS

  • Light Source: RGB 3-IN-1 LED
  • Input Voltage: DC 24V
  • Max Power Consumption: 15W
  • Input Signal: DMX512 (3-Pin XLR)
  • Control Mode: DMX512 Console, SD Controller (With DMX, Sound Control, Audio
  • Control and Remote Control)
  • DMX Channel Mode: 3, 5, 7, & 10 Channel Mode
  • Visual Angle: 160°
  • Brightness: High Brightness
  • Surface Material: Tempered Glass
  • Base Material: ABS
  • Bearing Weight: 61.5 lbs./ft2 (300 kgs/m2)
  • Working Temperature: -4°~113°F (-20°~45°C)
  • Single panel Dimensions (LxWxH): 23.62" x 23.62" x 2.76" / 600x600x70mm
  • Single Panel Weight: 26.57 lbs./ 12.05 Kgs

Manufacturer: ADJ Supply
Model: MDF2-9SYS
Warranty: See manufacturer website for details
SKU: I622713-N-0
UPC: 818651026771
