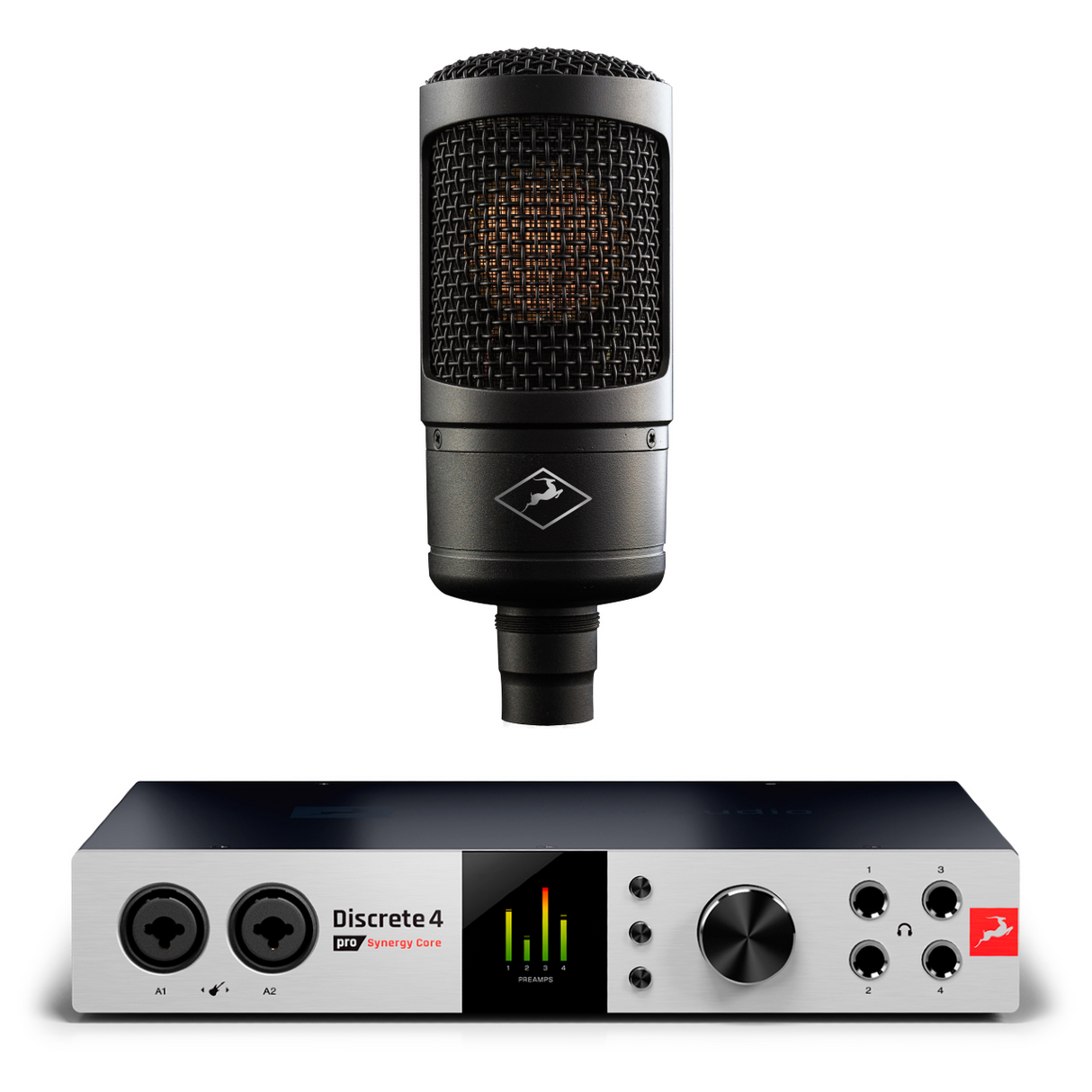

Antelope Audio Discrete 4 Pro Audio Interface with *Free* Edge Solo Microphone

The Antelope Audio Discrete 4 Pro Synergy Core Interface Forges a New Frontier in Processing - Now With a Free Edge Solo Microphone

Introducing Synergy Core, Antelope Audio's next generation signal processing platform. Using FPGA's massive parallel computation capabilities and industry-standard DSP power combined, Synergy Core frees up your CPU while processing your FX with extremely low latency.

The Edge Solo is a high-quality large-diaphragm condenser microphone by Antelope Audio. Combined with Antelope's cutting-edge modeling technology, it allows users to emulate 18 of the world's most iconic vintage microphones with uncanny accuracy.

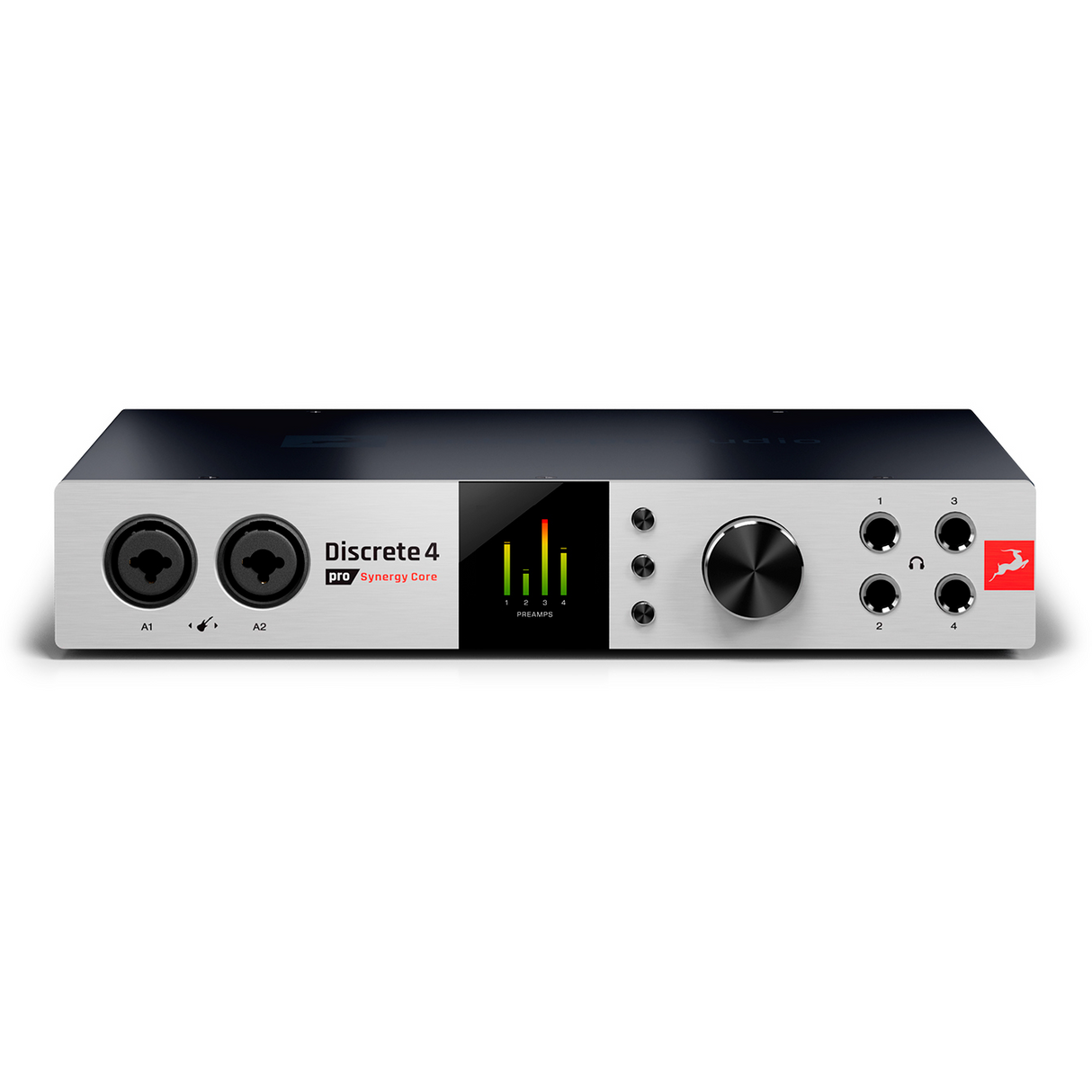

Discrete 4 Pro Synergy Core Interface

• Synergy Core FPG + DSP, eliminating the issue of latency stacking which is common with DSP-only units
• Auto-Tune Synergy built from the ground-up for the Synergy Core platform, adding live pitch correction to the Antelope Audio experience
• 37 Synergy Core FX includes a library of 37 real-time studio effects, meticulously modelled after their hardware originals
• Unique 6-transistor discrete preamps for console-grade sound quality
• Accusonic 3D modeling engine lets you transform the Antelope Audio Edge and Verge modeling microphones into expensive-sounding vintage replicas
• Up to 121 dB of dynamic range and sample rates up to 192 kHz, our AD/DA converters ensure your meticulous performances are captured
• An abundance of analog and digital connectivity, as well as both USB and Thunderbolt ports for computer connection
• Housed in a machined aluminum chassis, each unit is hand-built in our European facility to strict standards, component choices and quality control

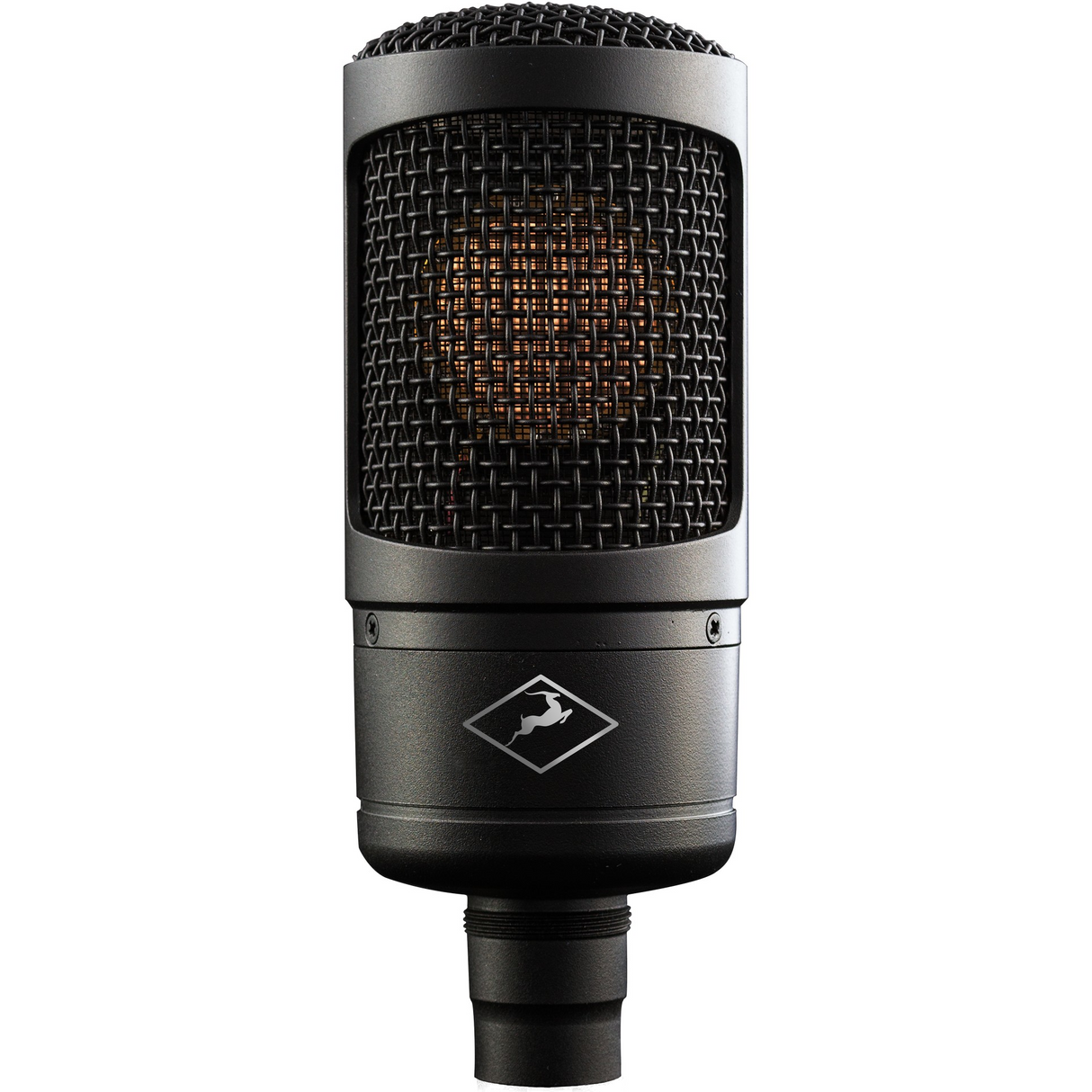

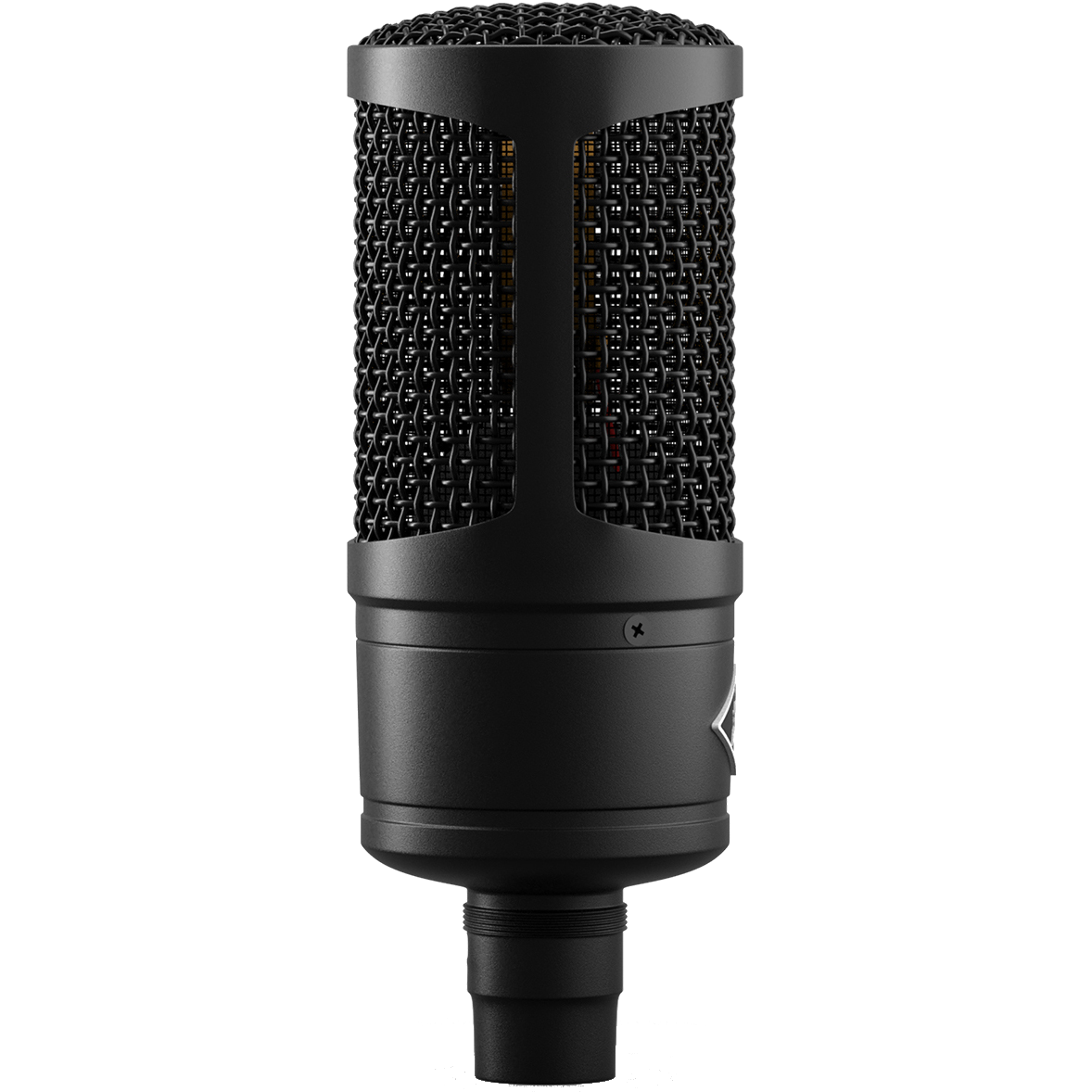

Edge Solo Microphone

• 6-micron gold-sputtered membrane for a rich sound
• Compatible with any pre-amp
• Change your choice of microphone in real-time
• Includes hard mount and small standard road case
• 18 carefully selected classic microphones including:
• Berlin 47 FT
• Berlin 49T
• Berlin 57
• Berlin 87
• Berlin 67
• Berlin M103
• Vienna 12
• Vienna 414
• Tokyo 800T
• Berlin V563 cardioid capsule
• Illinois 57
• Illinois 7B
• Minnesota 20
• Vienna 112
• Berlin K86
• Berlin 47 TU
• Berlin M251
• Hamburg 441

SPECIFICATIONS

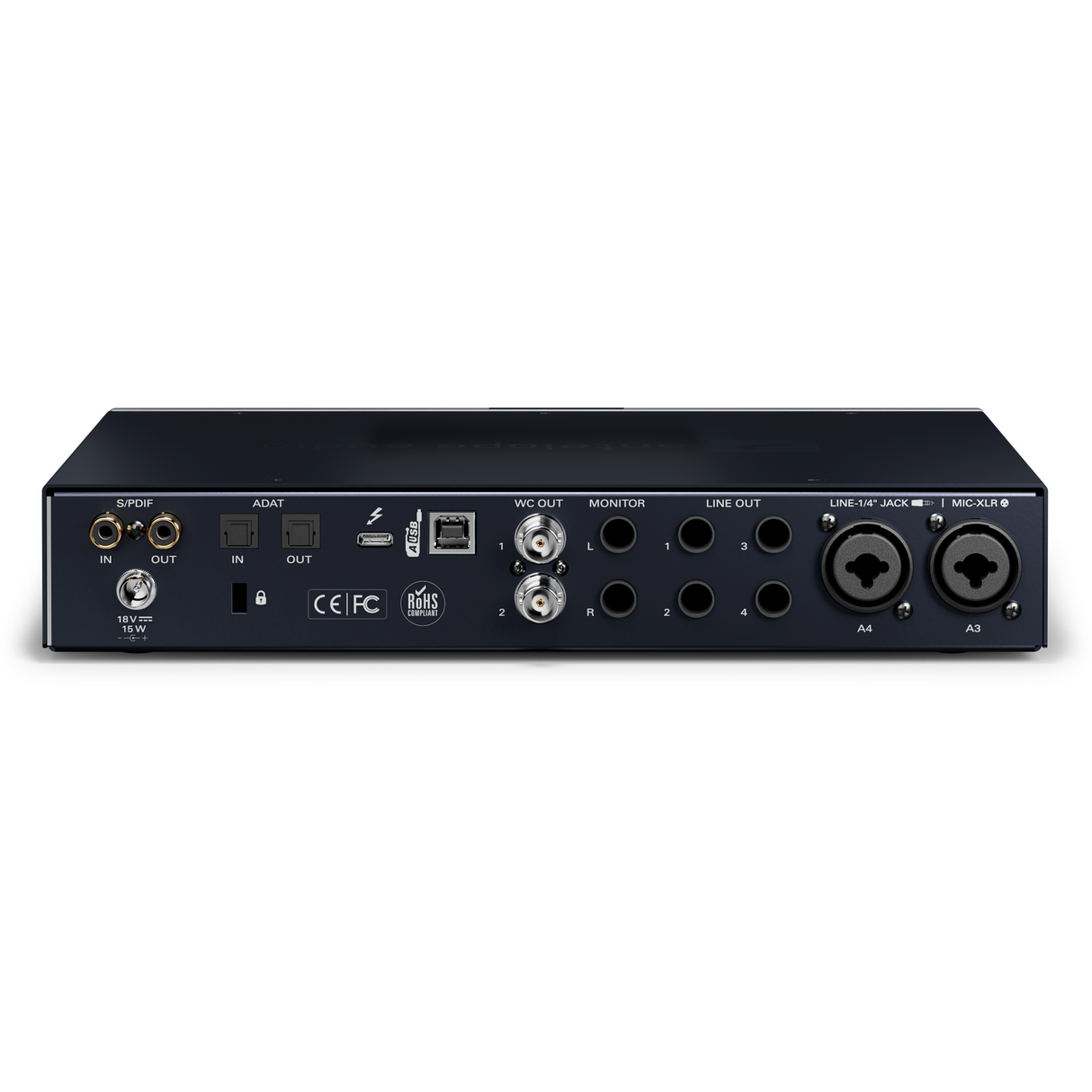

Discrete 4 Pro

• Analog Inputs
• 2 x Mic / Line Inputs
• 2 x Mic / Line / Hi-Z Inputs
• Analog Outputs
• 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
• 4 x Line Outs on TRS, +20 dBu max
• 4 x Stereo Headphone Outputs
• Mic Preamp
• EIN: -128 dBu (A-weighted)
• Dynamic Range: -122 dB (A-weighted)
• THD: -116 dB
• Max input: +18 dBu
• Max Gain: 65 dB
• D/A Monitor Converter
• Dynamic Range: 130 dB
• THD + N: -115 dB
• A/D Converter
• Dynamic Range: 122 dB
• THD + N: -116 dB
• D/A Converters(Line Out)
• Dynamic Range: 121 dB
• THD + N: - 100 dB
• Digital Inputs
• 1 x ADAT (up to 8 CH)
• 1 x S/PDIF
• Digital Outputs
• 1 x ADAT (up to 8 CH)
• 1 x S/PDIF
• Word Clock Outputs: 2 x Outputs @ 75 Ohms 3V pp on BNC 32 – 192 kHz
• Clocking System: 4th Generation Acoustically Focused Clocking, 64-bit DDS
• Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
• Operating Temperature: 0-50 °C, 32-122 °F
• Weight (Approx): 1.7 kg/ 3.7 lbs
• Dimensions (Approx): Width: 261 mm / 10.2 inches; Height: 44 mm / 1.7 inches
• Depth: 208 mm /8.2 inches
• Power Consumption: 15 Watts

Edge Solo

• Microphone Type: Condenser microphone
• Diaphragm: Large condenser, single-sided 6 u gold-sputtered membrane
• Diaphragm Diameter: 34 mm
• Polar Pattern: Cardioid (fixed)
• Frequency Response: 20 Hz - 20 kHz
• Sensitivity: -35 dB, 18 mV/Pa (-1 to +3 dB)
• THD+N: -116 dB
• Self-noise: 19 db(a)
• SNR: 75 dB(A)
• Output impedance: 50 Ohms @ 1 kHz
• Power requirements: 48 V DC phantom power
• Output connector: 3-pin male XLR
• Color: Black matte
