Antelope Audio Edge Quadro 360-Degree Condenser Modeling Microphone

Limitless Creativity - The Antelope Audio Edge Quadro 360-Degree Condenser Modeling Microphone

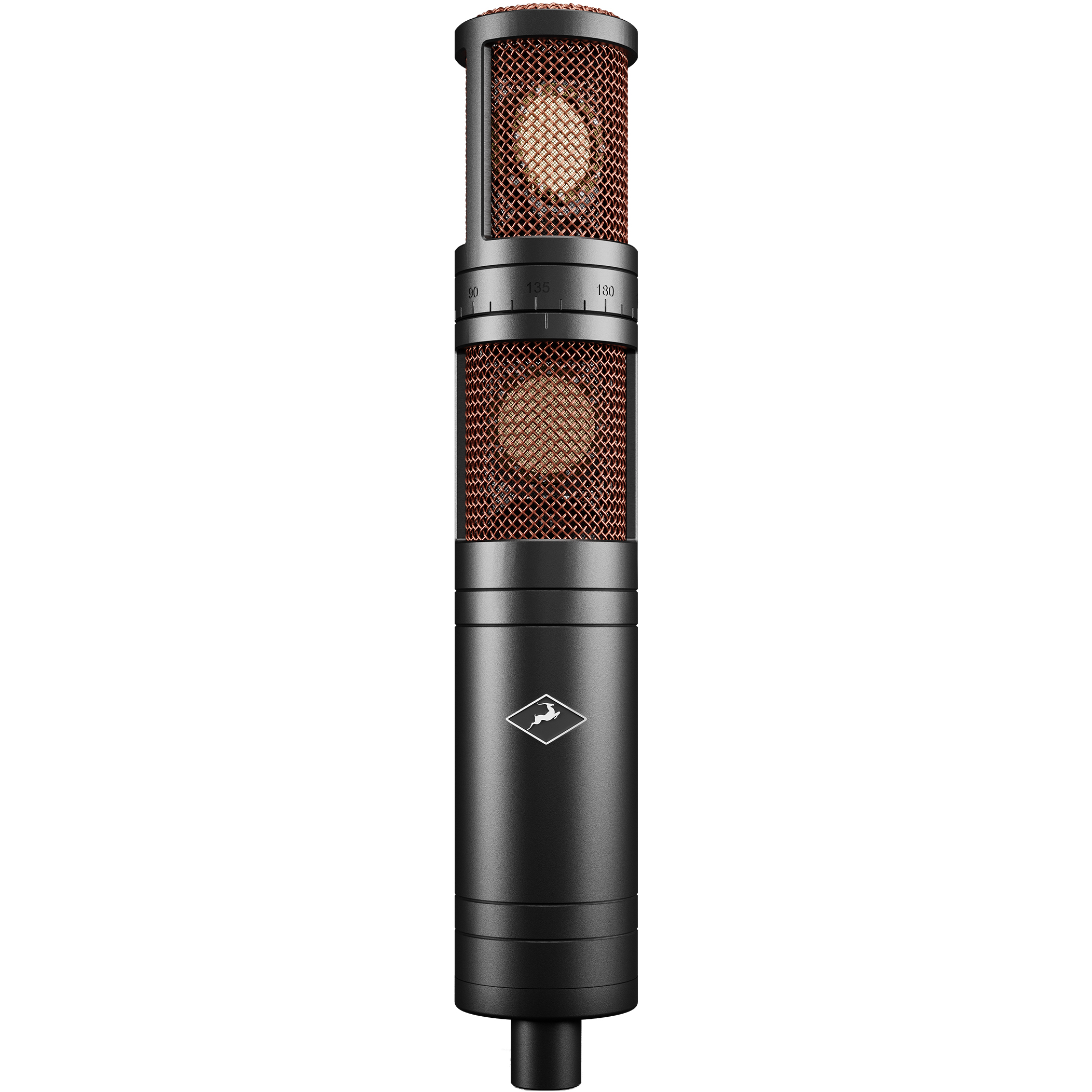

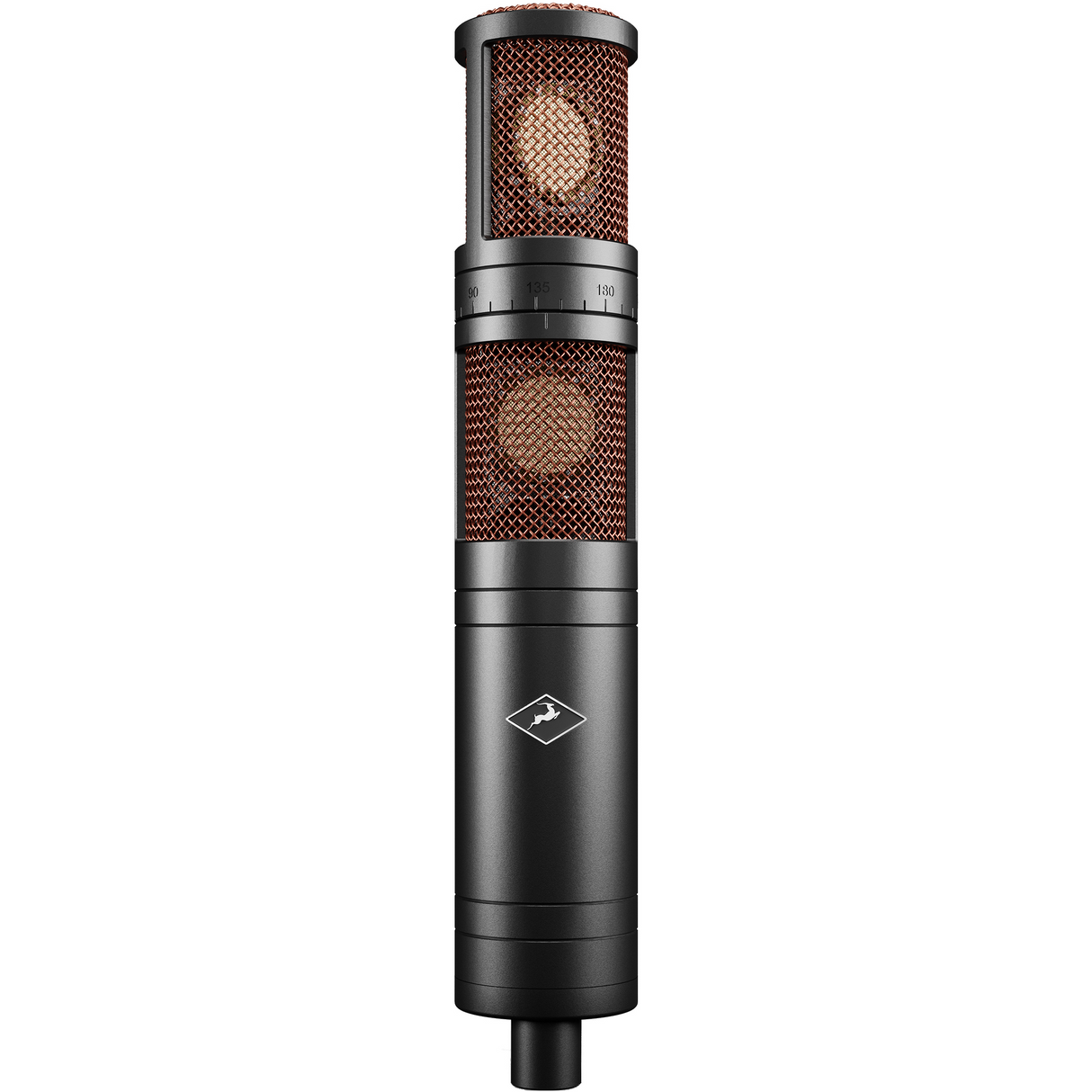

Edge Quadro is the most advanced modeling microphone by Antelope Audio. This stereo mic features two large dual-membrane condenser capsules and a rotatable head. Delivering four channels for independent processing will allow for stereo techniques like M/S, X/Y, Blumlein, and even 3D sound. Edge Quadro is the only microphone you’ll need for stereo and 360-degree sound recording.

• 2 heads with large dual-membrane condenser capsules
• Audio signal split into four independent XLR output channels for optimum control
• Switchable patterns (cardioid, figure-8 and omnidirectional)

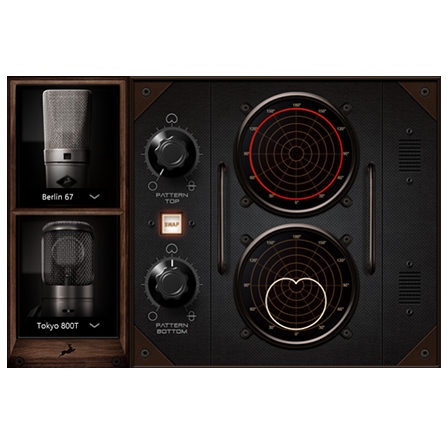

• Individual mic emulation and polar pattern selection for each head
• Infinite upper head rotation for maximum flexibility
• Ultra-low reflection, fully symmetrical top and bottom heads
• Extensive library of vintage mic emulations
• Custom luxury shock mount and two special OFC Y-cables included in the package
• Custom handmade wooden case
• 18 mic emulations including:
• Berlin 47 FT
• Berlin 49T
• Berlin 57
• Berlin 87
• Berlin 67
• Berlin M103
• Vienna 12
• Vienna 414
• Tokyo 800T
• Oxford 4038
• Sacramento 121R
• Berlin K86
• Berlin 47 TU
• Berlin V563
• Berlin/Halske M25
• Berlin M251
• Minnesota 20
• Illinois 7B

SPECIFICATIONS

• Microphone Type: Quadrasonic condenser microphone
• Diaphragms: Two large condenser capsules with double-sided 6u gold-sputtered membranes in independent heads
• Diaphragm Diameter: 34 mm
• Polar Pattern: Multi-pattern (cardioid, figure-8, omnidirectional, Blumlein, M/S, X/Y)
• Frequency Response: 20 Hz - 20 kHz
• Sensitivity: -35 dB, 18 mV/Pa (-1 to +3 dB)
• THD+N: -116 dB
• Self-Noise: 19 dB(A)
• SNR: 75 dB(A)
• Output Impedance: 50 Ohms @ 1 kHz
• Power Requirements: 48 V DC phantom power
• Output Connector: 5-pin male XLR
• Color: Black matte
