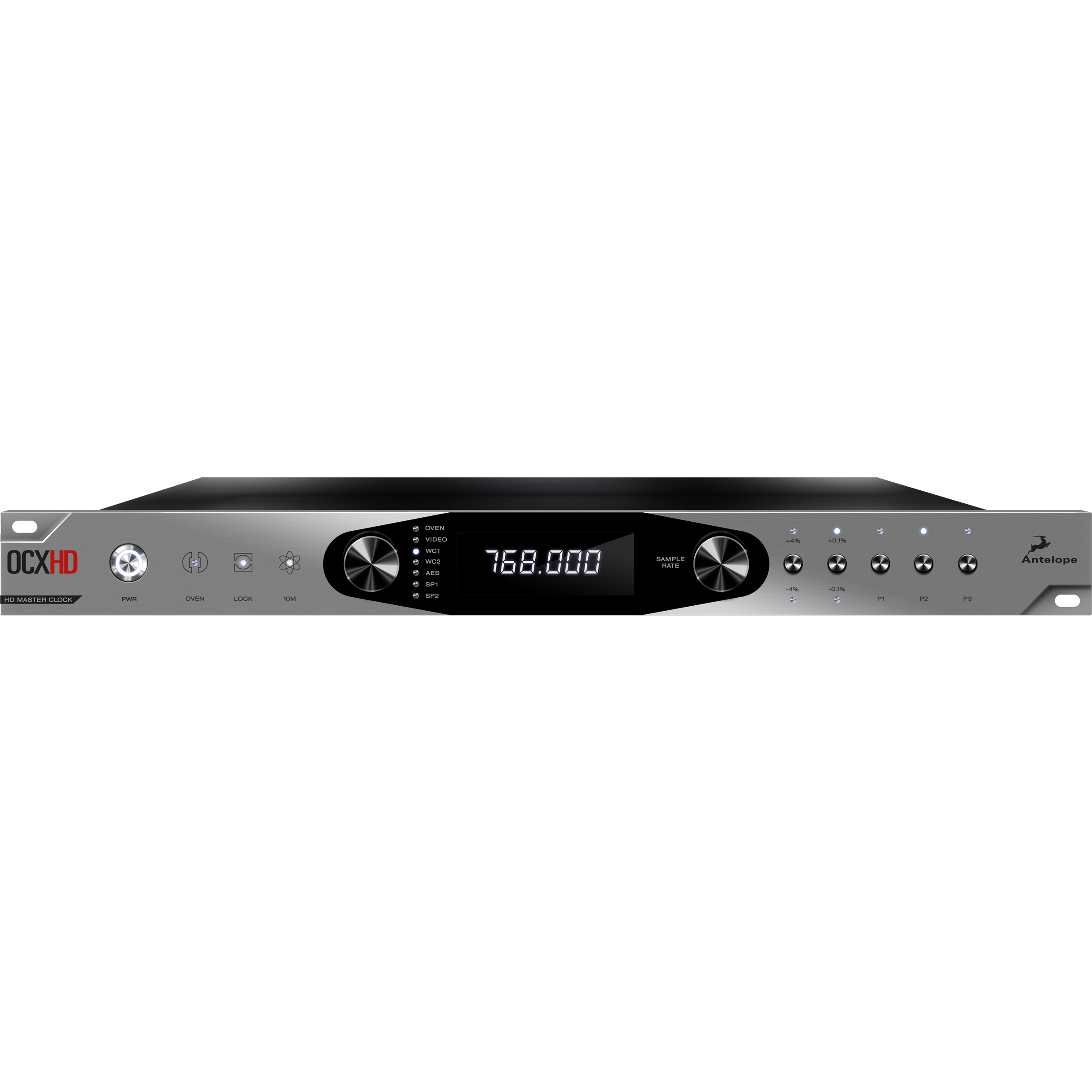

Antelope Audio OCX-HD Isochrone Master Clock

Sold out
Original price $1,795.00 - Original price $1,795.00
Original price
$1,795.00
Default Title: $1,795.00
Current price $1,795.00
❓ Out of stock

Notify Me When Available
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Intuitive and Powerful - The Antelope Audio OCX-HD Isochrone Master Clock

The perfect solution for mastering, recording and project studios, film-scoring, post-production and live sound. For over a decade, Antelope’s legendary OCX Master Clock has been a dominant force in the audio world. The legacy continues.


  • 4th-generation AFC jitter management algorithm
  • Output of 5 distinct sample rates enabled by onboard multipliers and dividers
  • Additional connectivity via 4 AES/EBU, 2 S/PDIF clocking outputs (up to 192 kHz)
  • Comprehensive audio gearboxing
  • Universal video input (BNC connector)
  • Atomic clock input for optimized accuracy and calibration
  • 3 recallable presets
  • Control panel Rate Lock protects your settings while in session
  • User-friendly front panel control


SPECIFICATIONS

  • Sample Rates Generated: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768 kHz

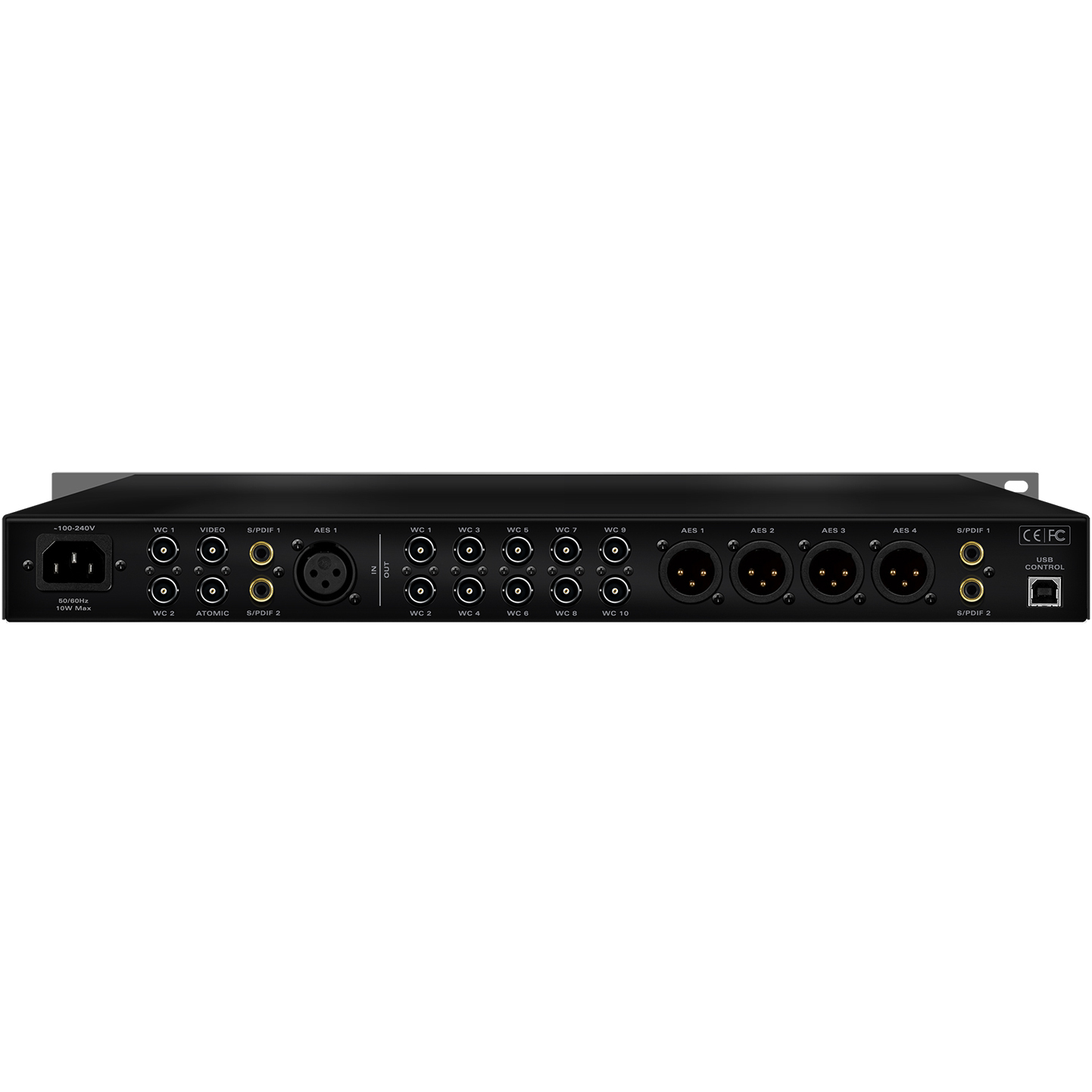

  • Master Clock Outputs
    • 10 x Word Clock Outputs up to 768 kHz
    • 4 x AES/EBU Outputs up to 192 kHz
    • 2 x S/PDIF Outputs up to 192 kHz
  • Inputs
    • 2 x Word Clock Inputs up to 768 kHz
    • 1 x Video Input accepting wide range of SD and HD video signals
    • 1 x Atomic Input
    • 2 x S/PDIF Inputs up to 192 kHz
    • 1 x AES/EBU Input up to 192 kHz
    • 1 x USB Input for control
    • Humidity: 30 – 80% RH non-condensing
  • Clocking System
    • 4th Generation Acoustically Focused Clocking
    • 64-bit DDS
    • Oven Controlled Crystal Oscillator
  • Clock Calibration: < +/-0.001 ppm
  • Clock Stability: <+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F
  • Clock Aging: < 1 ppm per year
  • Atomic Clock Input: 1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC
  • Sample Rates (KHz): 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 kHz
  • Operating Temperature: 0 – 50°C, 32-122°F
  • Weight: 2.65 kg/5.84 lbs
  • Dimensions: 482.6 (W) х 230 (D) х 44 (H) mm, 19 (W) x 9.05 (D) x 1.75 (H) inches
  • Power Supply: AC Universal Input ~95-245 V, 20 Watts Max


Manufacturer: Antelope Audio
Model: OCX-HD
SKU: I452320-N-0-WHXB
UPC: 853744004342
