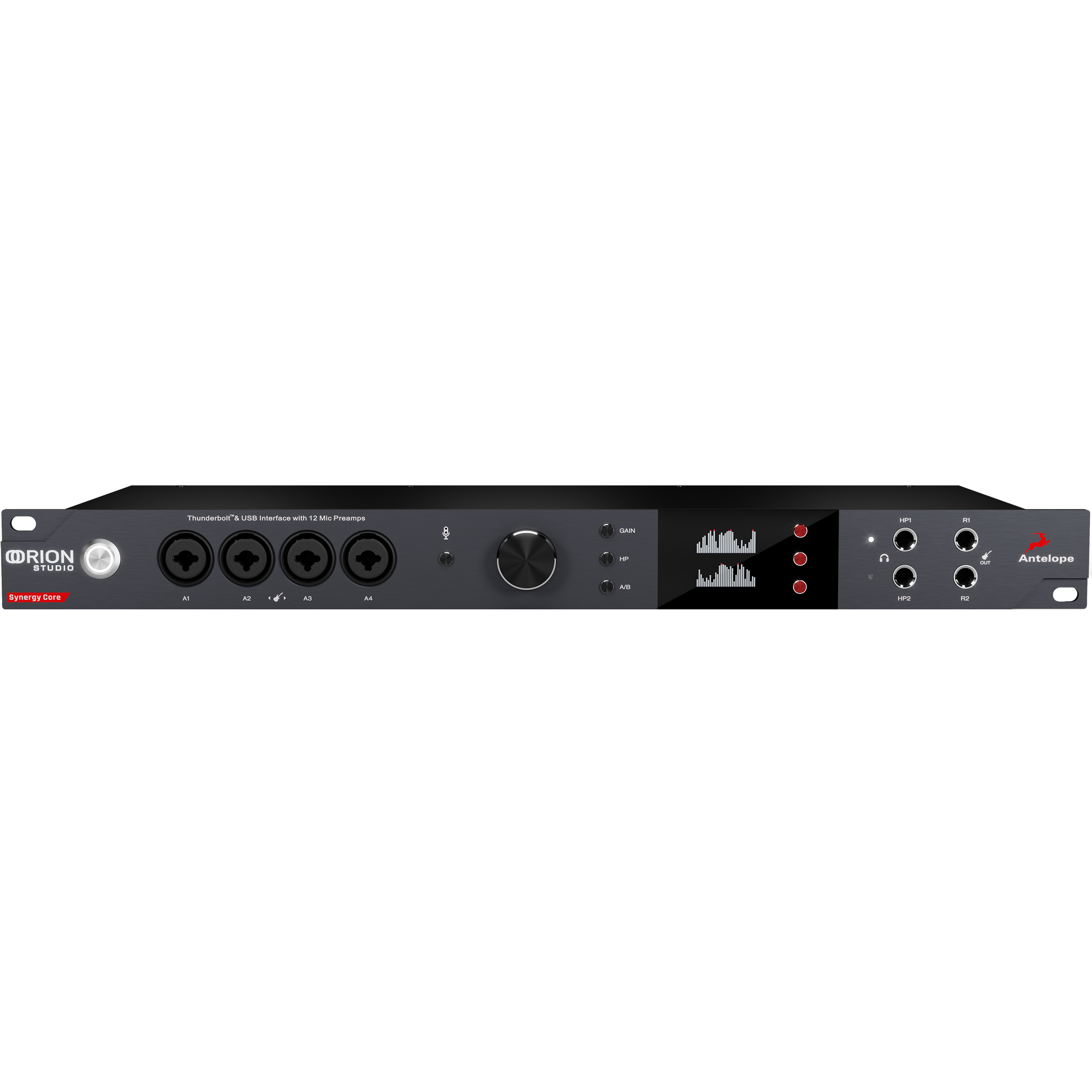

Antelope Audio Orion Studio Synergy Core Audio Interface

Take A Major Step Forward With The Antelope Audio Orion Studio Synergy Core Audio Interface

The Antelope Audio Orion Studio Synergy Core is a major step forward for Antelope's workhorse Orion series of audio interfaces, designed to be the heart of your professional recording studio for years to come. Hot-rodded with Antelope Audio's future-proof Synergy Core FX processing platform, this updated Orion Studio is loaded with 2 FPGA and 6 DSP chips working in harmony to run Antelope's vast library of effects plug-ins. You get 50 of Antelope's top FX bundled with the hardware, including spot-on models of vintage analog gear and a killer collection of guitar amp and cabinet emulations.

With Thunderbolt 3 and USB connectivity, 12 of Antelope's Discrete microphone preamps, extensive analog and digital I/O, upgraded digital-to-analog converters with dynamic range up to 130 dB, and unprecedented FX processing power onboard, the Orion Studio Synergy Core is a well-oiled machine - up for any recording or mixing project your studio throws its way.

• 6x DSP + 2x FPGA Synergy Core FX Processing
• Thunderbolt 3 & USB 2.0 Connectivity
• 12 discrete mic preamps with mic/line/instrument/direct recording
• State-of-the-art AD/DA converters
• 64-bit Acoustically Focused Clocking with oven-controlled crystal oscillator
• 2 mastering-grade Stereo monitor outputs
• 2 individual stereo headphone outputs
• 2 Insert inputs and 2 ReAmp outputs
• 2x ADAT, S/PDIF, Word Clock digital I/O
• 16 line outputs on DB25 connectors
• Integrated Talkback microphone
• Intuitive software Control Panel with flexible signal routing

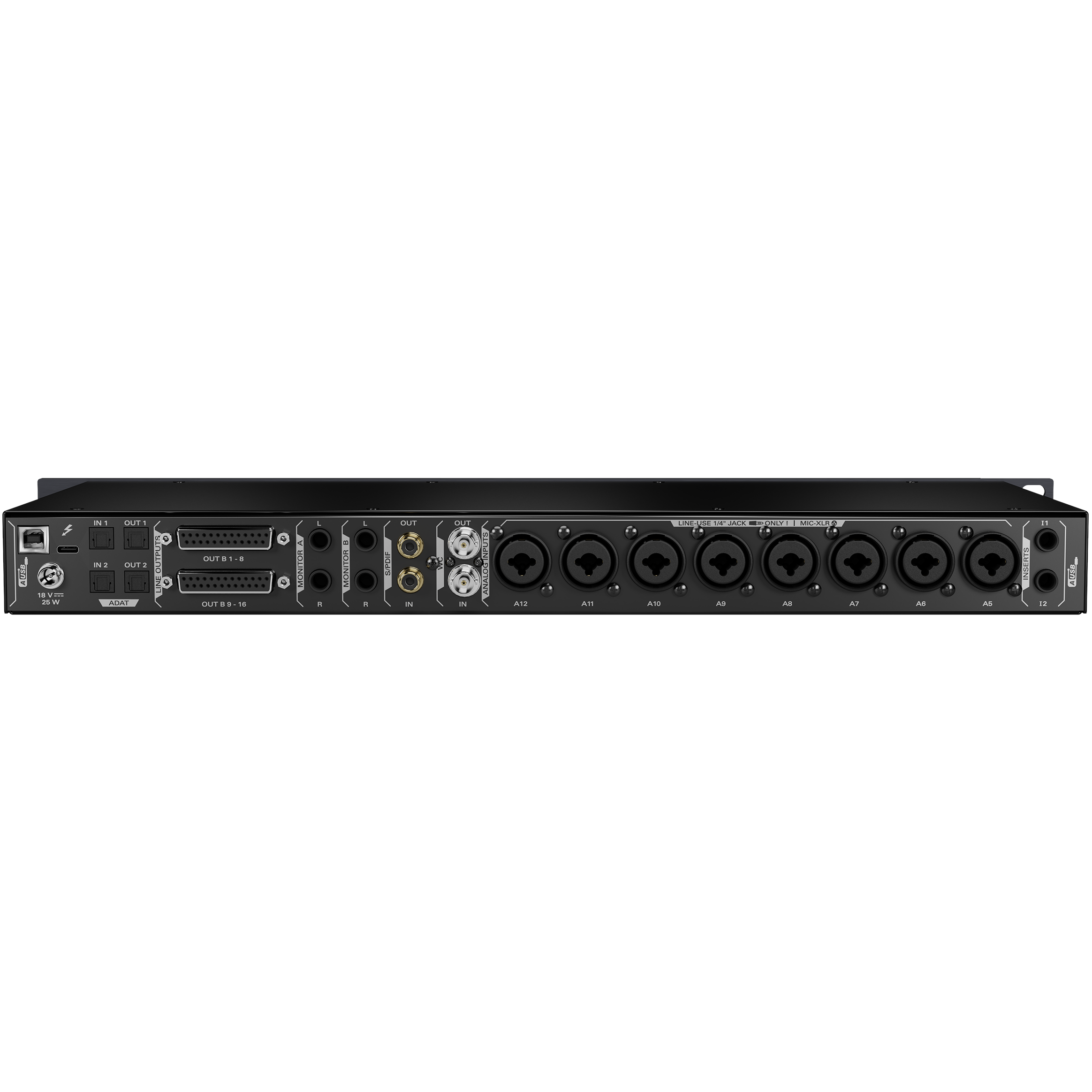

SPECIFICATIONS

Analog

Analog Inputs

• 8 x Mic / Line Inputs / Direct In
• 4 x Mic / Line / Hi-Z Inputs / Direct In
• 2 x Analog Inserts on TRS 1/4 Jacks

Analog Outputs

• 2 x Monitor Out (Pair) on TRS 1/4 Jacks: Can work both in parallel or in A/B mode
• 2 x ReAmp Out on TRS 1/4 Jacks
• 2 x Line Out (16 channels) on DB25, +20 dBu max, impedance balanced
• 2 x Stereo Headphone Outputs

Mic Preamp

• EIN: -128 dBu
• Dynamic Range: -121 dB
• THD: -106 dB
• Max input: +20 dBu
• Max Gain: 75 dB

D/A Monitor Converter

• Dynamic Range: 130 dB
• THD + N: -115 dB

A/D Converter

• Dynamic Range: 124 dB
• THD + N: -112 dB

D/A Converter

• Dynamic Range: 128dB
• TTHD + N: -115dB

Digital

Digital Inputs

• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF (up to 2 channels)

Digital Outputs

• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF (up to 2 channels)

USB 2.0 I/O

• USB 2.0 Type B connector (up to 24 channels)

Thunderbolt

• Thunderbolt 3 connector (up to 32 channels)

Clocking

Word Clock Input

• 1 - Input @75 Ohms 3Vpp on BNC 32 - 192kHz

Word Clock Outputs

• 1 - Output @ 75 Ohms 3Vpp on BNC 32 - 192kHz

Clocking System

• 4th Generation Acoustically Focused Clocking
• 64-bit DDS

Sample Rates (kHz)

• 44.1, 48, 88.2, 96, 176.4, 192
