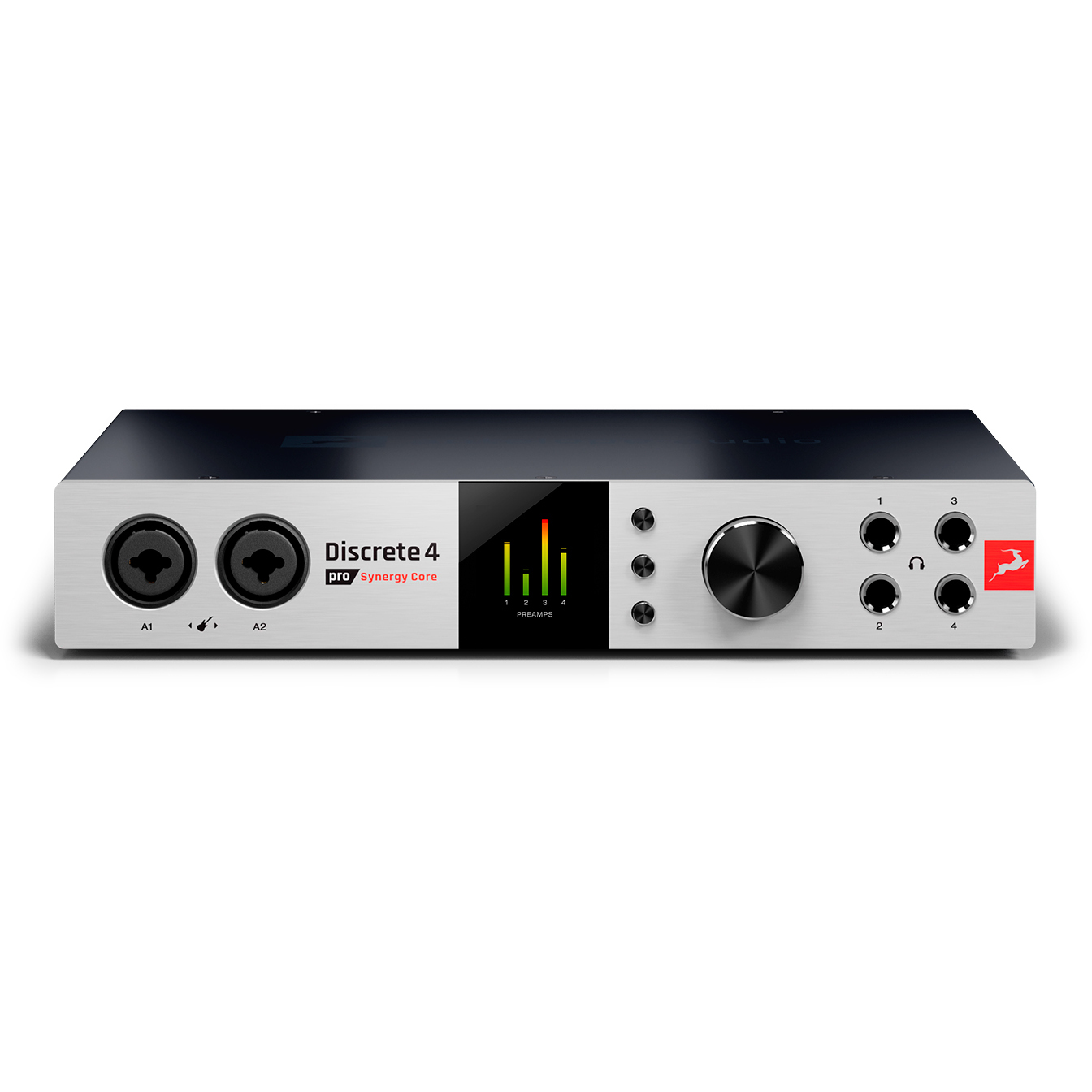

Antelope Audio Discrete 4 Pro Synergy Core Interface

A New Frontier in FX Processing - The Antelope Audio Discrete 4 Pro Synergy Core Interface

Introducing Synergy Core, Antelope Audio's next generation signal processing platform. Using FPGA's massive parallel computation capabilities and industry-standard DSP power combined, Synergy Core frees up your CPU while processing your FX with extremely low latency.

• Synergy Core FPG + DSP, eliminating the issue of latency stacking which is common with DSP-only units
• Auto-Tune Synergy built from the ground-up for the Synergy Core platform, adding live pitch correction to the Antelope Audio experience
• 37 Synergy Core FX includes a library of 37 real-time studio effects, meticulously modelled after their hardware originals
• Unique 6-transistor discrete preamps for console-grade sound quality
• Accusonic 3D modeling engine lets you transform the Antelope Audio Edge and Verge modeling microphones into expensive-sounding vintage replicas
• Up to 121 dB of dynamic range and sample rates up to 192 kHz, our AD/DA converters ensure your meticulous performances are captured

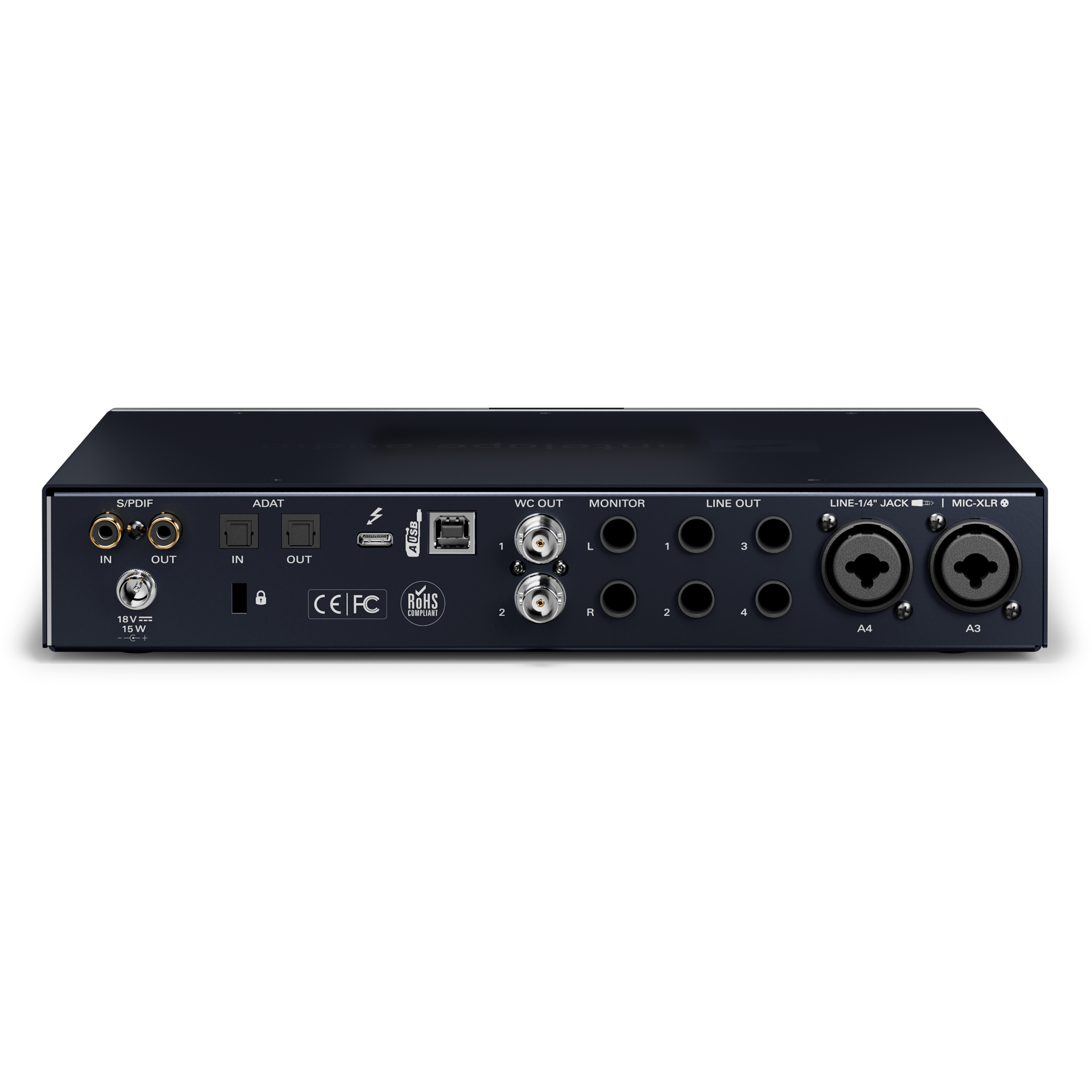

• An abundance of analog and digital connectivity, as well as both USB and Thunderbolt ports for computer connection
• Housed in a machined aluminum chassis, each unit is hand-built in our European facility to strict standards, component choices and quality control

SPECIFICATIONS

• Analog Inputs
• 2 x Mic / Line Inputs
• 2 x Mic / Line / Hi-Z Inputs
• Analog Outputs
• 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
• 4 x Line Outs on TRS, +20 dBu max
• 4 x Stereo Headphone Outputs
• Mic Preamp
• EIN: -128 dBu (A-weighted)
• Dynamic Range: -122 dB (A-weighted)
• THD: -116 dB
• Max input: +18 dBu
• Max Gain: 65 dB
• D/A Monitor Converter
• Dynamic Range: 130 dB
• THD + N: -115 dB
• A/D Converter
• Dynamic Range: 122 dB
• THD + N: -116 dB
• D/A Converters(Line Out)
• Dynamic Range: 121 dB
• THD + N: - 100 dB
• Digital Inputs
• 1 x ADAT (up to 8 CH)
• 1 x S/PDIF
• Digital Outputs
• 1 x ADAT (up to 8 CH)
• 1 x S/PDIF
• Word Clock Outputs: 2 x Outputs @ 75 Ohms 3V pp on BNC 32 – 192 kHz
• Clocking System: 4th Generation Acoustically Focused Clocking, 64-bit DDS
• Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
• Operating Temperature: 0-50 °C, 32-122 °F
• Weight (Approx): 1.7 kg/ 3.7 lbs
• Dimensions (Approx): Width: 261 mm / 10.2 inches; Height: 44 mm / 1.7 inches
• Depth: 208 mm /8.2 inches
• Power Consumption: 15 Watts
