The API 3124V Discrete 4-Channel Mic PreAmp Has the Same Amazing Performance as the API 3124+, with Even More Features

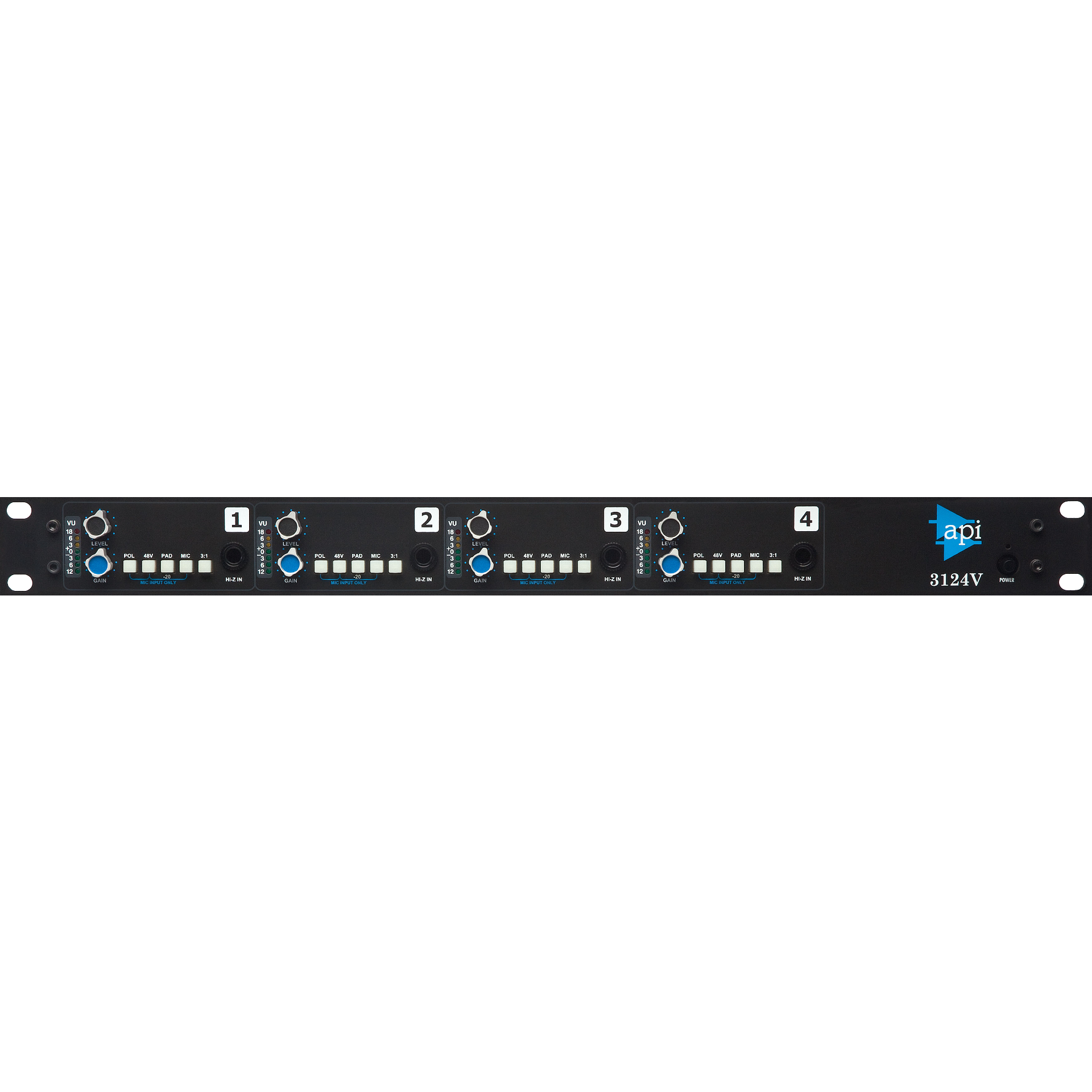

Like the API 3124+, the 3124V is a high quality, compact, 4-channel mic preamp. It is equipped with the RE-115 K mic input transformer and the proprietary output transformer found in all API mic pres and throughout the API product line. Additionally, the 3124V offers Variable Output Level Control and switchable 3:1 output transformer selection. The unit has an internal 48-volt phantom power supply, which is switchable for each channel, as well as -20dB pad switches that affect both the mic and Hi-Z instrument inputs, both located on the front panel.

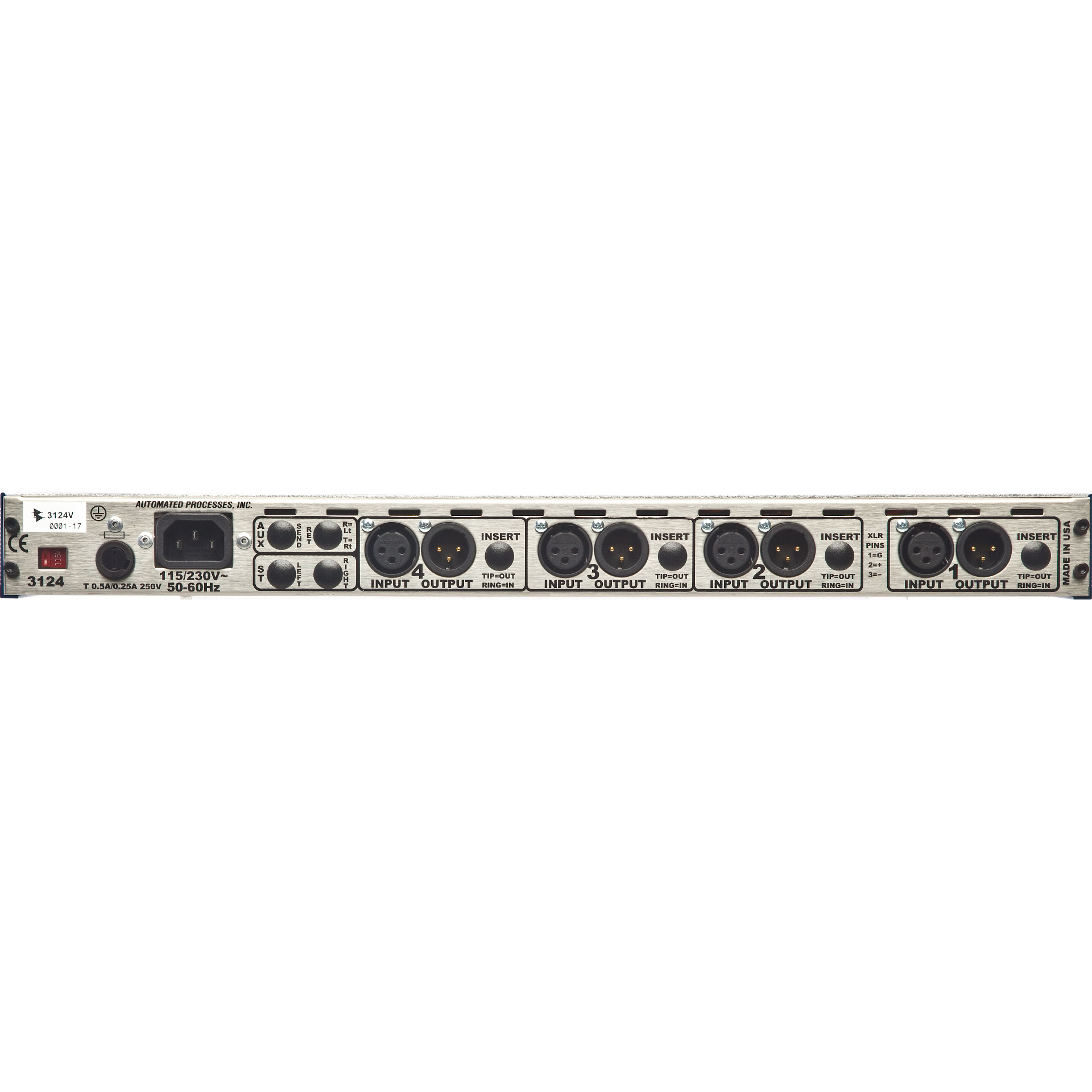

The 3124V also features up to 65 dB of gain. Additionally, the Hi-Z front panel inputs feed directly to the op amps, which allow a low level input such as a guitar or bass to be amplified without a matching transformer or direct box. These Hi-Z inputs can take levels as high as +20 dBu, making them perfect for keyboards and other high level devices. The mic preamp outputs are on rear panel male XLR connectors.
- Classic API Circuit Design
- Uses API 2520 Op Amps
- Variable Output Level Control
- 3:1 Output Transformer Tap Selection
- Four female XLR mic inputs
- Four front panel 1/4-inch Hi Z instrument inputs
- Front panel polarity switches
- Front panel -20 dB pad switches
- Front panel mic/instrument switches
- Front panel 48 V power switches
SPECIFICATIONS
- Input Impedance: 1500 Ohms Mic, 470 K Ohms Un-Balanced, HI-Z in
- Output Impedance: Less than 75 Ohms Channel Outputs
- Nominal Levels: XLR Channel Output +4 dBu
- Stereo Output Level: Unbalanced: nominal -2, Balanced: +4
- Frequency Response: +0, -5, 10 Hz to 20 kHz (-.5 at 10 Hz)
- Noise EIN: -129 Mic, -125 Un-Bal. Actual
- Measured Noise: Better than -91 dBm / below Nominal +4.
- Distortion: All Outputs at +4 out, .03%, at +22, .09% Max
- Gain Range: 150 Ohms Input 10 dB Min., 65 dB Max (inc. PAD).
- Un-Bal. Input 14 dB Min., 50 dB Max
- VU Meter: Calibrated for XLR Outputs, OVU = +4 dBu, (-12, -6, -3, 0, +3, +6, +18)
- Controls: GAIN, PAD (20 dB), 48 Volts, POL (polarity), MIC (mic/un-bal), VU, AC
- Power Consumption, Quiescent: 19.2 Watts
Manufacturer: Automated Processes Inc
Model: 3124V
SKU: I463536-N-0-WHXX
