API 529 500 Series Stereo Compressor
MSRP: $249500
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description

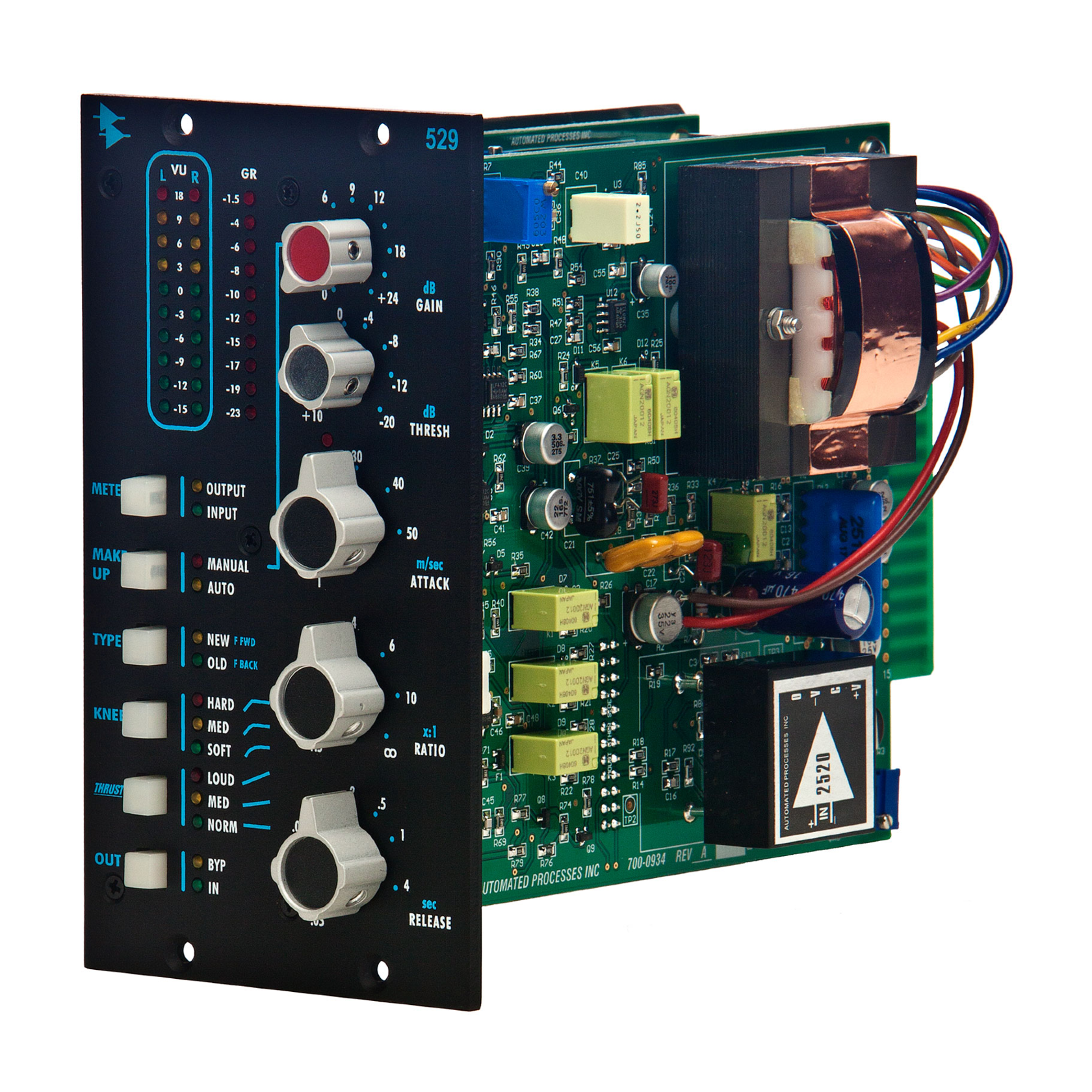

API's 529 Stereo Compressor Combines Unmistakable API Compression Technology with the Convenience and Technology of the 500 Series Format
Carefully designed to deliver a wide range of compression options, the 529 delivers warmth, clarity and punch, whether used for subtle adjustments or heavy compression effects. Based on the unprecedented success of the 2500, the 529 takes many of the features and controls from API's famous stereo compressor and puts them into the first dual slot 500 series module from API. This stereo compressor features API's patented THRUST® circuitry for a punchy low end, along with an Old/New switch that lets you choose between classic and modern compression characteristics: Old for vintage-style feedback compression and New for today's more common feed-forward compression. The Auto-makeup Gain button lets you adjust ratio and threshold controls without affecting the output level. Using API's discrete op-amps and transformer technology, the 529 delivers the legendary analog sound of API. The 529 is backed by API's unique 5 year warranty.

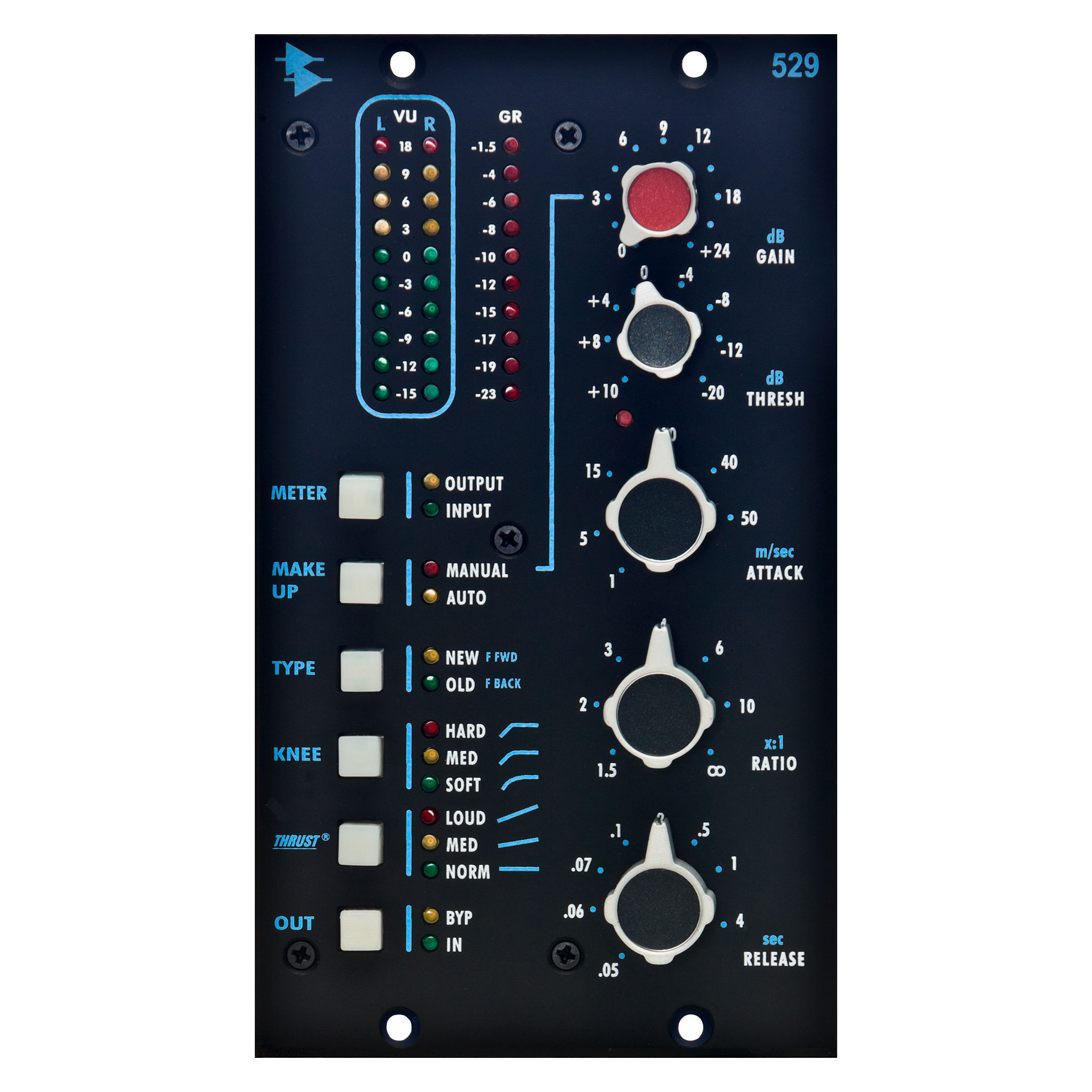

- Continuously variable detented Gain, Threshold, Attack, Ratio and Release controls
- 10 segment LED meters show Gain Reduction and selectable Input or Output Level
- Over Threshold LED
- Patented THRUST® Switch for frequency dependent side chain control
- 3 selectable compressor curve Knee settings
- Selectable New or Old switch for feed-forward or feed-back operation
- Selectable variable or auto compressor make-up gain
- Three way In/Out including full hard relay bypass
- Audio circuit uses 2520 and 2510 Discrete Op Amps with transformer output
SPECIFICATIONS
- Connections: API 500 Edge Connector - VPR Alliance Compliant
- Input Impedance: 80 kohms
- Output Impedance: 50 ohms
- Nominal Operating Level: +4 dBu
- Maximum Input Level: +26 dBu
- Maximum Output Level: +26 dBu
- Attack Times: less than 1 ms to 50 ms
- Release Times: 0.05 s to 4 s
- Compression Ratios: 1.5:1 to inf:1
- Threshold Control Range: +10 dBu to -20 dBu
- Metering: Dual (Stereo) 10-LED VU meter (-15 VU to +18 VU)
- 10-LED Gain Reduction Meter (-23 dB to -1.5 dB)
- Frequency Response: +/- 0.25 dB, 20 Hz - 20 kHz
- Signal to Noise Ratio: 106 dB
- Power Requirements: +16 VDC @ 180 mA across 2 slots
- -16 VDC @ 180 mA across 2 slots
- Size: 3 x 5.25 x 7 inches / 76 x 133 x 178 mm
- Size (Boxed for Shipping): 11 x 7 x 7 inches / 279 x 178 x 178 mm
- Actual Weight: 2.4 lb / 1.09 kg
- Shipping Weight: 3.0 lb / 1.36 kg
Manufacturer: Automated Processes Inc
Model: 529
SKU: I607132-N-0-WHXX
