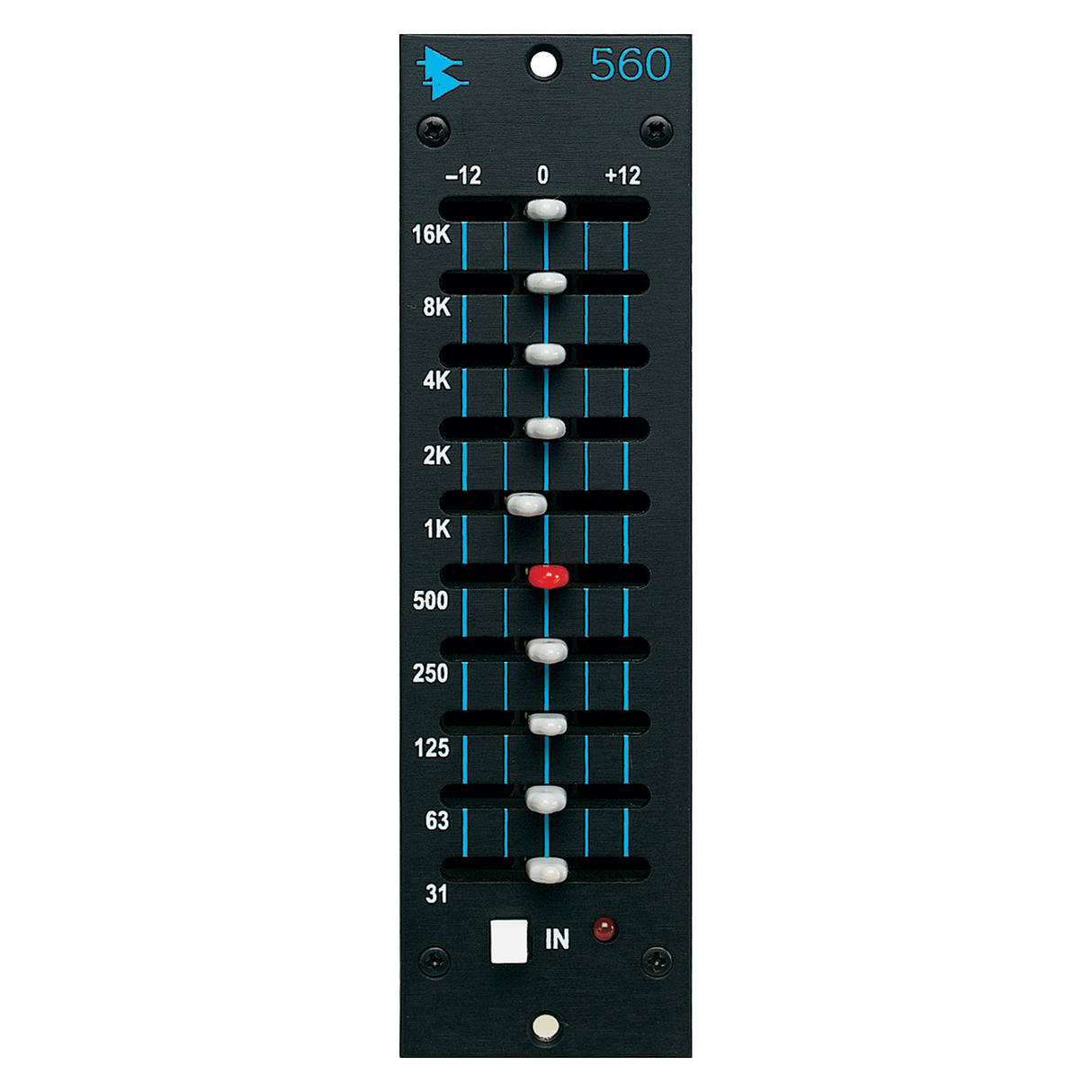

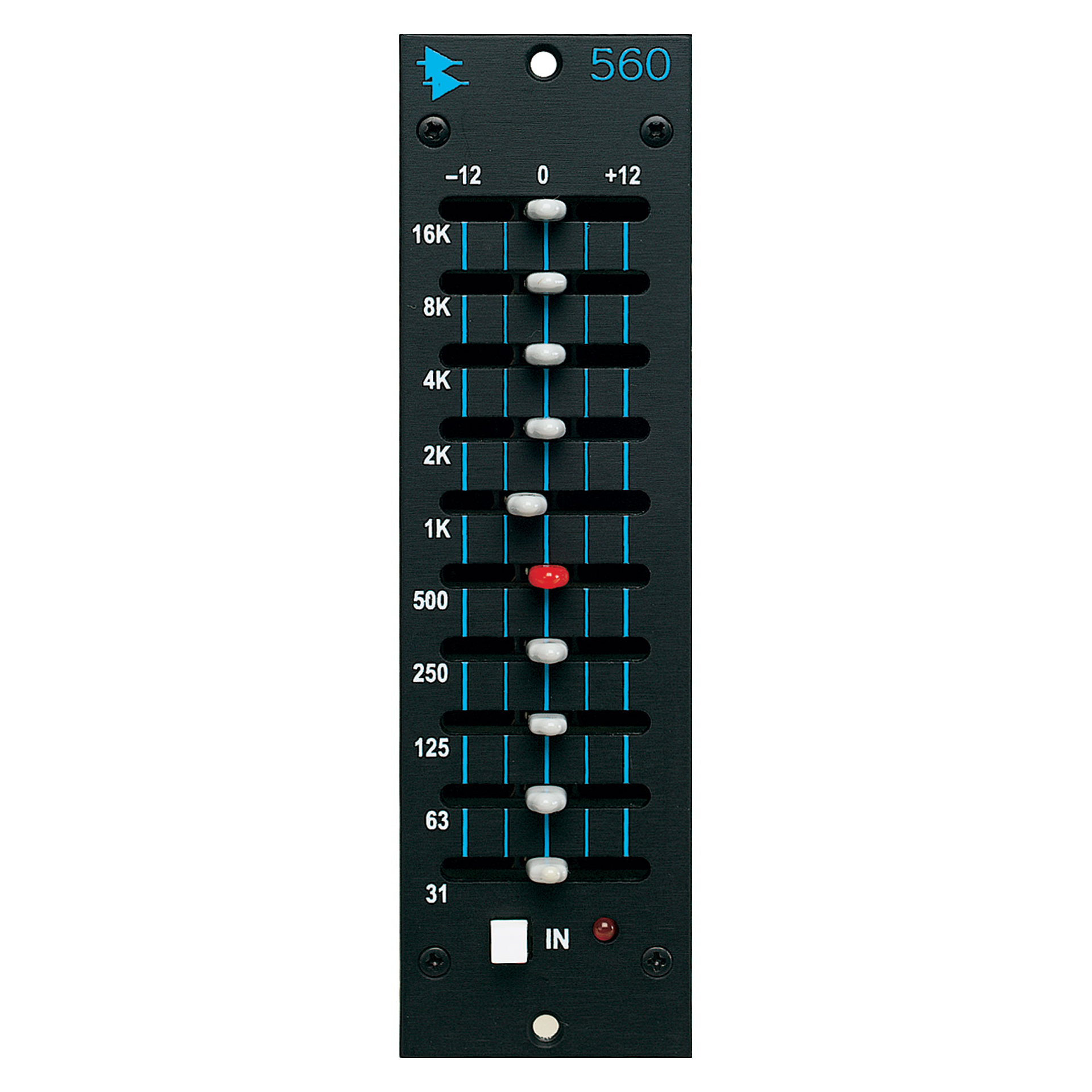

API 560 Discrete 10 Band Graphic EQ

Sold out
Original price $995.00
Original price $995.00 - Original price $995.00
Original price $995.00
Current price $945.25
$945.25 - $945.25
Current price $945.25
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


If You Want the Sound of Classic American Music in an Easy-to-Set Graphic EQ Package, You Want the API 560 Discrete 10 Band Graphic EQ

Originally conceived for use in API consoles of the '60s and '70s, the 560 is a unique device designed to accomplish tasks that no other EQ can. Extremely fast to set and reset using accurate zero detents, the curve shaping potential of the 560 remains unmatched. With a wide range of 500 mounting options, from racks to consoles, the 560 proves an invaluable asset to all critical performance applications. Based on API's original 560 EQ, the current production 560 has improved resolution in the ±4 dB area and possesses our exclusive circuitry and proprietary components, including the API 2520 Op Amp.

The extraordinary headroom made possible with the 2520 offers consistent analog performance even when using radical EQ curves. Of course, the 2520's ability to drive low impedance loads is key when it is paired with API's custom output transformers. The results are quite audible with better low frequency reproduction and tighter imaging, which gives you that legendary API "punch in your gut" sound.

The 10 precision EQ bands make the 560 ideal for signal sweetening and room tuning. A great companion to a parametric EQ, the 560 utilizes API's unique "Proportional Q" design introduced during the '60s. This design intuitively widens the filter bandwidth at lower boost/cut levels and narrows it at higher settings. Additionally, boost and cut characteristics are identical, allowing previous actions to be undone if desired. Reliable, durable and uniform, the API 560 EQ delivers that "one-of-a-kind API sound" with precision easy set filtering and high headroom in a compact package.


  • 10 bands of API proprietary equalization
  • Familiar graphics operation on one octave centers
  • 12 dB of boost/cut per band
  • "Proportional Q" narrows filter Q at extremes
  • Additional resolution within the ±4 region
  • Center detent for reliable reset
  • Silent bypass button
  • Based on the original 1969 API 560 EQ


SPECIFICATIONS

  • Number of Bands: 10
  • Filter Type: Proportional Q, Octave entered, Continuously Adjustable Level
  • Filter Frequency Centers: 31, 63, 125, 250, 500, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz
  • Filter Boost/Cut: +/- 12 dB
  • Filter Slope: 12 dB per Octave at full boost or cut
  • Input Impedance: 20k Resistive, Balanced
  • Output Impedance: Less than 85 Ohms
  • Nominal Levels: -15 to +15 dBu
  • Clipping Level: Better than +28 dBu
  • Frequency Response: +0, -.25, 30 Hz to 20 kHz
  • Noise: -95 dBu EQ Out, -90 dBu EQ In, Unweighted 20 Hz to 20 kHz
  • Distortion: .05% max, @ +20 dBu Output
  • Connectors: 15 position .156 sp edge connector
  • Power Requirements: ± 12/18 Volts/DC @ 60 ma.
  • Rack Frame and Power Supply Options
    • Fits 500V (10 slot rack, requires API 200PS Power Supply)
    • 500H (2 slot rack, internal power supply)
    • 500b "lunchbox®" (4 slot portable rack with internal power supply)
    • API Legacy Consoles
    • Vintage API Classic Consoles
  • Size: 1.5 x 5.25 x 6.75 inches / 38 x 133 x 171 mm
  • Size (Boxed for Shipping): 4.5 x 6.5 x 10.25 inches / 114 x 165 x 260 mm
  • Actual Weight: 1.61 lb / 0.73 kg
  • Shipping Weight: 2.03 lb / 0.92 kg

Manufacturer: Automated Processes Inc
Model: 560
SKU: I384064-N-0-WHXC
