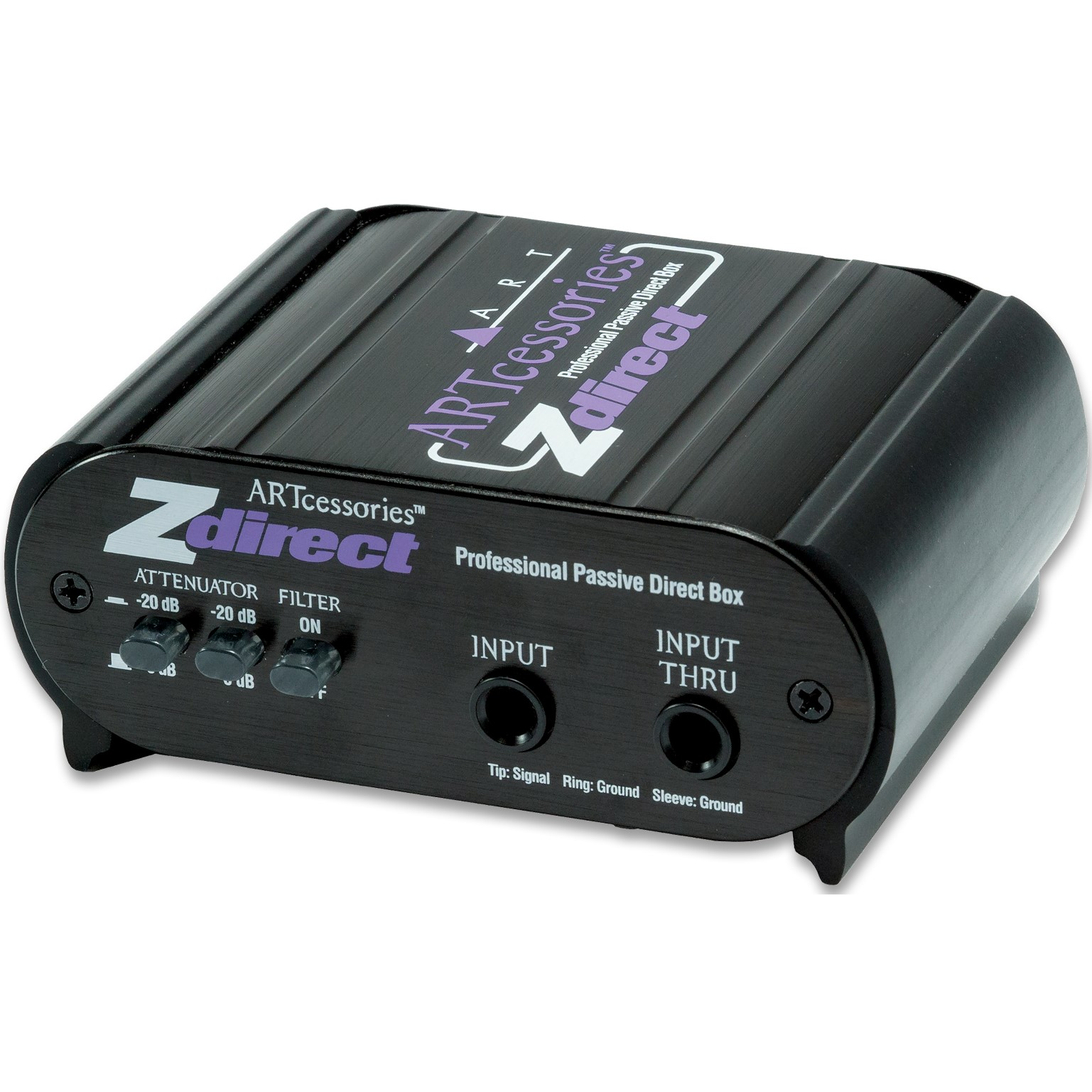

ART Audio Zdirect Professional Passive Direct Box

Record High Signal Levels with the ART Audio Zdirect Professional Passive Direct Box

The Zdirect is a high quality totally passive interface that lets you connect instrument, line, or speaker level signals to a mixer or other balanced input through a high performance audio isolation transformer. The high impedance single-ended 1/4-inch input is converted by the transformer into an isolated balanced low impedance signal source. The Zdirects audio transformer has an extremely flat and wide frequency response and can handle high signal levels while still maintaining an isolated balanced low impedance output. This gives the Zdirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

• Fully passive, high performance transformer design. No battery required
• Switchable input attenuation (0, -20, -40 dB) Switchable low pass filter
• Switchable ground lift (fully isolates inputs from chassis and outputs)
• Rugged extruded aluminum case
• Converts 50k ohm inputs into 600 ohm balanced outputs
• Switchable phase invert
• XLR connectors for balanced outputs

SPECIFICATIONS

• Frequency Response: 10 Hz -50 kHz, +/-.5 dB @ +4 dBu
• Total Harmonic Distortion: .01% Typical @ 1 kHz, +18 dBu, <.05% @ 100 Hz, +18 dBu
• Input Connections: 1/4–inch TRS unbalanced, 50 k Ω
• Output Connections: XLR male balanced, 600 Ω
• Output Phase: Switchable, Normal/Invert
• Ground Lift: Switchable, fully isolates inputs from chassis and output
• Input Attenuation: Switchable, (0 dB, -20 dB, -40 dB)
• Filter Type / Response: Switchable, Low Pass, -3 dB @30 kHz
• Dimensions: 1.75 H x 4.2 D x 3.5 W inches (44.5 mm x 107 mm x 89 mm)
• Weight: 0.75 lbs (0.35 kg)
