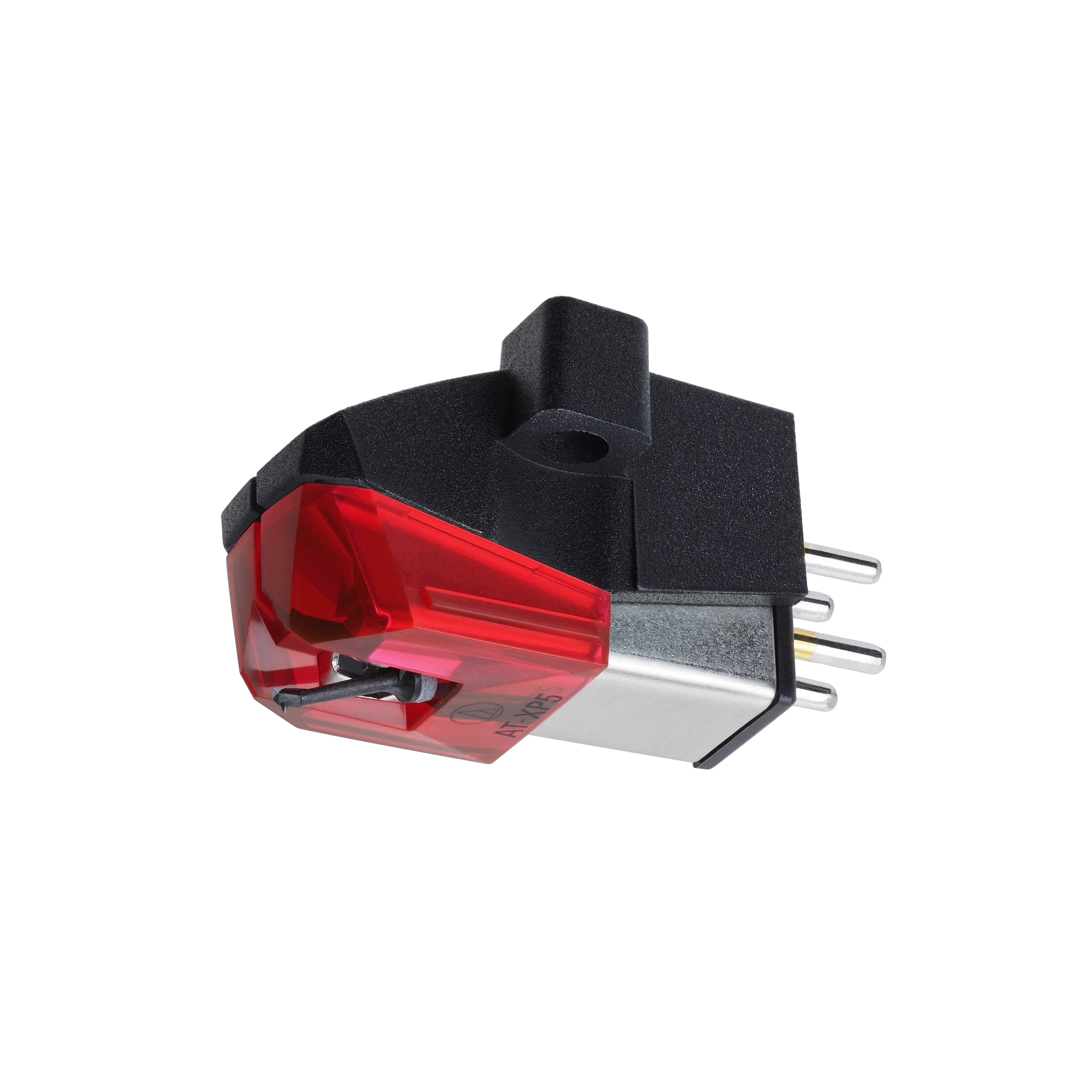

Audio-Technica AT-XP5 DJ Cartridge


  • Our Price
  • Regular price $79.00

*IN STOCK - READY TO SHIP





Take A Spin With The High-Quality Audio-Technica AT-XP5 DJ Cartridge

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.



  • 0.3 x 0.7 mil elliptical bonded stylus tip
  • Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
  • 5.5 mV high-level output
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound


  • Frequency Response: 20-18,000 Hz
  • Channel Separation: 20 (dB at 1 kHz)
  • Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Output: 5.5 mV (1 kHz, 5 cm/sec.)
  • Channel Balance: 2.0 dB (1 kHz)
  • Stylus Shape: 0.3 x 0.7 mil elliptical
  • Cantilever: Carbon fiber-reinforced ABS
  • Mount: Half-inch
  • Replacement Stylus: ATN-XP5
  • Coil impedance: 6.7 k ohms (1 kHz)
  • DC resistance: 990 ohms
  • Recommended load capacitance: 100 to 200 pF
  • Coil inductance: 1.0 H (1 kHz)
  • Vertical tracking angle: 20°
  • Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
  • Weight: 6.2 g (0.22 oz)

Manufacturer: Audio-Technica
Model: AT-XP5
Warranty: See manufacturer website for details
SKU: I503102-N-5-B
UPC: 4961310142551
