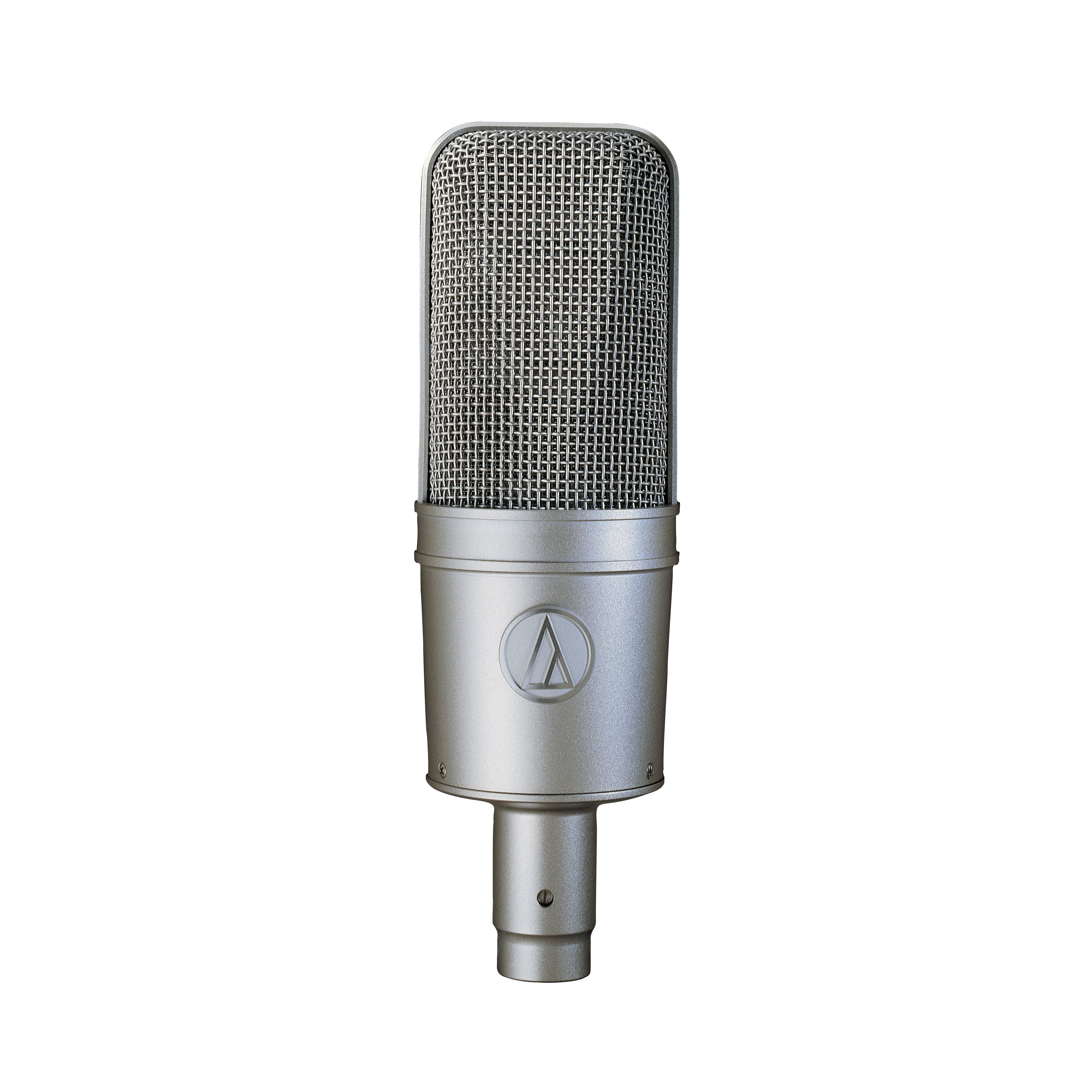

Audio-Technica AT4047/SV FET Cardioid Condenser Microphone


  • Our Price
  • Regular price $699.00





OUT OF STOCK BUT WE CAN GET IT
• Ship time varies by availability - C19 delays possible
• Order now to reserve yours ~ risk free


Excel Your Vocals With Versatility With The Audio-Technica AT4047/SV FET Cardioid Condenser Microphone

The rich, warm sound takes you back to the classic F.E.T. studio microphones. But there’s nothing remotely old-fashioned about the technology behind that vintage sound. The AT4047/SV studio condenser’s dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.


Features
  • Designed for critical studio, live sound and broadcast applications
  • Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
  • Exceptionally low self-noise, wide dynamic range and high SPL capability
  • Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
  • Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
  • Vintage silver-matte finish on microphone and shock mount
  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
  • State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
  • Switchable 80 Hz hi-pass filter and 10 dB pad

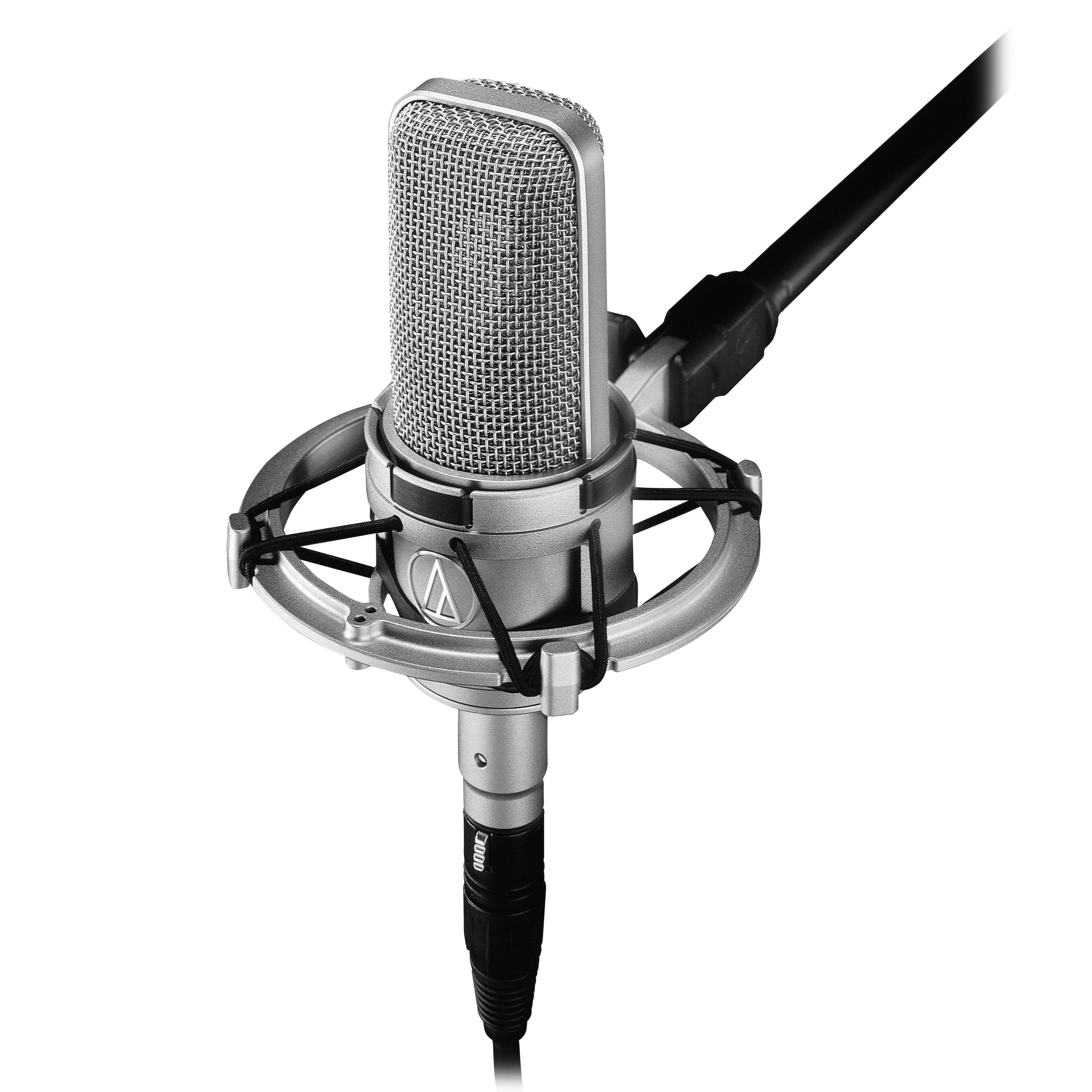

  • Custom shock mount provides superior isolation

Specifications
  • Element: Externally-polarized (DC bias) condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 20-18,000 Hz
  • Low Frequency Roll-off: 80 Hz, 12 dB/octave
  • Open Circuit Sensitivity: -35 dB (17.7 mV) dB re 1V at 1 Pa
  • Impedance: 250 ohms
  • Maximum Input Sound Levels: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
  • Noise: 9 dB SPL
  • Dynamic Range (typical): 140 dB, 1 kHz at Max SPL
  • Signal-Noise Ratio: 85 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 48V DC, 3.0 mA typical
  • Switches: Flat, roll-off; 10 dB pad (nominal)
  • Weight: 14.5 oz (410 g)
  • Dimensions: 6.69 inch (170.0 mm) long, 2.10 inch (53.4 mm) maximum body diameter
  • Output Connector: Integral 3-pin XLRM-type

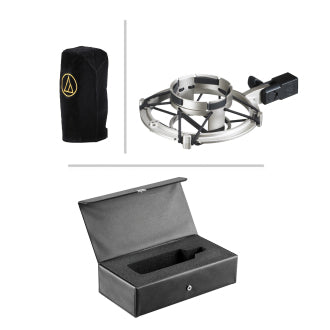

  • Accessories Furnished: AT8449a/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
  • Audio-Technica Case Style: R1

Manufacturer: Audio-Technica
Model: AT4047/SV
Warranty: See manufacturer website for details
SKU: I052599-N-0
UPC: #042005308583
Listing ID: NA54634
