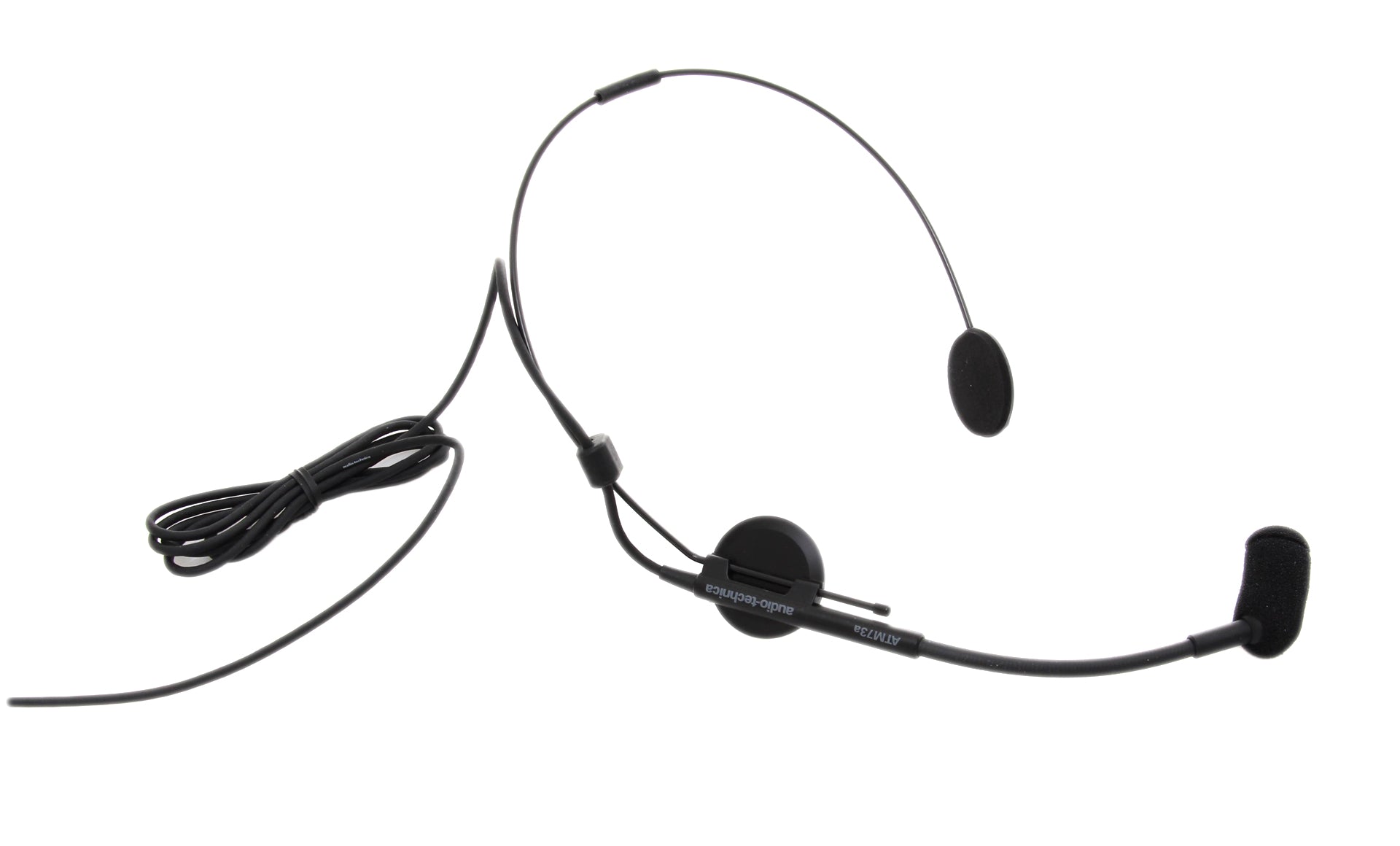

Audio-Technica ATM73ac Cardioid Condenser Headworn Microphone (Unterminated)


  • Our Price
  • Regular price $139.00





CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19


If You Can Pull Off Singing And Drumming At The Same Time, Get The Microphone That Can Keep Up With You - The Audio-Technica ATM73ac Headworn Microphone

Ideal for drummers, keyboard players or anyone requiring hands-free operation, the Audio-Technica ATM73a features a comfortable, unobtrusive headband design with side-of-mouth pickup. Its belt-mounted power module operates on battery or phantom power.

The Audio-Technica ATM73ac is the same as the ATM73a less the power module; unterminated 55" (1.4 m) cable. Includes AT8125 and AT8128 windscreens.

  • Ideal for drummers, keyboard players or anyone requiring hands-free operation
  • Comfortable, unobtrusive headband design with side-of-mouth pickup
  • Belt-mounted power module operates on battery or phantom power
  • Cardioid polar pattern improves isolation of desired sound source
  • Also available as ATM73a – which includes power module; 55" (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak® wireless systems

SPECIFICATIONS

  • Element Fixed-Charge Back Plate, Permanently Polarized Condenser
  • Polar Pattern Cardioid
  • Frequency Response 40-15,000 Hz
  • Low Frequency Roll-Off 80 Hz, 18 Db/Octave
  • Open Circuit Sensitivity Phantom: -55 Db (1.7 Mv) Re 1V At 1 Pa
  • Battery: –56 Db (1.5 Mv) Re 1V At 1 Pa
  • Impedance Phantom: 200 Ohms
  • Battery: 270 Ohms
  • Maximum Input Sound Level Phantom: 146 Db Spl, 1 Khz At 1% T.H.D.
  • Battery: 132 Db Spl, 1 Khz At 1% T.H.D.
  • Dynamic Range (Typical) Phantom: 111 Db, 1 Khz At Max Spl
  • Battery: 97 Db, 1 Khz At Max Spl
  • Signal-To-Noise Ratio 59 Db, 1 Khz At 1 Pa
  • Phantom Power Requirements 11-52V Dc, 2 Ma Typical
  • Battery Type 1.5V Aa/Um3
  • Battery Current / Life 0.4 Ma / 1200 Hours Typical (Alkaline)
  • Switch Off, On-Flat, On-Roll-Off
  • Weight (Microphone) 1.1 Oz (31 G)
  • Weight (Power Module) 4.9 Oz (139 G)
  • Dimensions (Microphone) 0.39" (10.0 Mm) Diameter
  • Dimensions (Power Module) 3.31" (84.0 Mm) H X 2.48" (63.0 Mm) W X 0.87" (22.0 Mm) D Dimensions (Headset) 6.49" (165.0 Mm) Nominal At Widest Point, 2.64" (67.0 Mm) Flexible Boom
  • Output Connector (Power Module) Integral 3-Pin Xlrm-Type
  • Cable 4.6' (1.4 M) Long (Permanently Attached To Microphone), 0.10" (2.6 Mm) Diameter, 2-Conductor Shielded Cable With Ta3f-Type Connector
  • Accessories Furnished At8531 Power Module; At8128 Windscreen; At8125 Windscreen; Battery
  • Audio-Technica Case Style M5

Manufacturer: Audio-Technica
Model: ATM73AC
Warranty: See manufacturer website for details
SKU: I220553-1
