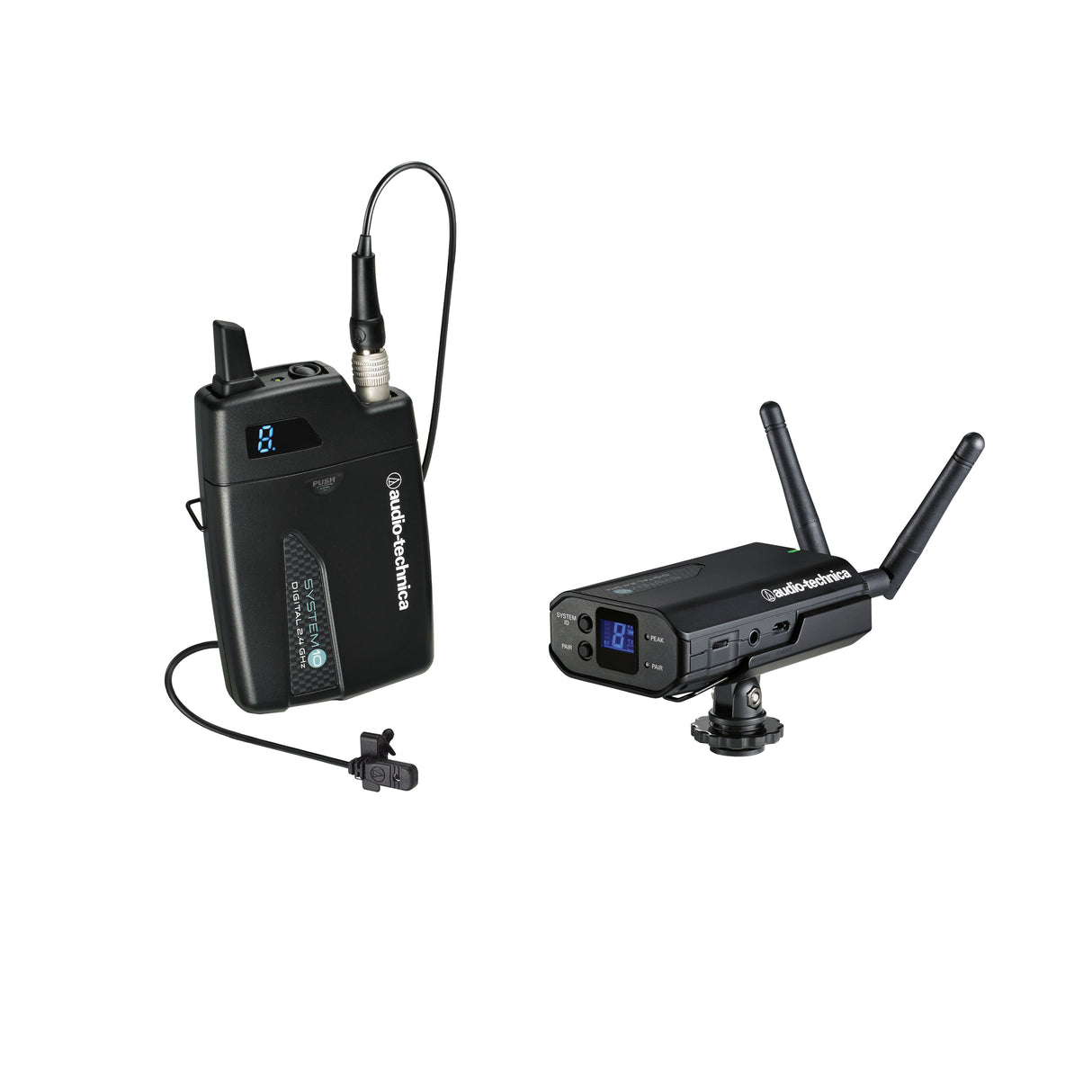

Audio-Technica ATW-1701/L Portable Camera-Mount 2.4 GHz Digital Wireless System - Lavalier


  • Our Price
  • Regular price $519.95





OUT OF STOCK BUT WE CAN GET IT
• Ship time varies by availability - C19 delays possible
• Order now to reserve yours ~ risk free


Get A Complete System For Performers and Presenters With The Audio-Technica ATW-1701/L Portable Camera-Mount 2.4 GHz Digital Wireless System - Lavalier

With its compact and portable design, the System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between, the receiver features multiple mounting options to accommodate a variety of cameras and recording devices.

Like all of the products in the System 10 digital wireless family, the Camera Mount provides three levels of diversity assurance: frequency, time and space. Instantaneous channel selection, sync and setup make the Camera-Mount extremely easy to use, while its digital 24-bit/48 kHz wireless operation provides the ultimate in sound quality and dependable performance. Also, as the receiver operates in the 2.4 GHz range, it remains completely free from TV interference at all times.

Available in handheld, lavalier and body-pack configurations, each System 10 Camera-Mount wireless system includes a camera shoe mount in addition to the receiver and transmitter. The AT8691 camera shoe dual mount and the AT8350 3.5 mm to XLR output cable are available separately.



  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4 GHz range – completely free from TV interference
  • Ultra compact receiver size with multiple mounting options
  • Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
  • Internal rechargeable 12-hr battery
  • Separate headphone port and volume control for local audio monitoring
  • Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters
  • Three levels of diversity assurance: frequency, time & space
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync and setup


OVERALL SYSTEM SPECIFICATIONS

  • Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
  • Dynamic Range: >109 dB (A-weighted), typical
  • Total Harmonic Distortion: <0.05% typical
  • Operating Range: 30 m (100') radius, 60 m (200') diameter typical. Open range environment with no interfering signals
  • Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
  • Frequency Response: 20 Hz to 20 kHz Depending on microphone type
  • Audio Sampling: 24 bits / 48 kHz

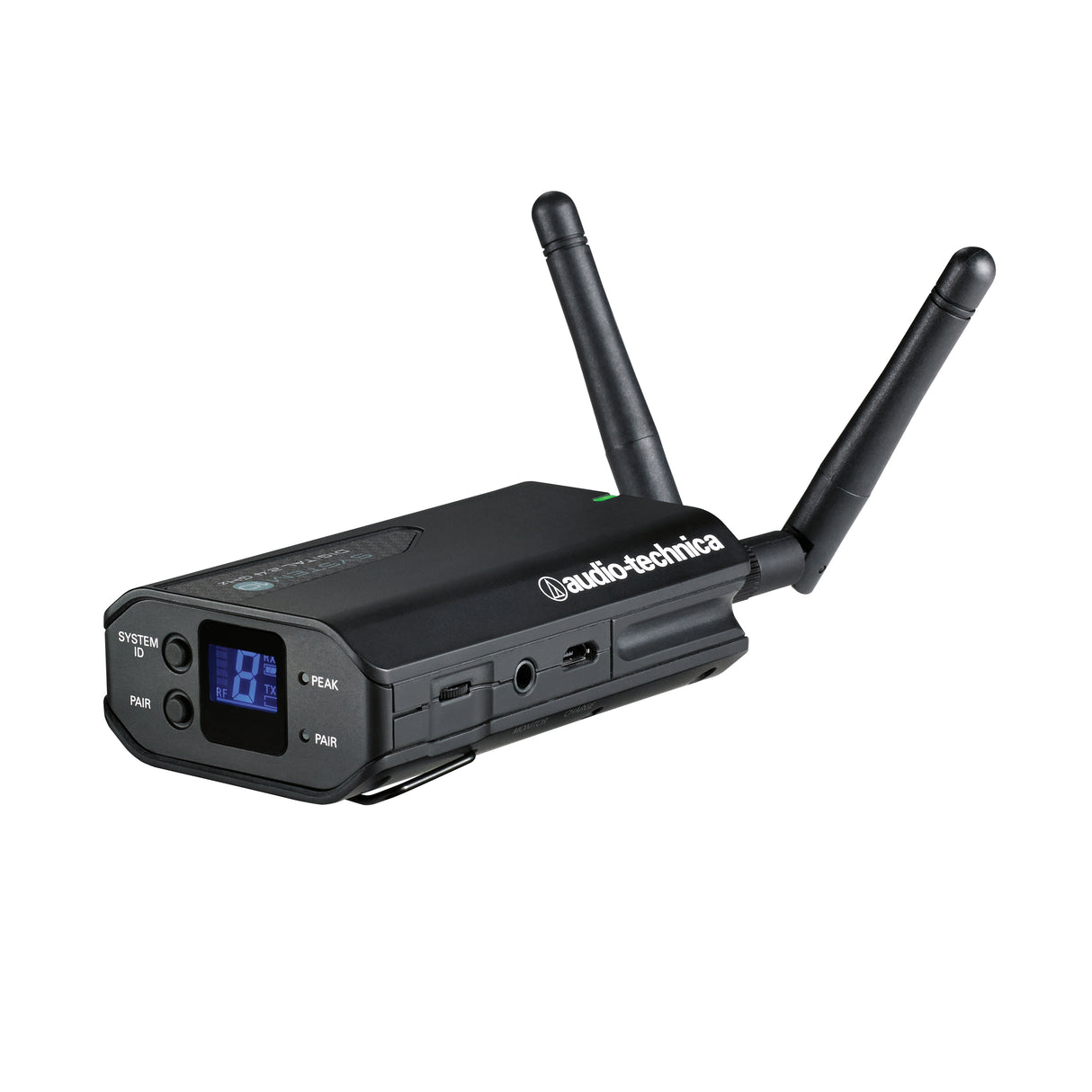

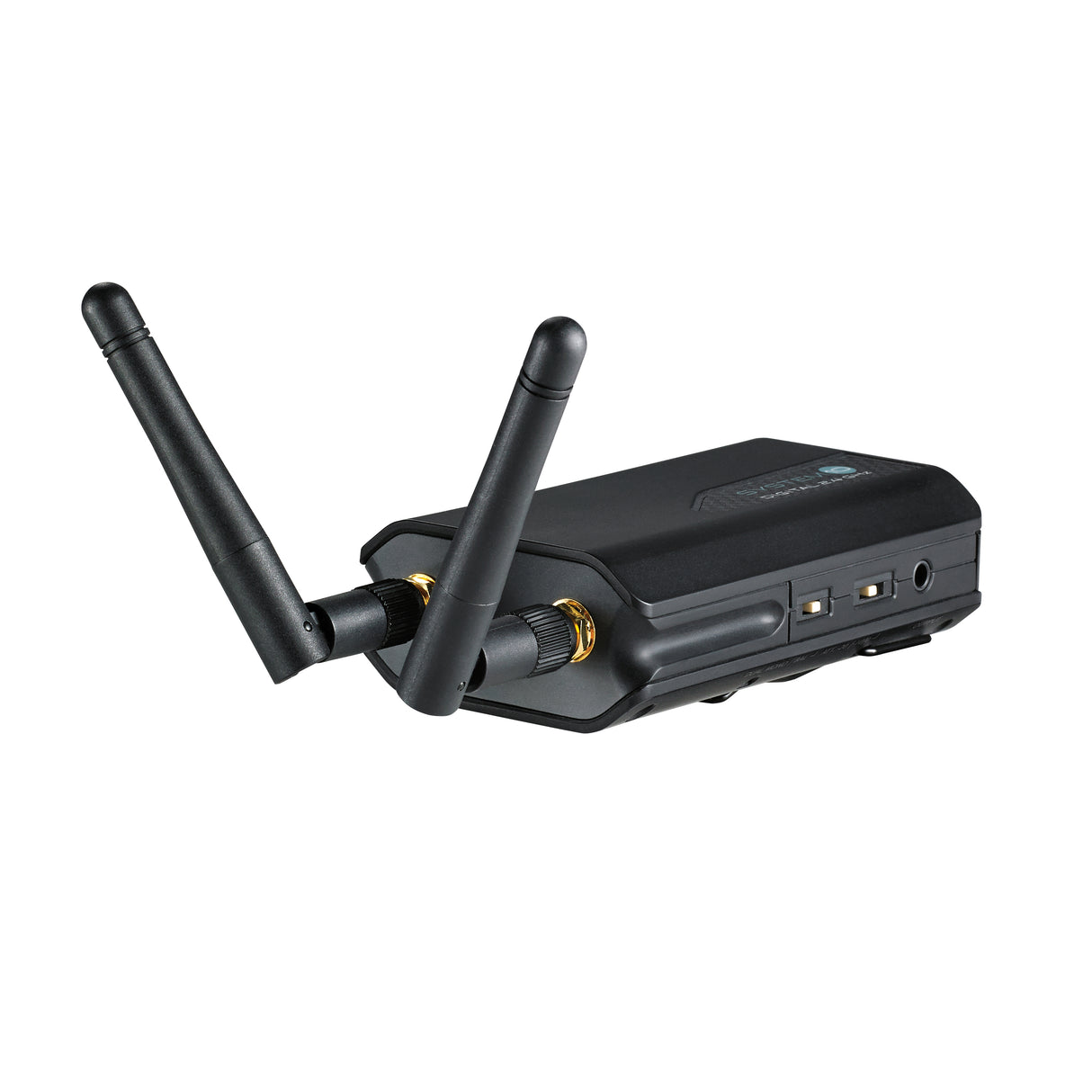

RECEIVER SPECIFICATIONS

  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level: 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
  • Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
  • Battery: Internal Battery: 3.7V rechargeable Li-ion battery. Battery Rating: 5.5 Wh 1,460 mAh
  • Battery Life: 12 hours. Depending on environmental conditions. Battery Charging Time: 4 hours 30 minutes. Depending on environmental conditions. Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
  • Dimensions: 56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
  • Net Weight: 105 grams (3.7 oz)
  • Accessories Included: Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable

BODY-PACK TRANSMITTER SPECIFICATIONS

  • RF Power Output: 10 mW
  • Spurious Emissions: Following federal and national regulations
  • Input Connections: Four-pin Locking Connector. Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
  • Batteries: Two 1.5V AA not included
  • Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
  • Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
  • Net Weight: 100 grams (3.5 oz) without batteries

HANDHELD TRANSMITTER SPECIFICATIONS

  • RF Power Output: 10 mW
  • Spurious Emissions: Following federal and national regulations
  • Batteries: Two 1.5V AA not included
  • Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
  • Dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
  • Net Weight: 280 grams (9.9 oz) without batteries
  • Accessory Included: AT8456a Quiet-Flex stand clamp

Manufacturer: Audio-Technica
Model: ATW-1701/L
Warranty: See manufacturer website for details
SKU: I327300-N-0
UPC: #042005185054
Listing ID: NA57361
