Audio-Technica ATW-1702 System 10 Camera-Mount Digital Wireless System
Be Prepared For On-Scene Reporting With The Audio-Technica ATW-1702 System 10 Camera-Mount Digital Wireless System

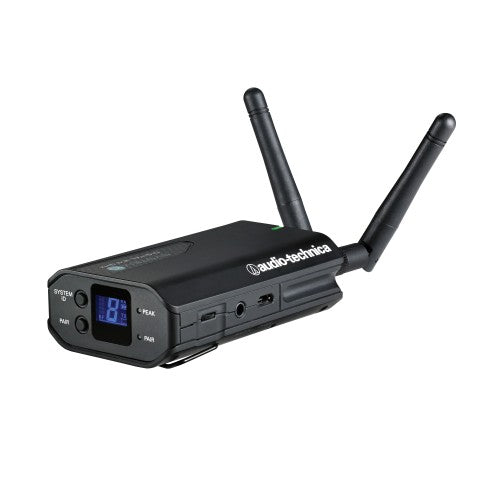

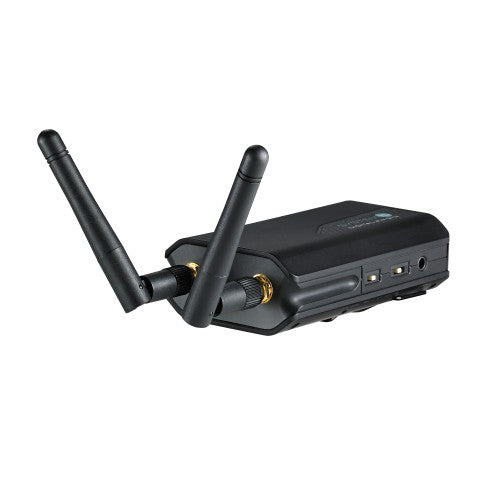

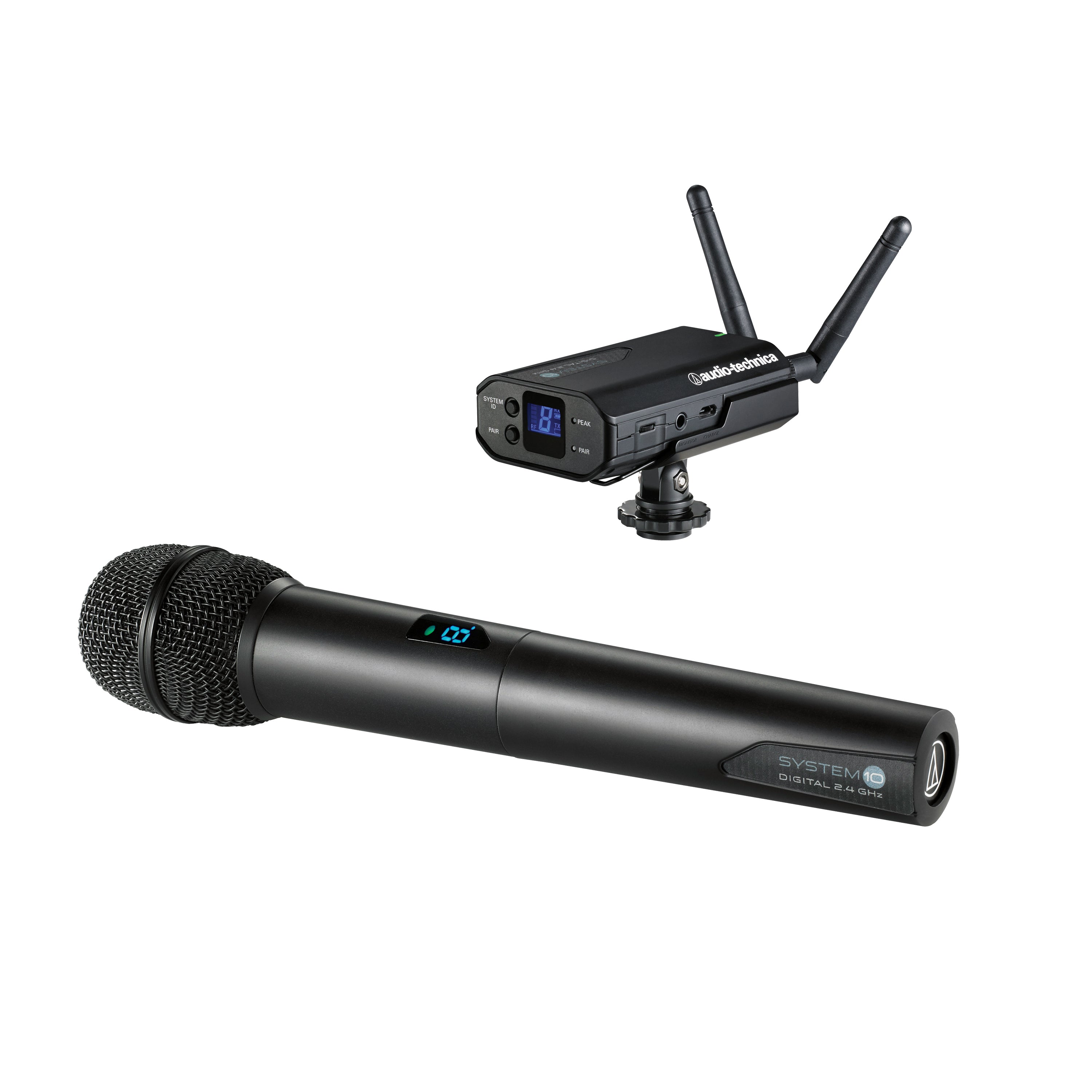

ATW-R1700 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex stand clamp.
With its compact and portable design, the System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between, the receiver features multiple mounting options to accommodate a variety of cameras and recording devices.
Like all of the products in the System 10 digital wireless family, the Camera Mount provides three levels of diversity assurance: frequency, time and space. Instantaneous channel selection, sync and setup make the Camera-Mount extremely easy to use, while its digital 24-bit/48 kHz wireless operation provides the ultimate in sound quality and dependable performance. Also, as the receiver operates in the 2.4 GHz range, it remains completely free from TV interference at all times.
Available in handheld, lavalier and body-pack configurations, each System 10 Camera-Mount wireless system includes a camera shoe mount in addition to the receiver and transmitter. The AT8691 camera shoe dual mount and the AT8350 3.5 mm to XLR output cable are available separately.
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Operates in the 2.4 GHz range – completely free from TV interference
- Ultra compact receiver size with multiple mounting options
- Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
- Internal rechargeable 12-hr battery
- Separate headphone port and volume control for local audio monitoring
- Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters
- Three levels of diversity assurance: frequency, time & space
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync and setup
OVERALL SYSTEM
- Operating Frequencies: 2.4 GHz ISM band
- Frequency Response: 20 Hz to 20 kHz (Depending on microphone type)
- Operating Range: 30 m (100') radius, 60 m (200') diameter typical (Open range environment with no interfering signals)
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Temperature Range: 0 degrees C to +40 degrees C (32 degrees F to 104 degrees F) (Battery performance may be reduced at very low temperatures)
RECEIVER
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
- Battery Type: Internal Battery: 3.7V rechargeable Li-ion battery
- Battery Current/Life : 2 hours (Depending on environmental conditions)
- Battery Charging Time: 4 hours 30 minutes (Depending on environmental conditions)
- Charging Temperature Range: 5 degrees C to +35 degrees C (41 degrees F to 95 degrees F)
- Accessories Included: Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable
HANDHELD TRANSMITTER
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Battery Type: Two 1.5V AA not included
- Battery Life: >7 hours (alkaline) (Depending on battery type and use pattern)
- Accessories Included: AT8456a Quiet-Flex stand clamp
Manufacturer: Audio-Technica
Model: ATW-1702
SKU: I327301-N-0-WHXA
UPC: 4961310127688
