Audio-Technica ATW-3255DF2 3000 Series Wireless In-Ear Monitor System

Original price $849.00 - Original price $849.00
Original price $849.00
$849.00
$849.00 - $849.00
Current price $849.00
Inventory Status:

♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

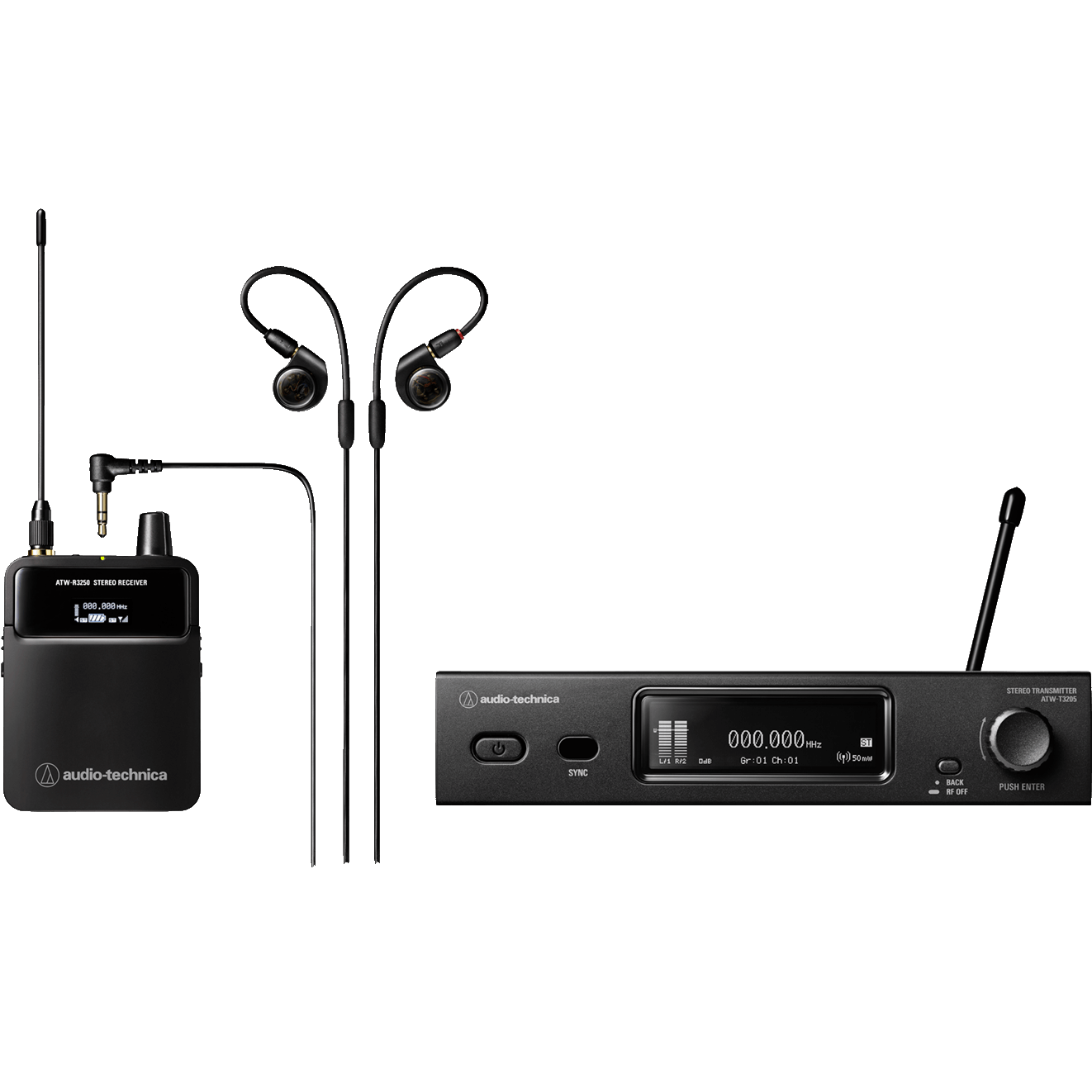

Max Versatility - The Audio-Technica ATW-3255DF2 3000 Series Wireless In-Ear Monitor System

The Audio-Technica 3000 Series Wireless In-Ear Monitor System (ATW-3255) was designed to bring professional sound quality and features to all levels of performers and performance venues. System integrators for houses of worship, owners of live-performance venues and the musicians who play in them all tell us the same thing: They need an affordable, durable in-ear monitor system that is easy to use and, crucially, delivers high-quality sound with dependable RF.


  • Durable wireless in-ear monitor system delivers high-quality sound and stable RF
  • Ideal for use in houses of worship and performance venues
  • Optimized internal digital signal processing provides exceptional stereo separation
  • Wide UHF tuning bandwidth of 138 MHz for maximum versatility in an increasingly congested RF environment; available in frequency band DF2 (470 – 608 MHz)
  • Shares design elements with the 3000 Series UHF Wireless Systems for easy integration and compatibility
  • Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
  • Offers network monitoring and control via Wireless Manager software
  • A channel plan can be deployed to all network-connected transmitters via an RF scan from a single receiver, with no interference or third-order intermodulation
  • Body-pack receiver operates continuously for up to 7 hours when powered by NiMH batteries and charged in the ATW-CHG3 or ATW-CHG3N charging station (sold separately)
  • Stereo or mono operation with pan/personal mix controls


SPECIFICATIONS

Overall System

  • Operating Frequencies: Band DF2: 470.125 to 607.875 MHz
  • Minimum Frequency Step: 25 kHz
  • Modulation Mode: FM
  • Nominal/Peak Deviation: ±34 kHz nominal / ±45 kHz peak
  • Frequency Response: 40 Hz to 14,100 Hz
  • Stereo Separation: 75 dB
  • Operating Range: 90 m (300 feet)
  • Open range environment with no interfering signals
  • Dynamic Range: >90 dB, A-weighted, typical
  • Total Harmonic Distortion: <0.2% (at 1 kHz, +4dBu input)
  • Maximum Simultaneous Use (recommended): 49 ch per band

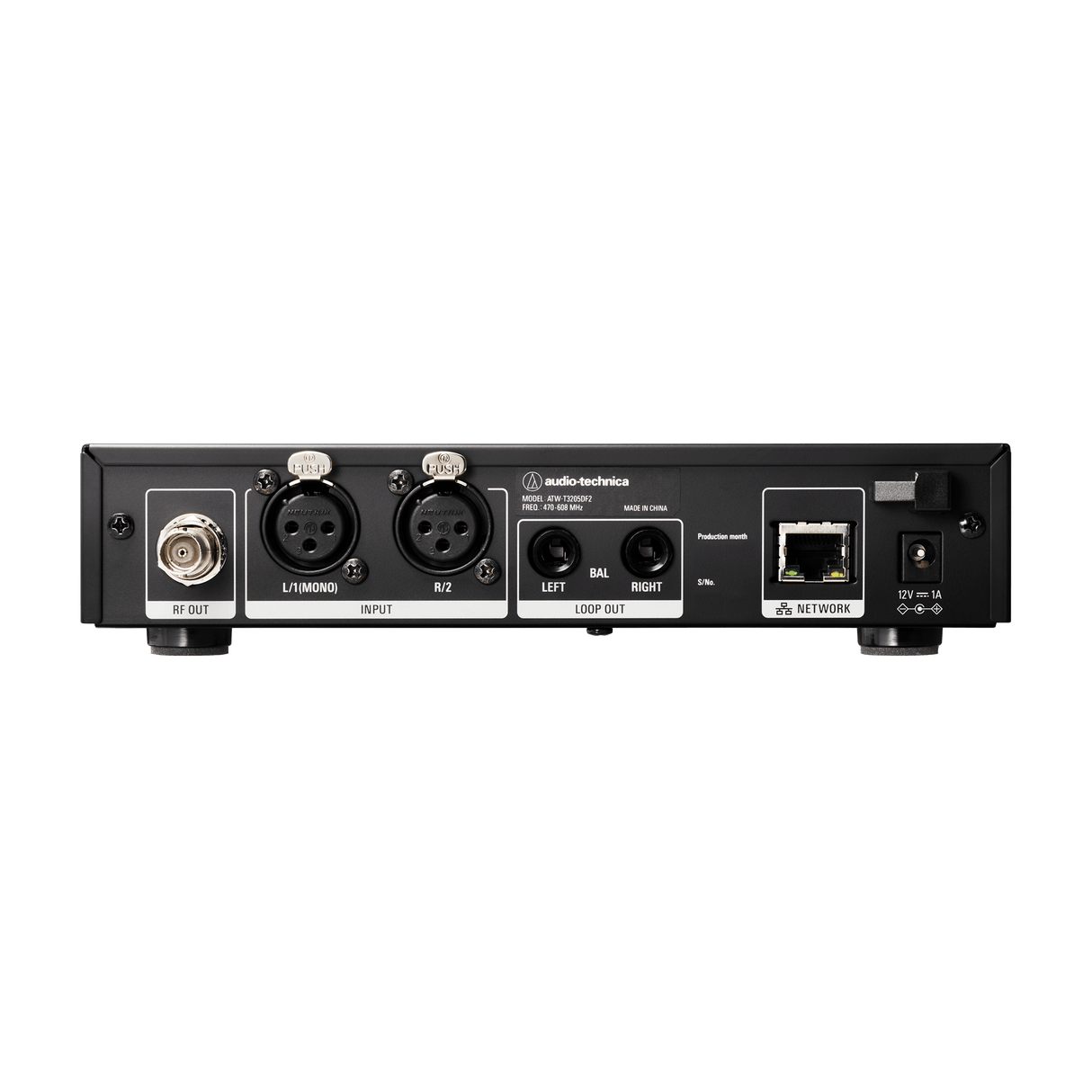

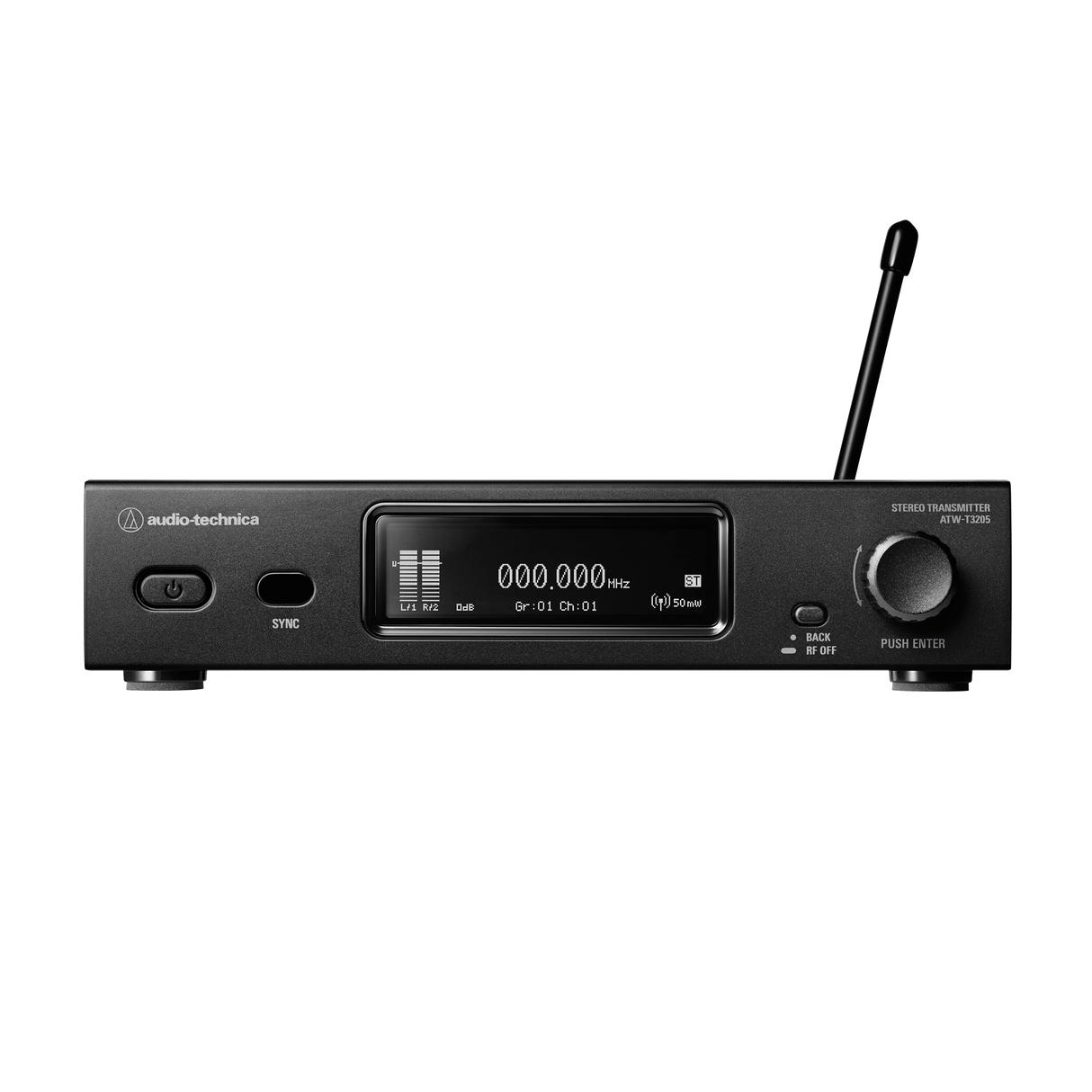

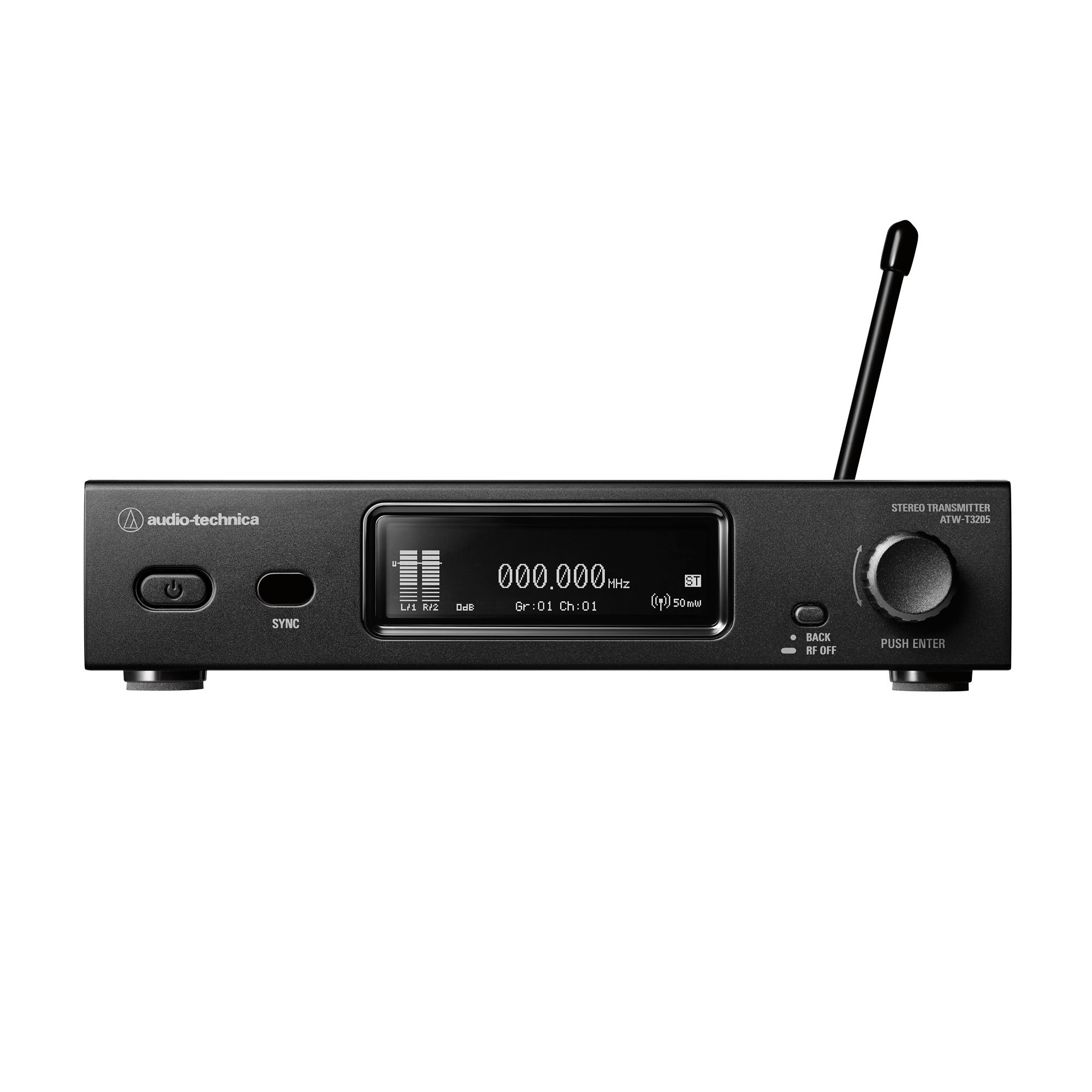

EIM Transmitter

  • RF Output Power: High: 50 mW, Low: 10 mW (switchable) at 50 ohms
  • May differ depending on the country or region in which you live

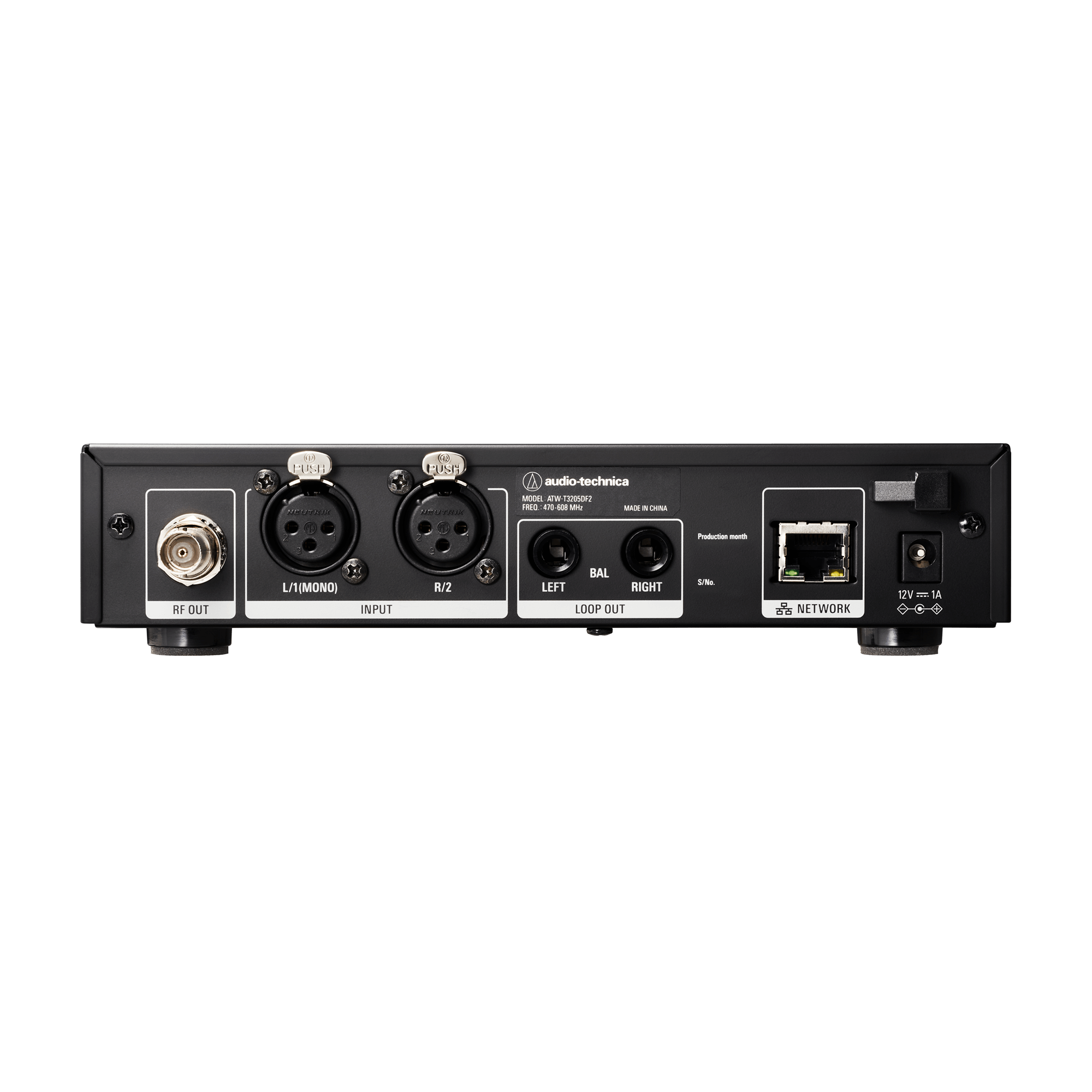

  • Input Connection: XLR-F type ×2 (Pin1: GND, Pin2: Hot, Pin3: Cold)
  • Maximum Input Level: XLR-F type: +24 dBu (at 0 dB sensitivity)
  • Output Connection: 6.3 mm (1/4-inch) TRS ×2
  • Network: 100BASE-T
  • Network Port: RJ-45
  • Power Supply: 100 to 240 V AC (50/60 Hz) to 12V DC 1 A (center positive) switched mode external power supply
  • Antenna Output: BNC-type, 50 ohms
  • Dimensions 210 mm (8.3 inches) × 191 mm (7.5 inches) × 43.4 mm (1.7 inches)
  • Weight: 1,100 g (39 oz)
  • Included Accessories: AC adapter, Rack-mount (large, small), Flexible UHF antenna

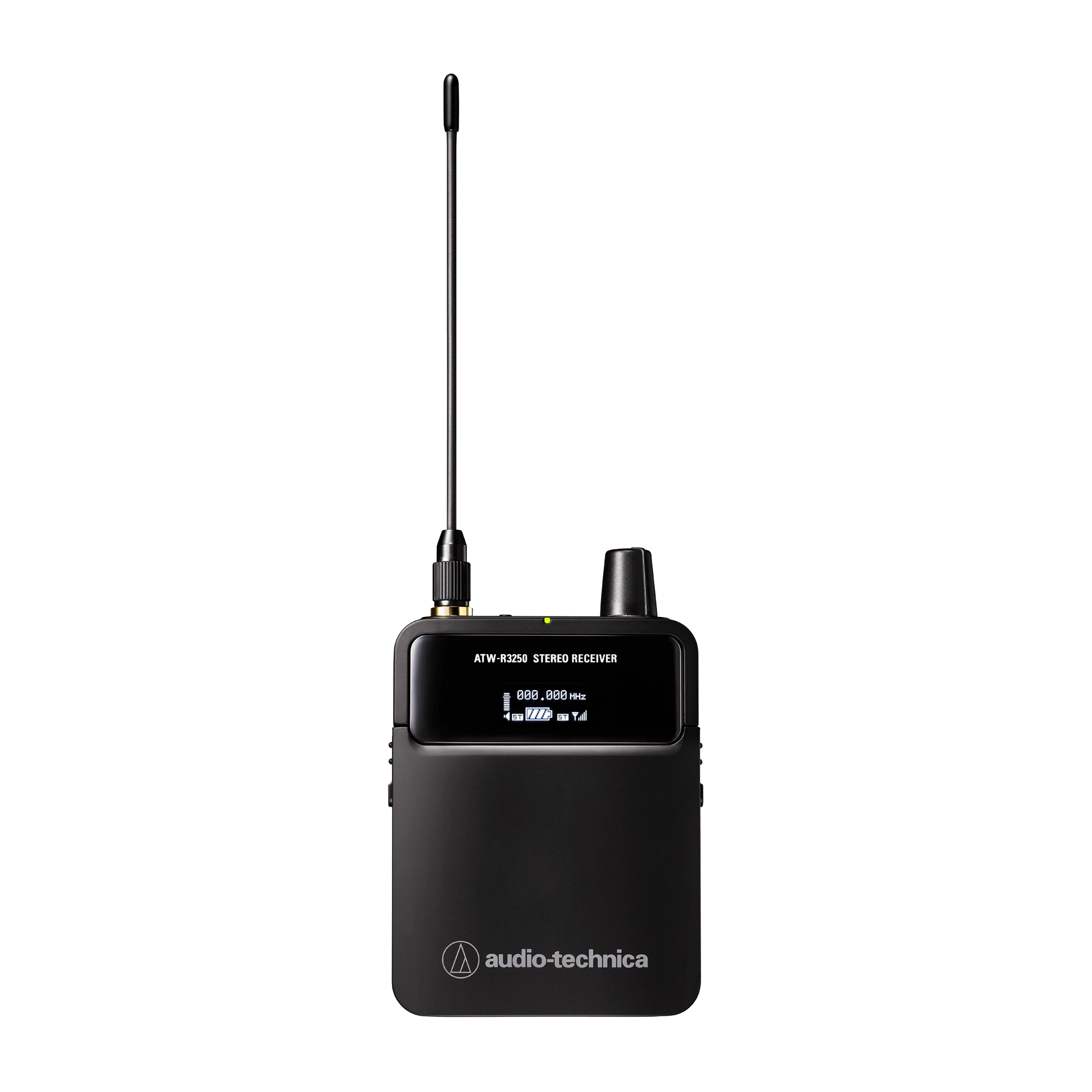

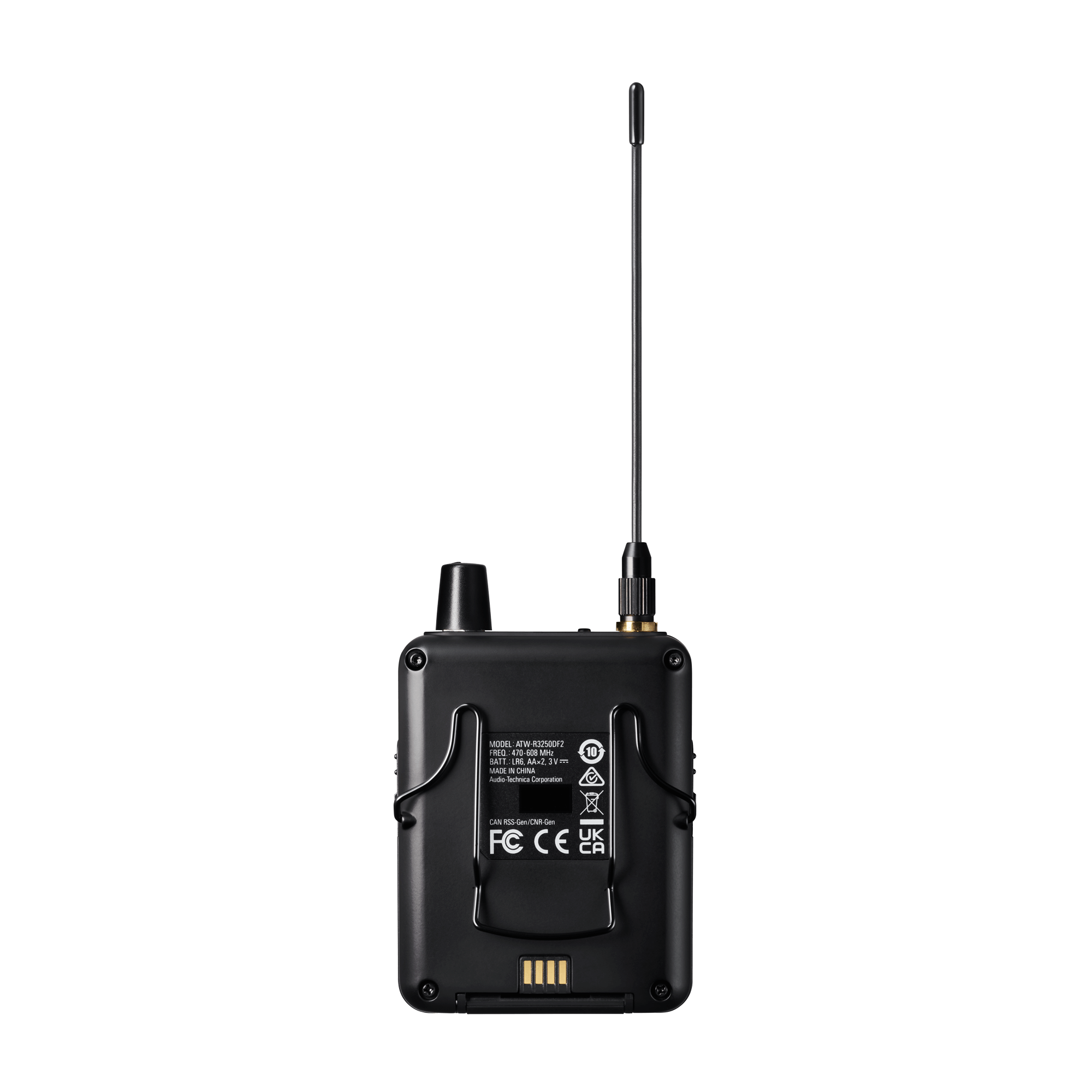

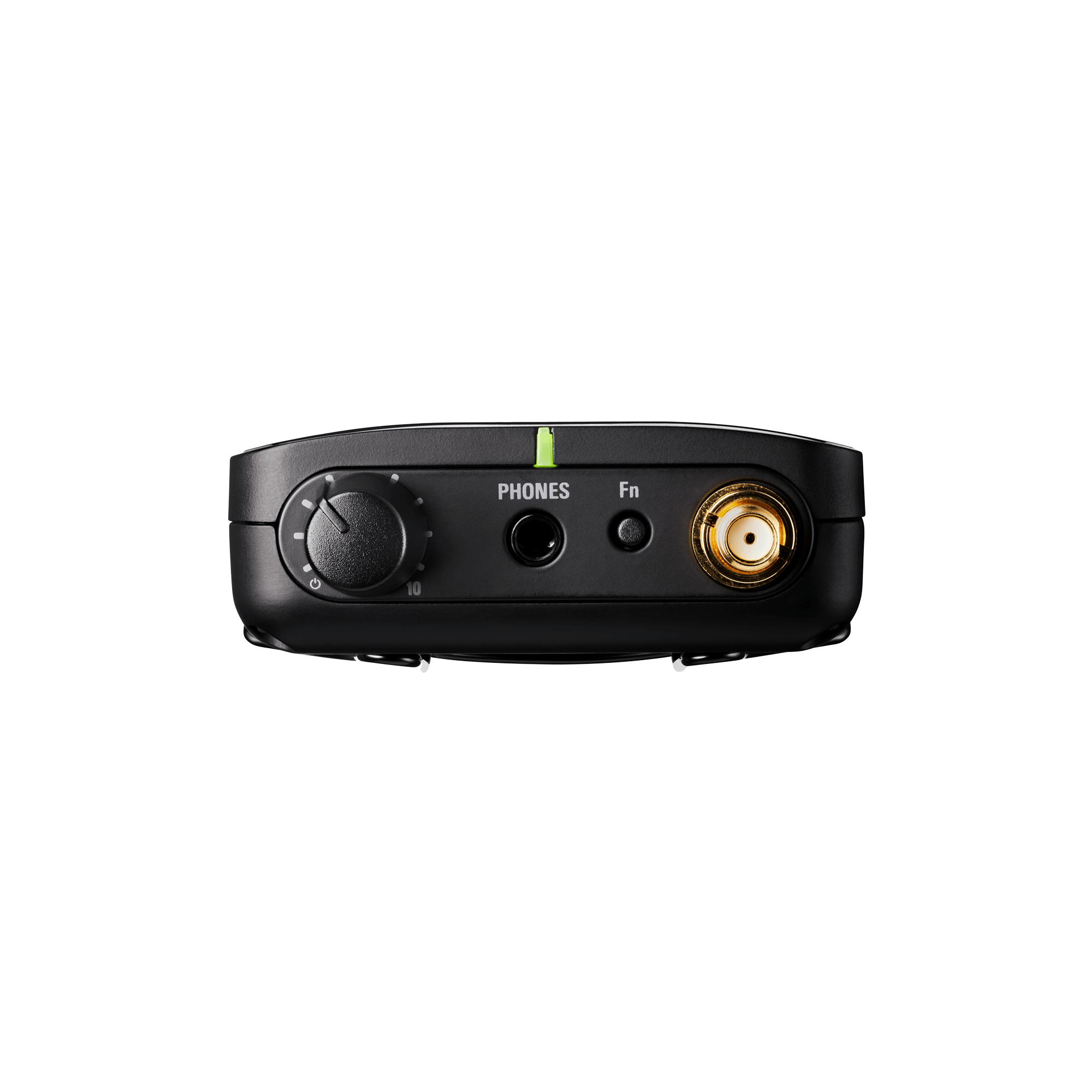

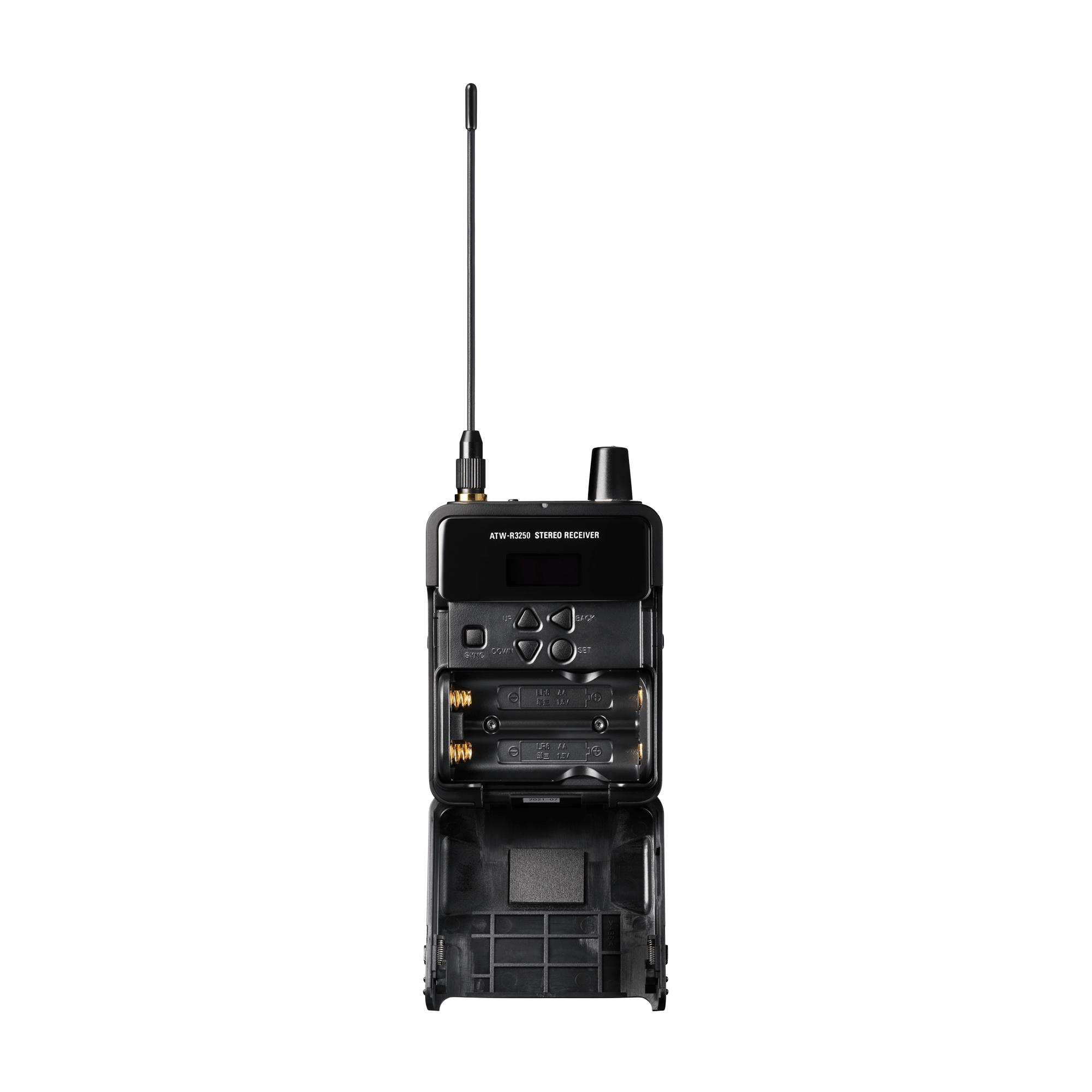

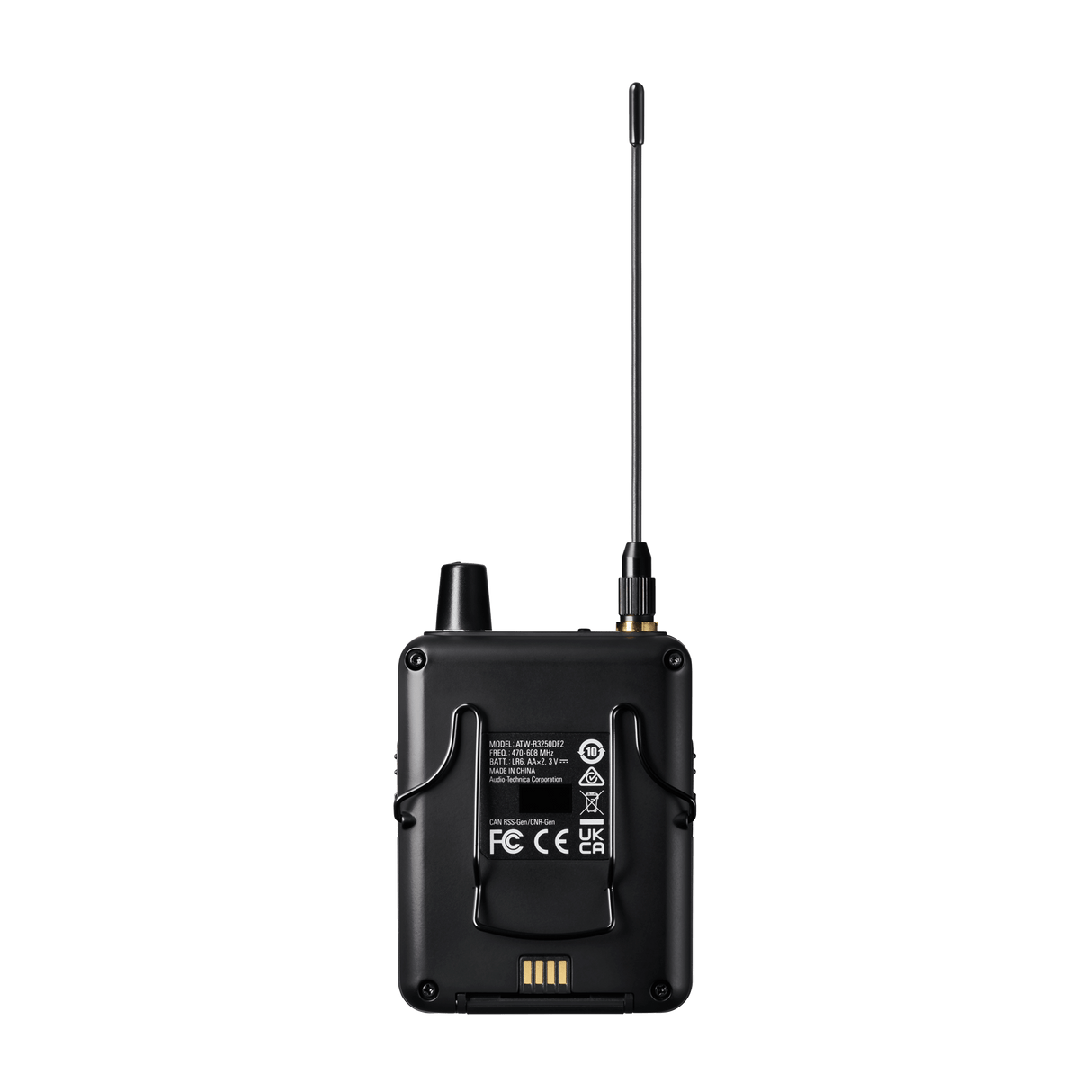

Receiver

  • Receiving System: Antenna diversity
  • Image Rejection: >80 dB, typical
  • RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)

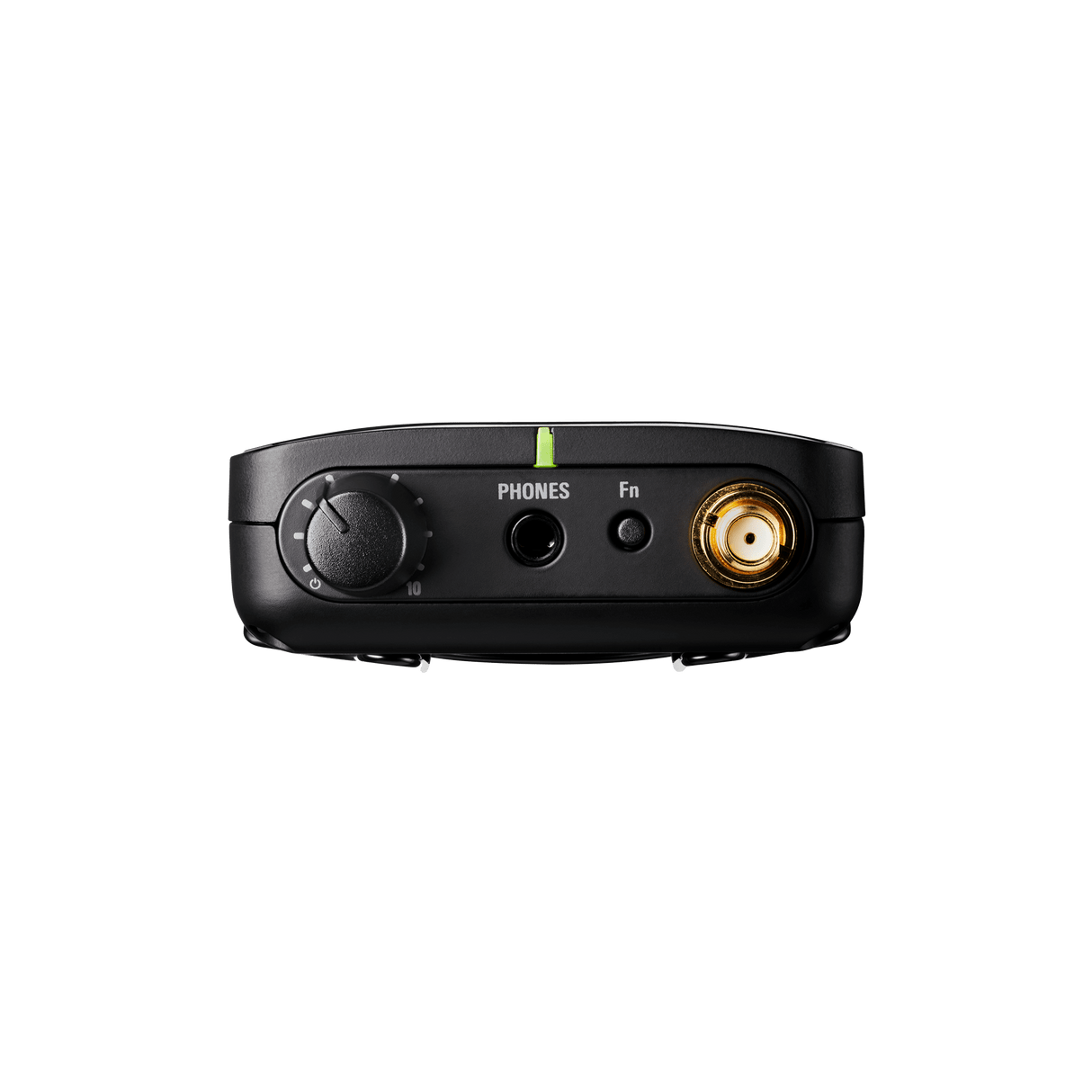

  • Headphone Output Jack: 3.5 mm (1/8-inch) TRS stereo mini-jack
  • Headphone Output: 40 mW (at 12 ohms)
  • EQ: Low: 80 Hz / 160 Hz / 320 Hz / ±9 dB in 3 dB step; High: 6 kHz / 8 kHz / 10 kHz / ±9 dB in 3 dB step
  • Limiter: Selectable: -30 dB to OFF (0 dB) in 6 dB steps
  • Antenna Input: SMA type, 50 ohms
  • Operating Temperature Range: -5℃ to +45℃ (23℉ to 113℉)
  • Dimensions: 64 mm (2.5 inches) × 23 mm (0.91 inches) × 82 mm (3.2 inches)
  • Weight: 102 g (3.6 oz) (without batteries)

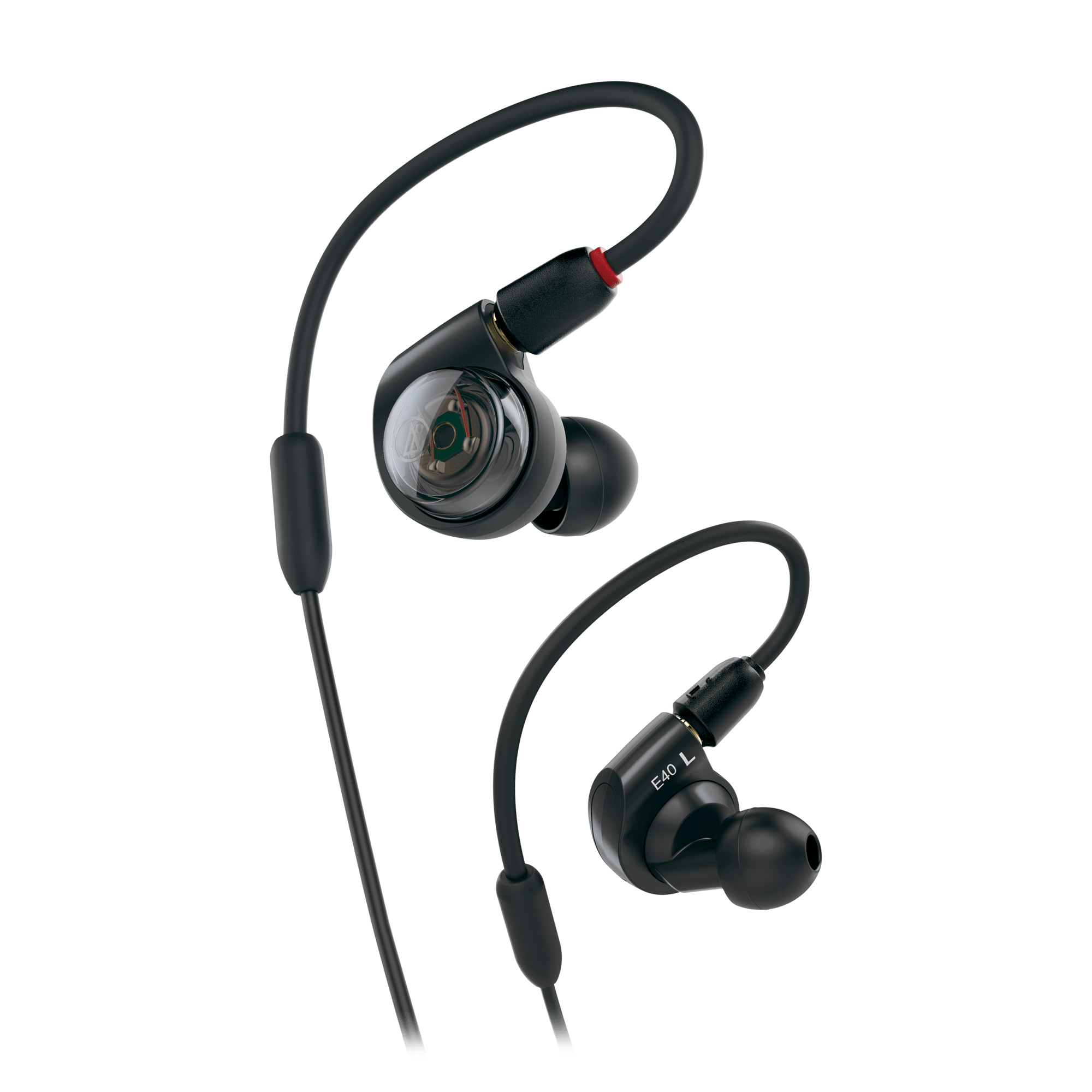

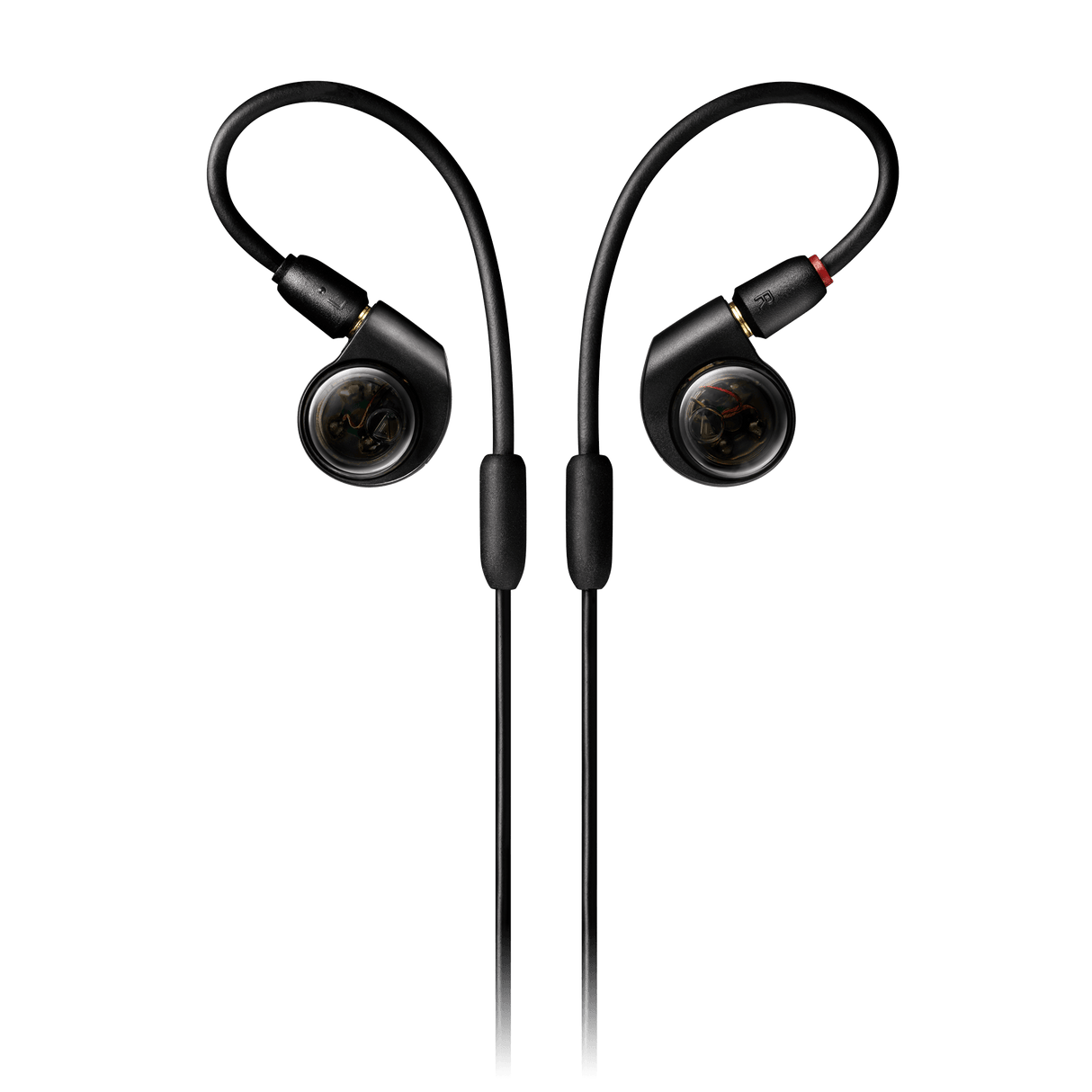

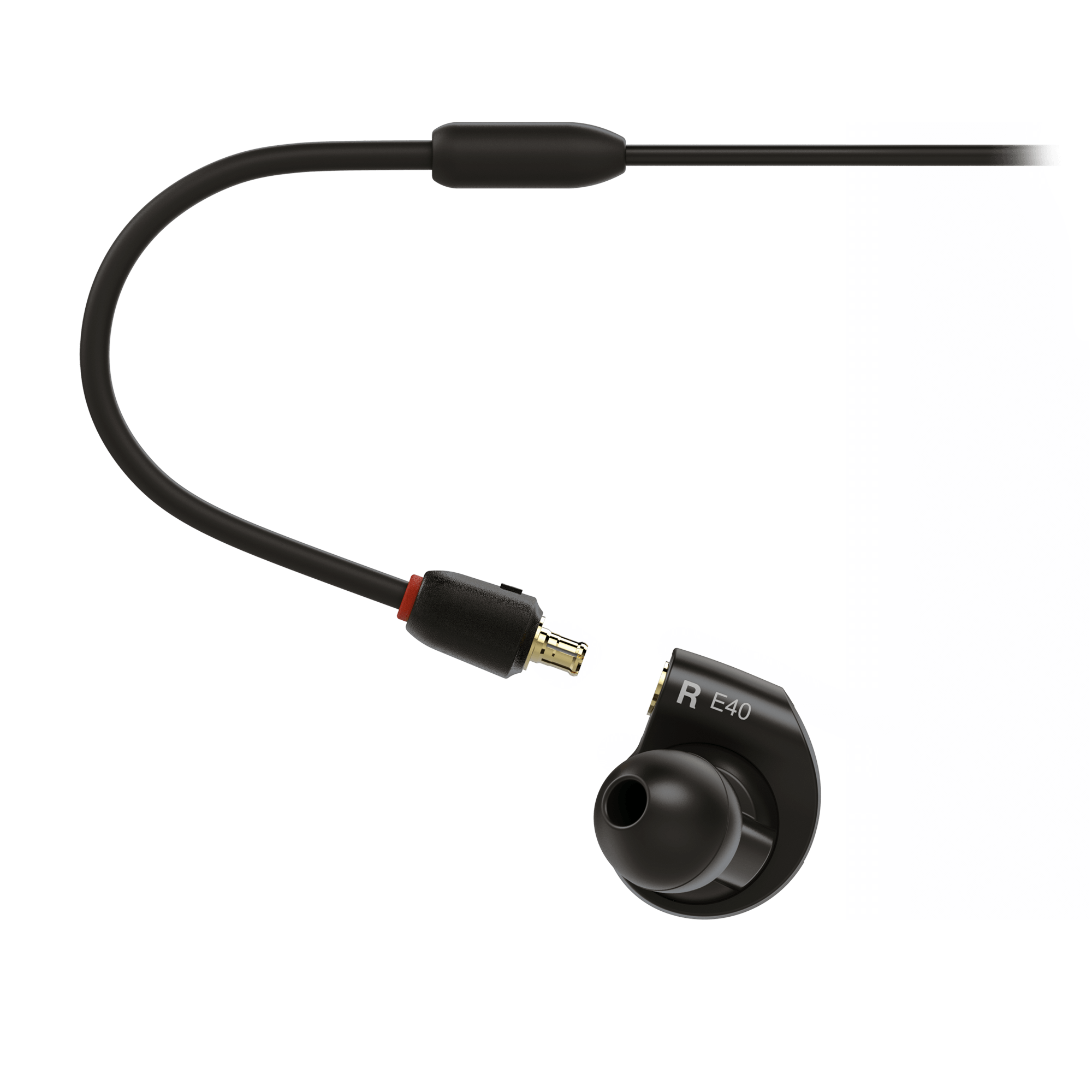

  • Accessories Included: ATH-E40
  • Battery Current/Life: 4 to 6 hours (alkaline); 5 to 7 hours (Ni-MH, 1900 mAh); 11 to 13 hours (Lithium)
  • Battery Type: 3 V DC (two 1.5 V AA) (not included)

Manufacturer: Audio-Technica
Model: ATW-3255DF2
SKU: I709136-N-4-WHXC
UPC: 4961310155858
