Audio-Technica ATW-901A/H System 9 Series Wireless Headset Microphone System

Enjoy Worry-Free Pristine Sound With The Audio-Technica System 9 Wireless Headset Microphone System

Audio-Technica's System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, System 9 has compatible options for handheld, guitar, lavalier and body-pack configurations as well. The system also offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz)

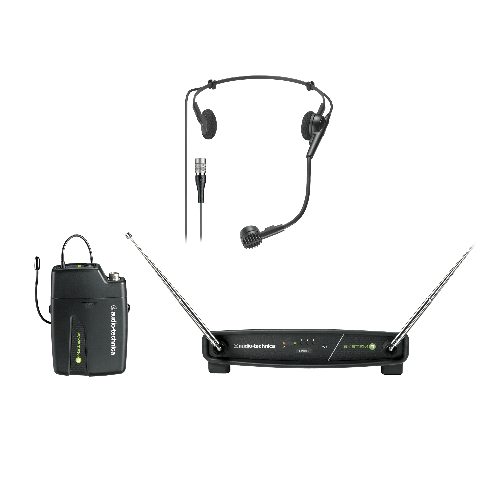

This System 9 configuration includes the ATW-R900a receiver and ATW-T901a body-pack transmitter with a PRO 8HEcW headworn microphone. The ATW-R900a is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900a also offers volume control along with AF Peak, RF and Power indicator lights.

Offering highly intelligible individual voice reproduction, the comfortable, lightweight PRO 8HEcW headworn microphone is ideal for guitarists, keyboard players, drummers, and others who need the use of their hands during performance. Its low-visibility headband and cushioned support pads provide a stable, comfortable fit. Designed for professional-quality vocal pickup with hands-free operation, the PRO 8HEcW features a pivot-mounted flexible mic boom that descends from either the left or right side.

• Easy operation and clear, natural sound quality
• 4 selectable frequency-coordinated VHF channels
• Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range

SPECIFICATIONS

System

• Operating Frequencies: VHF highband, 169 MHz to 172 MHz
• Modulation Mode: FM
• Maximum Deviation: +/-10 kHz
• Frequency Response: 80 Hz to 13 kHz
• Operating Range: 200' (60 m) typical (Open range environment with no interfering signals)
• Total Harmonic Distortion: less than 1% (at 1 kHz, +/-10 kHz deviation)
• Operating Temperature Range: 40° F (4° C) to 110° F (43° C) Battery performance may be reduced at very low temperatures

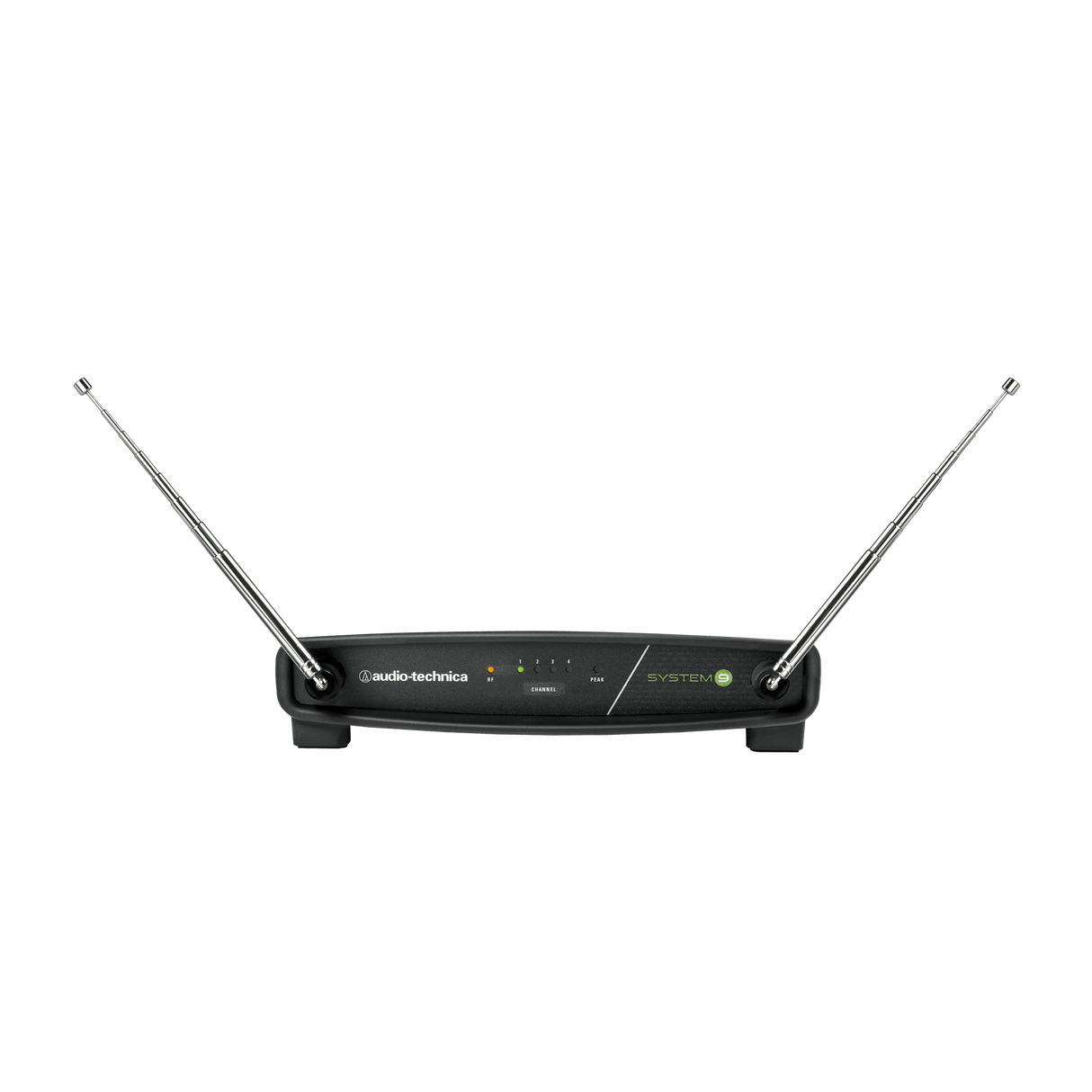

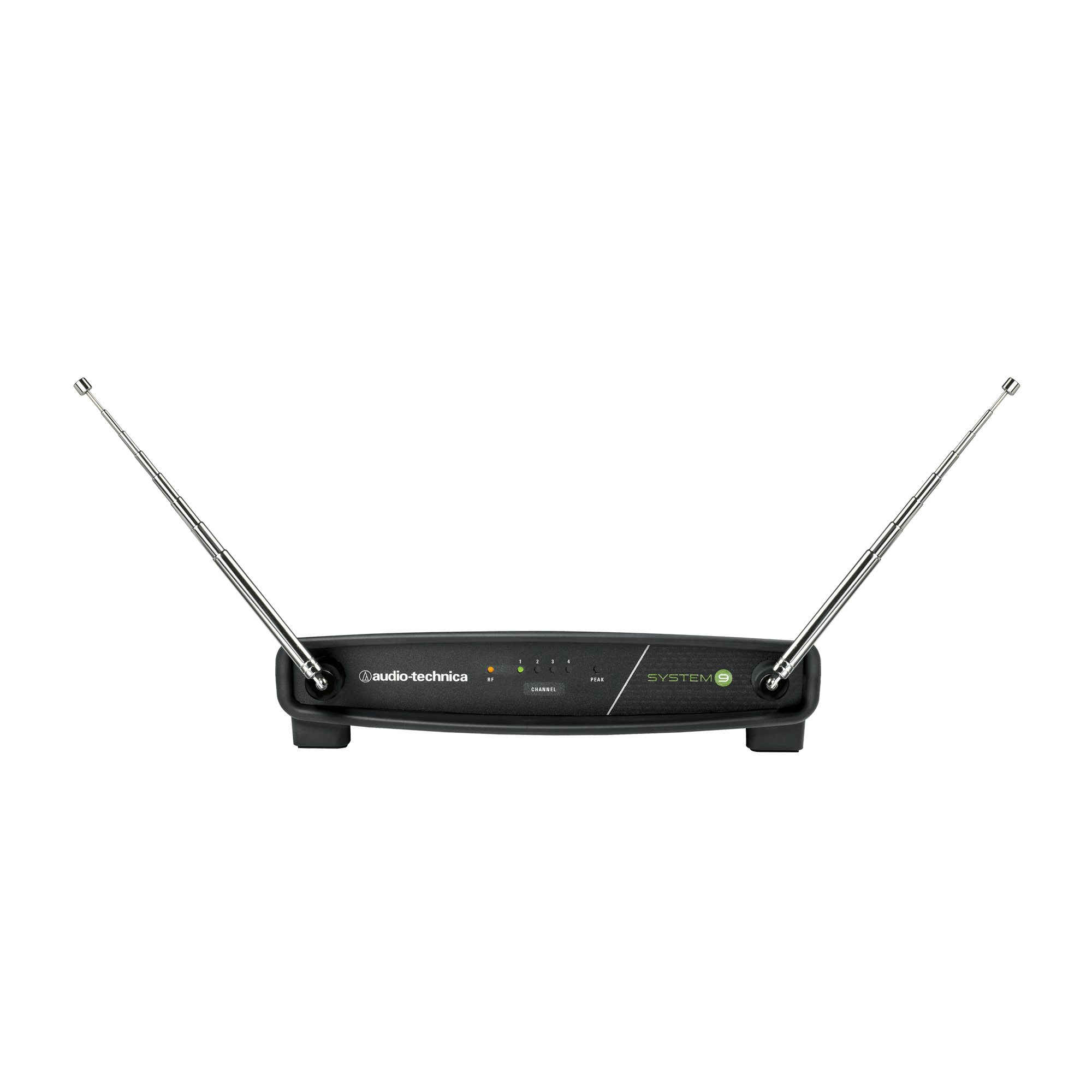

ATW-R900a Receiver

• Receiving System: Non-diversity, single-channel, dual antenna system
• Image Rejection: 50 dB minimum
• RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Dimensions: 7.48 (190.0) W x 1.82 (46.2) H x 5.06" (128.5 mm) D
• Weight: 12.0 oz (337 g)
• Accessories Included: Power supply
• Nominal Output Level
• XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
• 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)

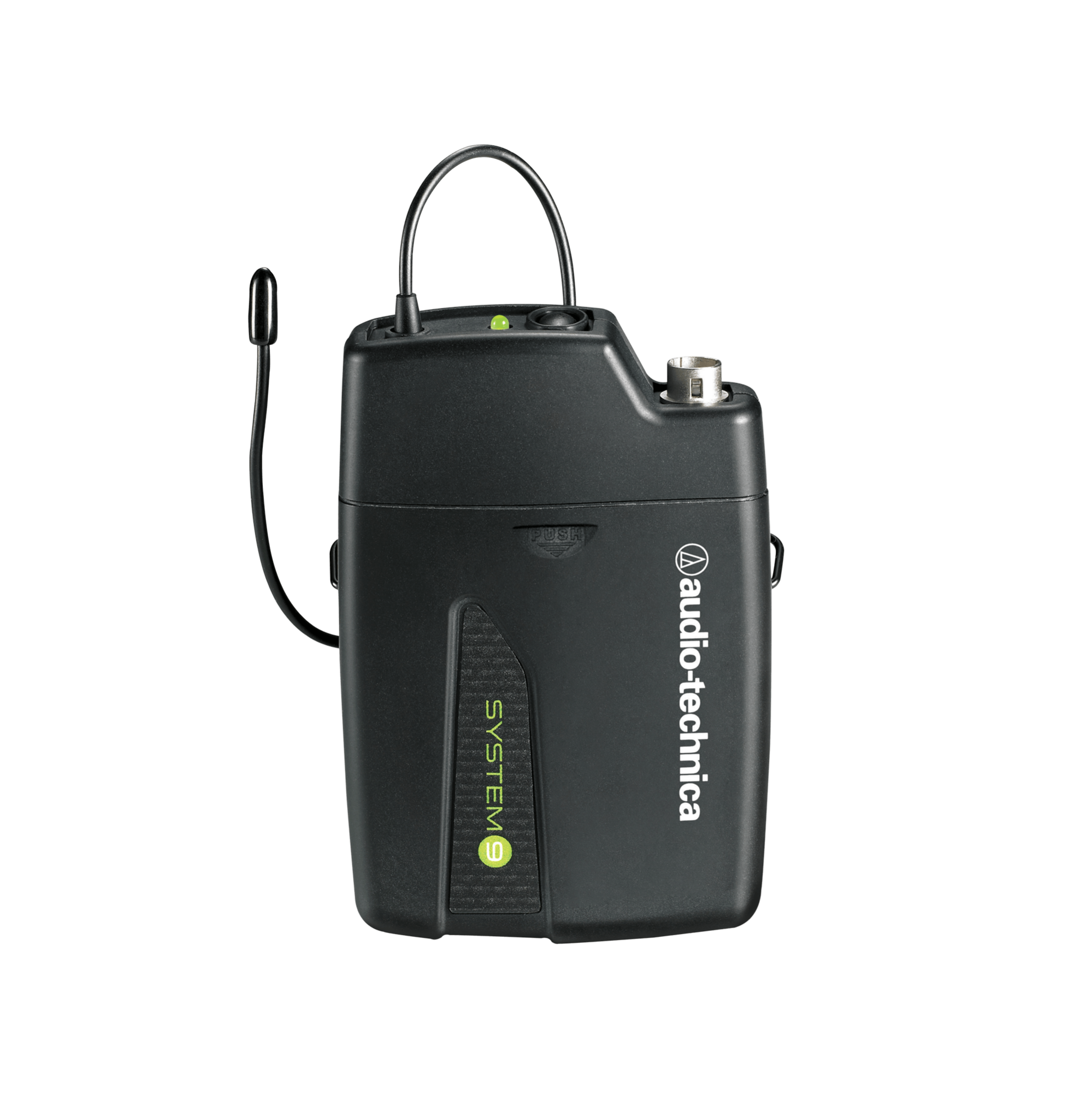

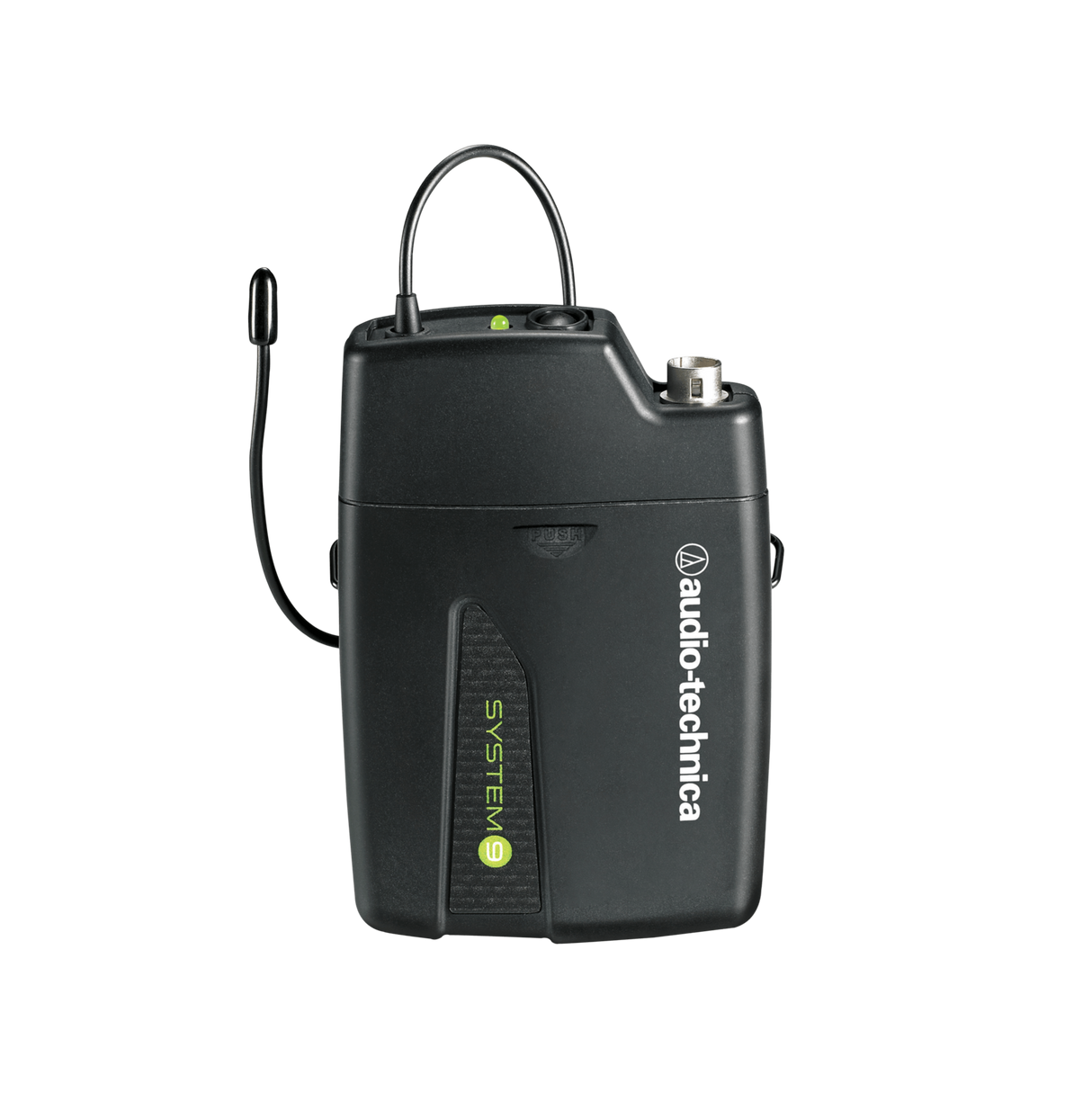

ATW-T901a Body-Pack Transmitter

• RF Power Output: 10 mW
• Battery Life: 8 hours (alkaline) Depending on battery type and use pattern
• Battery Type: Two 1.5V AA (not included)
• Dimensions: 2.76 (70.2) W x 4.08 (103.7) H x 0.98" (24.9 mm) D
• Input Connections: Four-pin Locking Connector
• Pin 1: GND
• Pin 2: INST INPUT
• Pin 3: MIC INPUT
• Pin 4: DC BIAS +9V
• Net Weight: 2.8 oz (80.0 g) without batteries
• Spurious Emissions: Following federal and national regulations

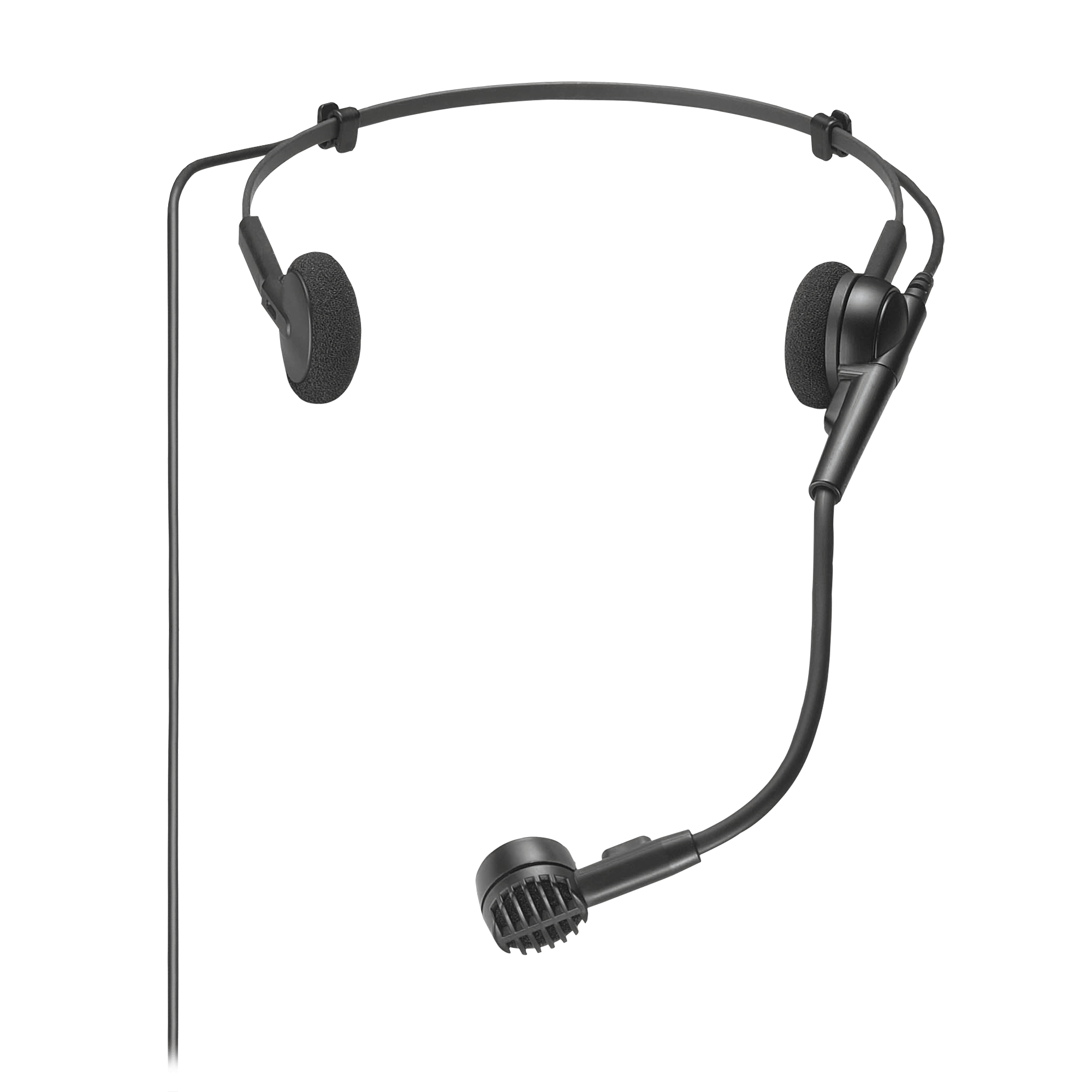

PRO 8HEcW Headworn Microphone

• Element: Dynamic
• Polar Pattern: Hypercardioid
• Frequency Response: 200-18,000 Hz
• Open Circuit Sensitivity: -55 dB (1.7 mV) re 1V at 1 Pa
• Weight: 2.1 oz (60 g)
• Cable: 7.2' (2.2 m) long, 0.11" (2.8 mm) diameter miniature audio cable permanently attached between microphone and XLRM-type connector
• Dimensions (Headset): 4.72" (120.0 mm) nominal at widest point, 3.17" (80.5 mm) flexible boom
• Dimensions (Microphone): 0.80" (20.4 mm) diameter

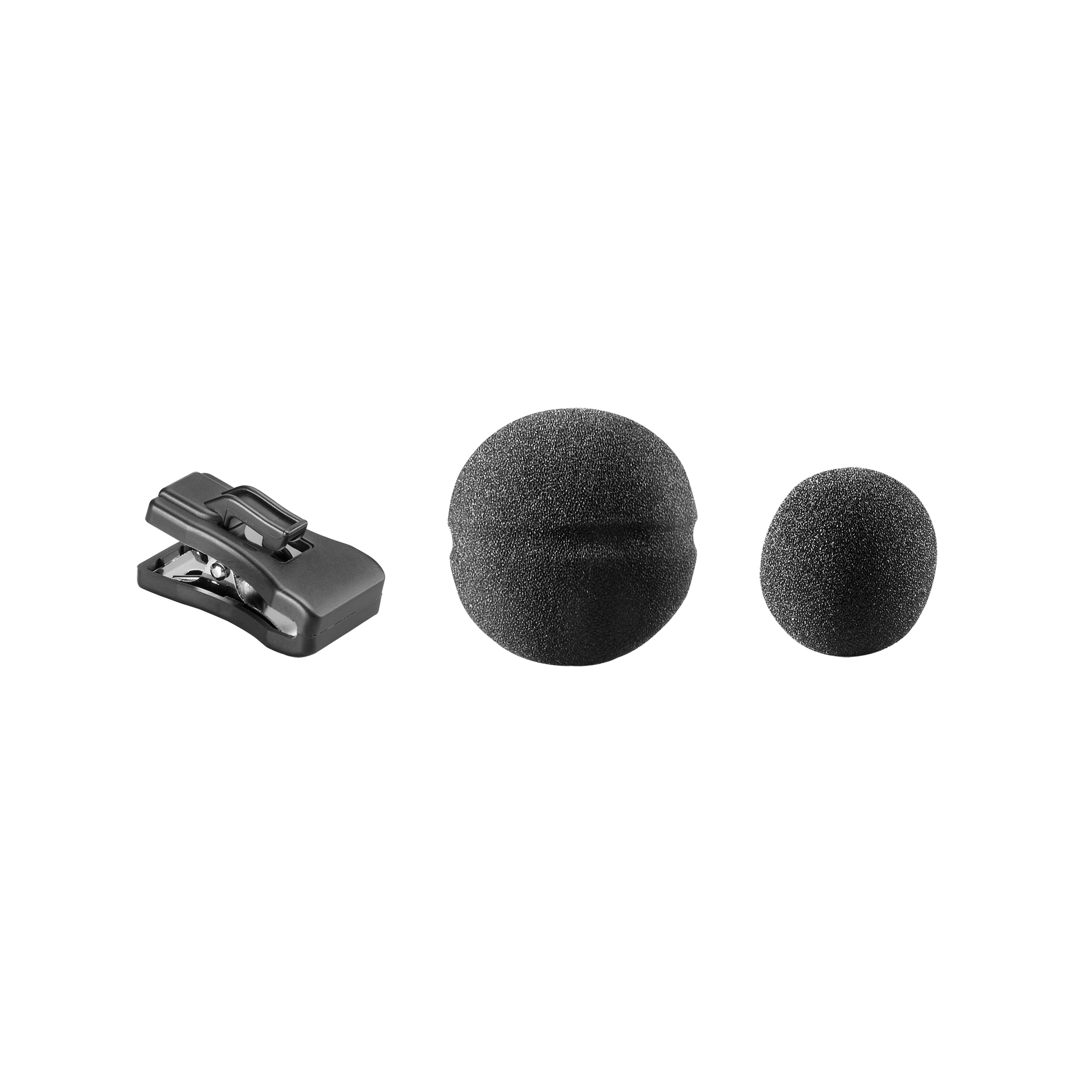

• Accessories Included: AT8139L large windscreen; AT8139S small windscreen; AT8439 clothing clip
• Audio-Technica Case Style: M19
