Audio-Technica ATW-901A/L System 9 Series Wireless Lavalier Microphone System

Enjoy Worry-Free Pristine Sound With The Audio-Technica System 9 Wireless Lavalier Microphone System

Audio-Technica's System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, System 9 has compatible options for handheld, headworn, guitar, and body-pack configurations as well. The system also offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz)

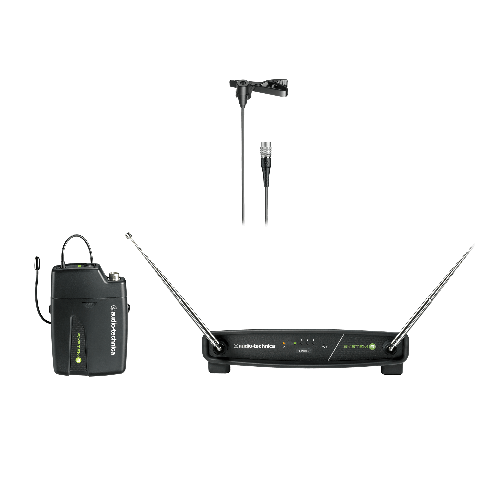

This System 9 configuration includes the ATW-R900a receiver and ATW-T901a body-pack transmitter with a MT830 omnidirectional lavalier microphone. The ATW-R900a is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900a also offers volume control along with AF Peak, RF and Power indicator lights.

Designed to be worn as a lavalier or hidden in loose clothing or in the hair, the MT830 omnidirectional condenser microphone provides high intelligibility for lecturers, stage/TV performers, and singers. The mic's wide-range capability ensures clean, accurate reproduction.

• Easy operation and clear, natural sound quality
• 4 selectable frequency-coordinated VHF channels
• Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range

SPECIFICATIONS

System

• Operating Frequencies: VHF highband, 169 MHz to 172 MHz
• Modulation Mode: FM
• Maximum Deviation: +/-10 kHz
• Frequency Response: 80 Hz to 13 kHz
• Operating Range: 200' (60 m) typical (Open range environment with no interfering signals)
• Total Harmonic Distortion: less than 1% (at 1 kHz, +/-10 kHz deviation)
• Operating Temperature Range: 40° F (4° C) to 110° F (43° C) Battery performance may be reduced at very low temperatures

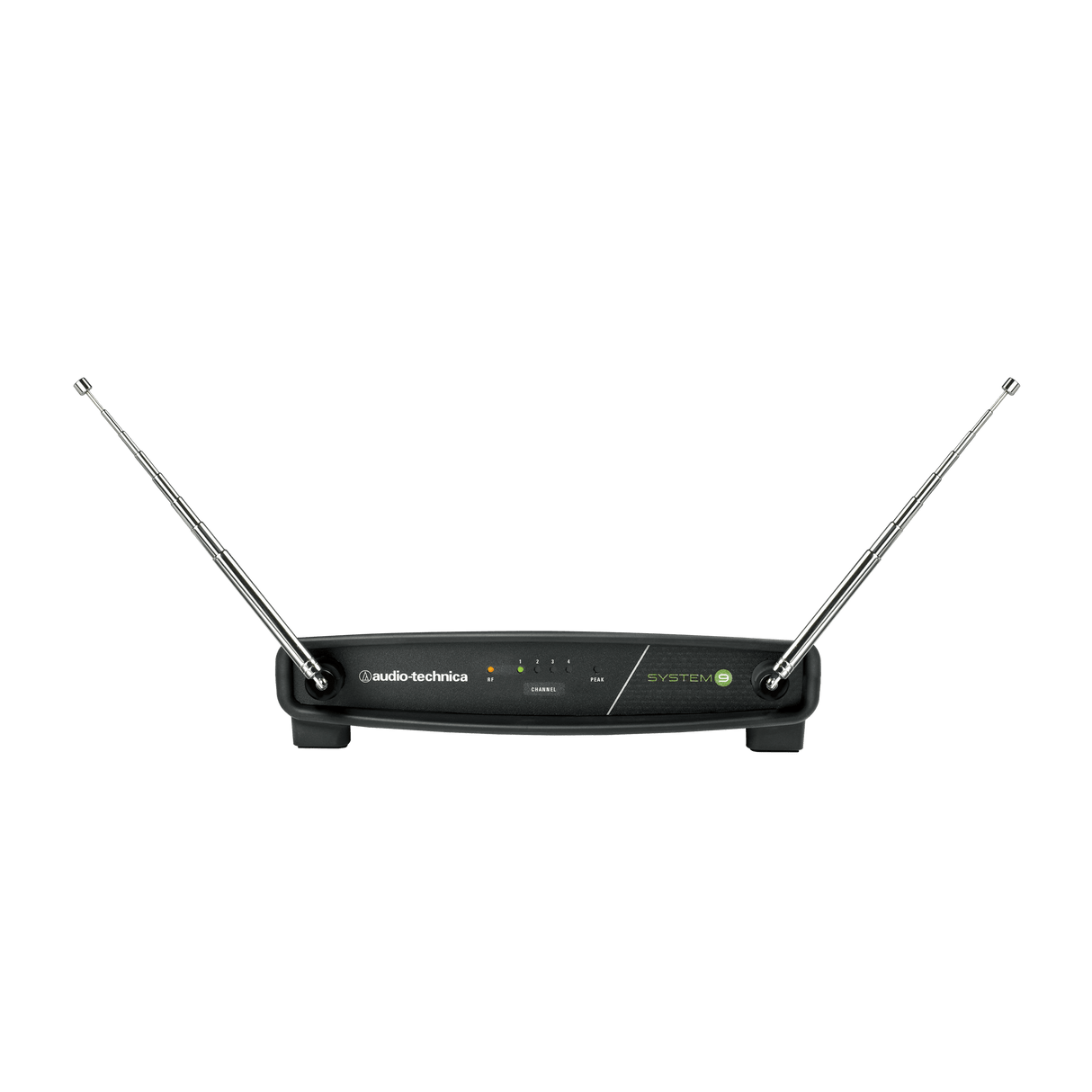

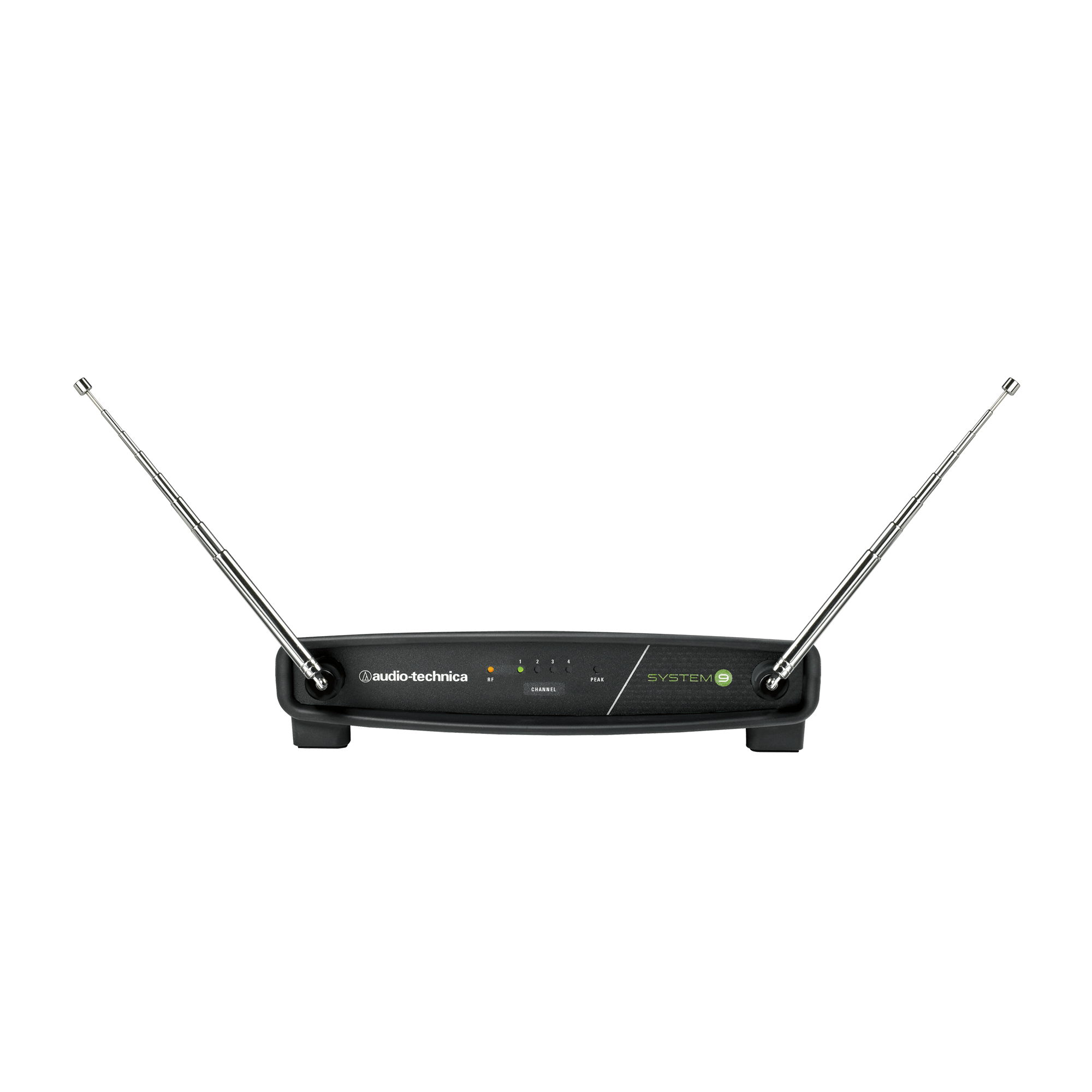

ATW-R900a Receiver

• Receiving System: Non-diversity, single-channel, dual antenna system
• Image Rejection: 50 dB minimum
• RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Dimensions: 7.48 (190.0) W x 1.82 (46.2) H x 5.06" (128.5 mm) D
• Weight: 12.0 oz (337 g)
• Accessories Included: Power supply
• Nominal Output Level
• XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
• 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)

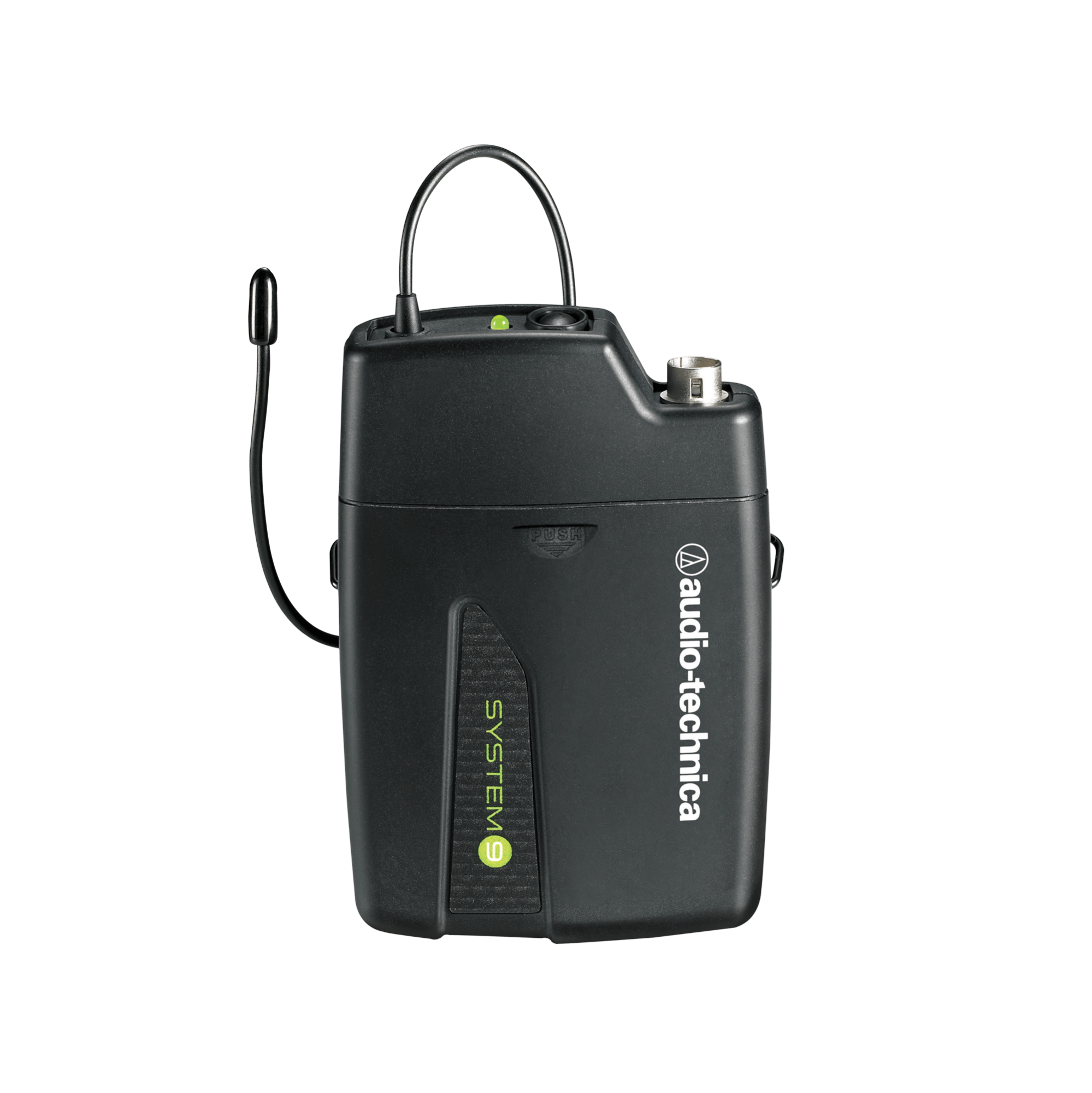

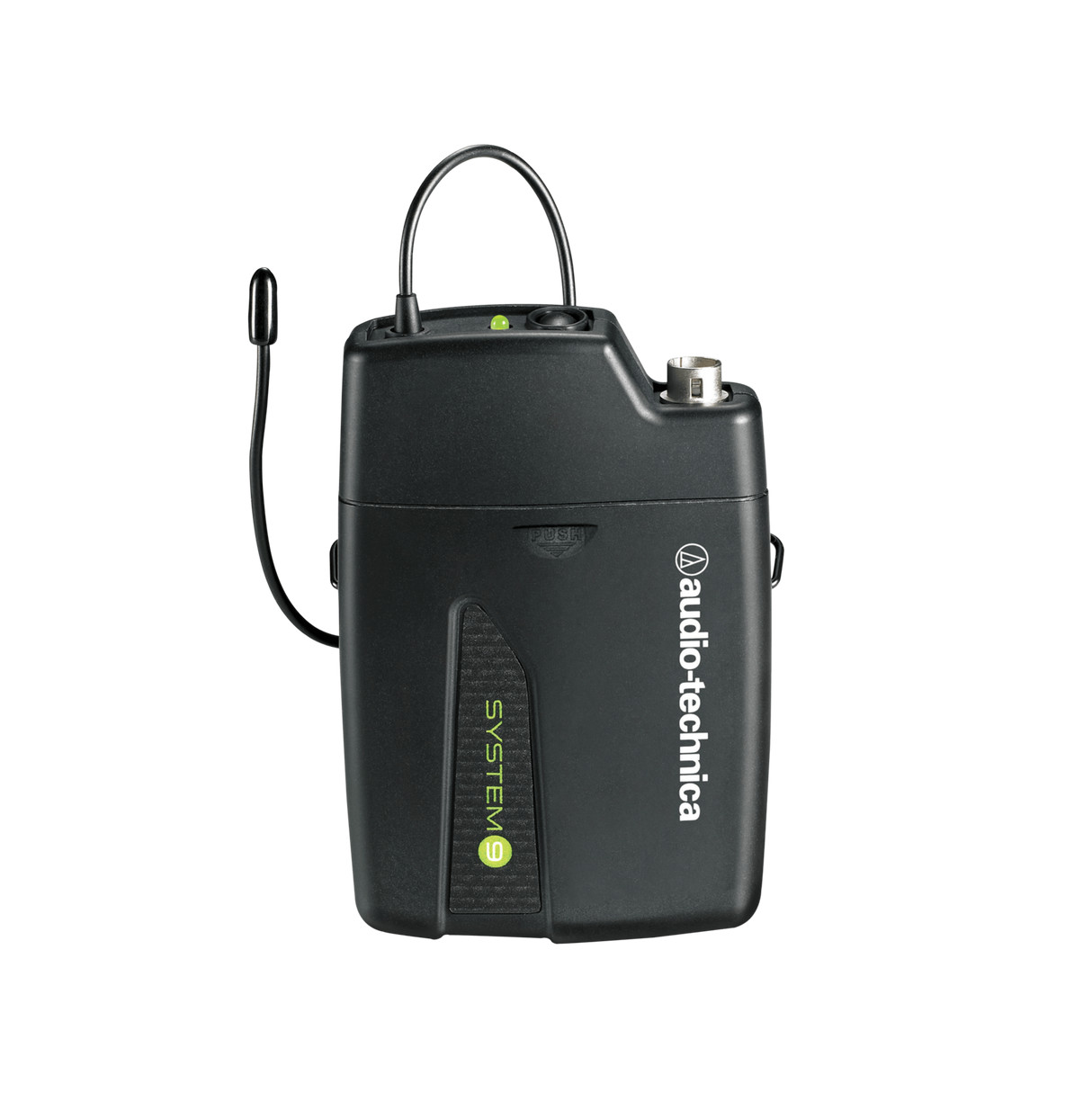

ATW-T901a Body-Pack Transmitter

• RF Power Output: 10 mW
• Battery Life: 8 hours (alkaline) Depending on battery type and use pattern
• Battery Type: Two 1.5V AA (not included)
• Dimensions: 2.76 (70.2) W x 4.08 (103.7) H x 0.98" (24.9 mm) D
• Input Connections: Four-pin Locking Connector
• Pin 1: GND
• Pin 2: INST INPUT
• Pin 3: MIC INPUT
• Pin 4: DC BIAS +9V
• Net Weight: 2.8 oz (80.0 g) without batteries
• Spurious Emissions: Following federal and national regulations

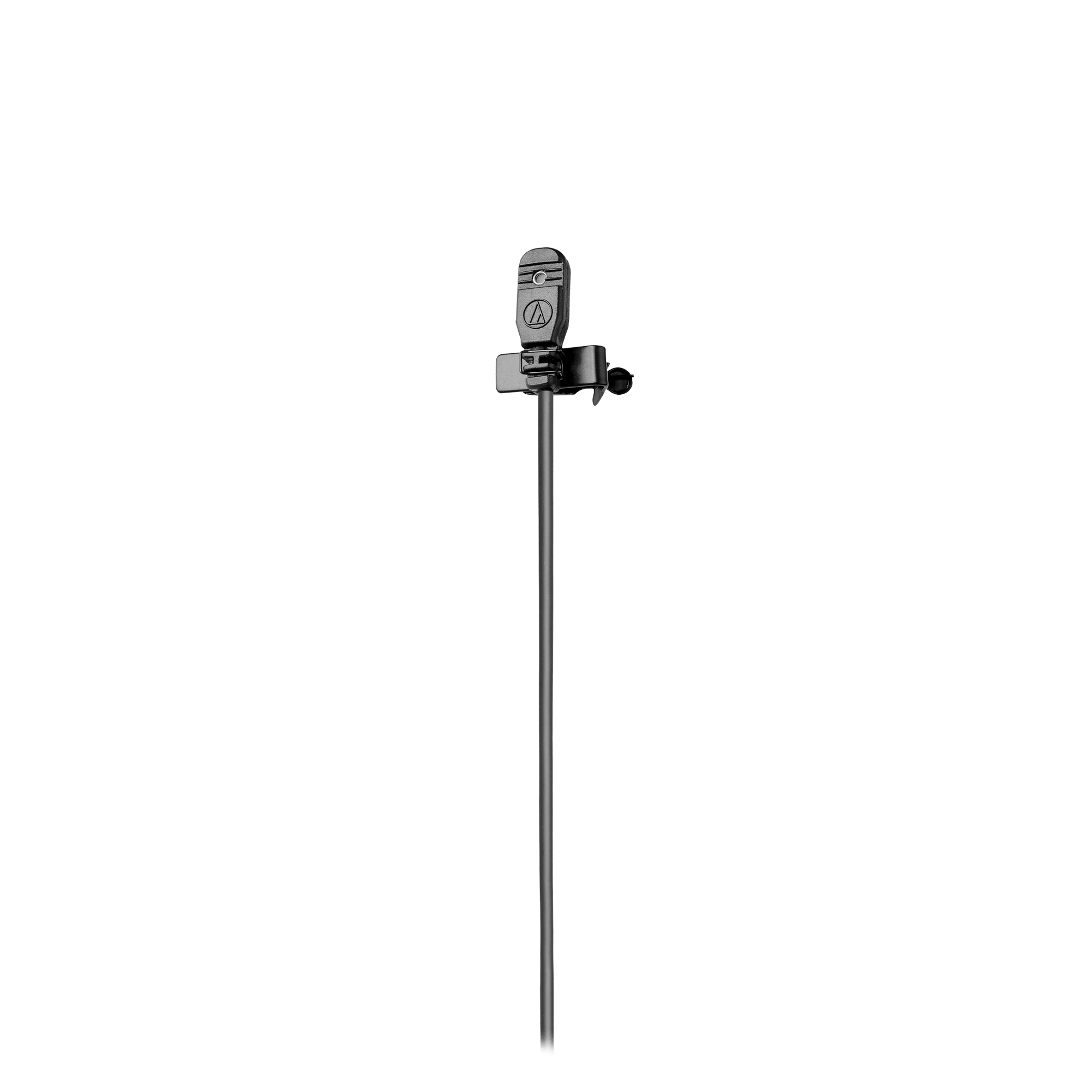

MT830 Omnidirectional Lavalier Microphone

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 30 - 20,000 Hz
• Open Circuit Sensitivity: -37 dB (14.1 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 135 dB SPL, 1 kHz at 1% T.H.D.
• Signal-to-Noise Ratio: 67 dB, 1 kHz at 1 Pa
• Cable: 7.6 m (25') long (permanently attached to microphone), 2.5 mm (0.10") diameter, 2-conductor, shielded cable with TA3F-type output connector
• Dimensions: 15.8 mm (0.62") long, 8.3 mm (0.33") wide, 5.0 mm (0.19") thick
• Accessories Included: AT8420 clothing clip; AT8130 windscreens
