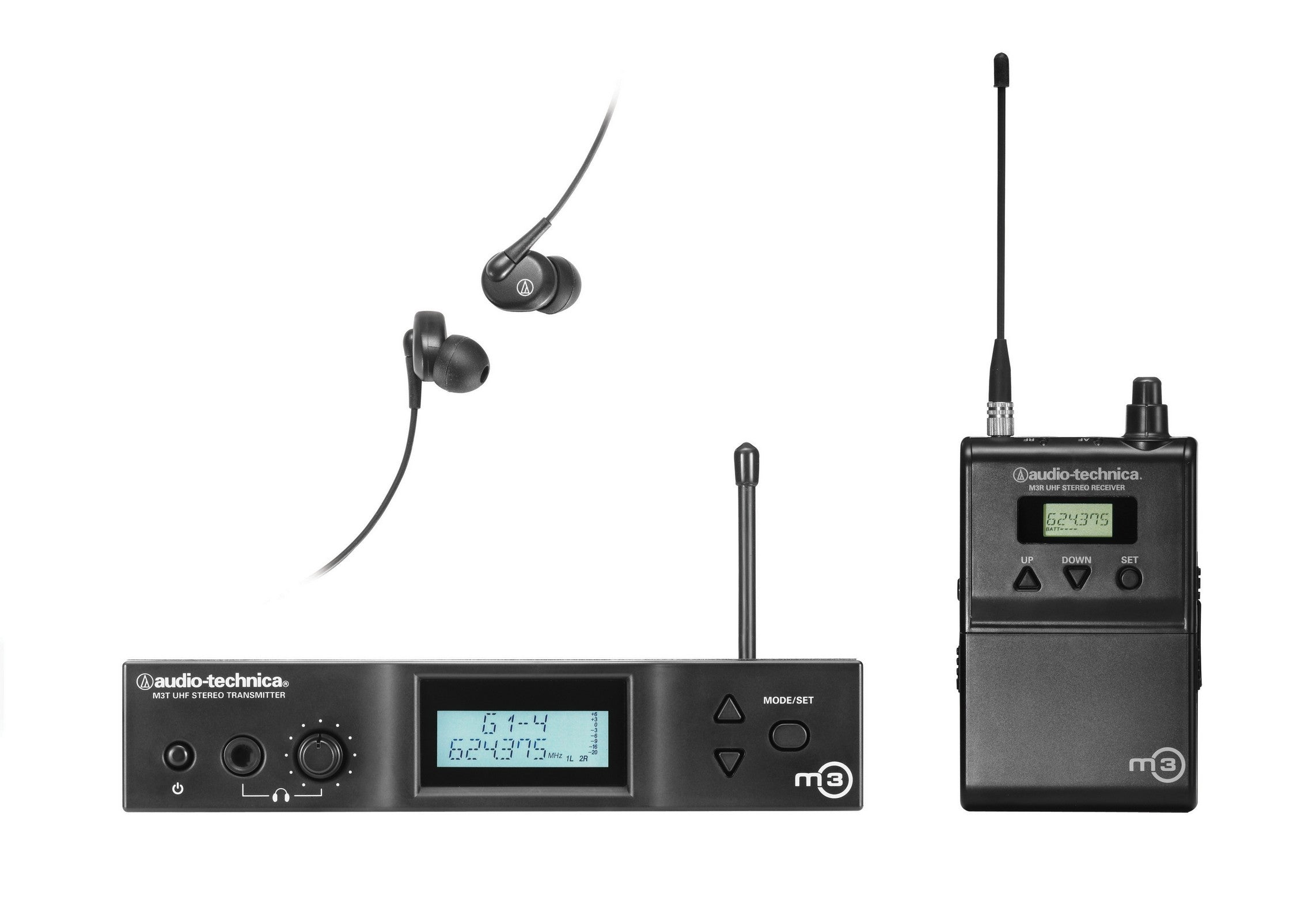

Audio-Technica M3L Advanced Wireless In-Ear Monitor System

Get High Performance You Can Rely On With The Audio-Technica M3L Advanced Wireless In-Ear Monitor System

Audio-Technica’s advanced M3 IEM system offers a full range of professional in-ear monitoring features, with a choice of 1321 UHF channels and easy-to-read LCD information displays on both transmitter and receiver for setting preferences. The stereo monitor system is equipped with Audio-Technica’s versatile Personal Mix Control, which allows volume and mix control of two independent signals on stage, via controls on the M3R stereo body-pack receiver. While up to 16 complete M3 systems may be used simultaneously, any number of M3R stereo receivers can operate on the same frequency with a single M3T stereo transmitter. The M3T Stereo Transmitter is equipped with two XLR 1/4" combo input connectors into which users can connect line-level inputs (from a mixing console, for example). The M3T also offers a headphone output that allows you to monitor transmitter input signals directly.

• High-fidelity sound with clean, articulate mix allows performers to hear themselves clearly at lower volume
• 1321 selectable UHF channels with automatic frequency scanning

• Up to 16 simultaneous systems per frequency band

• Three receiver modes: Personal Mix, stereo, and mono

• Personal Mix Control allows volume and mix control of two independent signals at the receiver

• LCD information display offers step-through menus for setting preferences

• XLR loop output (true pass-through) connects signal to mixing console, additional IEM system or recording device with no signal degradation

• Adjustable squelch eliminates annoying static

• Pilot tone protects against RF interference when transmitter is turned off

• Multi-level limiter (defeatable) helps protect hearing from sudden peaks

• Portable system is quick to load and set up

• Reduces on-stage audio clutter for better overall mix & less feedback

• Use any number of Stereo Receivers (with individual mixes) on the same frequency

• Audio-Technica earphones with proprietary dynamic drivers offer full frequency response and outstanding isolation

• Personal fit with 3 sizes of rubber eartips plus ear-conforming foam tips

• Selectable auxiliary input offers connection point for ambient microphone, click track, or other mic- or line-level input


OVERALL SYSTEM SPECIFICATIONS

• Operating FrequenciesBand L: 575.000 to 608.000 MHz, 1321 frequencies. Not all frequency bands available in all areas. Please check with local regulations.

• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM stereo
• Maximum Deviation: +/- 40 kHz
• Dynamic Range: 90 dB (typical), A-weighted
• Total Harmonic Distortion: <1% at (1 kHz, +/- 20 kHz Deviation)
• Operating Range: 100 m (300'), typical open range environment with no interfering signals.
• Operating Temperature Range: -5 degrees C (23 degrees F) to +50 degrees C (122 degrees F) - Battery performance may be reduced at very low temperatures.
• Frequency Response: 60 Hz to 13 kHz (+/- 3 dB)
• Simultaneous Use16 channels per band (maximum recommended)

RECEIVER SPECIFICATIONS

• Receiving System: Double conversion superheterodyne
• RF Sensitivity: 20 dBuV (at 60 dB S/N ratio, 50 ohms termination)
• Headphone Output Connector: 3.5 mm TRS stereo phone jack
• Headphone Output Power: 65 mW (at 32 ohms)
• Antenna Input: SMA-type, 50 ohms
• Aux Input Connector: 3.5 mm TRS stereo phone jack
• Batteries: 2 x 1.5V AA (not included)
• Battery Life: 8 hours (alkaline) Depending on battery type and use pattern
• Dimensions: 70.0 mm (2.76") W x 25.0 mm (0.98") D x 110.0 mm (4.33") H
• Net Weight: 133 g (4.7 oz), without batteries
• Accessories Included: EP3 earphone; flexible antenna

TRANSMITTER SPECIFICATIONS

• RF Power Output: 10 mW/50 mW (switchable), 50 ohms - Limited to 10 mW within 863 MHz to 865 MHz following national regulations
• Spurious Emissions: Following federal and national regulations
• Input Connections: XLRF-type/6.3 mm stereo (1/4") combination connector
• Pin 1 and Sleeve: Ground
• Pin 2 and Tip: Hot
• Pin 3 and Ring: Cold
• Maximum Input Level: XLRF-type/6.3 mm stereo, (1/4") balanced: +26 dBu
• 6.3 mm (1/4") mono, unbalanced: +26 dBu
• Loop Output Connector: XLRM-type connector
• Pin 1: Ground
• Pin 2: Hot
• Pin 3: Cold
• Power Requirement: 12-18V DC, 600 mA
• Headphone Output Connector: 6.3 mm (1/4") TRS stereo phone jack
• Headphone Output Power: 120 mW at 32 ohms
• Antenna Connector: BNC, 50 ohms
• Dimensions: 210.0 mm (8.30") W x 132.0 mm (5.20") D x 44.0 mm (1.70") H
• Net Weight: 930 g (32.8 oz), without accessories
• Accessories Included: AC adapter (country dependant); rack mount adapters; flexible antenna
