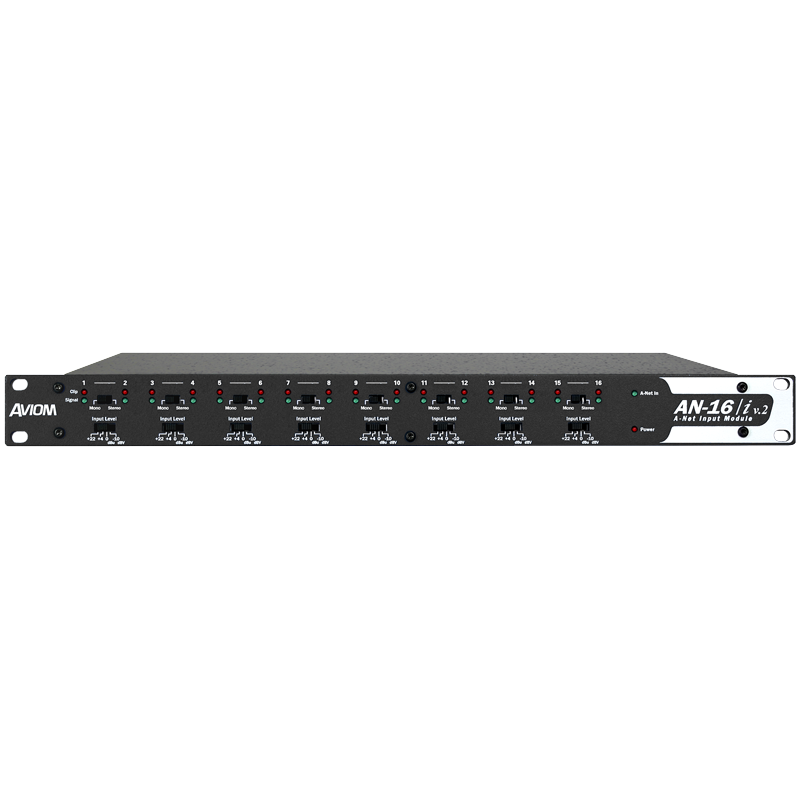

Aviom AN-16/i v.2 16 Channel Input Module
🔥Time to Save!
👉23% - $300.00 off while supplies last!
MSRP: $159900
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
Simple Setup Powerful Performance - The Aviom AN-16/i v.2 16 Channel Input Module
The AN-16/i v.2 Input Module is used to connect up to 16 balanced line-level inputs from a mixing console's direct outputs, insert points, aux sends, and/or submixes to a personal mixing system. When used alone, one AN-16/i v.2 can generate a single 16-channel A-Net signal.
The A-Net In on the AN-16/i v.2 allows multiple Pro16 input devices (including console cards, AN-16/i-M, and the original AN-16/i) to be connected together to generate the higher channel count Pro16e™ version of A-Net used by the A640, A360, and A320 Personal Mixers.
- Sixteen balanced audio inputs (1/4-in TRS connectors)
- Sixteen balanced Thru connectors (TRS)
- A-Net In with four-position slot range selector switch
- Stereo Link switches for each channel pair
- Four-position gain switches (+22, +4, 0, -10dB)
- Signal present and clip LEDs per channel
SPECIFICATIONS
- Audio Inputs: 16, balanced line-level, 1/4-inch TRS connector
- Inputs Configuration: Tip: Audio +; Ring: Audio -; Sleeve: Ground
- TRS Thru: Impedance matched output
- Analog to Digital Conversion: 48kHz sample rate, 24 bit
- Frequency Response: 4Hz-22kHz
- A-Net In: One Category 5 (RJ45 connector), Four-position slot range selector switch for use with Pro16e A-Net
- A-Net Out: One Category 5 (RJ45 connector)
- Gain Settings: Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu
- Channel LED Indicators: Signal Present and Clip, per channel
- Line Inputs Impedance: 48k ohms
- Metering: LEDs; green: Signal Present, red: Clip; per channel
- Stereo Operation: Stereo Link, per channel pair; Two-position switch (Normal, Link)
- Maximum Input Level: +22dBu
- Input Impedance: 17.8k ohm
- Frequency Response: 4Hz-22kHz +0.2dB/-3dB
- THD +N: < 0.003%
- Crosstalk: -90dB
- Bit Error Rate (BER): 10(-12)
- Signal to Noise (unweighted): 90dB typical, A/D to D/A
- Measured from AN-16/i to AN-16/o Output Module
- Digital Outputs: A-Net: 1; RJ45 connector
- Pro16e A-Net: Use unshielded Cat-5e UTP (or better) cable
- Latency: <0.880 msec (measured from analog input to analog output)
- Power Supply: External, DC, universal switching type
- Input Voltage: 100-240 volts, 50/60Hz, 30VA
- Output Voltage: 18-24 VDC, 0.5 amp
- Plug Size: 2 mm
- Dimensions: 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
- Weight: 6.8 lb (3.08 kg)
Manufacturer: AVIOM
Model: AN-16/I V.2
SKU: I463556-N-1-WHXX
UPC: 850007957094
