Barefoot Sound MicroStack45 3-Way Active Reference Monitors & Stereo Subwoofers - Pair

Experience Full Range Power And Precision With The Barefoot Sound MicroStack45 3-Way Active Reference Monitors and Stereo Subwoofers

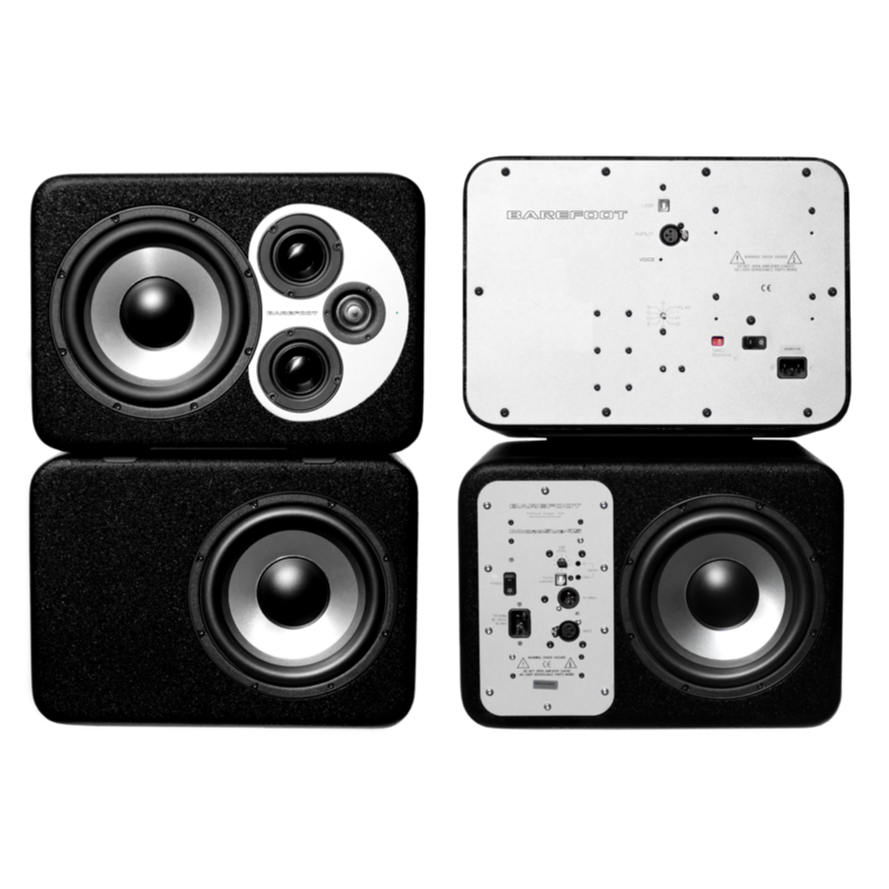

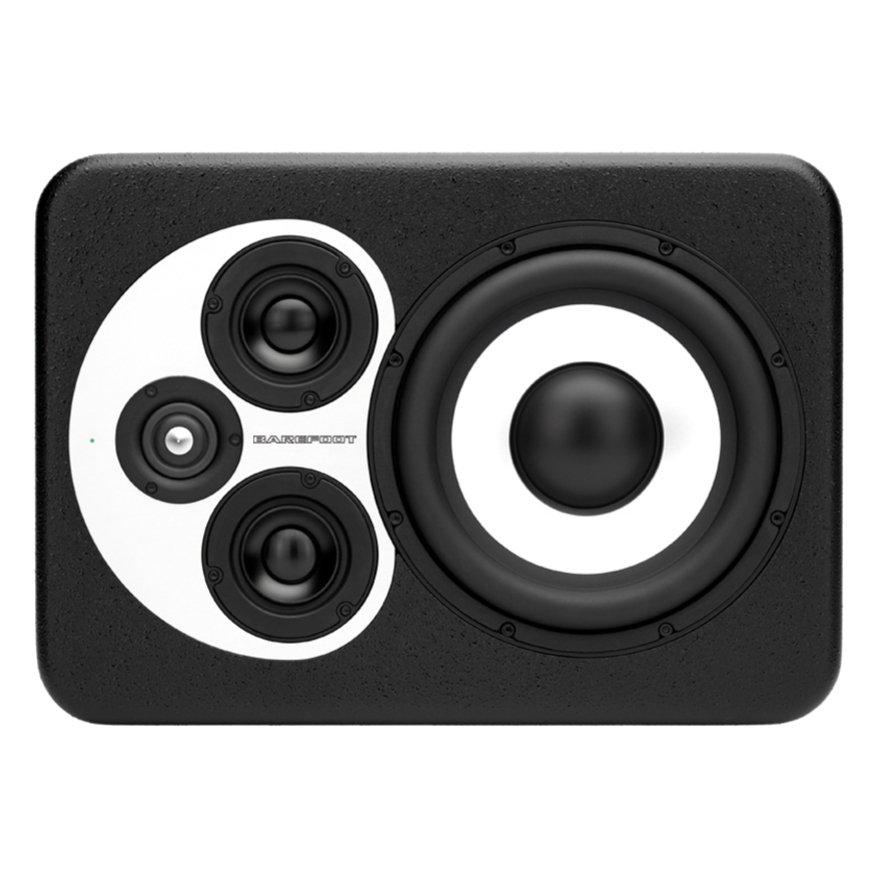

With the recent introduction of Barefoot Sound's MicroSub45 Dual-Force technology subwoofer, you can create MicroStack45, a stereo package of two MicroMain45 3-way active reference monitors and two MicroSub45 subwoofers. Each stereo system incorporates a pair of 1-inch tweeters, four 2.5-inch midrange drivers, and six high-excursion 8-inch woofers, all designed to work seamlessly together and as a single unit.

Dual-Force Low-Frequency Extension

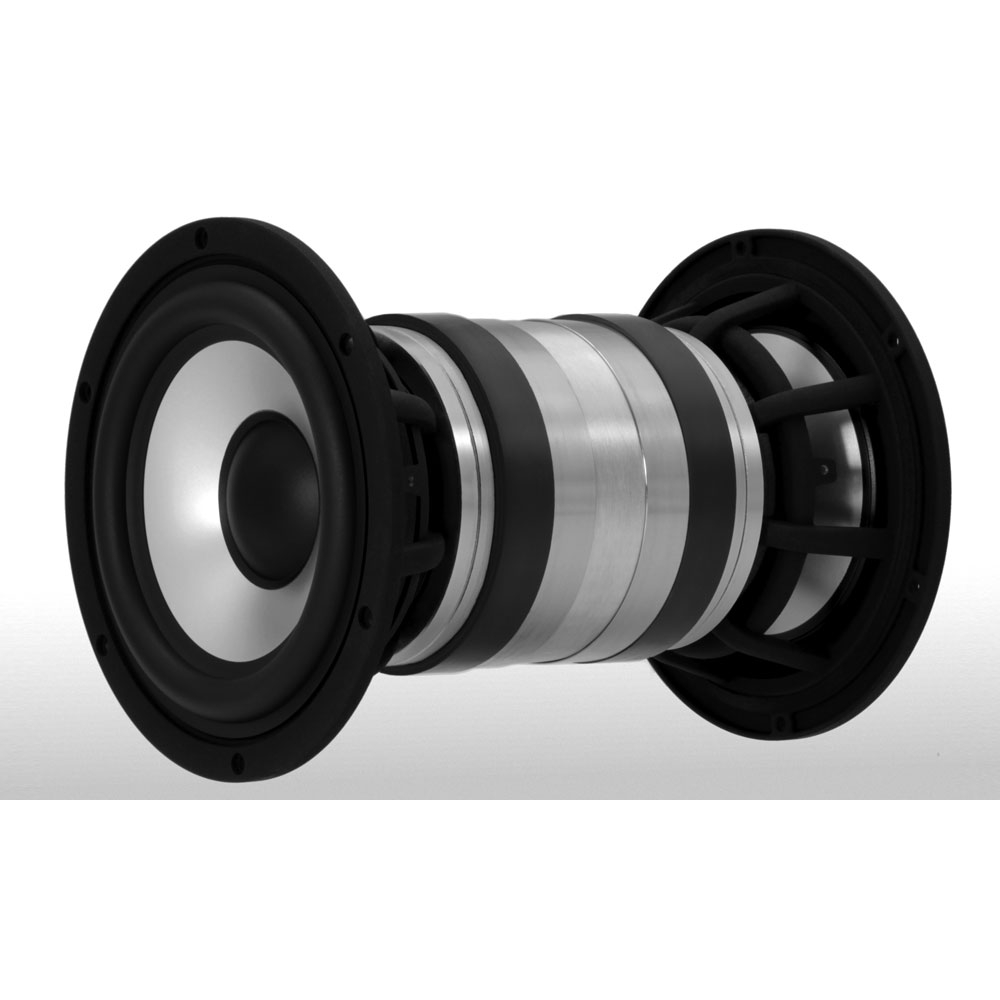

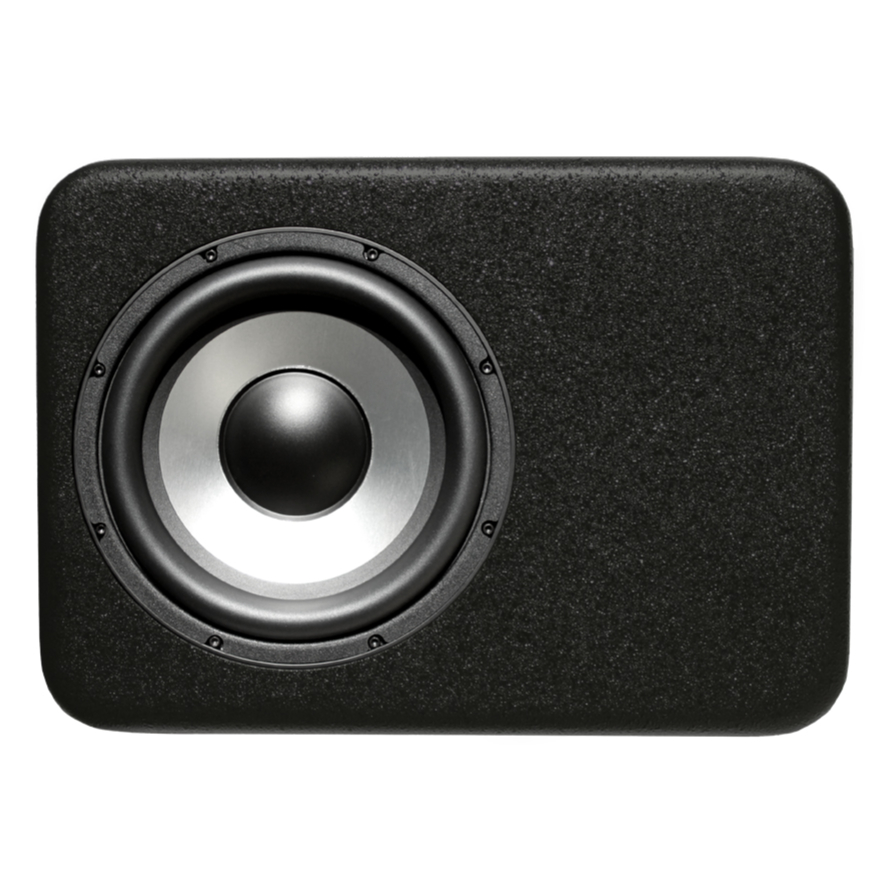

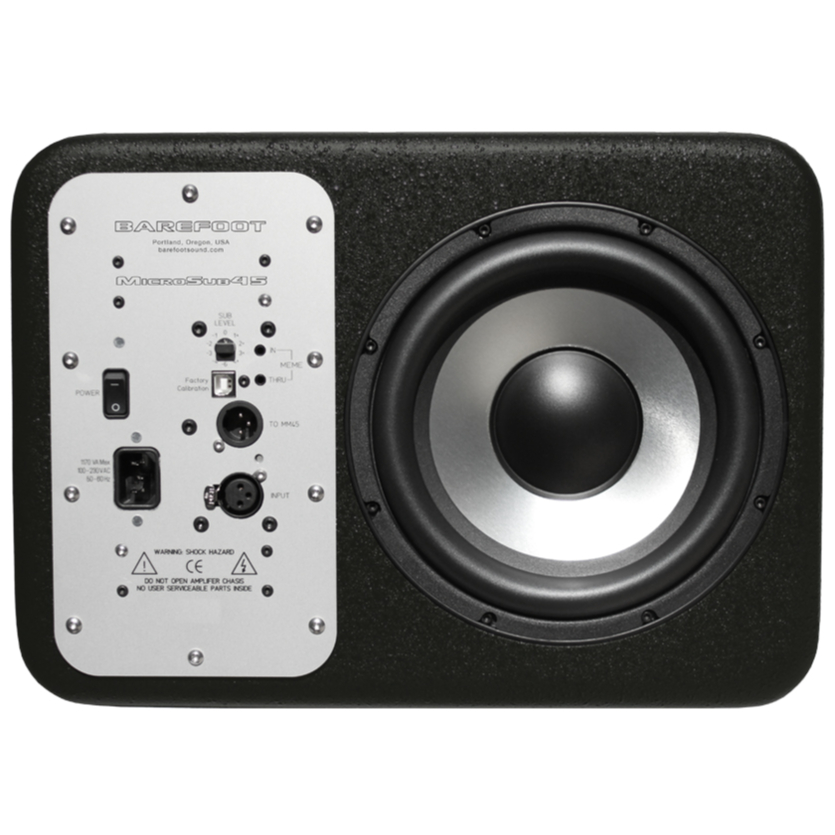

MicroSub45 subwoofers feature Barefoot's innovative Dual-Force technology, housing a pair of opposing 8-inch aluminum cone drivers plus a balanced analog high-pass filter that crosses the system over at 80 Hz. Dual-Force technology eliminates vibration within the MicroSub45 speaker cabinet, delivering clean low-frequency extension down to 25 Hz when combined with the MicroMain45.

Stacks and Tilts

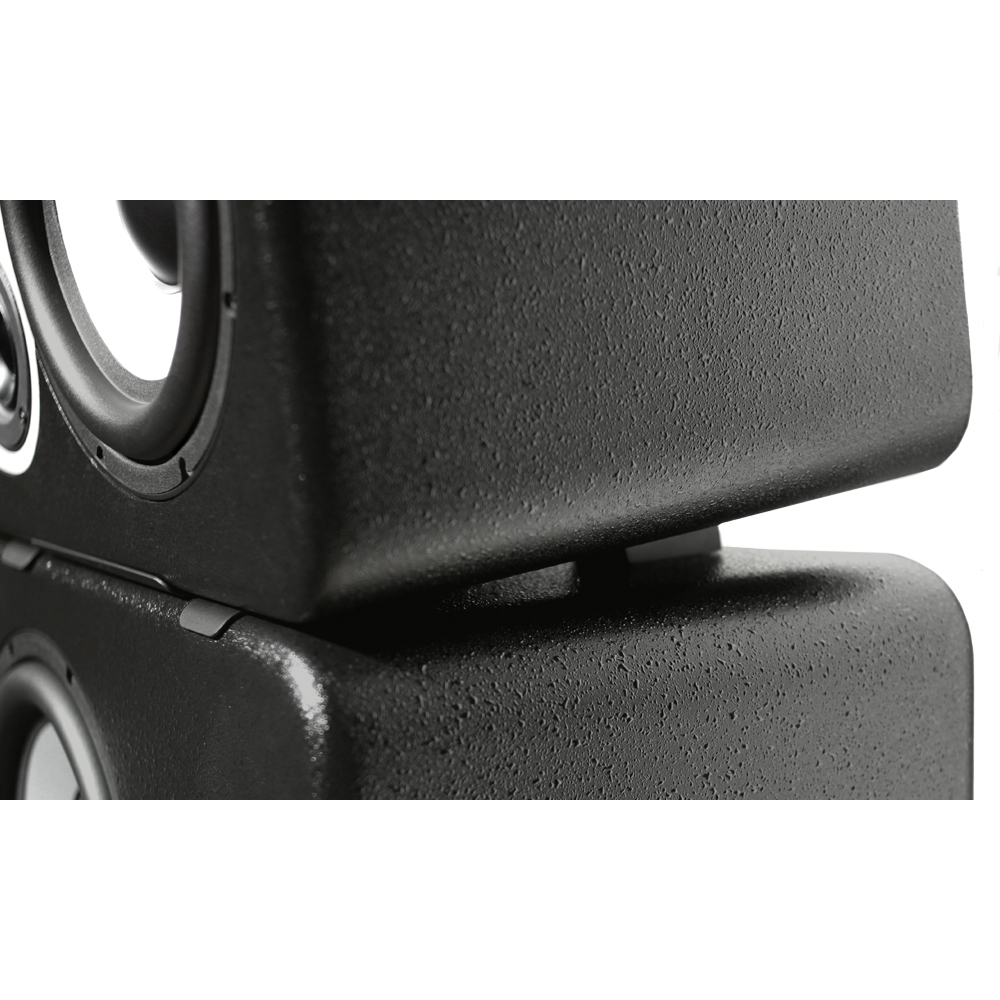

Barefoot Sound's MicroStack45 system works optimally when the MicroMain45 monitors are positioned either directly on top of or underneath the MicroSub45 subwoofers, depending on your preference. A tilt feature enables the MicroMain45 monitors to be directed at the listening sweet spot and is designed so that the stack is very sturdy and will not slip.

If you are working to a budget, you can start with a stereo pair of MicroMain45 monitors then add two MicroSub45 subwoofers when the time is right.

MEME Technology

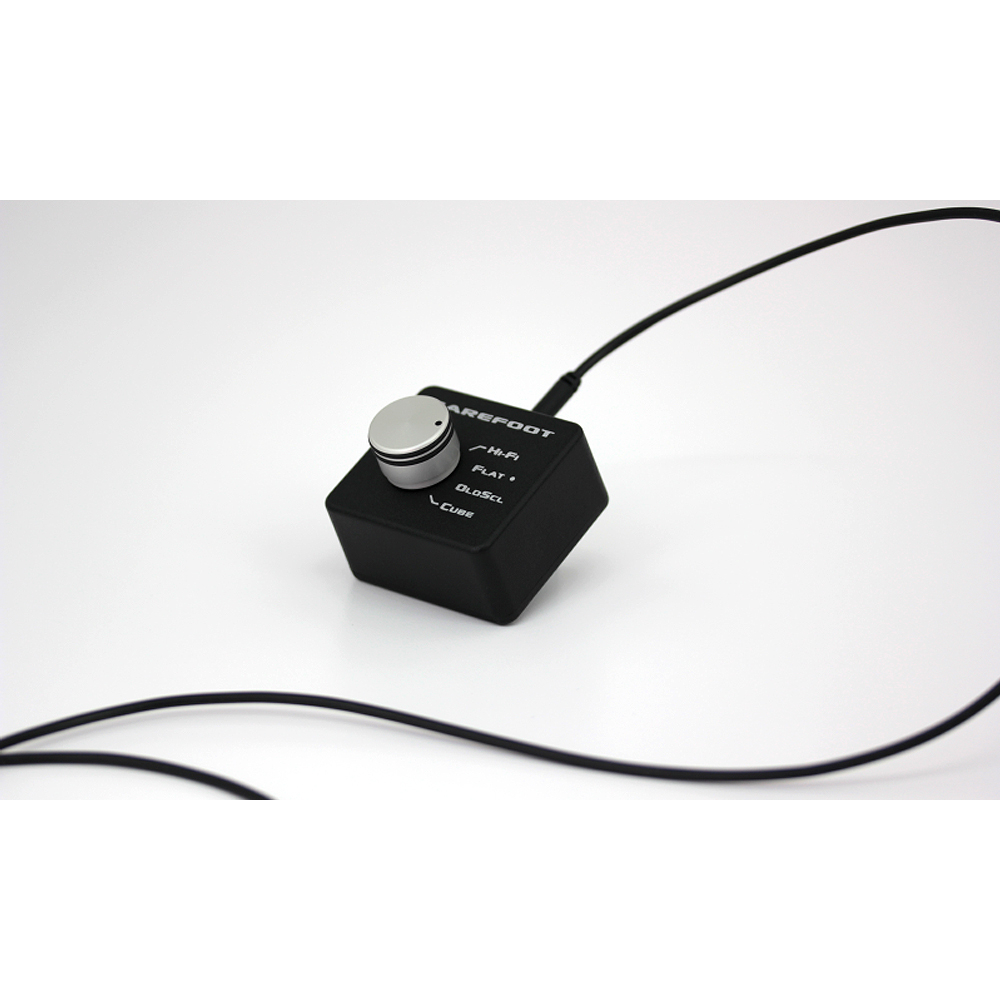

Barefoot Sound's Multi-Emphasis Monitor Emulation technology harnesses sophisticated DSP modeling to bring you the voicing characteristics and responses of classic studio nearfield monitors. You can use the four-position wired remote to quickly switch through different voices, allowing you to preview your mix on different types of speakers, from the same stereo position and without the clutter of multiple speaker systems.

The four settings are "Old School," "Cube," "Hi-Fi," and "Flat." The "Old School" setting captures the essence of the ubiquitous NS10M, rolling off the sub-bass and top-end information, and bringing forward mid-range presence. The "Cube" setting is a nod to the "aura" of the classic full-range micro monitors of yesteryear, a valuable setting in the age of laptops, tablets, and earbuds. "Hi-Fi" sweetens the high end and warms mid-range to behave much like consumer hi-fi systems, the perfect setting for quick artist playback or when listening to favorites in the studio. Last, as you might expect, "Flat" is the prized default setting, offering the true, revealing Barefoot Sound.

• 2220 Watts of Power
• 80 Hz Balanced Analog High-Pass Filter
• Bass Response Down to 25 Hz
• Dual-Force Technology
• (6) 8" Aluminum Woofers
• Dual-Force Technology
• MEME Technology

SPECIFICATIONS

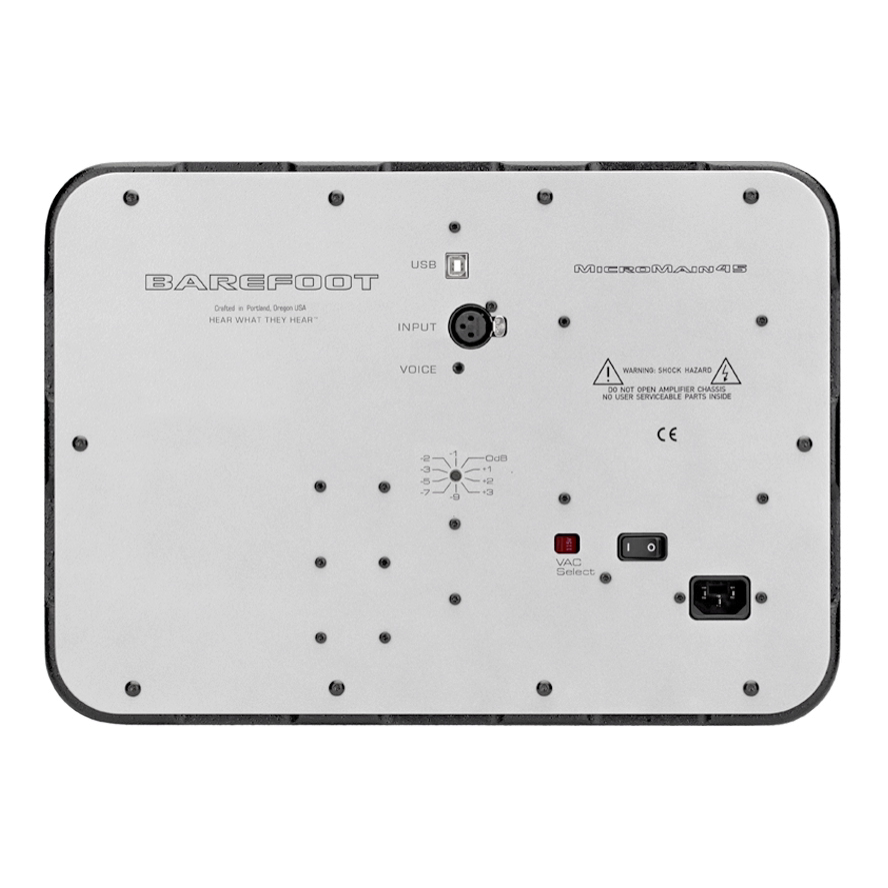

Controls

• Input level stepped attenuator
• Equalization contour

Input Impedance

• 50k Ohm

Frequency Response (MicroMain45)

• 18Hz - 50kHz (+/-3dB)
• 26Hz - 40kHz (+/-1dB)

Bass Response

• -3 dB @ 25Hz, Q = 0.707
• Slope = 12 dB/octave

Cabinets

• 32 liters total internal volume together
• Both units are sealed woofer and midrange enclosures
• Machined aluminum baffle plate
• Long fiber foam acoustic damping throughout

Crossover Frequencies

• 80 / 600 / 3600 Hz

Tweeter

• 1" ring radiator
• Advanced geometry motor
• Rear waveguide chamber
• Amplifier: 180W Hypex

Midranges

• 2 x 2.5" aluminum cones
• Advanced geometry motor
• +/- 2 mm linear excursion
• Amplifier: 180W Hypex

Woofers

• 2 x 8" aluminum cones
• Advanced geometry motor
• +/- 13 mm linear excursion
• Amplifier: 500W

Subwoofers

• 4 x 8" aluminum cones
• Advanced geometry motor
• +/- 25 mm linear excursion
• Amplifier: 1000W

AC Power Input

• Nominal 115 VAC or 230 VAC selectable

Power Consumption: Idle

• 25W, Maximum: 1165W

MicroMain45 Dimensions and Weight

• Cabinet: 11.0 x 15.5 x 10.75 inches (279 x 394 x 273 mm)
• Overall: 11.0 x 15.5 x 11.0 inches (279 x 394 x 279 mm)
• Speaker: 37.5 lbs each (17 kg)
• Shipping: 47 lbs each (21 kg)

MicroSub45 Dimensions and Weight

• Cabinet: 14.0 x 9.5 x 13.0 inches (356 x 241 x 330 mm)
• Overall: 14.0 x 10.25 x 13.6 inches (356 x 260 x 345 mm)
• Speaker: 45 lbs each (20.5 kg)
• Shipping: 54.5 lbs each (25 kg)

Stack Dimensions

• 14.0 x 20.50 x 13.6 inches
